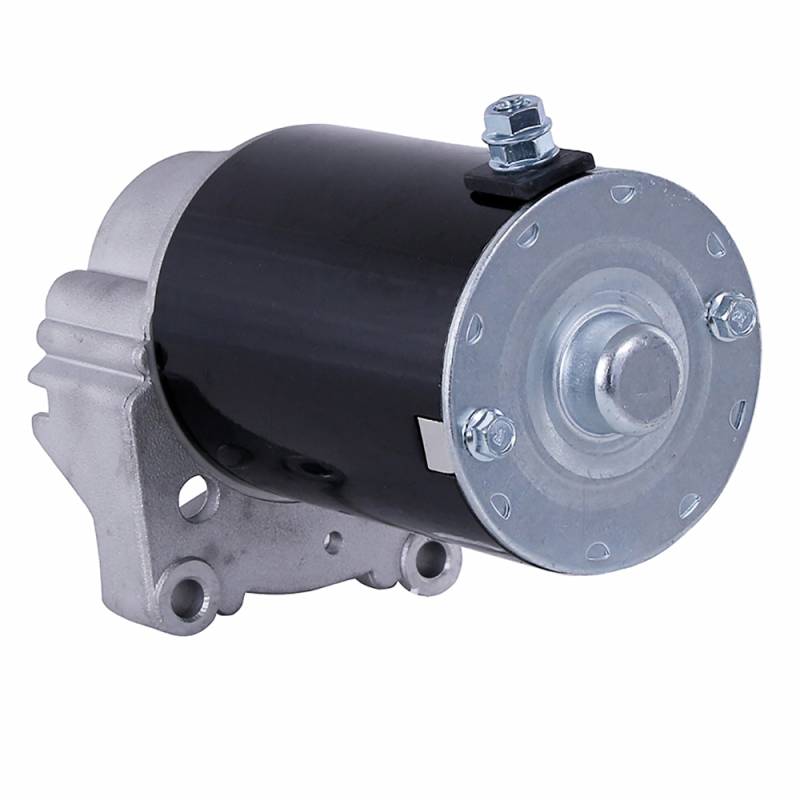

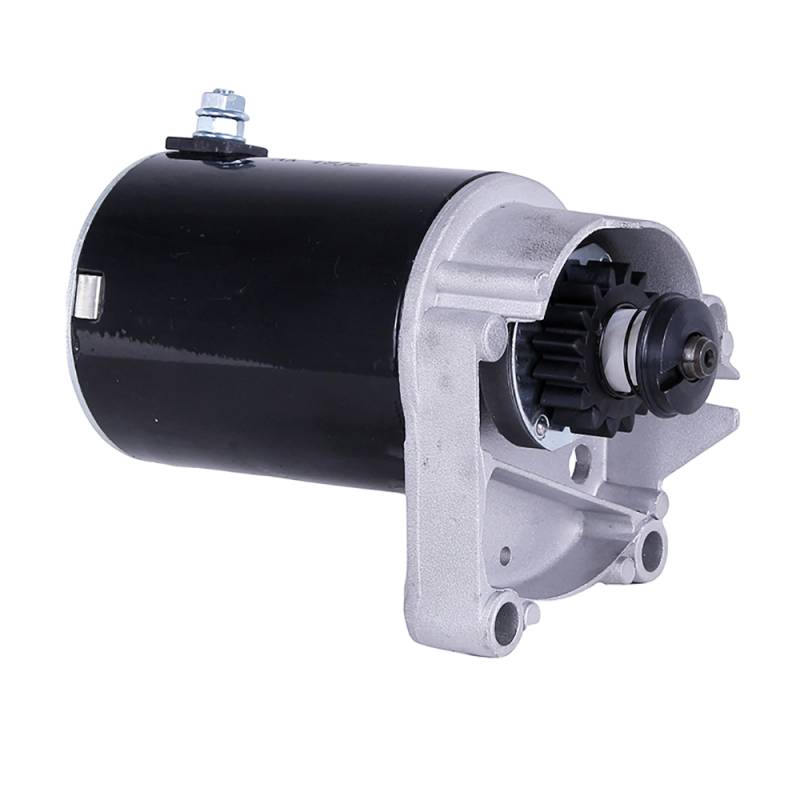

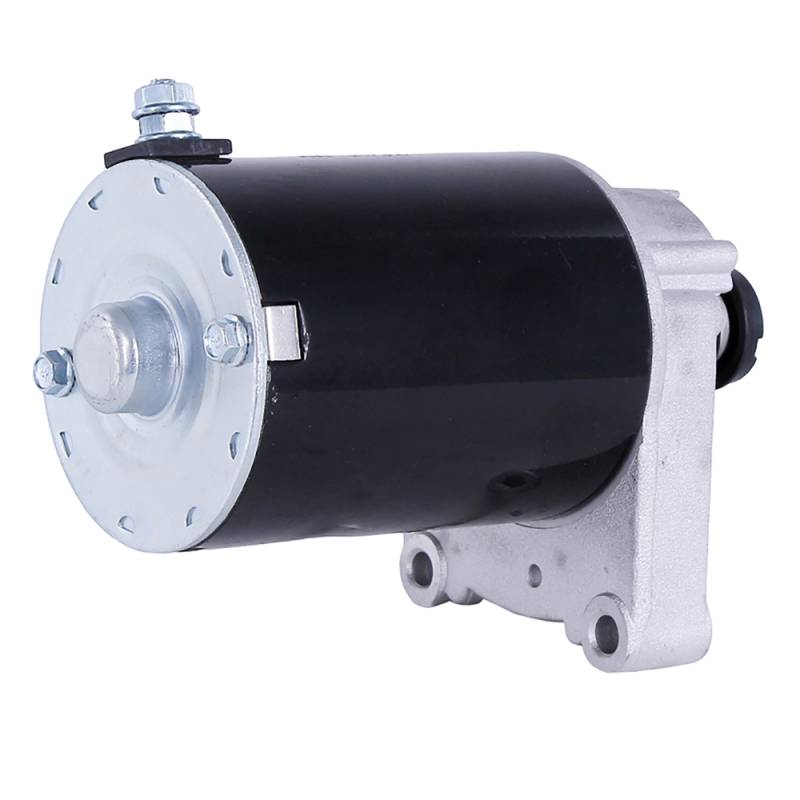

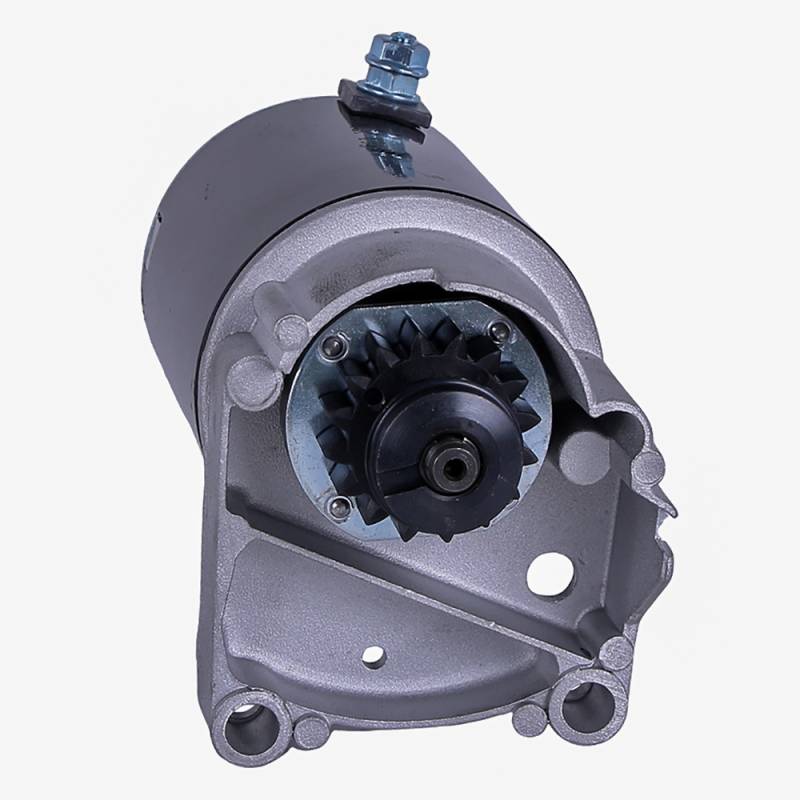

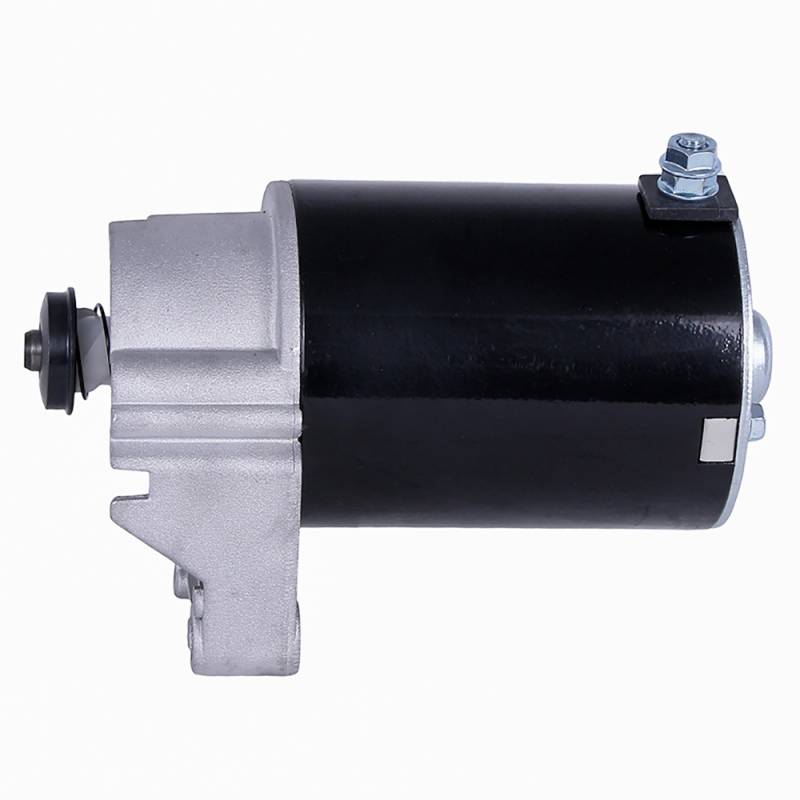

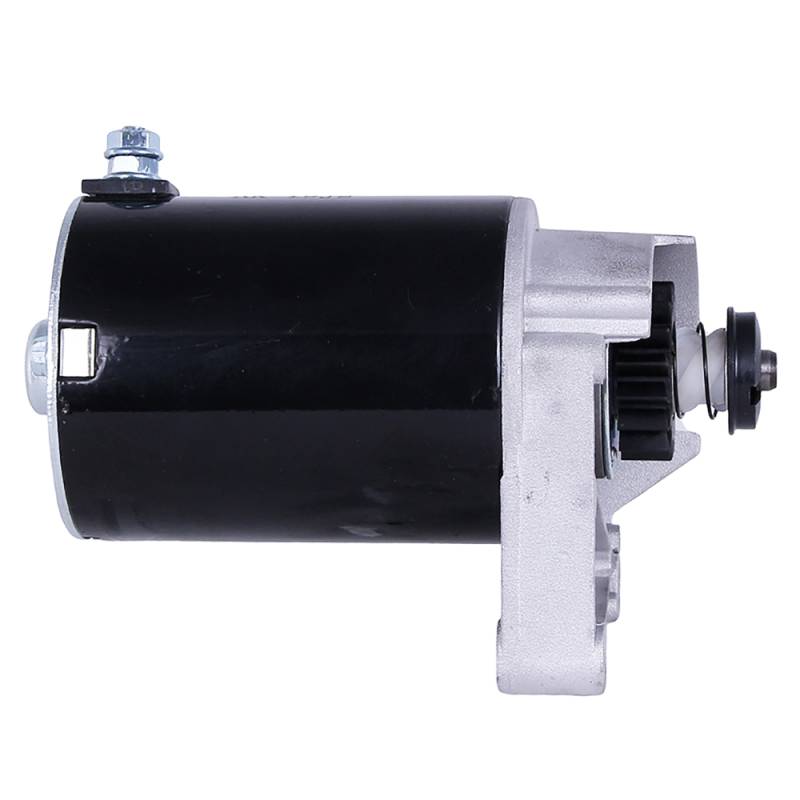

12V Starter Motor Compatible With John Deere 116H 65 66 68 Riding Mower Cub Cadet 1604 1606 497596

400707*8
BRIGGS & STRATTON PART NUMBERS:
• 497596
• 394808
• 394674
• 393017
• 497956
• 5407H (retail pack number)

REPLACEMENT PART NUMBERS:
• Stens 435-307, 435307

JOHN DEERE PART NUMBERS:
• LG497596 (current number)
• AM122238
• AM39287
• AM38984
• AM38999

CASE IH / INTERNATIONAL HARVESTER PART NUMBERS:
• IH-106749-C1, IH106749C1
• IH-78232-C1, IH78232C1

SPECIFICATIONS:
• Product: Starter
• Type: starter motor, PMDD (permanent magnet direct drive)
• Voltage: 12 volt
• Rotation: CCW (counterclockwise)
• Pinion: 16 tooth plastic gear, gear OD 40.6 mm (1.598 in)
• Field case length: 96.5 mm (3.8 in)
• Mounting: three unthreaded ears, 9.5 mm, 8.5 mm and 8.5 mm ID

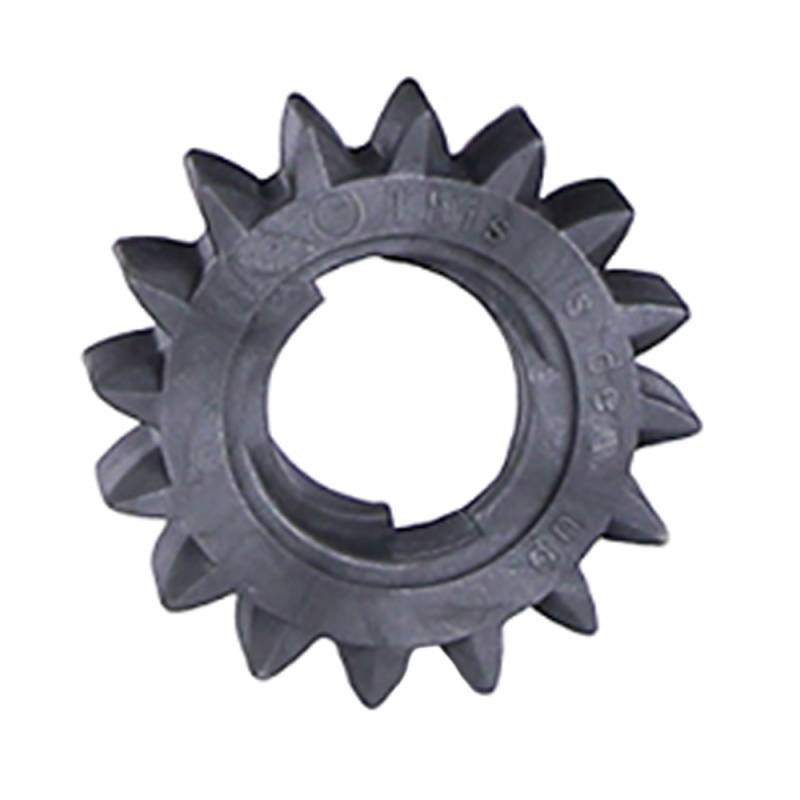

• Includes: extra 16 tooth plastic gear
• Flywheel: for plastic flywheel ring gears only, not for steel ring gears
• Engines: Briggs & Stratton air-cooled opposed twin, 14 to 18 HP
• Weight: 2.35 kg (5.18 lb)
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $100.61
Sale: $57.49
Save: 43%
Save: $43.12
Qty:
Free Shipping!

Description

BRIGGS & STRATTON MODEL 40 OPPOSED TWIN, 14 HP (655 CC):
• Briggs & Stratton 400707 vertical shaft
• Briggs & Stratton 400417, 400437, 400447 horizontal shaft
• Briggs & Stratton 400777, 40A777 vertical shaft

BRIGGS & STRATTON MODEL 40 OPPOSED TWIN, 16 HP (655 CC):
• Briggs & Stratton 401407, 401417 horizontal shaft
• Briggs & Stratton 401707 vertical shaft
• Briggs & Stratton 402415, 402417, 402431, 402437, 402445, 402447 horizontal shaft
• Briggs & Stratton 402707 vertical shaft
• Briggs & Stratton 404437 horizontal shaft

BRIGGS & STRATTON MODEL 42 AND 46 OPPOSED TWIN, 18-20 HP (693-745 CC):
• Briggs & Stratton 422432, 422435, 422437, 422442, 422445 horizontal shaft
• Briggs & Stratton 422707, 422777 vertical shaft
• Briggs & Stratton 42A707, 42A777, 42B707, 42D707, 42D777
• Briggs & Stratton 42E707, 42E777
• Briggs & Stratton 460777, 461707, 462707, 463707
• Briggs & Stratton 204332

BRIGGS & STRATTON OPPOSED TWIN ENGINES (AIR COOLED 14-18 HP):
• Air cooled opposed twin 14 HP horizontal 1996-1998
• Air cooled opposed twin 14 HP vertical 1996-1998
• Air cooled opposed twin 16 HP horizontal 1996-1998
• Air cooled opposed twin 18 HP horizontal
• Engine series 204332, 400707, 401707, 402437, 404437, 40A777
• Engine series 422432, 422435, 422437, 422442, 422445, 422707, 422777
• Engine series 42A707, 42A777, 42B707, 42D707, 42D777
• Engine series 42E707, 42E777, 460777, 461707, 462707, 463707

SIMPLICITY AND ALLIS-CHALMERS:
• Simplicity 6116 with the Briggs & Stratton 401707 16 HP 1979-1981
• Simplicity 5116 with the Briggs & Stratton 401707 16 HP 1981-1985
• Simplicity 6216 with the Briggs & Stratton 402707 16 HP 1981-1987
• Simplicity 6516 with the Briggs & Stratton 402707 16 HP 1988-1989
• Simplicity 6218 with the Briggs & Stratton 422707 18 HP 1981-1983
• Allis-Chalmers 816GT with the Briggs & Stratton 401707 16 HP 1979-1982
• Allis-Chalmers 616 Special with the Briggs & Stratton 401707 16 HP 1981-1983
• Allis-Chalmers T-816 with the Briggs & Stratton 402707 16 HP 1982-1985
• Allis-Chalmers T-818 with the Briggs & Stratton 422707 18 HP 1982-1983

BOLENS:
• Bolens G16XT and H16XT with the Briggs & Stratton 402437 16 HP 1981-1983
• Bolens 1600G with the Briggs & Stratton 402437 16 HP 1983-1987
• Bolens 1600H with the Briggs & Stratton 402437 16 HP 1983-1989
• Bolens 1402G with the Briggs & Stratton 400437 14 HP 1986-1993
• Bolens G16YT with the Briggs & Stratton 402707 16 HP 1982-1984
• Bolens 3016G and 3016H with the Briggs & Stratton 402707 16 HP 1984-1985
• Bolens 3014H with the Briggs & Stratton 400707 14 HP 1987
• Bolens 3114G and 3114H with the Briggs & Stratton 400707 14 HP 1988-1989
• Bolens 3118G with the Briggs & Stratton 422707 18 HP 1986-1987
• Bolens 3018G 1988-1989 and 3018H 1988-1990 with the Briggs & Stratton 422707 18 HP

SNAPPER, FORD AND ARIENS:
• Snapper LT16 with the Briggs & Stratton 402437 16 HP 1984-1988
• Snapper YT16 with the Briggs & Stratton 402437 16 HP 1989-1990
• Ford YT-16 and YT-16H with the Briggs & Stratton 402707 16 HP 1984-1993
• Ford YT-18H with the Briggs & Stratton 422777 18 HP 1989-1993
• Ariens HT16 with the Briggs & Stratton 402707 16 HP 1982-1995
• Ariens HT18 with the Briggs & Stratton 422707 18 HP 1986-1995

CRAFTSMAN LAWN AND GARDEN TRACTORS:
• Craftsman 917.25372 with the Briggs & Stratton 402417 16 HP 1981-1982
• Craftsman 917.25481 with the Briggs & Stratton 422437 18 HP 1981-1982
• Craftsman 917.25581 and 917.25583 with the Briggs & Stratton 400707 14 HP 1985-1986
• Craftsman 917.25591 with the Briggs & Stratton 422437 18 HP 1985-1989
• Craftsman 917.25432 1987-1988 and 917.25436 1988 with the Briggs & Stratton 402707 16 HP
• Craftsman 917.25471 with the Briggs & Stratton 400707 14 HP 1989
• Craftsman 917.25472 with the Briggs & Stratton 422707 18 HP 1989
• Craftsman 917.25445 and 917.25973 with the Briggs & Stratton 422707 18 HP 1990
• Craftsman 917.25593 with the Briggs & Stratton 422437 18 HP 1991
• Craftsman 917.25592 1991-1992 and 917.25849 1992 with the Briggs & Stratton 422707 18 HP
• Craftsman 917.25486, 917.25589, 917.25597 with the Briggs & Stratton 422707 18 HP 1993
• Craftsman 917.25077, 917.25756, 917.25771 with the Briggs & Stratton 422707 18 HP 1994
• Craftsman 917.25256 1995, 917.25656 and 917.25657 1996 with the Briggs & Stratton 42A707 19 HP
• Craftsman 917.25147 with the Briggs & Stratton 460777 20 HP 1996
• Craftsman 917.27081 and 917.27082 with the Briggs & Stratton 42E707 19.5 HP 1998-2000
• Craftsman 944.60919 and 944.60989 with the Briggs & Stratton 42E707 19 HP 1999
• Craftsman 917.27083 1999-2000, 917.27093 2000, 917.27181 and 917.27182 2001 with the Briggs & Stratton 461707

MURRAY AND MTD:
• Murray 39004 with the Briggs & Stratton 422707 18 HP 1982-1988
• Murray 38206 with the Briggs & Stratton 402707 16 HP 1985-1986
• Murray 39013 with the Briggs & Stratton 402707 1986-1990
• Murray 38211 with the Briggs & Stratton 400707 14 HP 1987-1989
• Murray 38222 with the Briggs & Stratton 422707 18 HP 1987-1990
• Murray 42201 and 42814 with the Briggs & Stratton 400707 14 HP 1994
• Murray 46250, 46800, 46900, 46170 with the Briggs & Stratton 422707 18 HP 1994
• Murray 46370 and 46371 with the Briggs & Stratton 422707 18 HP 1994-1996
• Murray 4316 with the Briggs & Stratton 402707 16 HP 1995-1996
• MTD 810 and 820 with the Briggs & Stratton 401707 16 HP 1979-1980
• MTD 824 and 826 with the Briggs & Stratton 401707 16 HP 1981-1986
• MTD 834 and 836 with the Briggs & Stratton 422437 18 HP 1981-1986

INGERSOLL, CASE, ROPER, JACOBSEN AND SEARS:
• Ingersoll 114YT with the Briggs & Stratton 400707 14 HP 1985-1990
• Ingersoll 116YT with the Briggs & Stratton 402707 16 HP 1984-1990
• Ingersoll 1014 with the Briggs & Stratton 400707 14 HP 1987
• Case 116 XC with the Briggs & Stratton 402707 16 HP 1984-1985
• Roper YT14 with the Briggs & Stratton 400707 14 HP 1988
• Roper YT16 1984-1988 and YTH16 1986-1990 with the Briggs & Stratton 402707 16 HP
• Roper GT18 with the Briggs & Stratton 422437 18 HP 1984-1988
• Roper GT250 with the Briggs & Stratton 422707 18 HP 1987-1989
• Jacobsen YT-14 with the Briggs & Stratton 400707 14 HP 1987-1989
• Sears GT/16 with the Briggs & Stratton 401417 16 HP 1978
• Sears GT-16 Twin with the Briggs & Stratton 401707 16 HP 1978-1979

CUB CADET, JOHN DEERE AND TORO:
• Cub Cadet 580 (1982-1984), 582 (1979-1984), 1604, 1605, 1606, 1610 (1985-1986) with the Briggs & Stratton 16 HP
• John Deere 116 (1982-1985), 116H (1983-1985) with the Briggs & Stratton 402707; John Deere 65, 66, 68 riding mowers
• John Deere walk-behind commercial 32, 36, 48, 52 inch models with 16 HP Briggs & Stratton engines
• Toro 216-5 tractor 16 HP (1985-1987)

SPECIFICATIONS:
• Type: starter motor, PMDD (permanent magnet direct drive)
• Voltage: 12 volt
• Rotation: CCW (counterclockwise)
• Pinion: 16 tooth plastic gear, gear OD 40.6 mm (1.598 in)
• Field case length: 96.5 mm (3.8 in)
• Mounting: three unthreaded ears, 9.5 mm, 8.5 mm and 8.5 mm ID
• Includes: extra 16 tooth plastic gear
• Flywheel: for plastic flywheel ring gears only, not for steel ring gears
• Engines: Briggs & Stratton air-cooled opposed twin, 14 to 18 HP
• Weight: 2.35 kg (5.18 lb)
• Condition: New aftermarket
