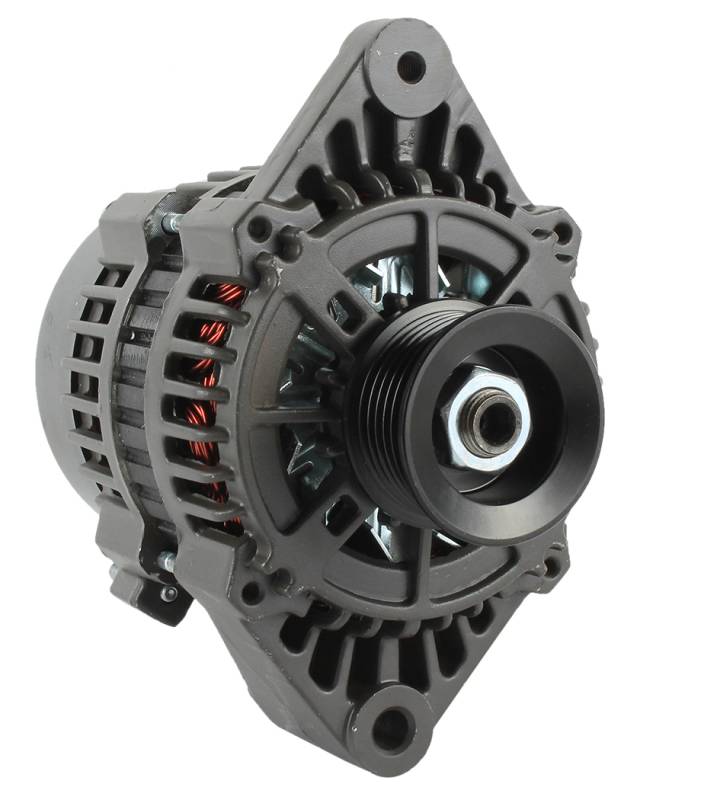

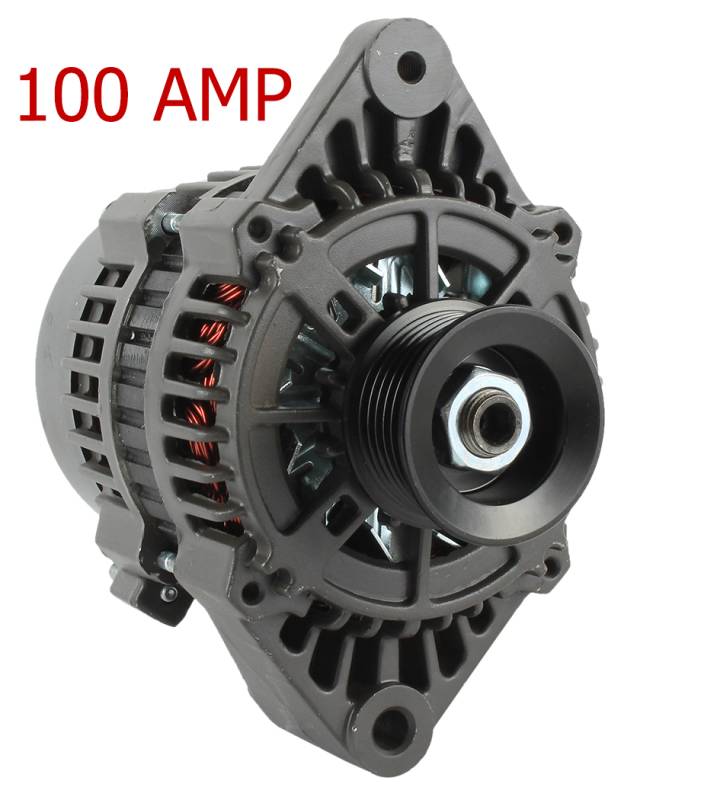

High Output 100 Amp Marine Alternator Compatible With 2001-2008 Crusader 305 350 364 496 V8 Inboard

OEM PART NUMBERS:
• 19020606 / 19020617 / 19020615 / 8400027
• Pleasurecraft (PCM): RA097007 / RA097007A / RA097007B / RA097007C
• 20115014TBA
• Indmar: 575011 / S575011
• MES - Marine Electric Suppliers: 3212M
• ProTorque: PH300-0041 / PH3000041 / PH300-0042 / PH3000042
• Mercury / Quicksilver: 8M6007461 / 8M6007463
• Sierra Marine: 18-5984 / 18-6453
• Arco Marine: 20820 / 20821 / 20822
• API Marine: 20112
• 9-19108
• Aftermarket: 8467 / 8467N

SPECIFICATIONS:
• Type: Alternator — 7SI Series High Output Marine
• Voltage: 12V
• Amperage: 100A (High Output)
• Rotation: Clockwise (CW)
• Fan: Internal (IF)
• Regulator: Internal (IR)
• Pulley: 6-Groove Serpentine (S6)
• Mounting Ear 1: M8-1.25 Threaded
• Mounting Ear 2: 10.3mm Unthreaded (50mm Thick)
• B+ Terminal: M6-1.0
• Weight: 12 lbs
• Ignition Protected: Yes (Marine SAE J1171)
• Condition: New

VEHICLE APPLICATIONS:
• Crusader 305/5.0L V8 8-Cyl Inboard Gasoline (2002-2008)
• Crusader 350/5.7L V8 8-Cyl Inboard Gasoline (2002-2008)
• Crusader 364/6.0L V8 8-Cyl Inboard Gasoline (1999-2008)
• Crusader 454/7.4L V8 8-Cyl Inboard Gasoline (Various)
• Crusader 496/8.1L V8 8-Cyl Inboard Gasoline (2001-2008)
• Pleasurecraft (PCM) 305CI/5.0L V8 Inboard Gasoline (2002-2007)
• Pleasurecraft (PCM) 350CI/5.7L V8 Inboard Gasoline (2002-2007)
• Pleasurecraft (PCM) 364CI/6.0L V8 Inboard Gasoline (2003-2007)
• Pleasurecraft (PCM) 496CI/8.1L V8 Inboard Gasoline (2001-2007)
• Marine Power Various Models V8 Gasoline Inboard (1997-2008)
• Indmar LCR 320 V8 Inboard — Malibu, Supra, Moomba (Various)

HIGH OUTPUT MARINE ALTERNATOR — 100 Amp 12V 7SI 6-Groove Serpentine:
New 100-amp high output 7SI marine alternator for Crusader, Pleasurecraft (PCM), Marine Power, and Indmar V8 inboard engines. 12V CW, 6-groove serpentine, internal fan/regulator, M8-1.25 and 10.3mm mounting ears, M6-1.0 B+, 12 lbs, ignition protected. Replaces 19020606, 19020617, PCM RA097007 / RA097007A, Indmar 575011, ProTorque PH300-0041.
