COLE HERSEE PART NUMBERS:
• 24450 - Motor Reversing Solenoid
• 24450BX - Motor Reversing Solenoid
• 24450-BX - Motor Reversing Solenoid
• CH24450 - Cole Hersee OEM
• 24450-02B - 24V Version (different voltage)
TROMBETTA PART NUMBERS:
• 214-1211A11 - Primary Part Number
• 214-1211A11-06 - Revision
• 214-1211A51 - Cross-Reference
• 214-1211A61 - Cross-Reference
• 214-1211A61-06 - Revision
• 214-1231A11 - Cross-Reference
• 214-1231-A11 - Alternate Format
• 214-1231A61-06 - Revision
• 2141211A11 - Without Dashes
• 2141211A1106 - Without Dashes
• 2141211A51 - Without Dashes
• 2141211A61 - Without Dashes
• 2141211A6106 - Without Dashes
• 2141231A11 - Without Dashes
EMS PART NUMBERS:
• 31-8970 - EMS Cross-Reference
• 318970 - Without Dash
REXCO PART NUMBERS:
• 7-1205 - Rexco Cross-Reference
• 71205 - Without Dash
PIC / PICTURE ID:
• 6660-110 - Picture ID Reference
SPECIFICATIONS:
• Voltage: 12V DC

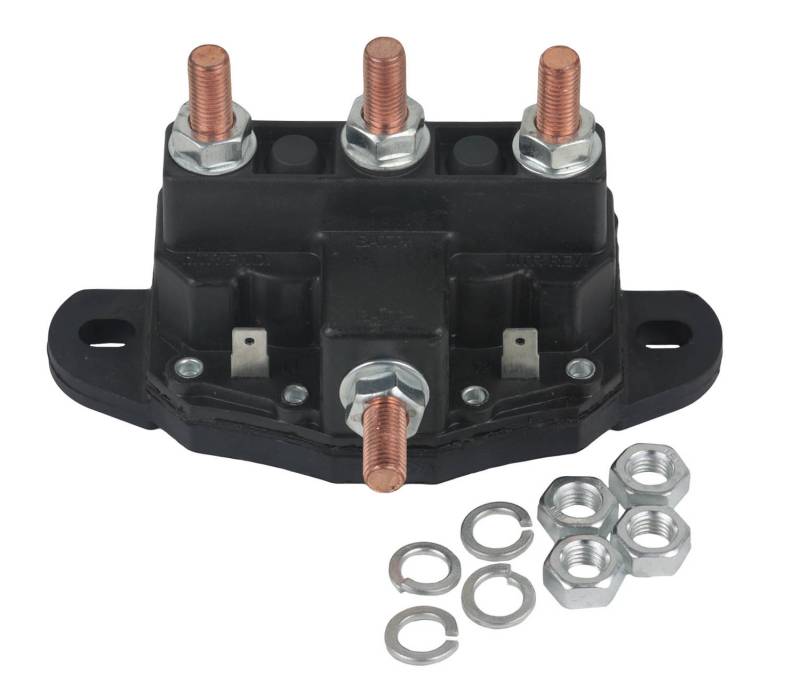

• Type: DPDT Motor Reversing Solenoid
• Surge Current: 150A Inrush
• Continuous: 75A (5-Minute Carry)
• Terminals: 6 Total
• Studs: (4) 5/16"-24 Threaded (Battery & Motor)
• Blade Terminals: (2) 6.4mm (1/4") for Solenoid Operation
• Mounting: Flat 180 (F180)
• Duty Cycle: Intermittent
• Case Material: ABS Plastic
• Contact Material: Copper-Cadmium
