COLE HERSEE OEM PART NUMBERS (SOURCE):
• Cole Hersee: 24063-08 (Source Primary)
• Cole Hersee: 2406308 (Source No-Dash Variant)
• Cole Hersee: 24063-08BX (Source BX Variant)
• Cole Hersee: 15-141 (Source Alternate)
• Cole Hersee: 24063BX (Alternate Format)
• Cole Hersee: 24063-08-BX (Hyphenated Variant)
• Cole Hersee: 15141 (No-Dash Variant)
ADDITIONAL OEM CROSS-REFERENCES (RESEARCH):
• General Motors: 6960296
• John Deere: AT57170
• Johnson Electric: 5118140
• Monarch/Bucher: 3341
• Pollak: 52-324P
• Prestolite: SAS4401
• White Rodgers: 70-903
• Yale Forklift: 501270302
• Yale Forklift: 65640400
• Item Reference: 24063-08BX
SPECIFICATIONS:

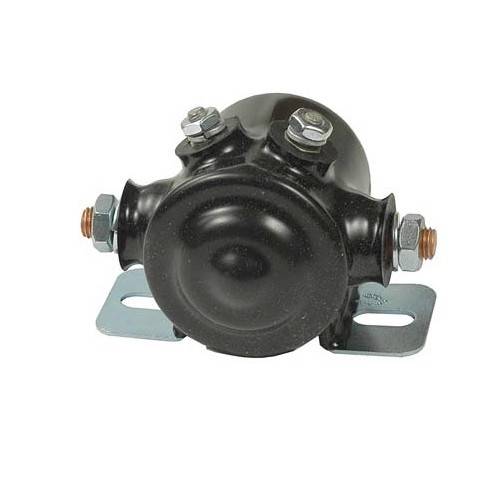

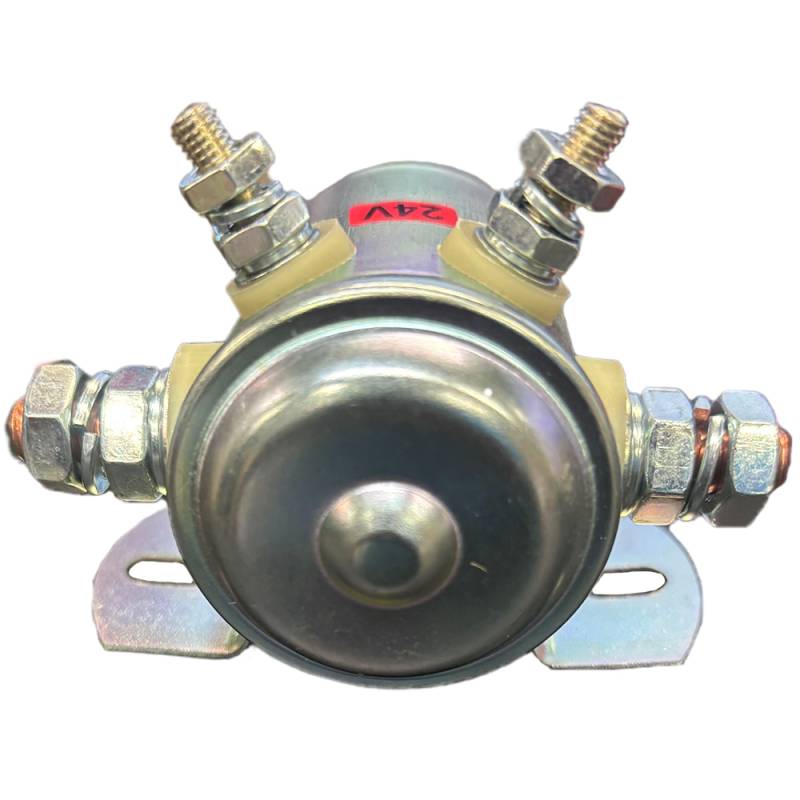

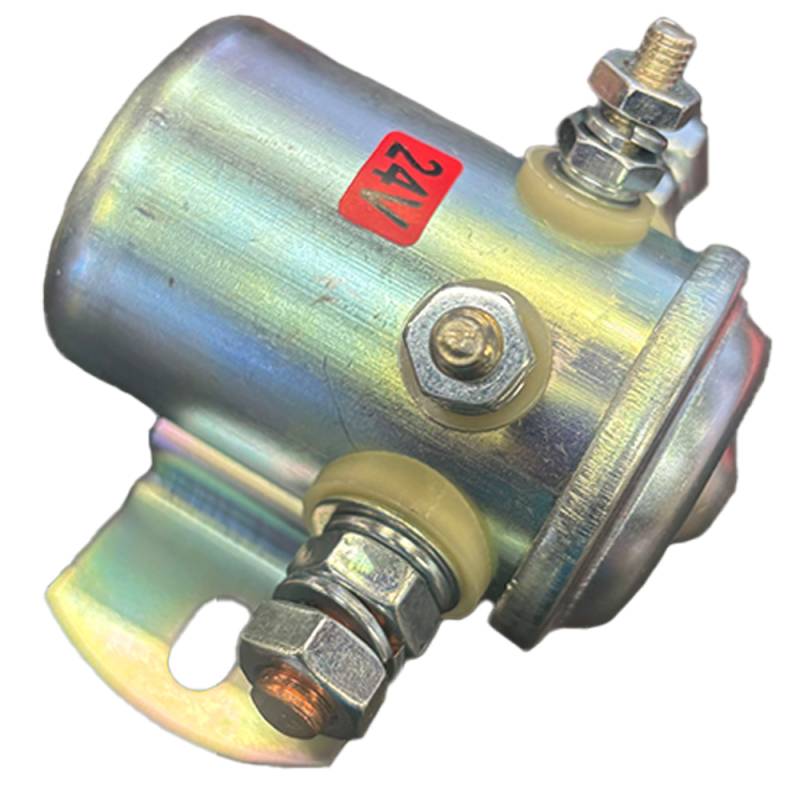

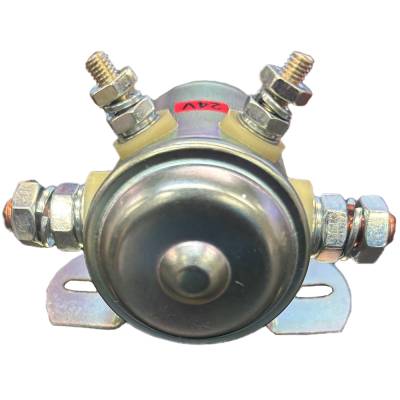

• Product Type: Solenoid (Continuous Duty SPST)
• Unit Type: Cole Hersee OEM Design
• Voltage: 24V DC
• Circuitry: SPST / Normally Open
• Continuous Amps: 85 A
• Intermittent Rating: 120 A Make / 65 A Break
• Intermittent Cycle: 10 Seconds On / 30 Minutes Off
• Duty Cycle: CONTINUOUS
• Coil Impedance: 71 Ohms
• Number of Terminals: 4
• Contact Material: Copper
• Case Material: Plastic (PVC-Coated Plated Steel)

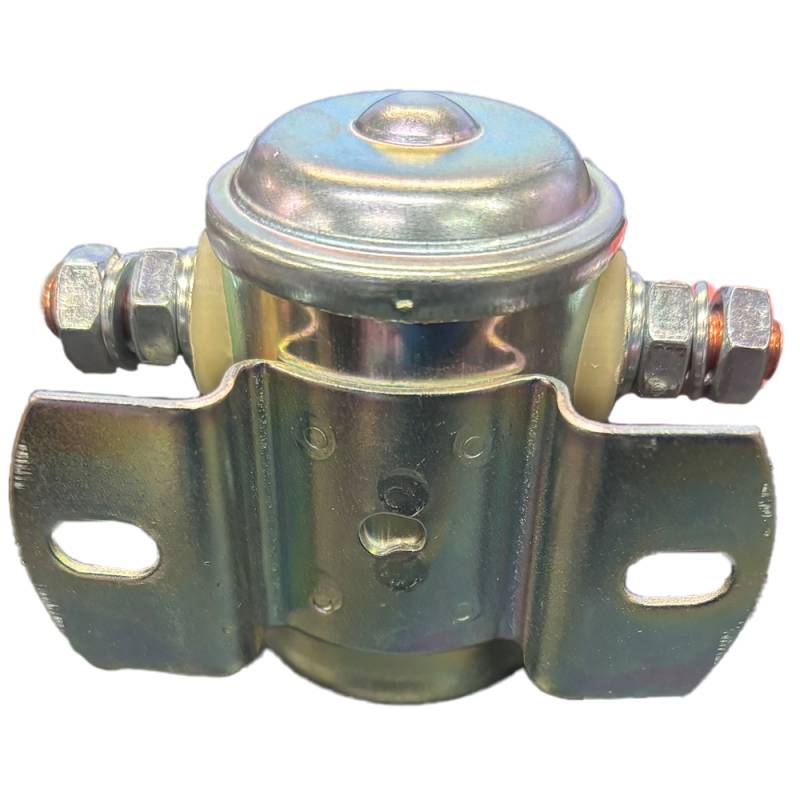

• Mounting Style: Flat 180 (F180) Flat Bracket
• Stud Size: (2) 5/16"-24 Copper Power Studs
• Terminal Size: (2) #10-32 Steel Coil Studs
• Certifications: UL and CE Approved
• Quantity: 1 Unit
• Condition: New
• Country of Origin: Taiwan (TW)
• Source: OEM Cole Hersee Design
• Recommended Use: OE Replacement for Cole Hersee 24V Continuous Duty Solenoids
• Product Fit: Direct Fit for 24V Heavy-Duty Continuous-Duty Applications
EQUIPMENT APPLICATIONS SUMMARY:
• Heavy-Duty Commercial Trucks (24V Electrical Systems)
• Commercial Transit / School / Coach Buses (Common Bus Application)
• Marine Vessels and Commercial Boats (24V Systems)
• John Deere Tractors (AT57170 OEM Reference)
• Yale Forklifts (501270302 / 65640400 OEM Reference)
• General Motors Industrial (6960296 OEM Reference)
• Heavy Construction Equipment (24V)
• Agricultural Equipment (24V Electrical Systems)
• Industrial Continuous-Duty Switching Applications
• 24V DC Heavy-Duty Electrical Systems (NOT 12V)
INSTALLATION CAUTION:
• ALWAYS USE A BACK-UP WRENCH TO HOLD THE BOTTOM NUT WHEN TIGHTENING
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
