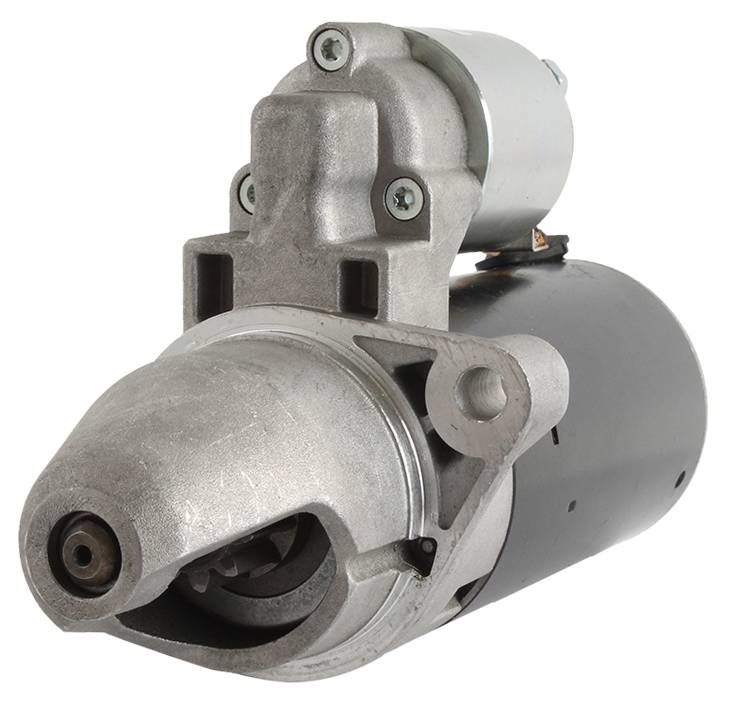

New 12V Pmgr Starter Compatible With Porsche Panamera 4.8L V8 2010-2016 3.6L V6 2011-2016 3.0L V6

17658*3
PORSCHE PART NUMBERS:
• 948-604-210-01, 94860421001
• 948-604-210-02, 94860421002
• 948-604-210-00, 94860421000 (superseded)
• 948-604-210-X, 948604210X (exchange)

BOSCH PART NUMBERS:
• 0-001-139-037, 0001139037
• 0-001-139-038, 0001139038
• 1-986-S00-843, 1986S00843
• 0-986-025-120, 0986025120
• SR0447N

LUCAS PART NUMBERS:
• LRS02655, LRS2655

OTHER PART NUMBERS:
• Valeo 460410
• Hella 8EA011612841
• Magneti Marelli 063521390370

SPECIFICATIONS:
• Type: PMGR (permanent magnet gear reduction), start/stop duty (Porsche option I642)
• Voltage: 12 volt
• Power: 2.5 kW
• Rotation: clockwise (CW)
• Pinion: 10 tooth
• Pinion rest position: 36.2 mm
• Mounting: 2 bolt, 68 mm flange, 10.5 mm bolt holes
• Length: 253 mm
• Terminals: 30 (battery) and 50 (start)
• Weight: 13 lbs
• Condition: New aftermarket

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $321.56
Sale: $183.75
Save: 43%
Save: $137.81
Qty:
Free Shipping!

Description

PORSCHE PANAMERA (970) WITH START/STOP (I642):
• Porsche Panamera 970 (2010-2016)
• V6 3.0L SC, V6 3.6L NA, V8 4.8L NA and TT
• Base, 4, S, 4S, GTS, Turbo, Turbo S, S E-Hybrid

PORSCHE PANAMERA (970) — V8 4.8L:
• Porsche Panamera S 4.8L (4806cc) V8 DOHC DFI (2010-2016), engine M48.40
• Porsche Panamera 4S 4.8L V8 DOHC DFI (2010-2016), engine M48.40
• Porsche Panamera GTS 4.8L V8 DOHC DFI (2012-2016)
• Porsche Panamera Turbo 4.8L V8 Twin-Turbo (2010-2016), engine M48.70
• Porsche Panamera Turbo S 4.8L V8 Twin-Turbo (2010-2016)

PORSCHE PANAMERA (970) — V6 3.6L:
• Porsche Panamera Base 3.6L (3605cc/220ci) V6 DOHC DFI 310HP (2011-2016)
• Porsche Panamera 4 3.6L V6 DOHC DFI AWD (2011-2016)
• Porsche Panamera 4 Edition 3.6L V6 AWD (2016)

PORSCHE PANAMERA (970) — V6 3.0L:
• Porsche Panamera S E-Hybrid 3.0L (2997cc/183ci) V6 Supercharged (2014-2016)
• Porsche Panamera S Hybrid 3.0L V6 Supercharged (2012-2013)
• Porsche Panamera S 3.0L V6 Twin-Turbo DFI (2014-2016)
• Porsche Panamera 4S 3.0L V6 Twin-Turbo DFI AWD (2014-2016)
• Porsche Panamera 4S Executive 3.0L V6 Twin-Turbo LWB AWD (2014-2016)

SPECIFICATIONS:
• Type: PMGR (permanent magnet gear reduction), start/stop duty (Porsche option I642)
• Voltage: 12 volt
• Power: 2.5 kW
• Rotation: clockwise (CW)
• Pinion: 10 tooth
• Pinion rest position: 36.2 mm
• Mounting: 2 bolt, 68 mm flange, 10.5 mm bolt holes
• Length: 253 mm
• Terminals: 30 (battery) and 50 (start)
• Weight: 13 lbs
• Condition: New aftermarket
