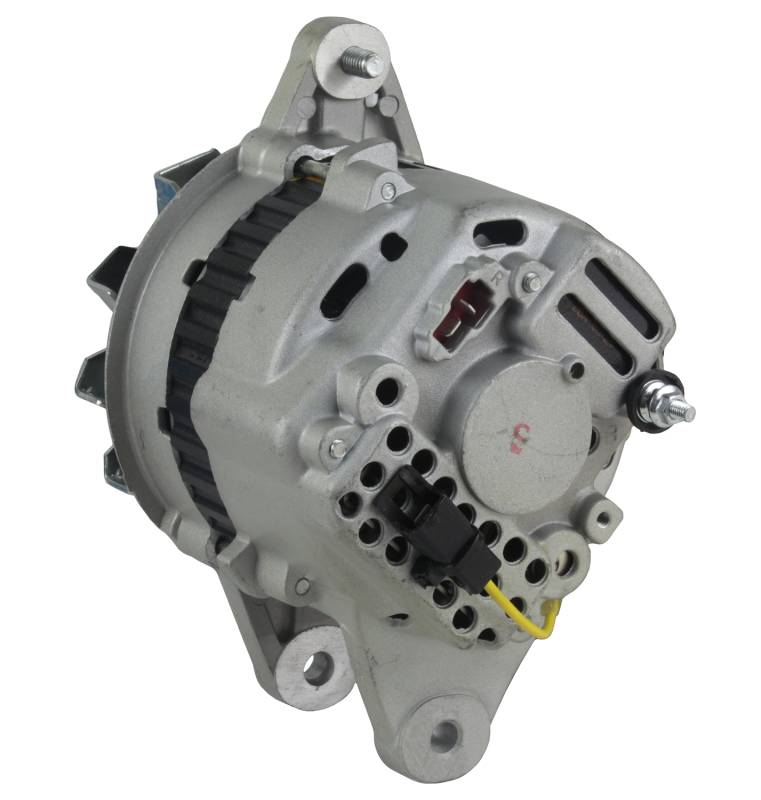

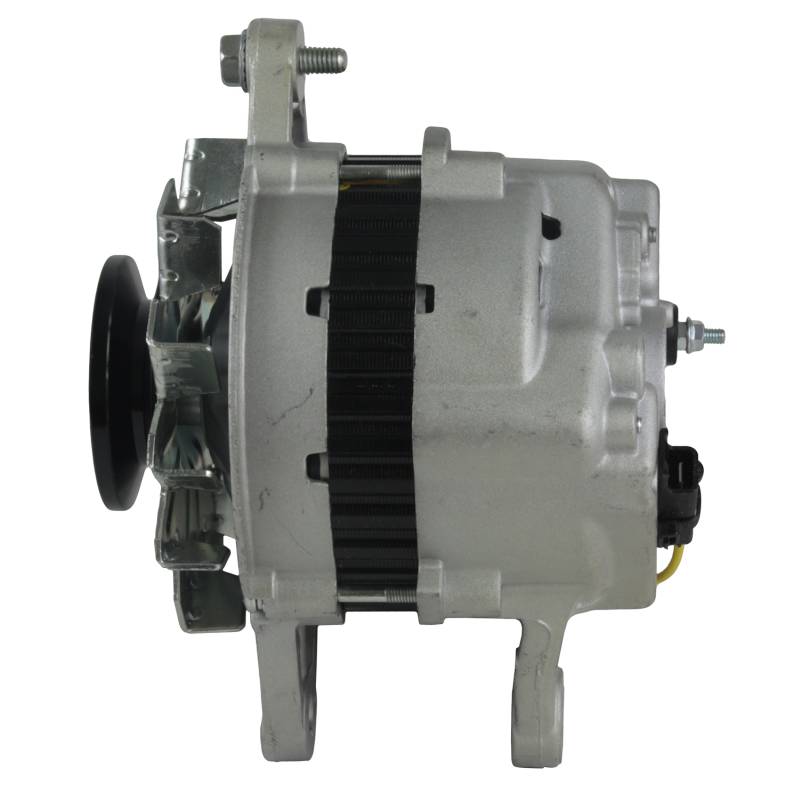

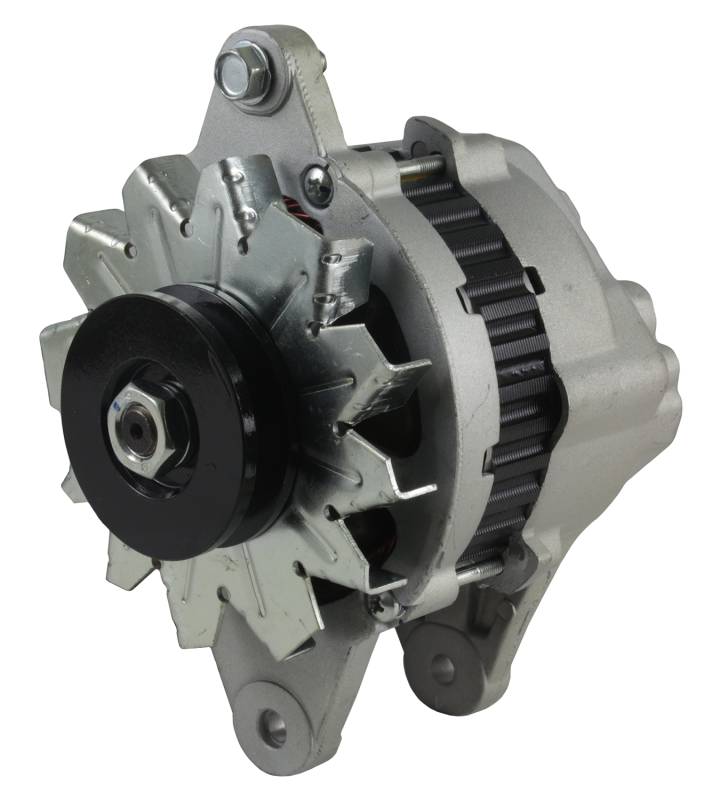

12V 55A Marine Diesel Alternator Compatible With Mitsubishi Inboard L2e L3e K3m K4e Westerbeke

OEM PART NUMBERS:
• Westerbeke: 030594 / 049246 / 30594 / 49246
• Mitsubishi: A2T25271 / A002T25271 / A002T25271ZC
• Mitsubishi Industrial: MM409650
• Quicksilver: 8M6007495

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 55A
• Rotation: CW (Clockwise)
• Regulator: Internal (IR)
• Fan: External (EF)
• Pulley: Single V-Groove (V1)
• B+ Terminal: M5-0.8 Threaded Stud
• P-Terminal: Rear Mounted
• Weight: 12 lbs
• Condition: New

APPLICATION:
• Westerbeke BCD: 4.4 BCD 60Hz, 4.5 BCD 50Hz, 6.0 BCD 60Hz (1986-1989)
• Westerbeke WMD: 3.3 WMD 50Hz, 4.4 WMD 60Hz, 5.8 WMD 50Hz, 6.0 WMD 50Hz, 7.7 WMD 60Hz (1980-1984), 8.0 WMD 60Hz, 9.4 WMD 50Hz, 11.0 WMD (1980-1987), 12.5 WMD 60Hz (1980-1987)
• Westerbeke BTD: 6.0-15.0 BTD 50/60Hz (1984-2001)
• Westerbeke BTDA: 8.0 BTDA (2000-2007), 9.4 BTDA 50Hz, 12.5 BTDA 60Hz (1988-2000)
• Mitsubishi Inboard: K3M/K3M-61EM, K4E/K4E-61DM/K4E-61EM, K4F/K4F-61WM/K4F-62WM, L2E/L2E-62WM, L3E/L3E-62WM (1982-On)

12V 55A Marine Diesel Alternator — Mitsubishi Inboard Westerbeke Generator
Brand new marine diesel alternator for Mitsubishi L2E, L3E, K3M, K4E, and K4F inboard engines. Also fits Westerbeke generators from 3.3kW to 15.0kW including BTD, BTDA, BCD, and WMD series. Replaces Westerbeke 030594, 049246, Mitsubishi A2T25271, A002T25271ZC, MM409650, and Quicksilver 8M6007495.
