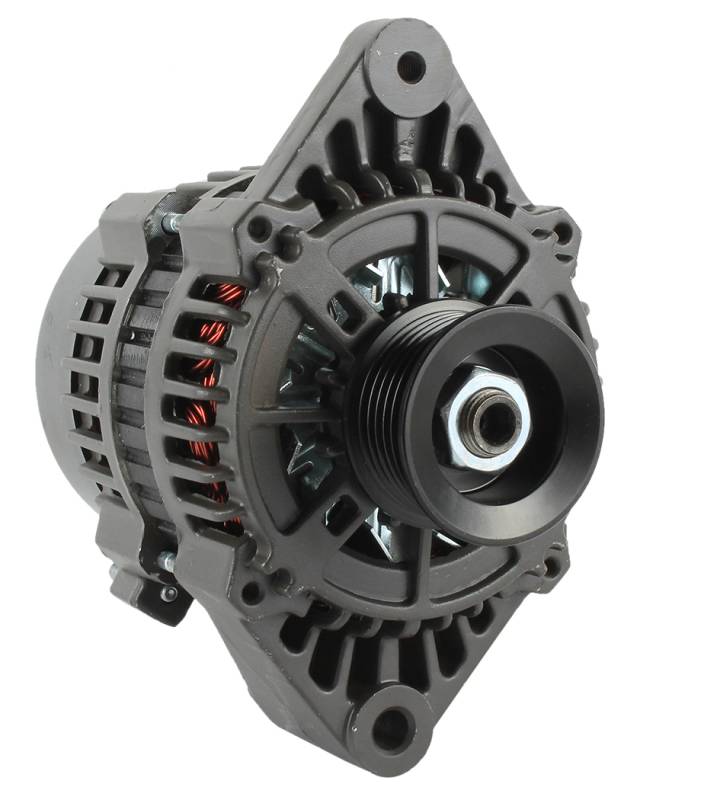

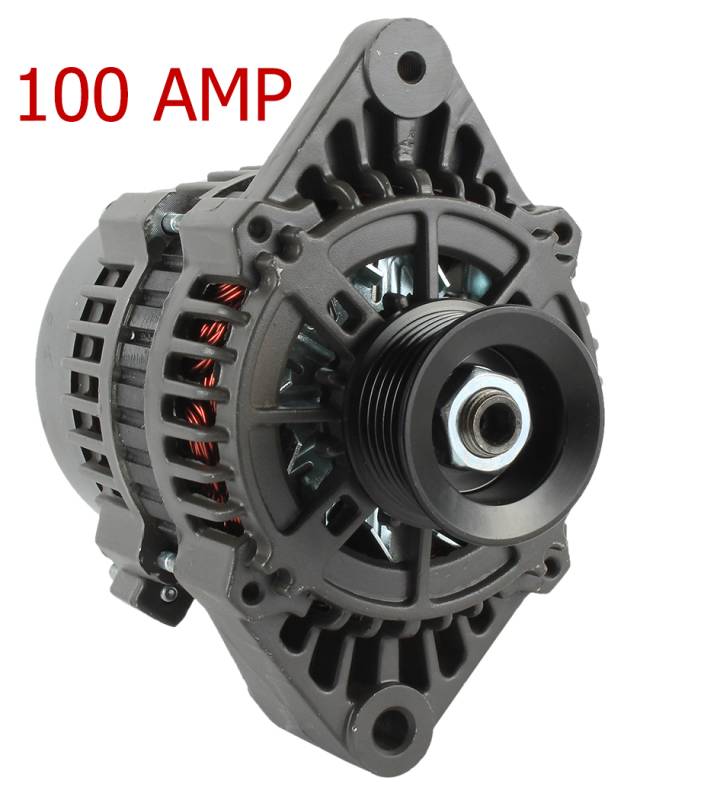

High Output 100 Amp Marine Alternator Compatible With 2002-2007 Pleasurecraft Pcm 305Ci 350Ci 364Ci

OEM PART NUMBERS:
• 19020606 / 19020617 / 19020615 / 8400027
• Pleasurecraft (PCM): RA097007 / RA097007A / RA097007B / RA097007C
• 20115014TBA
• Indmar: 575011 / S575011
• MES - Marine Electric Suppliers: 3212M
• ProTorque: PH300-0041 / PH3000041 / PH300-0042 / PH3000042
• Mercury / Quicksilver: 8M6007461 / 8M6007463
• Sierra Marine: 18-5984 / 18-6453
• Arco Marine: 20820 / 20821 / 20822
• API Marine: 20112
• 9-19108
• Aftermarket: 8467 / 8467N

SPECIFICATIONS:
• Type: Alternator — 7SI Series High Output Marine
• Voltage: 12V
• Amperage: 100A (High Output)
• Rotation: Clockwise (CW)
• Fan: Internal (IF)
• Regulator: Internal (IR)
• Pulley: 6-Groove Serpentine (S6)
• Mounting Ear 1: M8-1.25 Threaded
• Mounting Ear 2: 10.3mm Unthreaded (50mm Thick)
• B+ Terminal: M6-1.0
• Weight: 12 lbs
• Ignition Protected: Yes (Marine SAE J1171)
• Condition: New

VEHICLE APPLICATIONS:
• Crusader 305/5.0L V8 8-Cyl Inboard Gasoline (2002-2008)
• Crusader 350/5.7L V8 8-Cyl Inboard Gasoline (2002-2008)
• Crusader 364/6.0L V8 8-Cyl Inboard Gasoline (1999-2008)
• Crusader 454/7.4L V8 8-Cyl Inboard Gasoline (Various)
• Crusader 496/8.1L V8 8-Cyl Inboard Gasoline (2001-2008)
• Pleasurecraft (PCM) 305CI/5.0L V8 Inboard Gasoline (2002-2007)
• Pleasurecraft (PCM) 350CI/5.7L V8 Inboard Gasoline (2002-2007)
• Pleasurecraft (PCM) 364CI/6.0L V8 Inboard Gasoline (2003-2007)
• Pleasurecraft (PCM) 496CI/8.1L V8 Inboard Gasoline (2001-2007)
• Marine Power Various Models V8 Gasoline Inboard (1997-2008)
• Indmar LCR 320 V8 Inboard — Malibu, Supra, Moomba (Various)

HIGH OUTPUT MARINE ALTERNATOR — Crusader 305 350 364 454 496 PCM Inboard 100A 12V:
High output 100-amp marine alternator for Crusader 305 5.0L, 350 5.7L, 364 6.0L, 454 7.4L, 496 8.1L V8 inboard (1999-2008) and Pleasurecraft (PCM) 305CI-496CI (2001-2007). 12V CW, 6-groove serpentine, ignition protected. Replaces 19020606, 19020617, 8400027, PCM RA097007 / RA097007A / RA097007C, Sierra 18-5984, Mercury 8M6007461, Arco 20821.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
