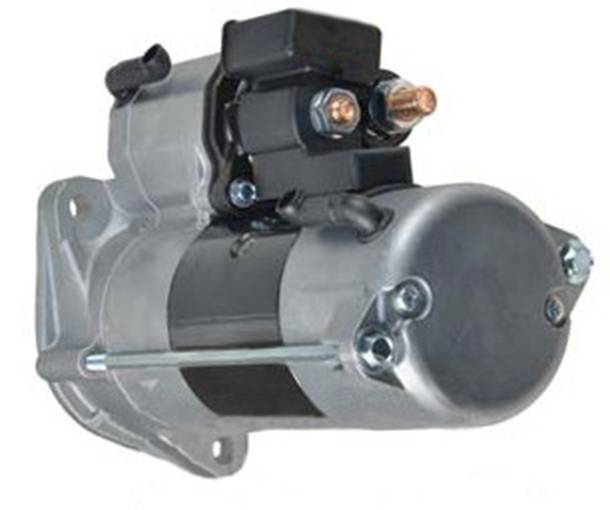

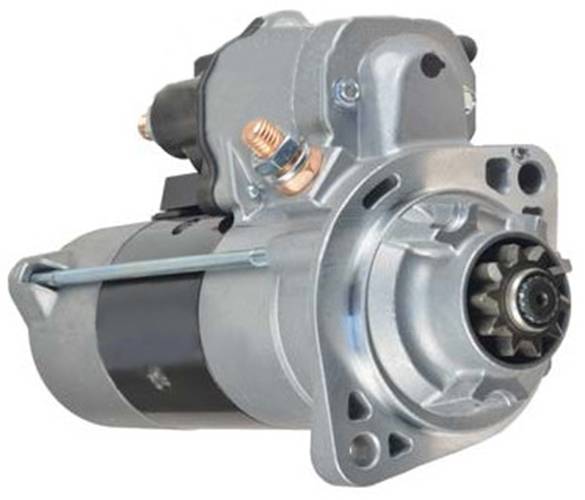

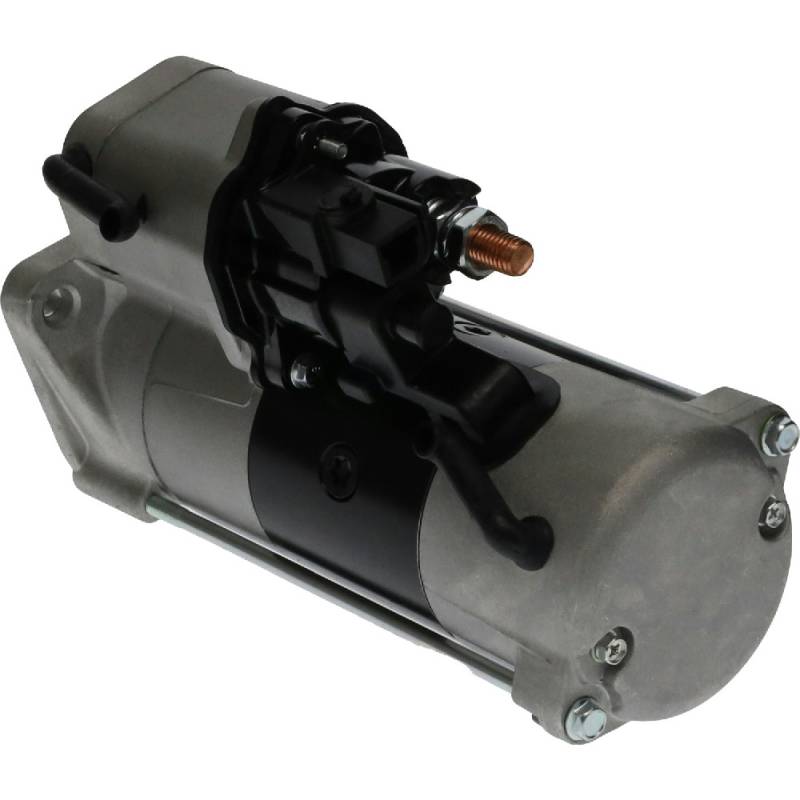

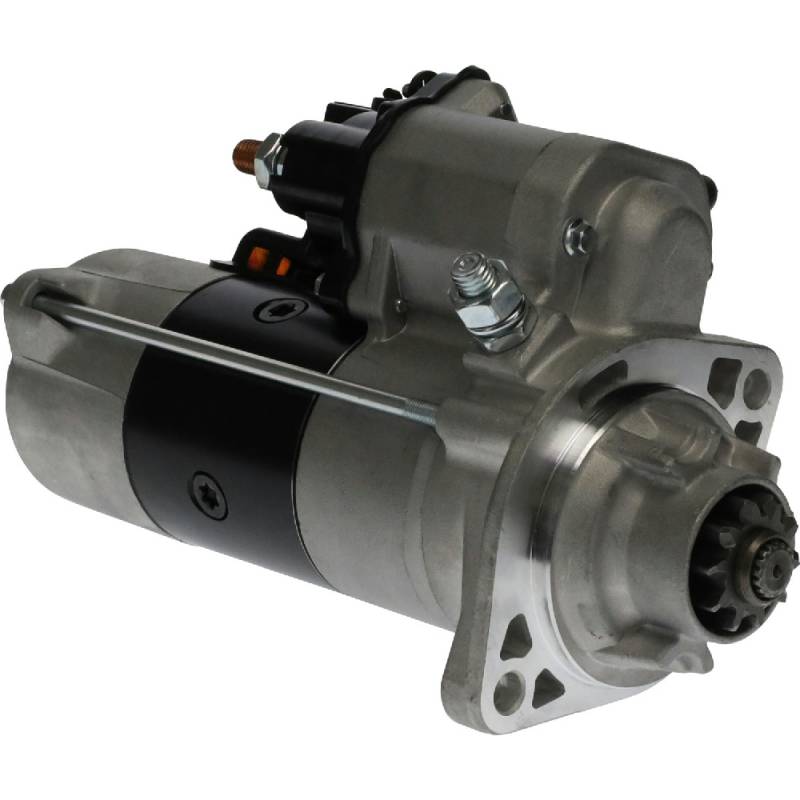

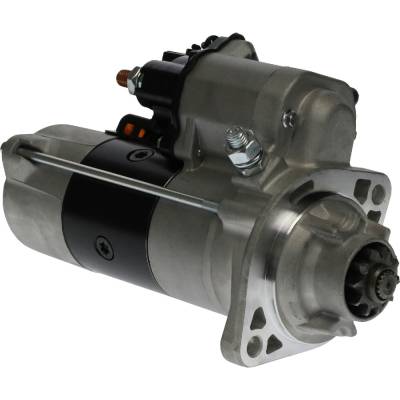

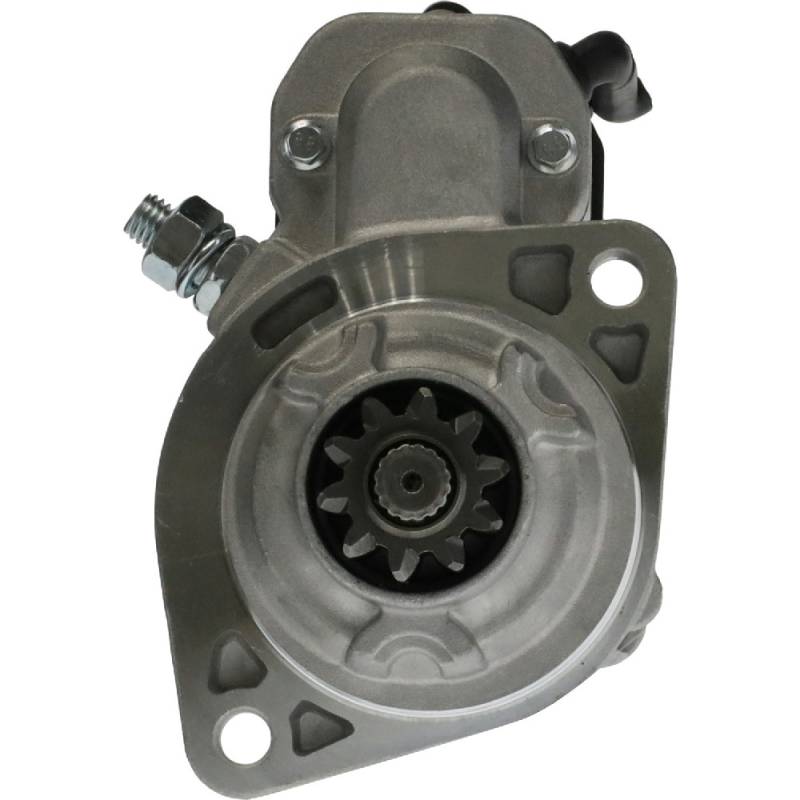

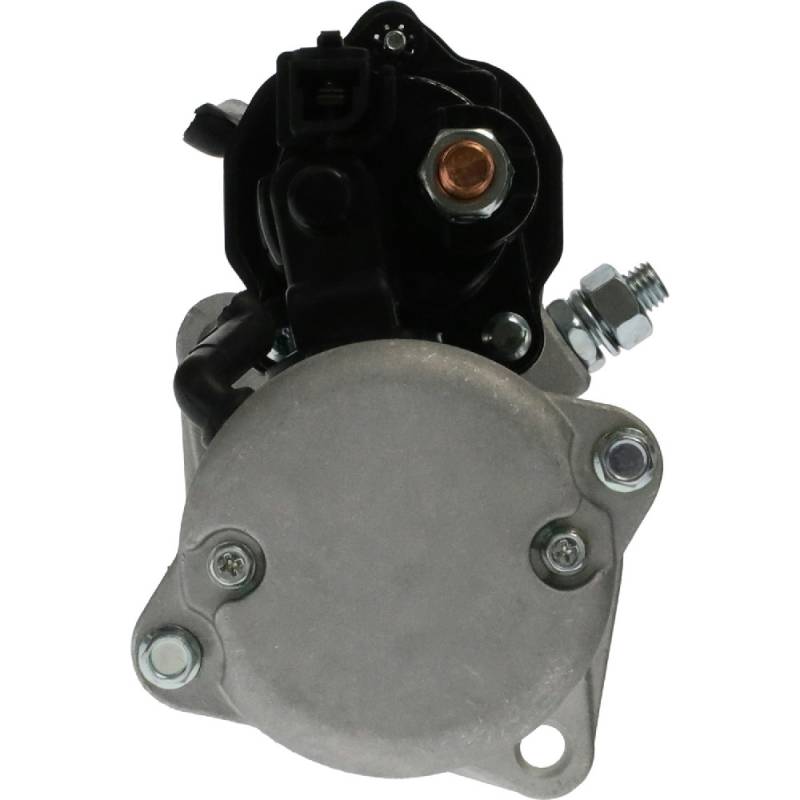

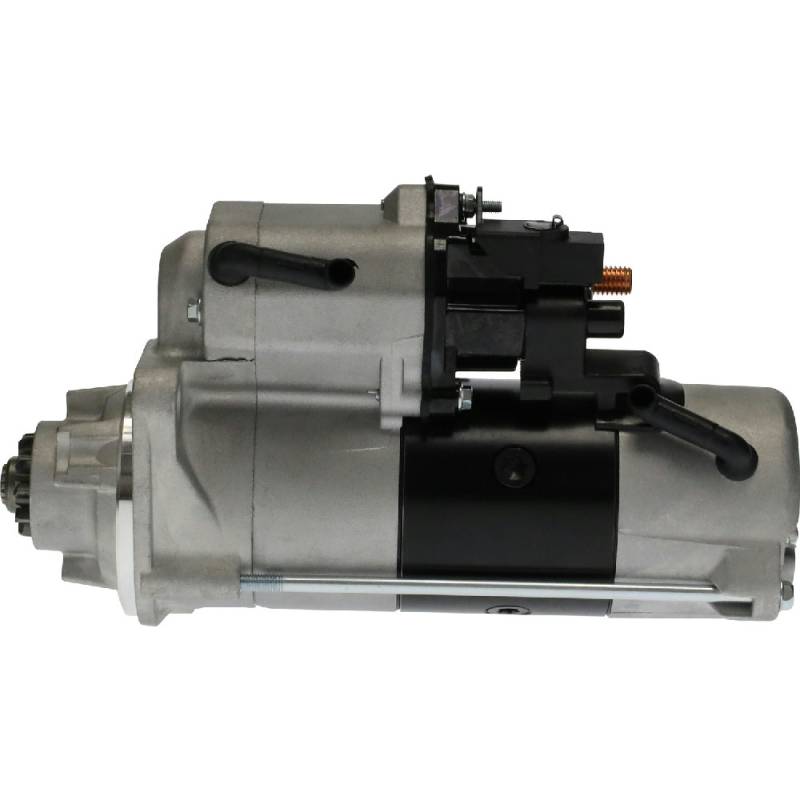

OEM PART NUMBERS:
• Cummins: 4996709, 499670900
• Denso: 428000-7120, 428000-7121, 428000-7122
• Denso: 438000-3730
SPECIFICATIONS:
• Type: PLGR (Planetary Gear Reduction)
• Denso Series: PA90L
• Voltage: 24V
• Power: 7.8kW / 10.45HP
• Rotation: CW (Clockwise)
• Teeth: 10
• Gear OD: 40mm / 1.575in
• Overall Length: 245mm / 9.646in
• Registry OD: 88.7mm / 3.492in
• Mounting Ear 1: 11.2mm Unthreaded
• Mounting Ear 2: 11.2mm Unthreaded
• Ear Center to Center: 126.6mm / 4.984in
• Wet Clutch Seal: Yes
• Studs: M12 B+ and Ground, M10 Motor, M5 Threaded S Tab
• Weight: 18.56 lbs / 8.44 kg
• Condition: New
APPLICATION:
• Cummins B3.9/B4.5/B5.9/B6.7S/G3.9 Diesel
• Cummins ISB5.9/ISB6.7/ISBE/ISD/ISF/QSB Diesel
• Cummins 6CTA 8.3L
