TOYOTA / LEXUS PART NUMBERS: • 28100-0S050, 281000S050
• 28100-38080, 2810038080 (current Toyota and Lexus service number)
EARLIER TOYOTA / LEXUS NUMBERS SUPERSEDED TO 28100-38080: • 28100-0S010, 281000S010
• 28100-0S011, 281000S011
• 28100-38040, 2810038040
• 28100-38041, 2810038041
DENSO PART NUMBERS: • 428000-9091, 4280009091
• 428000-9090, 4280009090
• TN428000-9091
• 280-1019, 2801019
BOSCH PART NUMBERS: • SR3296X
REMY PART NUMBERS: • 16163
WILSON PART NUMBERS: • 91-29-5806, 91295806
NAPA PART NUMBERS: • 244-6617, 2446617

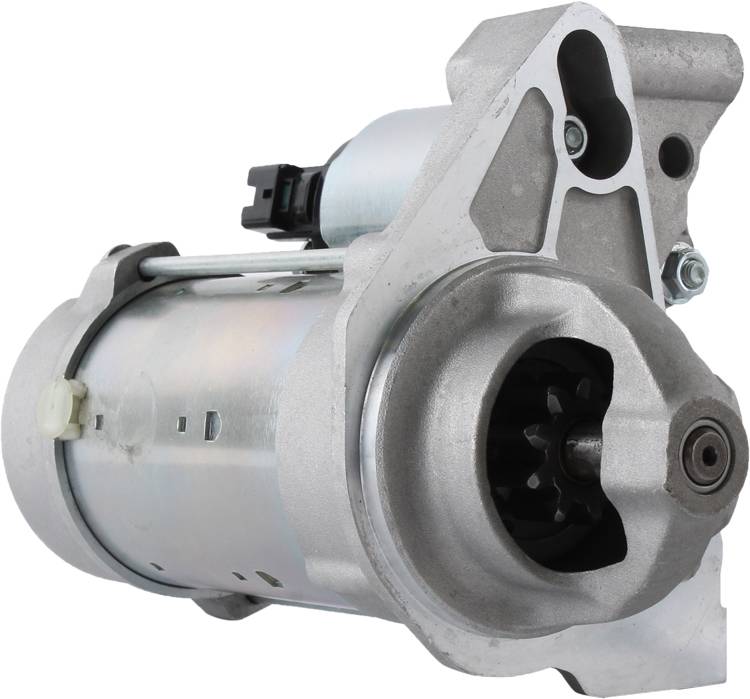

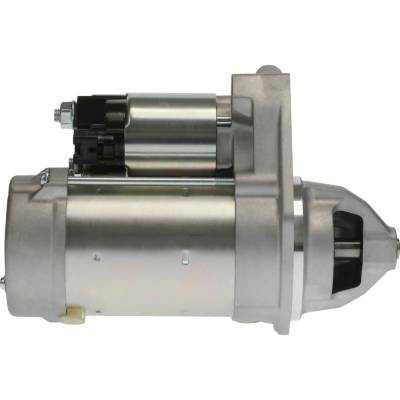

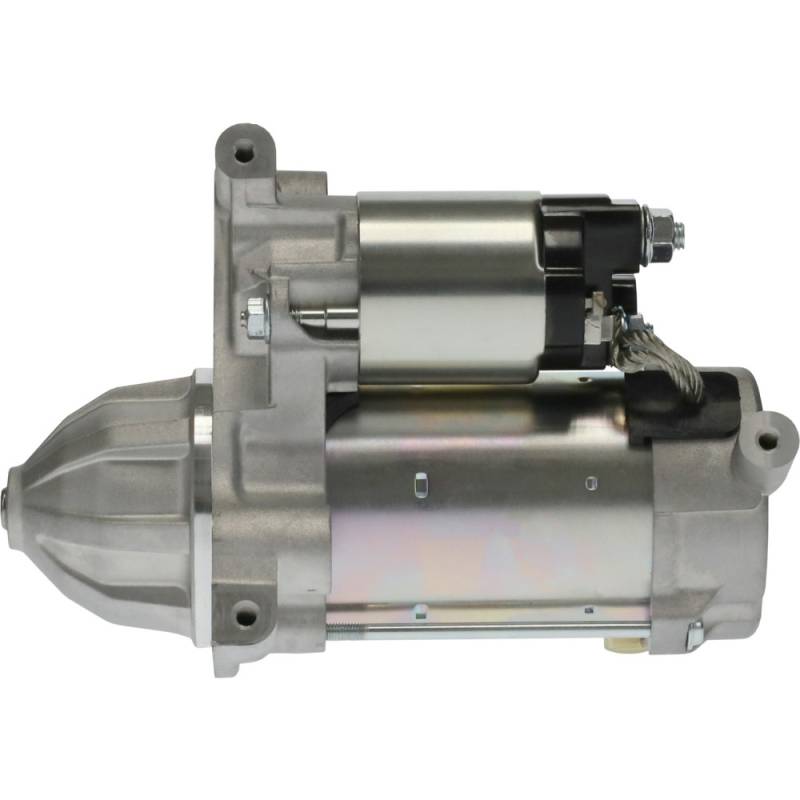

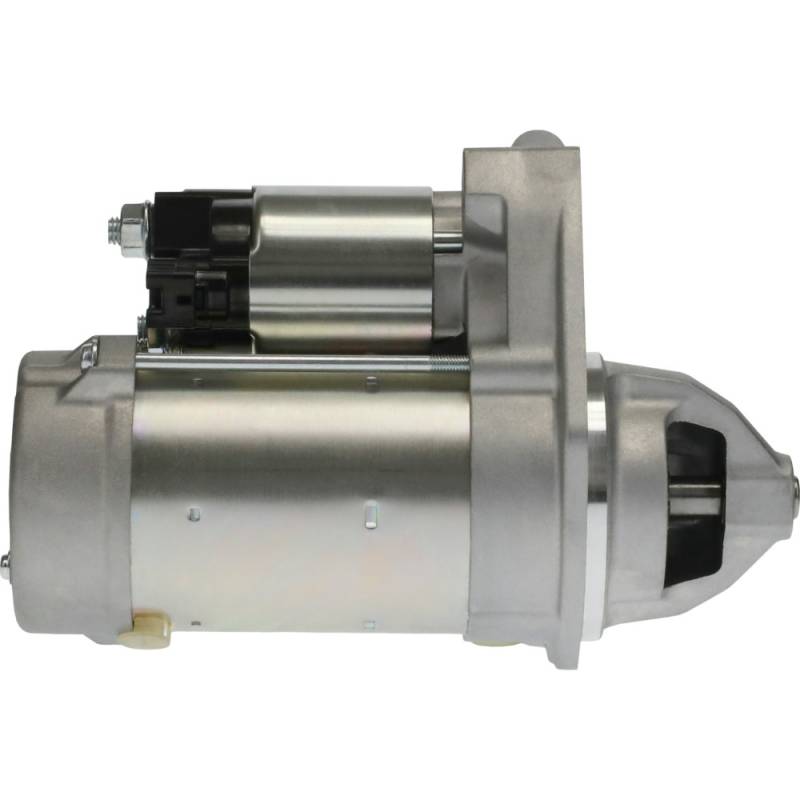

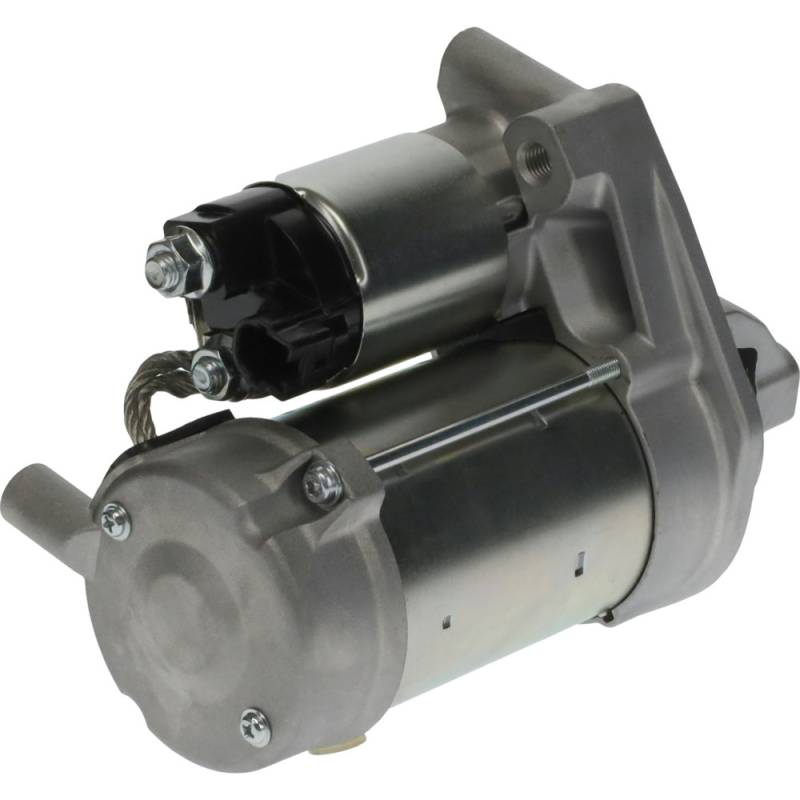

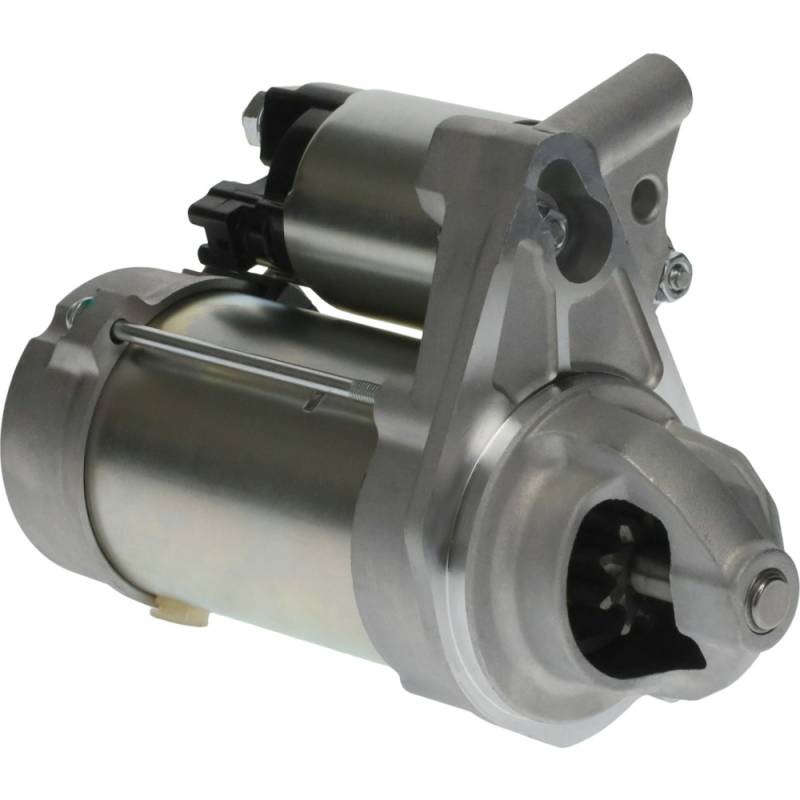

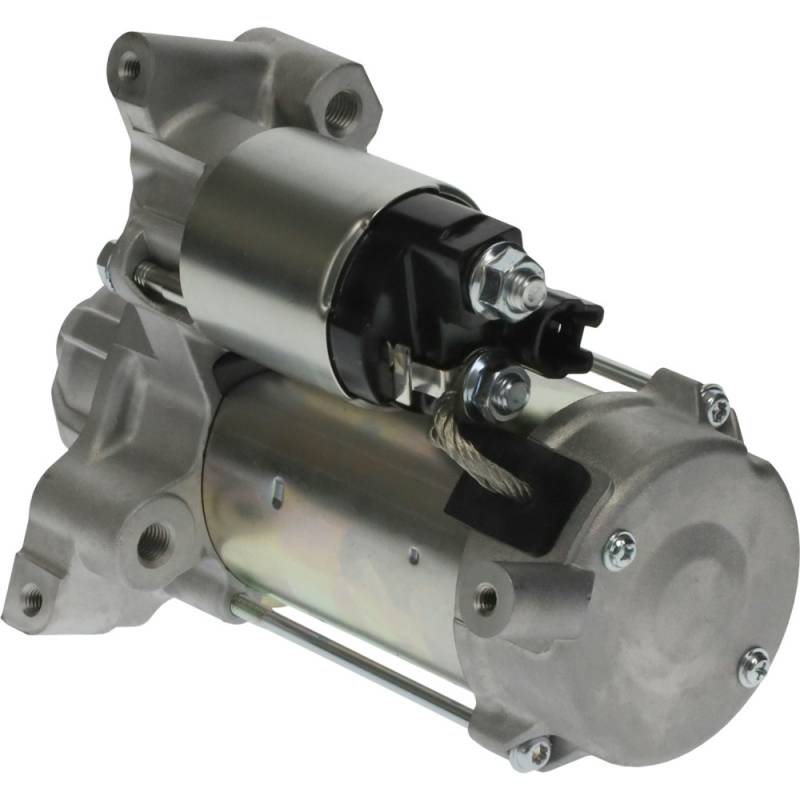

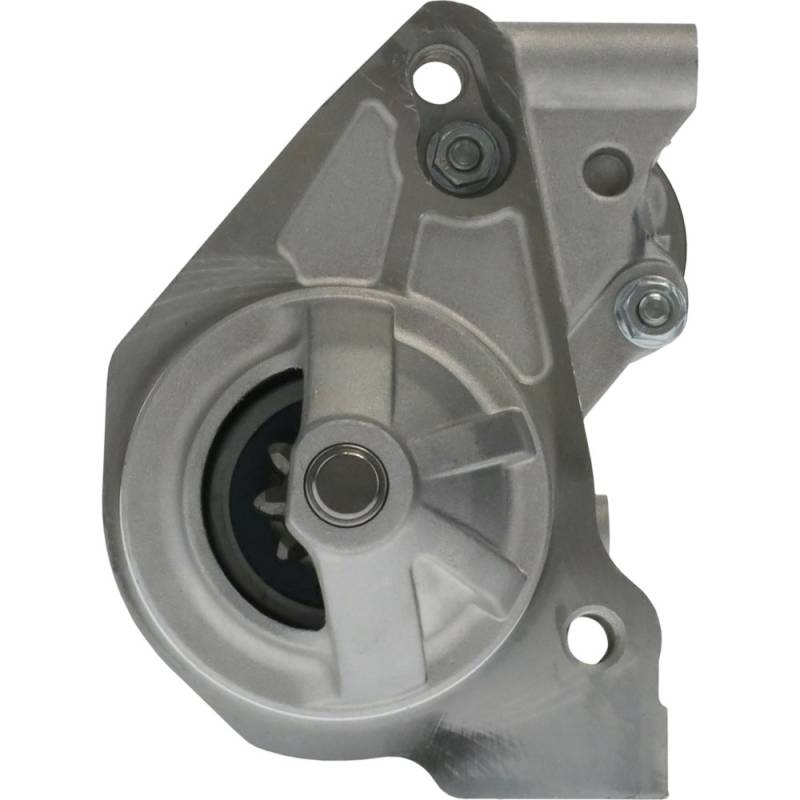

SPECIFICATIONS: • Type: Denso planetary gear reduction (PLGR)
• Voltage: 12 Volt
• Power: 2.0 kW
• Rotation: Clockwise (CW)
• Pinion: 9 teeth
• Mounting: two M10 x 1.25 threaded ears, about 102.5 mm center to center
• Registry: 73.8 mm
• Length: about 148 mm flange to rear
• Solenoid: attached
• Weight: about 7.5 lb (3.4 kg)
• Engine: Toyota 5.7L 3UR-FE gas and 3UR-FBE flex fuel V8
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
