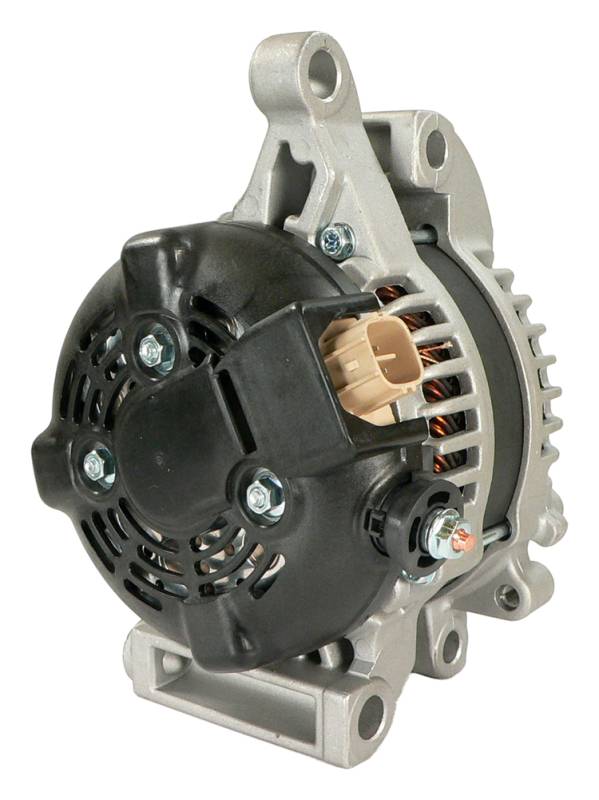

150 Amp 12V Alternator Compatible With 2010-2014 Toyota Tundra 4.6L 2008-2014 Sequoia 5.7L V8 Cw

OEM PART NUMBERS:
• Denso: 104210-5090 / 1042105090
• Denso: 104210-5091 / 1042105091
• Toyota: 27060-0S020 / 270600S020
• Bosch: AL3336X

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 150A
• Rotation: CW (Clockwise)
• Type: Denso SC Hairpin
• Regulator: Internal (IR)
• Fan: Internal (IF)
• Pulley: 8-Groove Solid Serpentine (S8)
• Pulley OD: 55mm
• Case OD: 134mm
• Plug Code: 917
• Regulator Clock: 2:00
• Stud Size: M6-1.0
• Polarity: Negative Ground
• DE Mounting Holes: 10.5mm ID Unthreaded
• SRE Mounting Holes: 12.5mm ID Unthreaded
• Weight: 13.59 lbs / 6.18 kg

APPLICATION:
• Toyota Tundra V8 5.7L 5663CC (2007-2014)
• Toyota Tundra V8 4.6L 4608CC (2010-2014)
• Toyota Sequoia V8 5.7L 5663CC (2008-2014)
• Toyota Sequoia V8 4.6L 4608CC (2010-2012)

DESCRIPTION:
150 Amp 12V Alternator - Toyota Tundra / Sequoia V8 4.6L 5.7L
Premium 150 amp high-output alternator for Toyota Tundra (2007-2014) and Sequoia (2008-2014) featuring V8 4.6L 1UR-FE and 5.7L 3UR-FE DOHC naturally aspirated engines. Denso SC hairpin stator design delivers maximum charging capacity for trucks and SUVs with heavy electrical demands. Features clockwise rotation, internal voltage regulator, internal fan, 8-groove solid serpentine pulley with 55mm OD, and 134mm case OD. M6-1.0 stud with plug code 917 at the 2:00 position. Replaces Denso 104210-5090, Toyota 27060-0S020, and Bosch AL3336X

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
