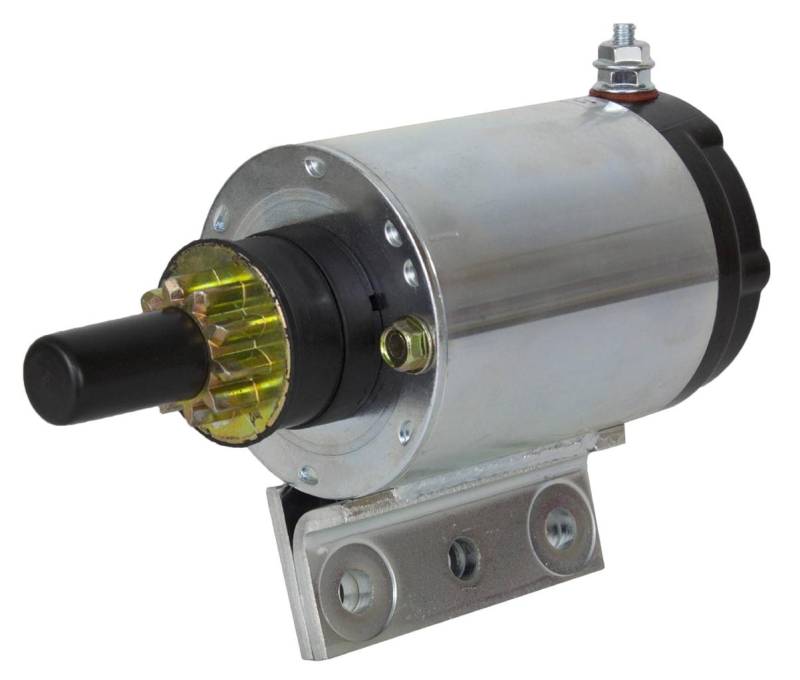

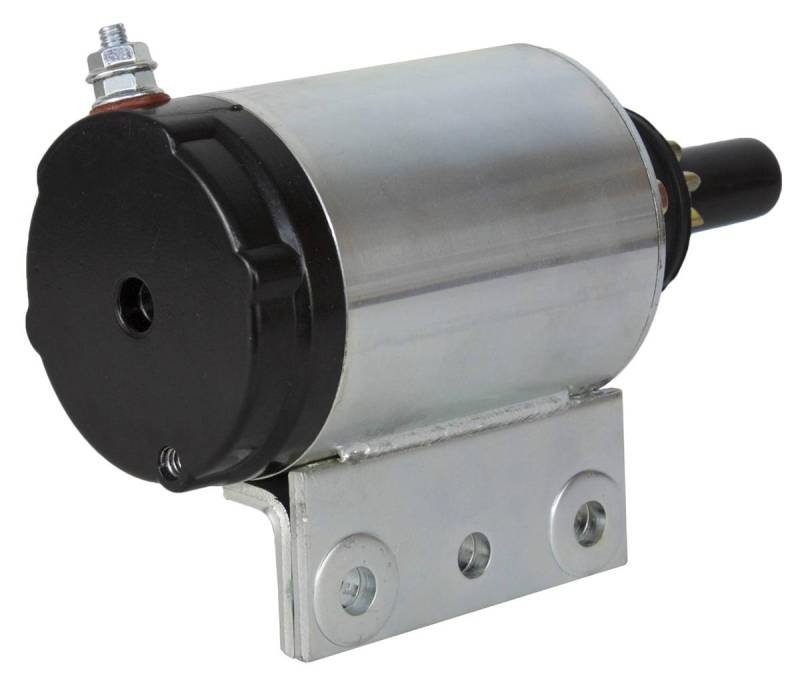

John Deere / Kohler PMDD Starter Motor - 12V for Lawn Tractors, Skid Steers, and Equipment with Kohler K-Series Engines. Direct OEM replacement with 3 mounting ears.
SPECIFICATIONS:
- Voltage: 12V
- Starter Type: PMDD (Permanent Magnet Direct Drive)
- Rotation: Counterclockwise (CCW)
- Tooth Count: 10
- Gear O.D.: 1.268 in (32.2mm)
- Field Case Length: 3.45 in (87.6mm)
- Mounting Ears: 3x 9.6mm Unthreaded
- Weight: 5.595 lbs (2.54 kg)
JOHN DEERE PART NUMBERS:
AM119837, AM31568, AM32789, AM34248, AM3424B, AM34888, AM37032, AM37869, AMJ7869, SE501859
KOHLER PART NUMBERS:
45-098-01, 45-098-03, 45-098-05, 45-098-07, 45-098-09, 51-098-01, A236396, A237131, A237510, A237534
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
