STREET ROD AND HOT ROD USE:
• Small block Chevy street rods and hot rods: 283, 302, 305, 327, 350, 383 and 400 cubic inch, with a mini low-mount bracket or minor bracket modification
• Big block Chevy street rods: 396, 402, 427, 454 and 502 cubic inch, with minor bracket modification
• Rat rods, gassers, roadsters and coupes where a full-size alternator crowds the front of the engine
• Resto-mod and pro touring builds that want a clean, compact charging system
RACING USE:
• Drag and bracket race cars: 60 amps covers ignition, electric fuel pump, gauges and data logger
• Dirt and asphalt circle track cars: late model, modified, street stock and hobby stock
• Sand rails, dune buggies and off-road builds with little room around the engine
CUSTOM PROJECT USE:
• Kit cars and engine swaps with a tight engine bay
• Custom projects that need a small, light, internally regulated alternator that switches on and off with the key
• Any 12 volt negative ground build with a 3/8 in V-belt drive and room for a two-ear mini mount
HOW TO CHOOSE:
• Add up the running load (ignition, fuel pump, cooling fans, lights, stereo): this unit is rated 60 amps
• Choose this 3-wire unit for key-switched charging, battery voltage sensing and a working charge lamp
• Check belt width (3/8 in, 10 mm V-belt), rotation (clockwise) and bracket room before ordering
• Heavy electrical loads (big cooling fans, high-power audio) need a higher-output alternator
INSTALL NOTES:
• Mount with a mini alternator bracket, or modify the factory bracket, and line up the pulley with the crank and water pump pulleys
• Run a fused charge cable, 8 AWG or heavier (heavier on long runs), from the M6 output stud to battery positive
• The included plug-in 3-wire adapter fits the regulator plug: one lead takes switched ignition, one senses battery voltage, one drives a charge lamp
• Follow the wiring sheet in the box for the lead colors, and never put 12 volts straight on the lamp lead
• Ignition-switched: charges at low RPM and turns off with the key, so no parasitic drain on the battery
• Ground the case to the engine block with clean, bare mounting points
SPECIFICATIONS:

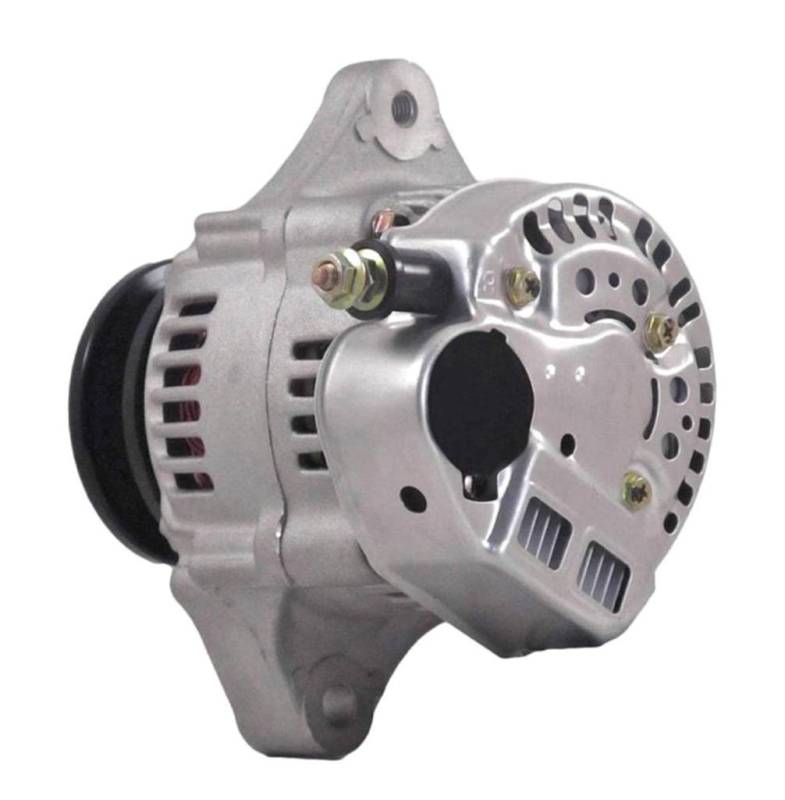

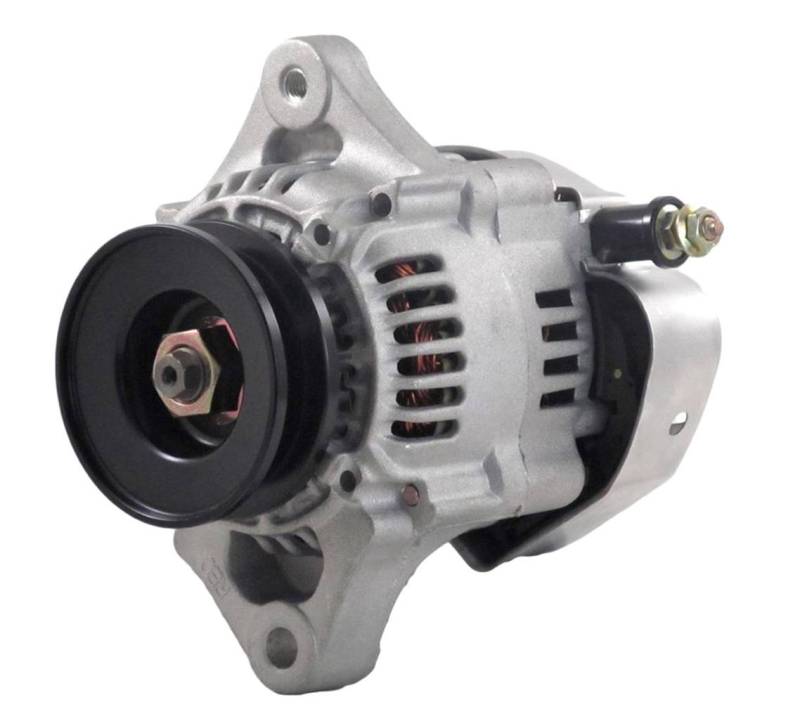

• Product type: Mini alternator, 3-wire, internally regulated
• Voltage: 12V
• Output: 60A
• Rotation: CW (clockwise, viewed from the pulley)
• Regulator: Internal
• Fan: Internal
• Plug position: 9 o'clock
• Ground: Negative
• Output stud: M6-1.0

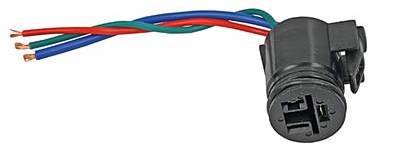

• Connector: 3-wire plug-in adapter (red, blue, green leads) included
• Pulley: Single V-groove for 3/8 in (10 mm) belt, included
• Case: 93 mm mini case, two mounting ears, natural aluminum finish

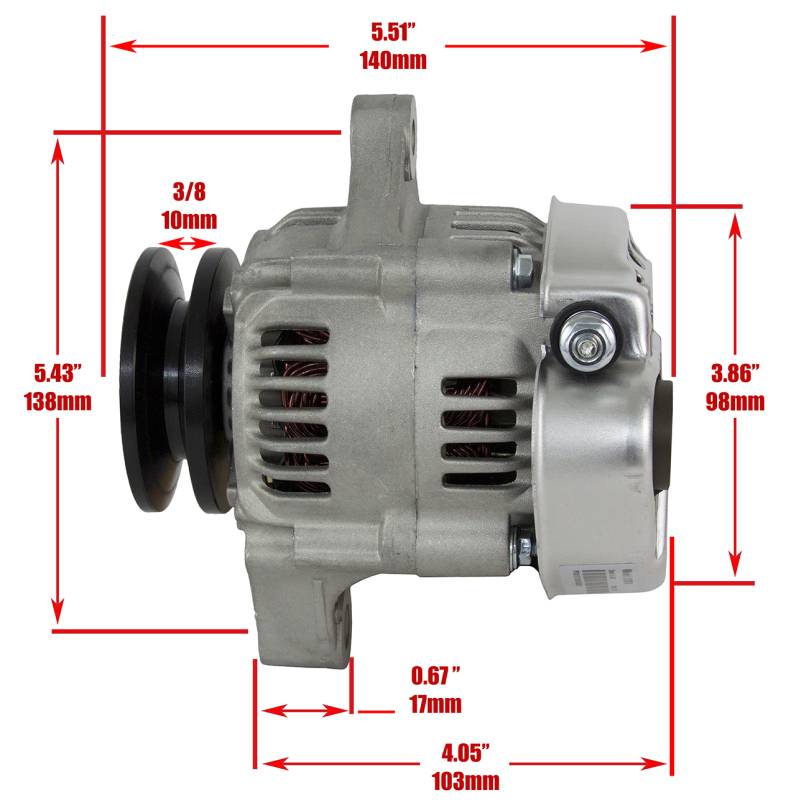

• Overall length: 5.51 in (140 mm)
• Height ear to ear: 5.43 in (138 mm)
• Rear housing: 3.86 in (98 mm)
• Mount ear thickness: 0.67 in (17 mm)
• Front ear face to rear: 4.05 in (103 mm)
• Weight: 6.93 lb (3.15 kg)
• Condition: New aftermarket
