OEM PART NUMBERS:
• Iskra: AZJ3283 / AZJ3158 / AZJ3274
• Lucas: LRS01484
• John Deere (Additional): AL110504 / TY6780 / AL78760
SPECIFICATIONS:
• Voltage: 12V
• Type: DD (Direct Drive)
• Power: 3.1 kW
• Rotation: CW (Clockwise)
• Tooth Count: 10
• Gear OD: 32mm / 1.260 in
• Mounting Ear 1: 13.4mm ID Unthreaded
• Weight: 29.49 lbs / 13.40 kg
• Condition: New
APPLICATION:
• John Deere Utility Tractors 820-2240 Diesel (1968-1985)

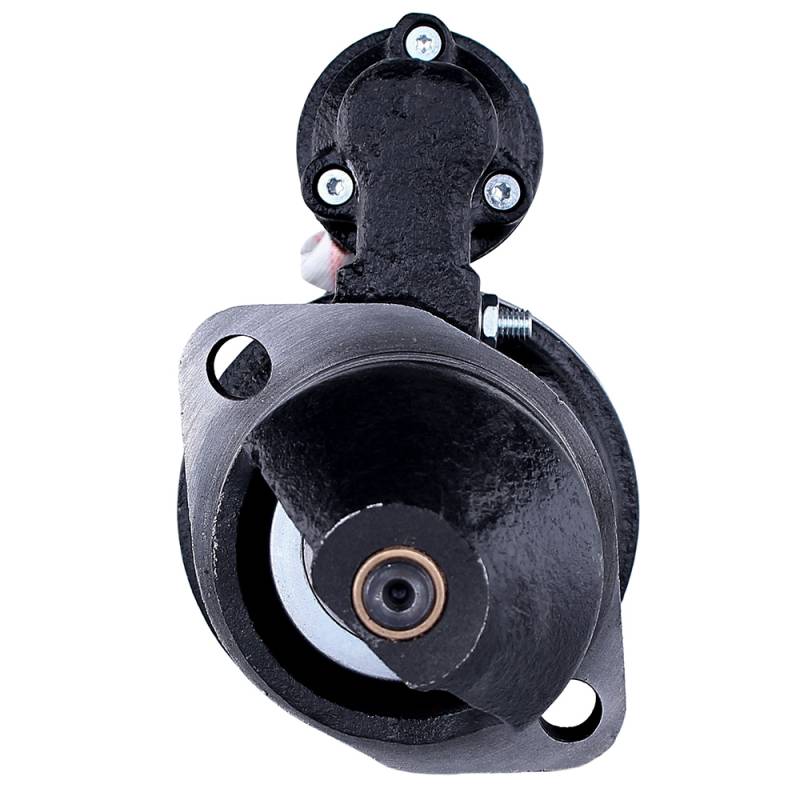

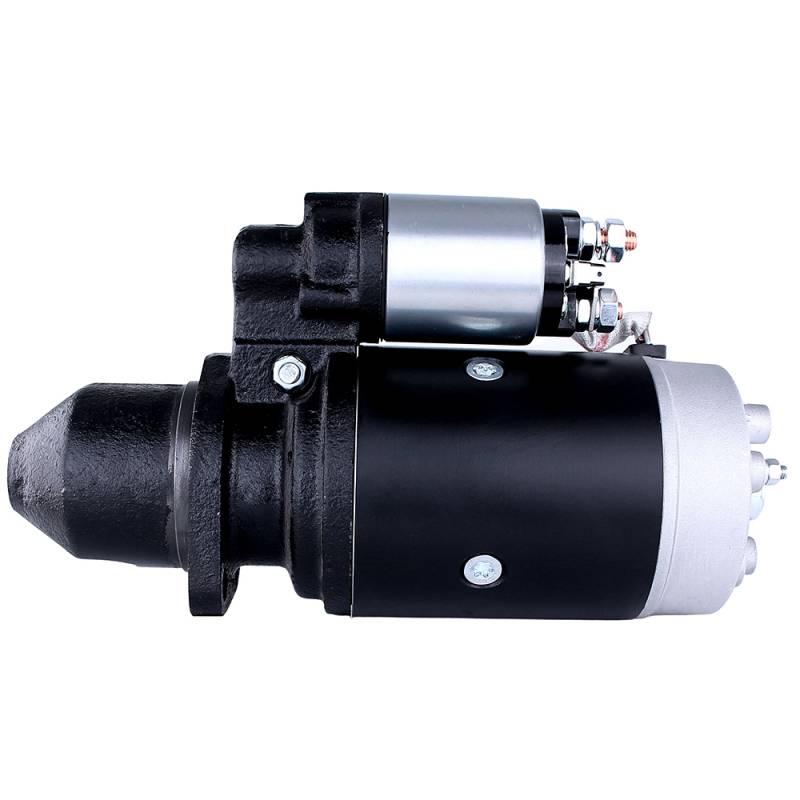

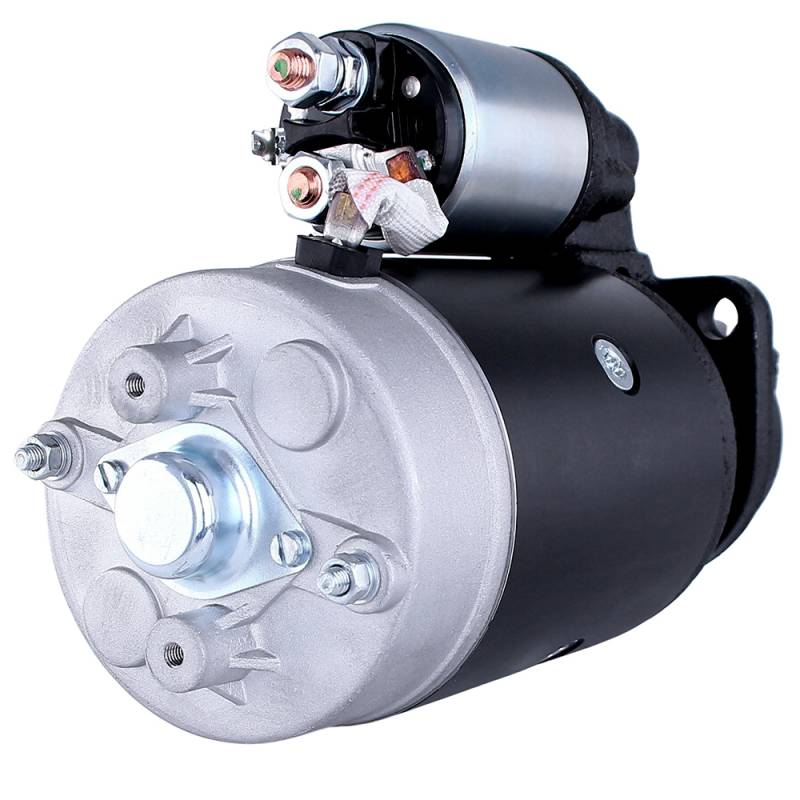

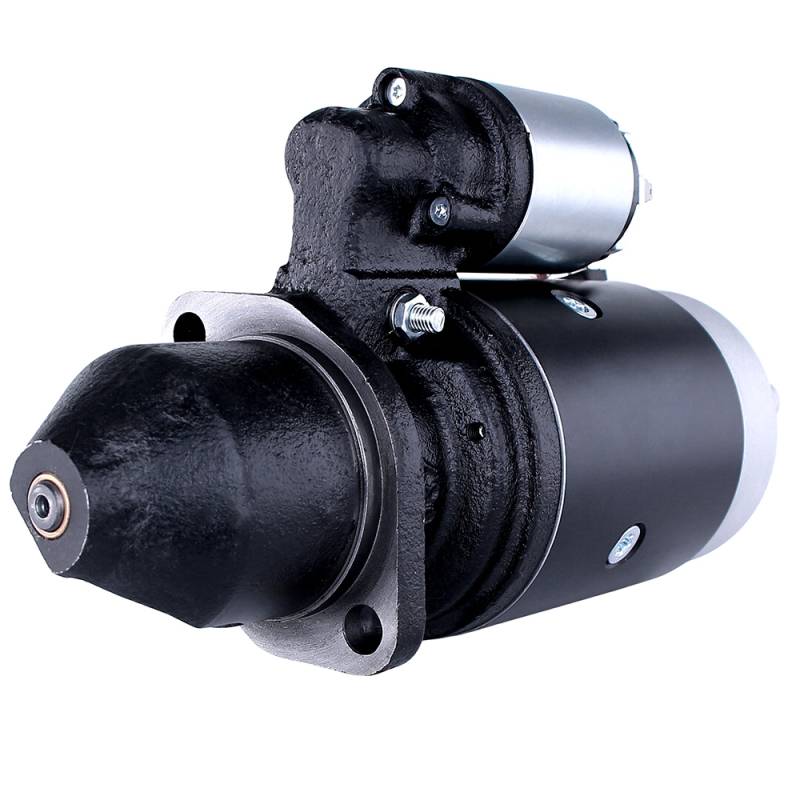

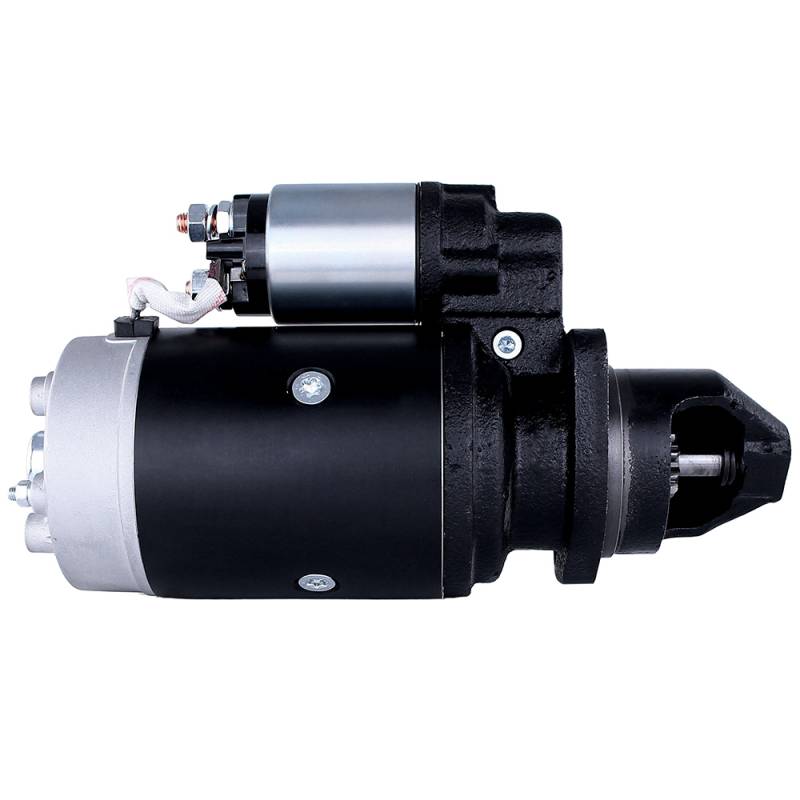

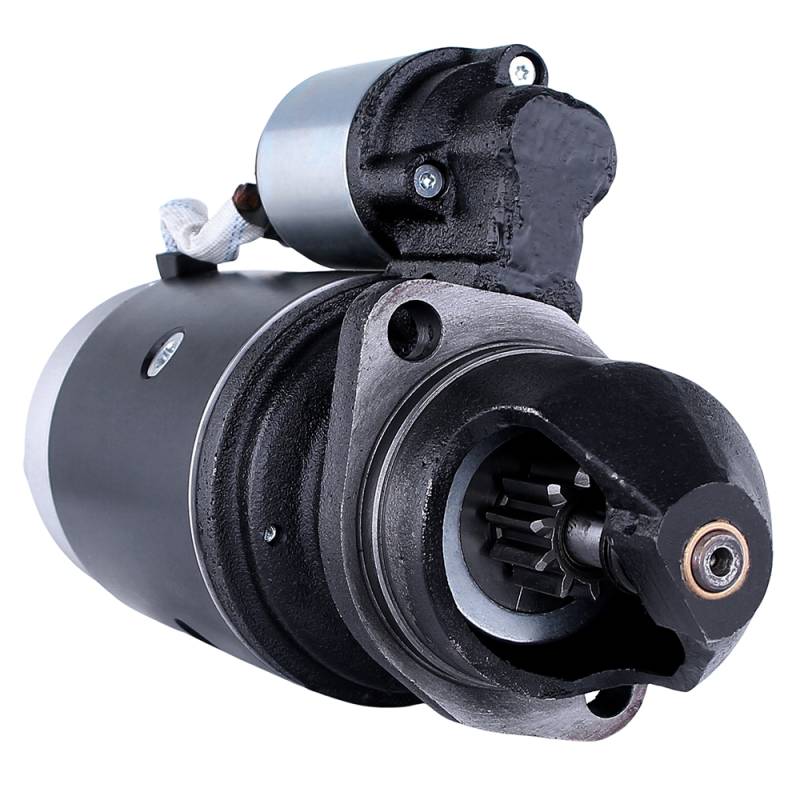

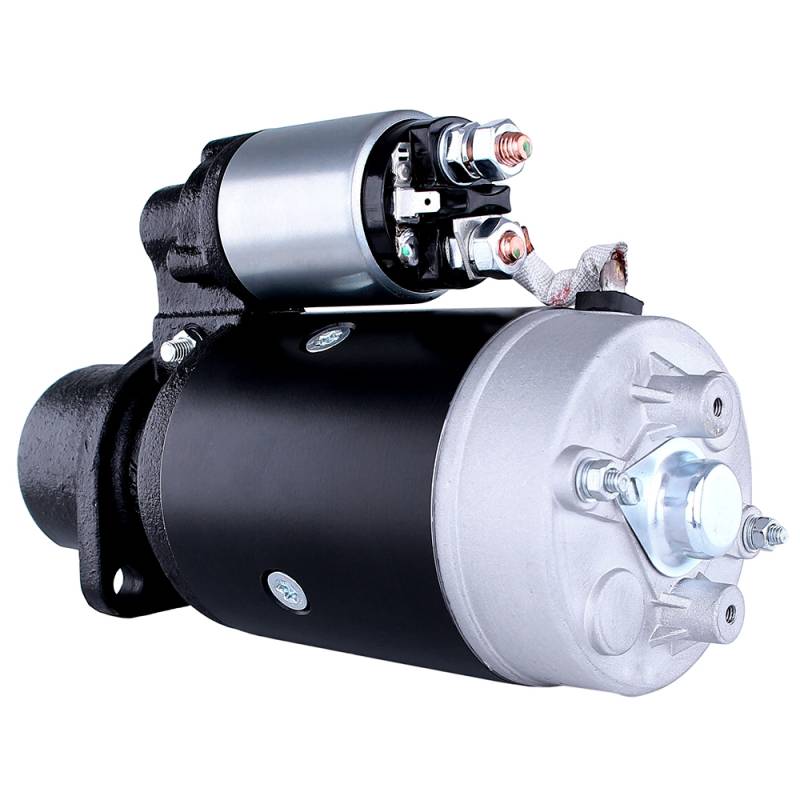

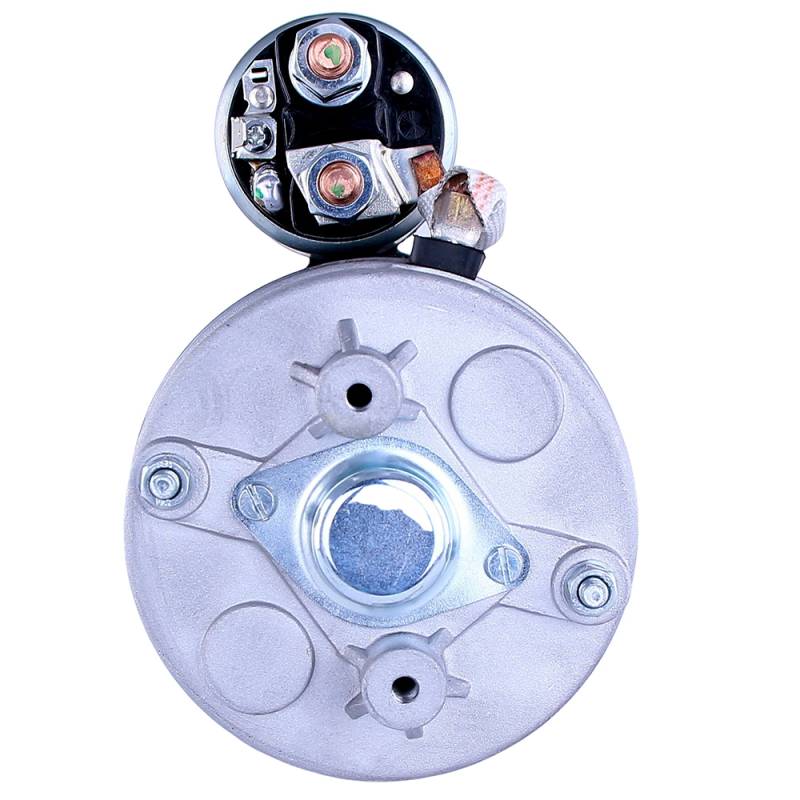

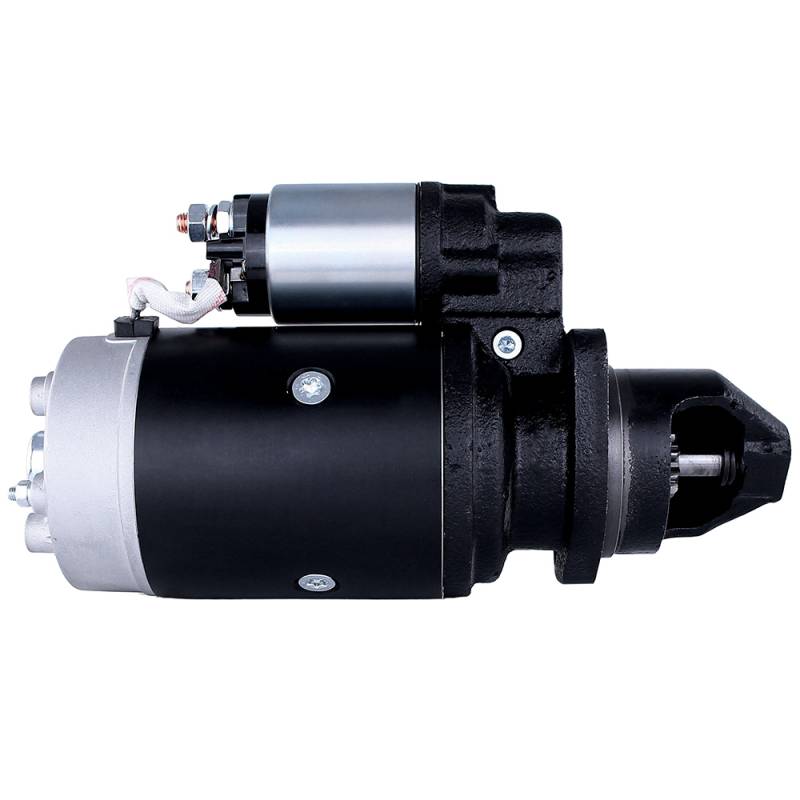

Starter Motor - John Deere 820-930 / 1530-2240 Utility Tractor
New 12V Bosch-type DD starter delivering 3.1 kW for John Deere utility tractors with diesel engines from 152 to 219 cubic inches. CW rotation, 10-tooth drive gear (32mm OD), 13.4mm unthreaded mounting. Weight 29.49 lbs. Replaces Iskra AZJ3283, AZJ3158, AZJ3274, Lucas LRS01484, John Deere AL110504, TY6780, AL78760, Magneton 443-115-142-700, and Renault 7700044184. Compatible with 820 through 2240 utility tractors (1968-1985).
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
