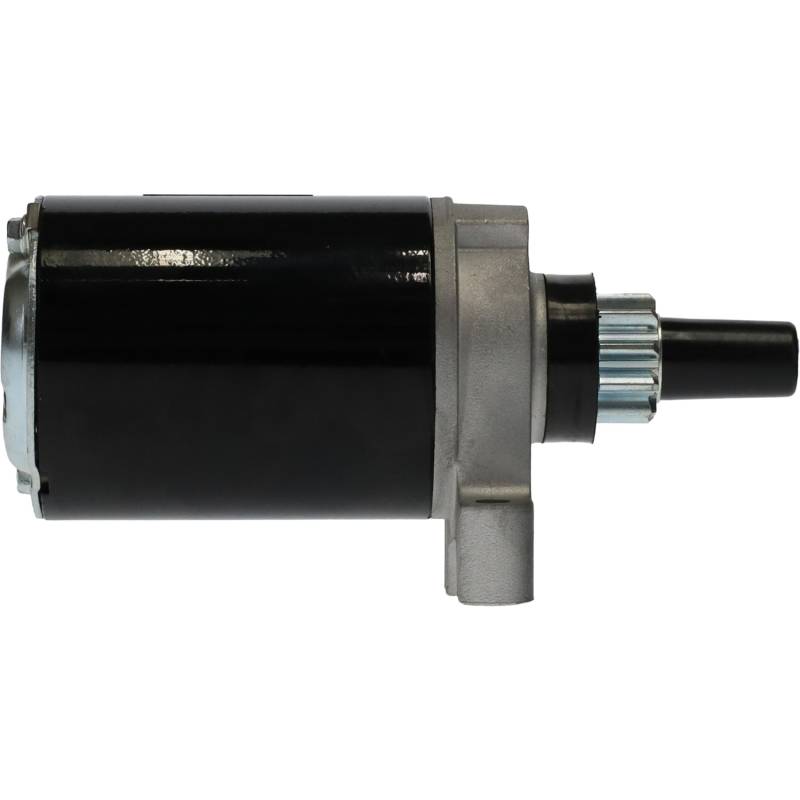

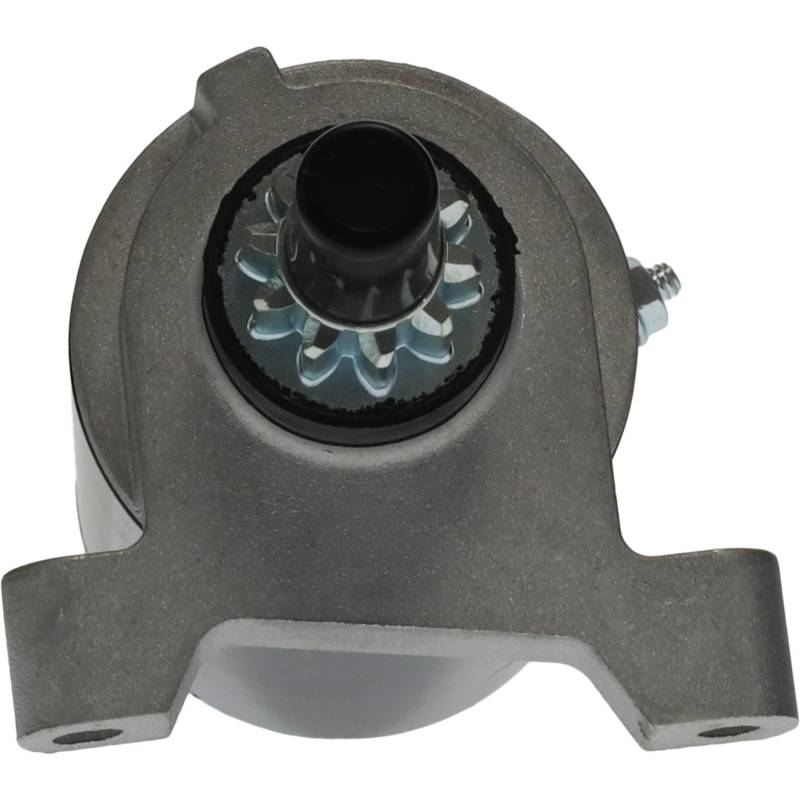

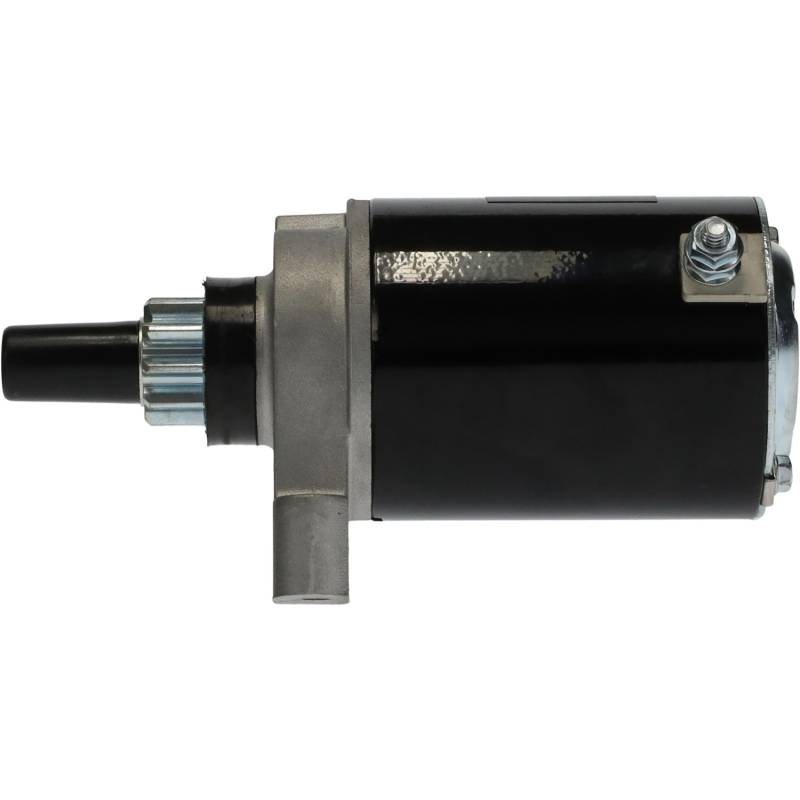

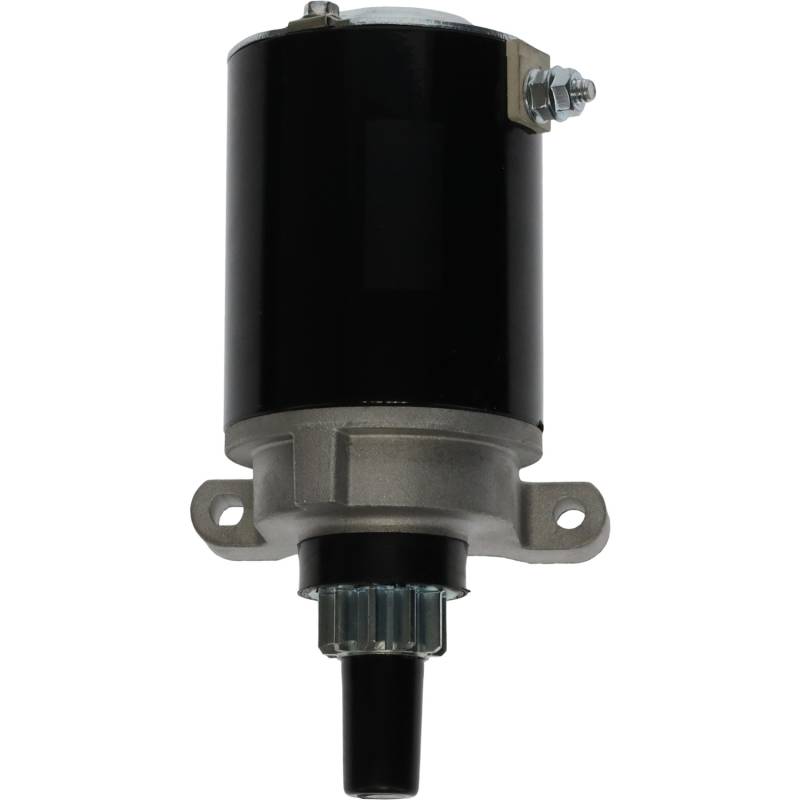

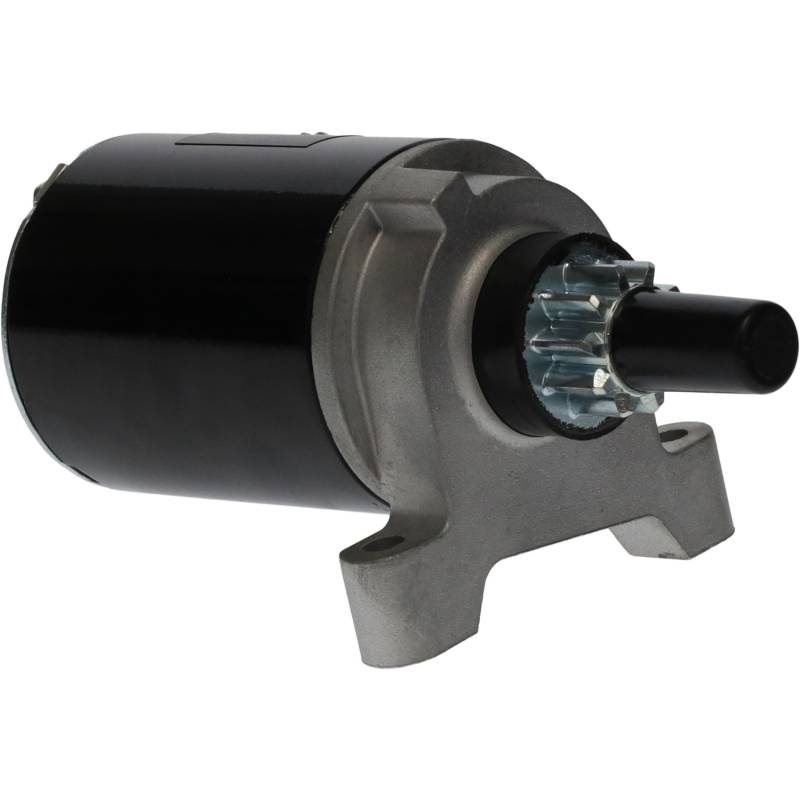

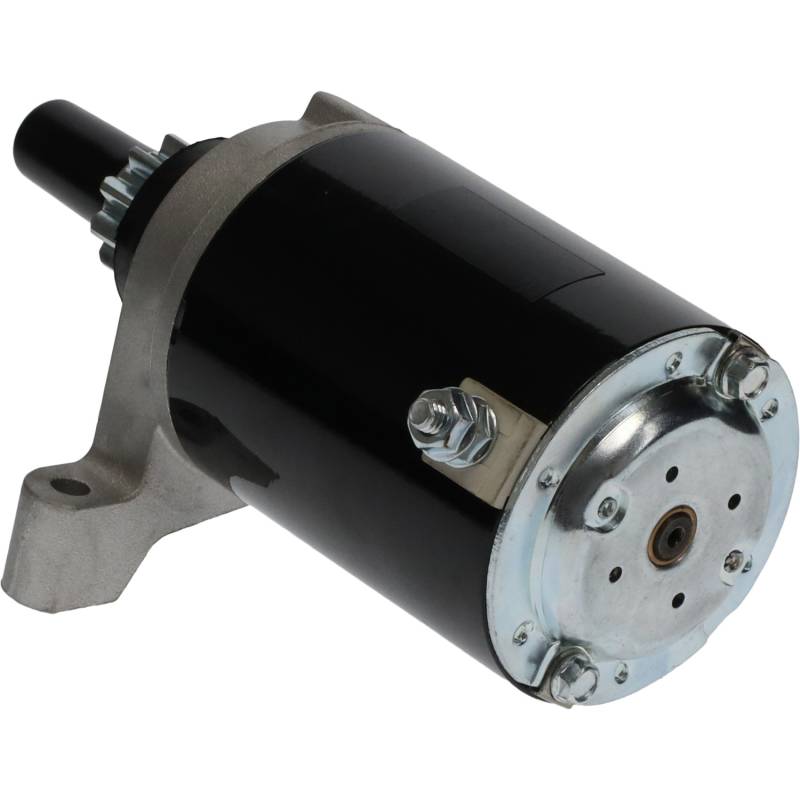

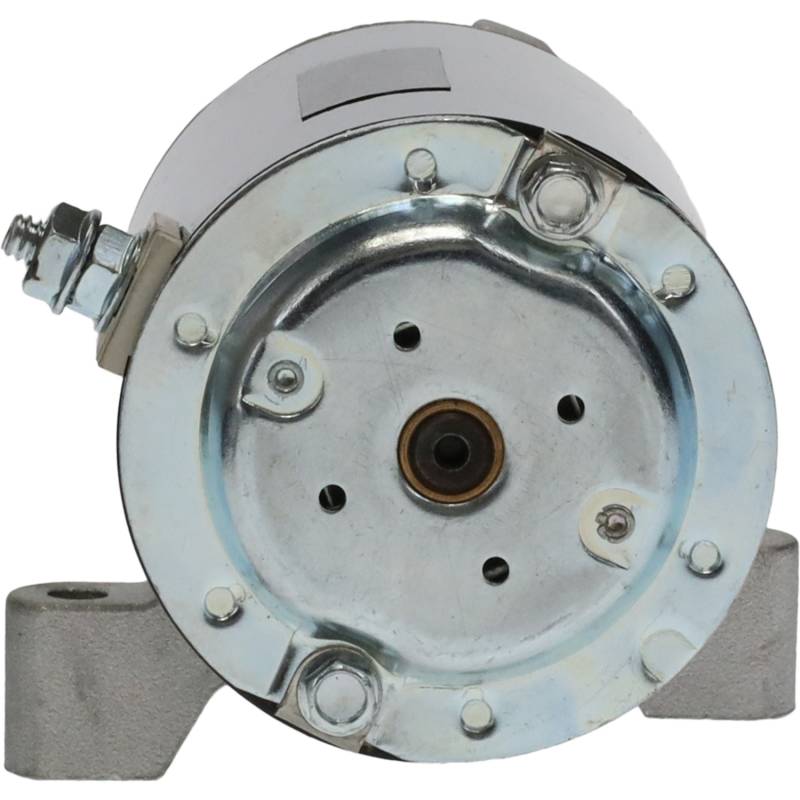

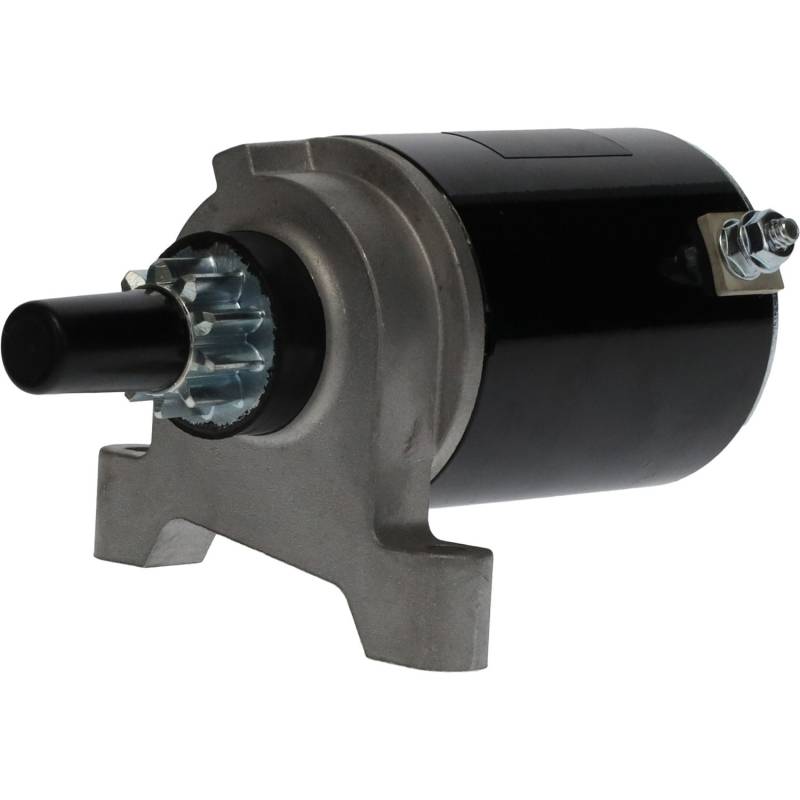

12V Starter Motor Compatible With Tecumseh Oh50 Ohh50 Ohv110 Ohv120 Ohv125 Ohv130 Ohv135 Ov358ea

5747*1
TECUMSEH PART NUMBERS:
• 36914
• 36914-A, 36914A
• 37425
• 37425-A, 37425A
• 730326
• 1-36914-ES12
• 36914-ES12-1
• ES12-1-36914
• 1-37425-ES12
• ES12-1-37425

OTHER REPLACEMENT NUMBERS:
• Oregon 33-713, 33713
• Oregon 33-713-A, 33713A
• Oregon 33-739, 33739
• Rotary 9981
• Prime Line 7-06832, 706832

SPECIFICATIONS:
Item: Electric starter motor
Voltage: 12V
Type: PMDD (permanent magnet direct drive)
Teeth: 10
Gear OD: 1.201 in / 30.5 mm
Field case length: 3.66 in / 93 mm
Mounting ear 1: 8.6 mm ID unthreaded
Mounting ear 2: 8.6 mm ID unthreaded
Mount: 2 ear mount, also replaces the earlier 4 bolt mount Tecumseh 36914 starter
Weight: 5.205 lb / 2.37 kg
Condition: New aftermarket, not a Tecumseh branded unit

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $138.76
Sale: $79.29
Save: 43%
Save: $59.47
Qty:
Free Shipping!

Description

TECUMSEH OH SERIES (HORIZONTAL SHAFT):
• Tecumseh OH50 5 HP horizontal shaft engine
• Tecumseh OHH50 5 HP horizontal shaft engine

TECUMSEH OHV SERIES (OVERHEAD VALVE VERTICAL SHAFT):
• Tecumseh OHV110 11 HP overhead valve vertical shaft engine: OHV110-206001B, OHV110-206003B, OHV110-206005C, OHV110-206005D, OHV110-206006D, OHV110-206007D, OHV110-206008D, OHV110-206011D
• Tecumseh OHV115 11.5 HP overhead valve vertical shaft engine: OHV115-206201A, OHV115-206201B, OHV115-206202A
• Tecumseh OHV120 12 HP overhead valve vertical shaft engine: OHV120-206401A, OHV120-206402A, OHV120-206403A, OHV120-206405D
• Tecumseh OHV125 12.5 HP overhead valve vertical shaft engine, OHV125-206601A through OHV125-206625D series: OHV125-206601A, OHV125-206602A, OHV125-206603A, OHV125-206604A, OHV125-206604B, OHV125-206604C, OHV125-206604D, OHV125-206605A, OHV125-206605B, OHV125-206606A, OHV125-206607A, OHV125-206608A, OHV125-206608B, OHV125-206609A, OHV125-206610A, OHV125-206610B, OHV125-206612B, OHV125-206612C, OHV125-206613B, OHV125-206615B, OHV125-206616B, OHV125-206616C, OHV125-206618B, OHV125-206618C, OHV125-206618D, OHV125-206620C, OHV125-206620D, OHV125-206621C, OHV125-206623D, OHV125-206625D
• Tecumseh OHV130 13 HP overhead valve vertical shaft engine, OHV130-206801A through OHV130-206927F series: OHV130-203836E, OHV130-206801A, OHV130-206802A, OHV130-206802B, OHV130-206802C, OHV130-206802D, OHV130-206802E, OHV130-206803A, OHV130-206803B, OHV130-206820B, OHV130-206821C, OHV130-206822C, OHV130-206855C, OHV130-206856D, OHV130-206857D, OHV130-206861D, OHV130-206862D, OHV130-206863E, OHV130-206907E, OHV130-206912E, OHV130-206927F
• Tecumseh OHV135 13.5 HP overhead valve vertical shaft engine, OHV135-206902D through OHV135-206934F series: OHV135-206901A, OHV135-206902D, OHV135-206903D, OHV135-206903E, OHV135-206904E, OHV135-206905E, OHV135-206906E, OHV135-206907E, OHV135-206908E, OHV135-206909E, OHV135-206910E, OHV135-206911E, OHV135-206912E, OHV135-206913E, OHV135-206914E, OHV135-206915E, OHV135-206916F, OHV135-206919E, OHV135-206920E, OHV135-206921E, OHV135-206921F, OHV135-206922E, OHV135-206929F, OHV135-206934F

TECUMSEH OV SERIES (RIDER ENGINE):
• Tecumseh OV358EA 13 HP / 13.5 HP overhead valve rider engine: OV358EA-206904F, OV358EA-206905F, OV358EA-206906F, OV358EA-206907F, OV358EA-206908F, OV358EA-206909F, OV358EA-206909G, OV358EA-206911F, OV358EA-206912F, OV358EA-206915F, OV358EA-206915G, OV358EA-206915H, OV358EA-206916F, OV358EA-206919F, OV358EA-206920F, OV358EA-206920G, OV358EA-206920H, OV358EA-206921F, OV358EA-206922F, OV358EA-206923F, OV358EA-206925F, OV358EA-206926F, OV358EA-206927F, OV358EA-206929F, OV358EA-206930F, OV358EA-206931F, OV358EA-206931G, OV358EA-206932F, OV358EA-206933F, OV358EA-206933H, OV358EA-206934F, OV358EA-206935F, OV358EA-206935G

EQUIPMENT APPLICATIONS:
• MTD riding mowers and lawn tractors
• Yard Machines riding mowers
• Yard-Man lawn tractors
• Bolens riding mowers and tractors
• White Outdoor power equipment
• Troy-Bilt riding mowers
• Craftsman lawn tractors (Tecumseh engines)
• Riding mowers, garden tractors and lawn tractors built with the Tecumseh engines listed here

SPECIFICATIONS:
• Item: Electric starter motor
• Voltage: 12V
• Type: PMDD (permanent magnet direct drive)
• Teeth: 10
• Gear OD: 1.201 in / 30.5 mm
• Field case length: 3.66 in / 93 mm
• Mounting ear 1: 8.6 mm ID unthreaded
• Mounting ear 2: 8.6 mm ID unthreaded
• Mount: 2 ear mount, also replaces the earlier 4 bolt mount Tecumseh 36914 starter
• Weight: 5.205 lb / 2.37 kg
• Condition: New aftermarket, not a Tecumseh branded unit
• ⚠️ 10 TOOTH, 2 EAR MOUNT: 12 volt PMDD starter, 10 tooth 30.5 mm gear, 93 mm field case, two 8.6 mm unthreaded ears. OHV135 engines were built with two different starters, and the 16 tooth OHV13 / OVXL starter and the V-twin OV691, TVT691, VTX691 starter are different parts. Match the number on your old starter or your engine spec number.

Details

Shipping Information

  • Item Requires Shipping
  • 6.0 lbs.
  • W6.0000” x H6.0000” x L10.0000”
  • Free Shipping!
