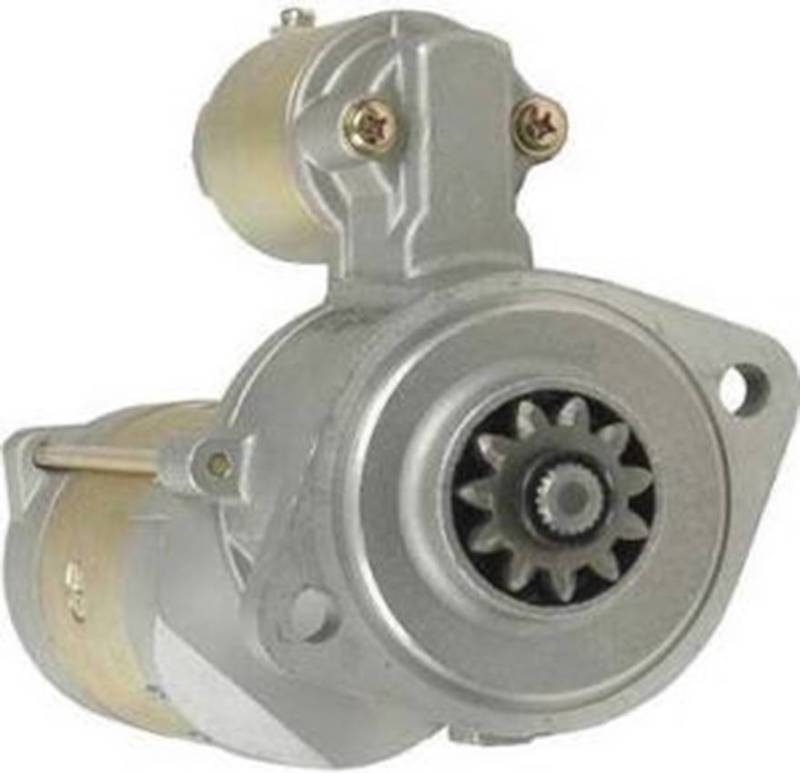

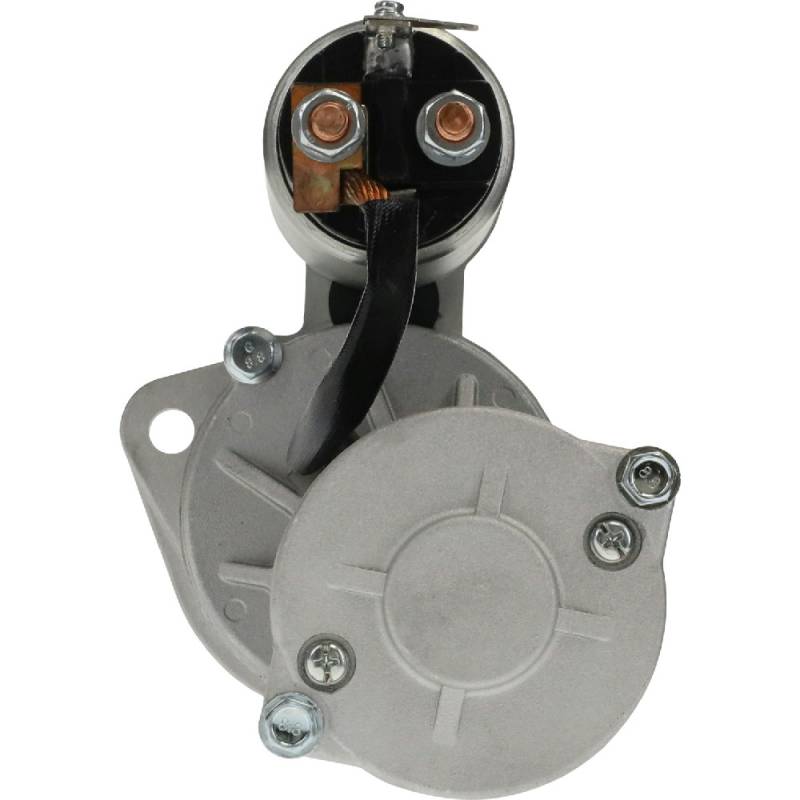

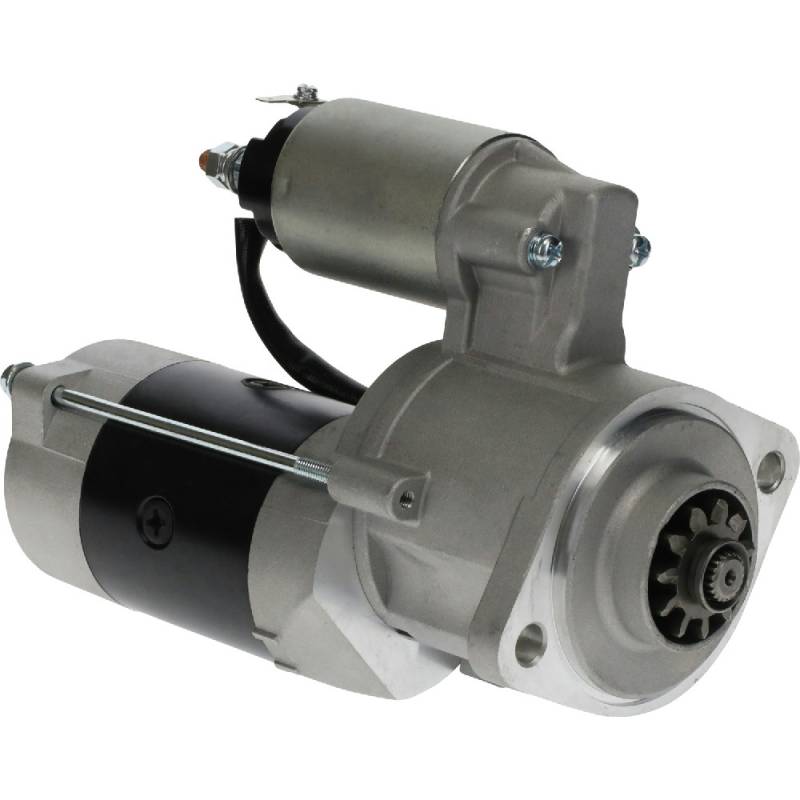

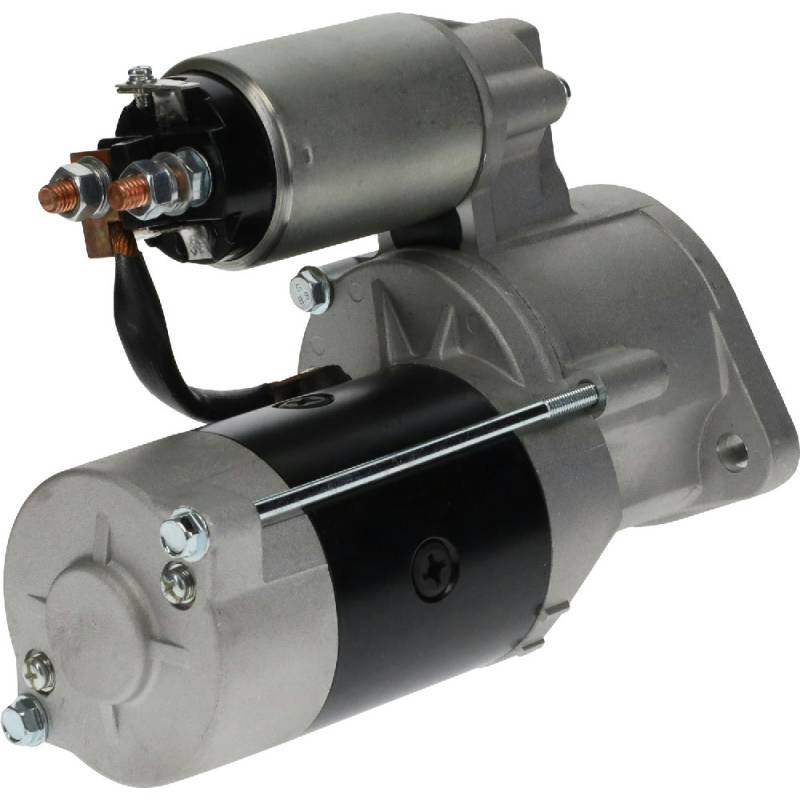

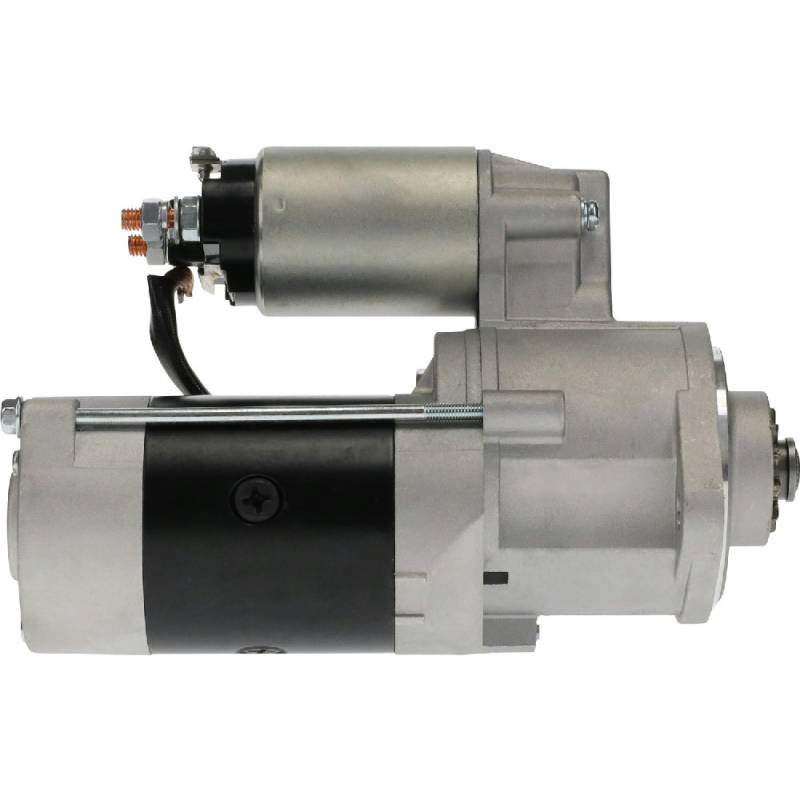

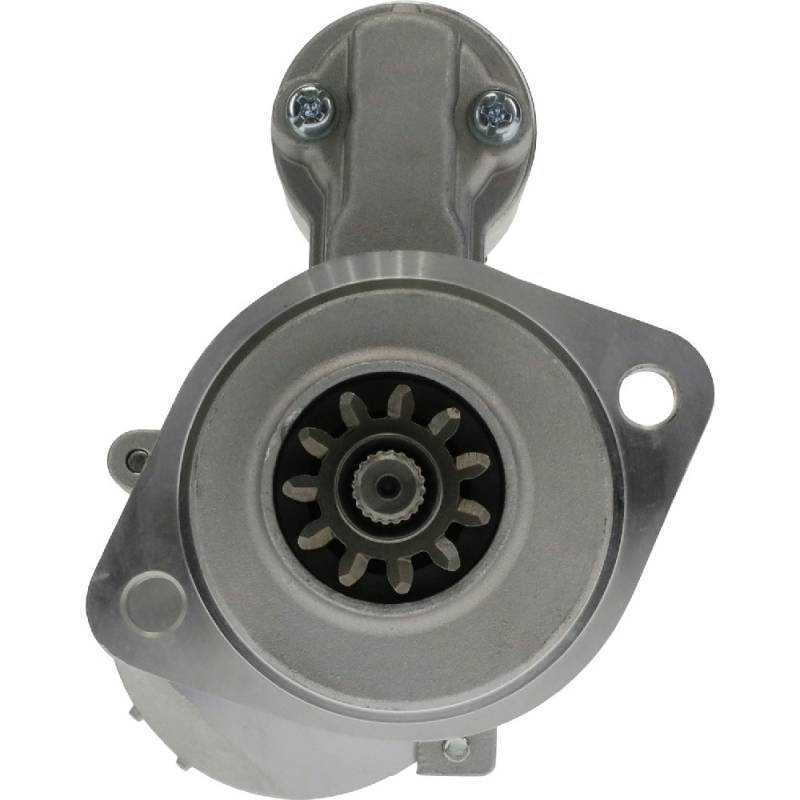

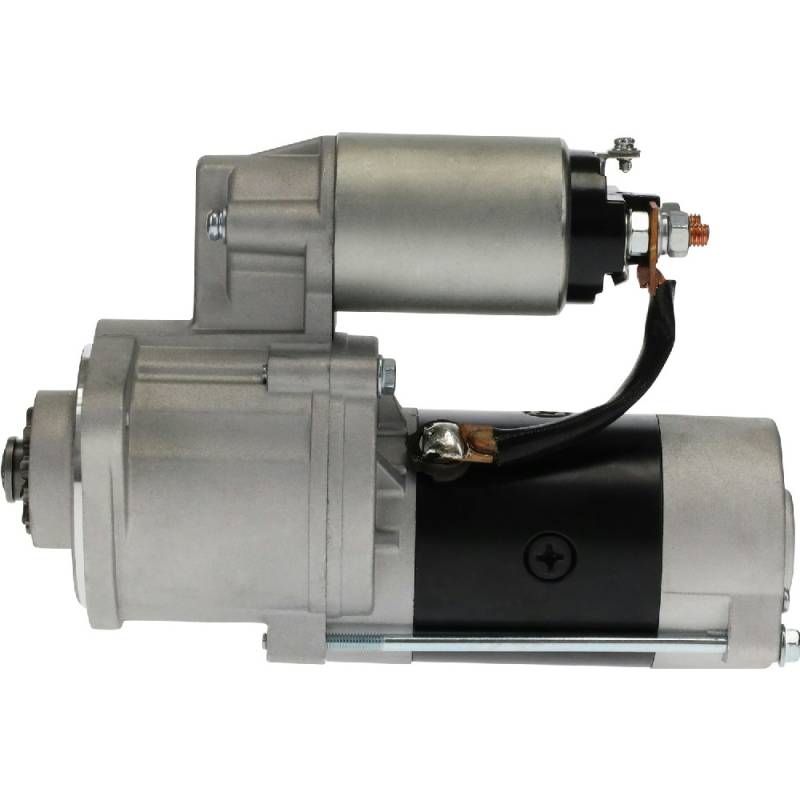

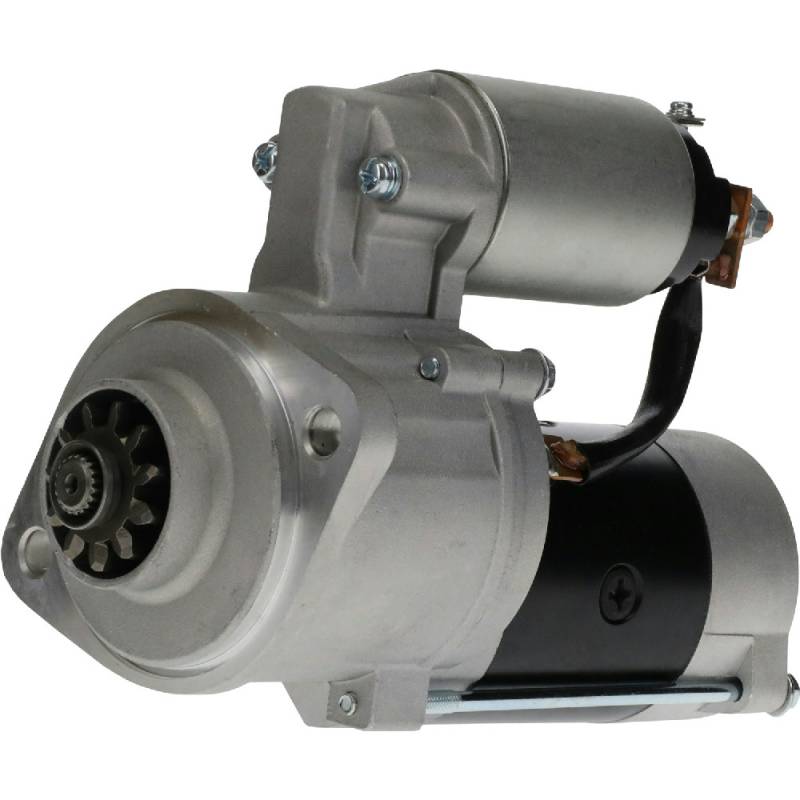

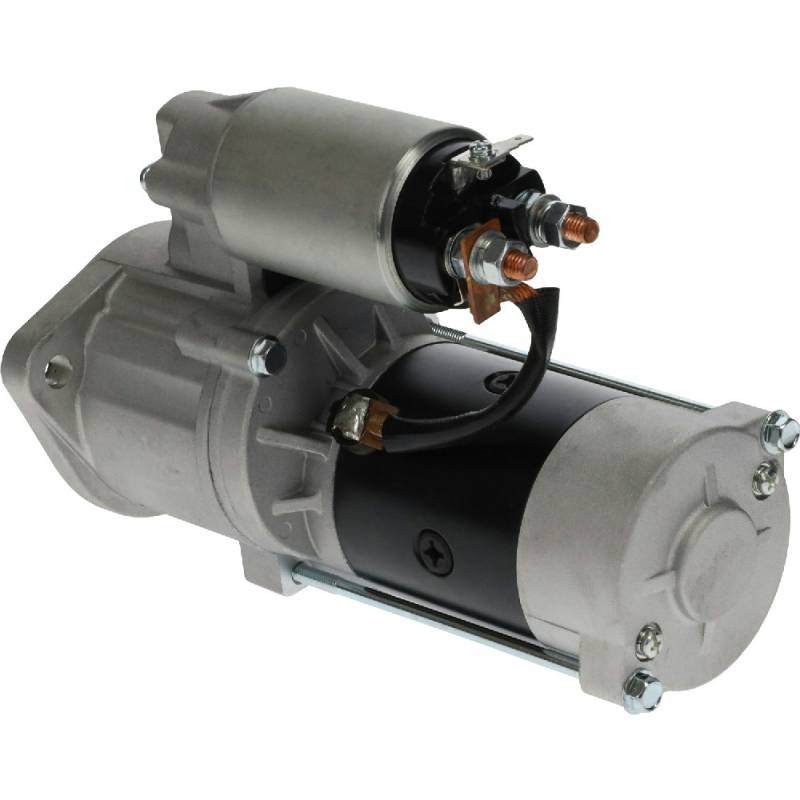

New 24V Starter Motor Compatible With Mitsubishi Forklift Fd-35At Fdc-20-D Fdc-25-D 34466-15100

MITSUBISHI 24 VOLT 3.5kW 11-TOOTH OSGR STARTER MOTOR — FD SERIES LIFT TRUCK AND S4E / S4S ENGINE APPLICATIONS:

MITSUBISHI FD-10 THROUGH FD-15T LIFT TRUCKS:
• Mitsubishi FD-10 Lift Truck, Mitsubishi System (1981-1983)
• Mitsubishi FD-14 Lift Truck, Mitsubishi System
• Mitsubishi FD-15 Lift Truck, Mitsubishi System
• Mitsubishi FD-15T Lift Truck, Mitsubishi System

MITSUBISHI FD-20 AND FD-25 LIFT TRUCKS — S4E / S4S 24 VOLT:
• Mitsubishi FD-20 / FD-20D Lift Truck S4E / S4S 24 Volt
• Mitsubishi FD-20B-D / FD-20B-DS Lift Truck S4E / S4S 24 Volt
• Mitsubishi FD-25 / FD-25D / FD-25DS Lift Truck S4E / S4S 24 Volt
• Mitsubishi FD-25B-D / FD-25B-DS / FD-25T Lift Truck S4E / S4S
• Mitsubishi FDC-20-D / FDC-25-D Lift Truck S4E 24 Volt

MITSUBISHI FD-30 AND FD-35 LIFT TRUCKS — S4E / S4S 24 VOLT:
• Mitsubishi FD-30 / FD-30D / FD-30DS Lift Truck S4E / S4S 24 Volt
• Mitsubishi FD-30B-D / FD-30B-DS / FD-30T Lift Truck S4E / S4S
• Mitsubishi FD-35A / FD-35A-D Lift Truck S4E / S4S 24 Volt
• Mitsubishi FD-35AB-D / FD-35AT Lift Truck S4E / S4S 24 Volt

MITSUBISHI INDUSTRIAL DIESEL ENGINES:
• Mitsubishi S4E / S4E2 4-Cylinder Diesel Engine (1980-1999)
• Mitsubishi S4S 4-Cylinder Diesel Engine
• Mitsubishi S4F 4-Cylinder Diesel Engine
• Mitsubishi K3D 3-Cylinder Industrial Diesel Engine

MITSUBISHI CRAWLER AND INDUSTRIAL EQUIPMENT:
• Mitsubishi BD2F Crawler Dozer S4E 2600cc 2.6L 159 CID 4-Cyl Diesel
• Mitsubishi BS3F Crawler S4E 2600cc 2.6L 159 CID 4-Cyl Diesel
• Mitsubishi BD2G-2B5 Crawler Tractor S4E2 Diesel
• Clark Lift Trucks with Mitsubishi S4E / S4S Diesel

FITMENT NOTES:
• 24 VOLT SYSTEM ONLY, 3.5 kW, offset gear reduction, clockwise rotation, 11-tooth pinion
• FLANGE MOUNT with an 82.5mm flange diameter and NO NOSE CONE. Two 11.0mm unthreaded mounting holes. B+ terminal is M8
• Gear outside diameter 41mm / 1.614in. Weight 13.315 lbs / 6.05 kg
• THIS STARTER REPLACES BOTH THE 9 TOOTH AND THE 11 TOOTH VERSIONS across this engine family, but confirm the ring gear tooth count on your flywheel before ordering
• POWER RATING — published figures split between 3.2 kW and 3.5 kW across suppliers. The 3.5 kW / 4.69 HP figure is the one carried by the original equipment side sources and is used here
• Mitsubishi carries this starter under a large number of part numbers. The 34466 numbers are Mitsubishi Heavy Industries and the M2T, M3T and M5T numbers are Mitsubishi Electric, with and without the leading zeros. All describe the same unit
• CLARK LIFT TRUCKS ALSO USE THIS STARTER. Clark fitted the Mitsubishi S4E and S4S diesel to some of its lift trucks and carries its own numbers, 3785426 and 379095
• The Mitsubishi S4E and S4S are fitted to lift trucks, crawler dozers and industrial equipment. Identify by the engine model and the number on the original starter rather than by the machine alone
