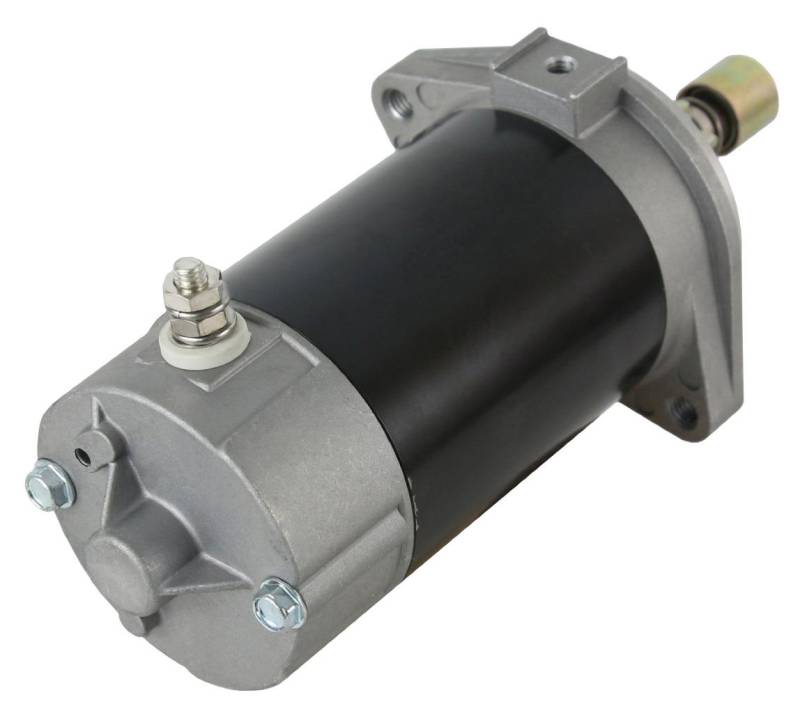

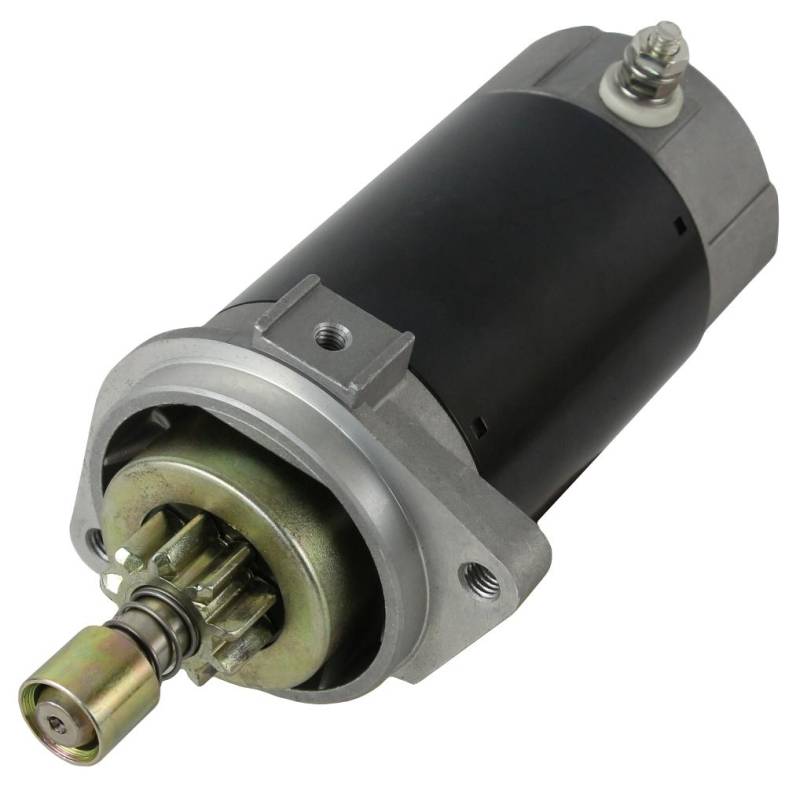

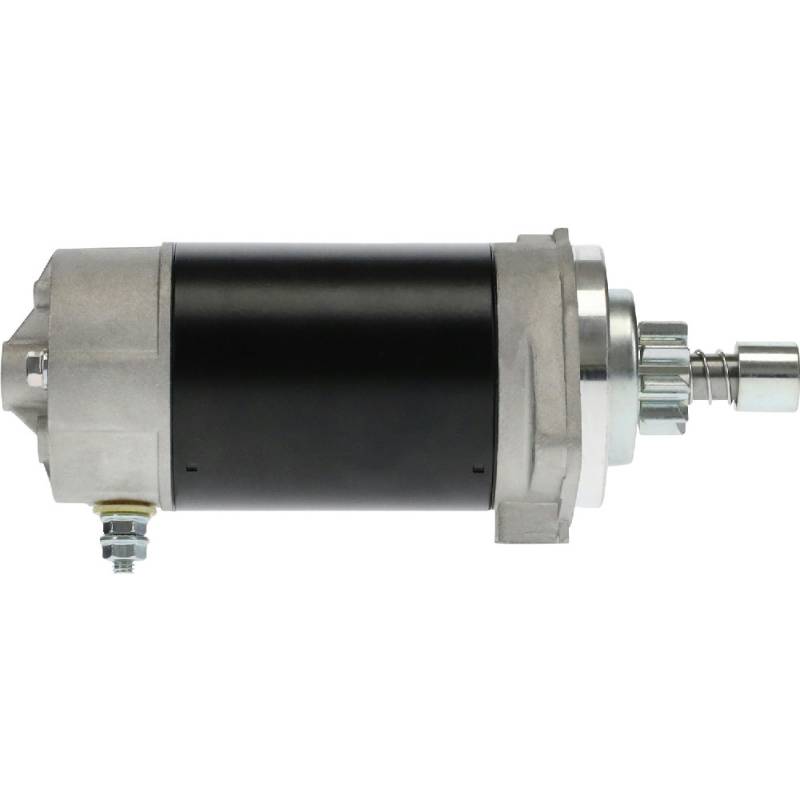

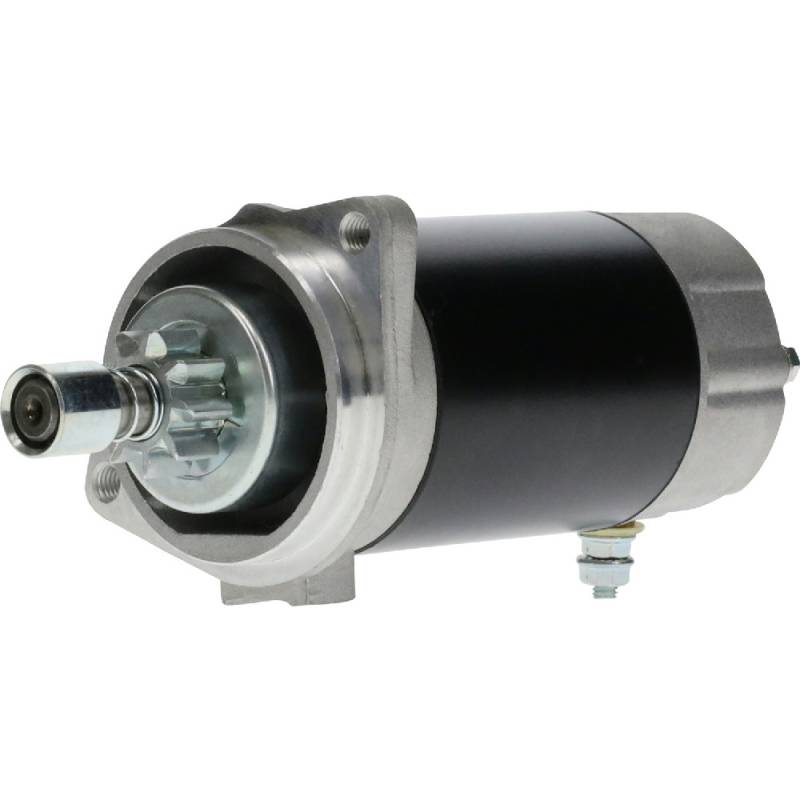

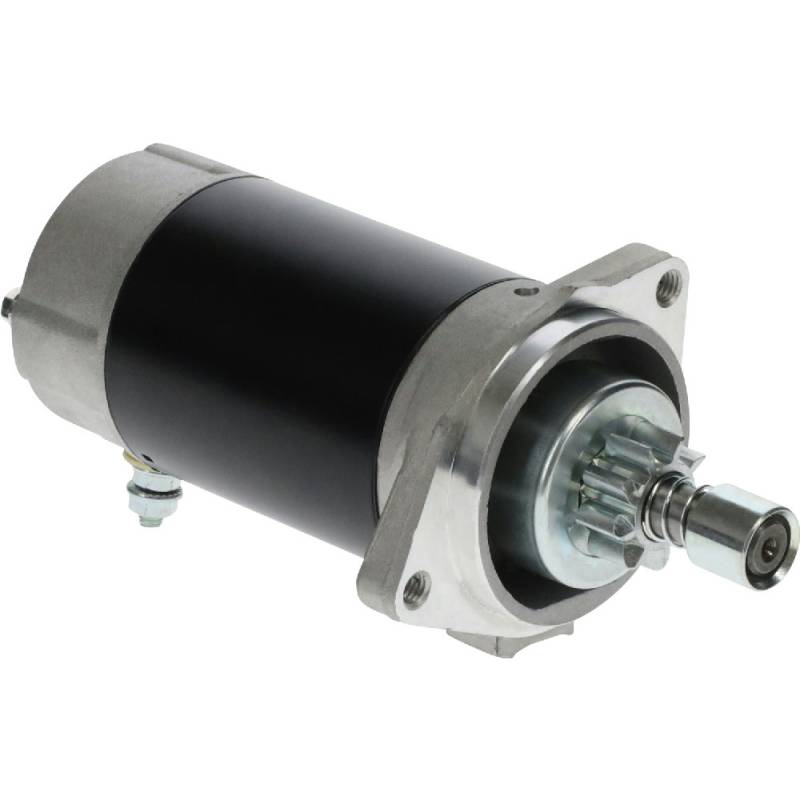

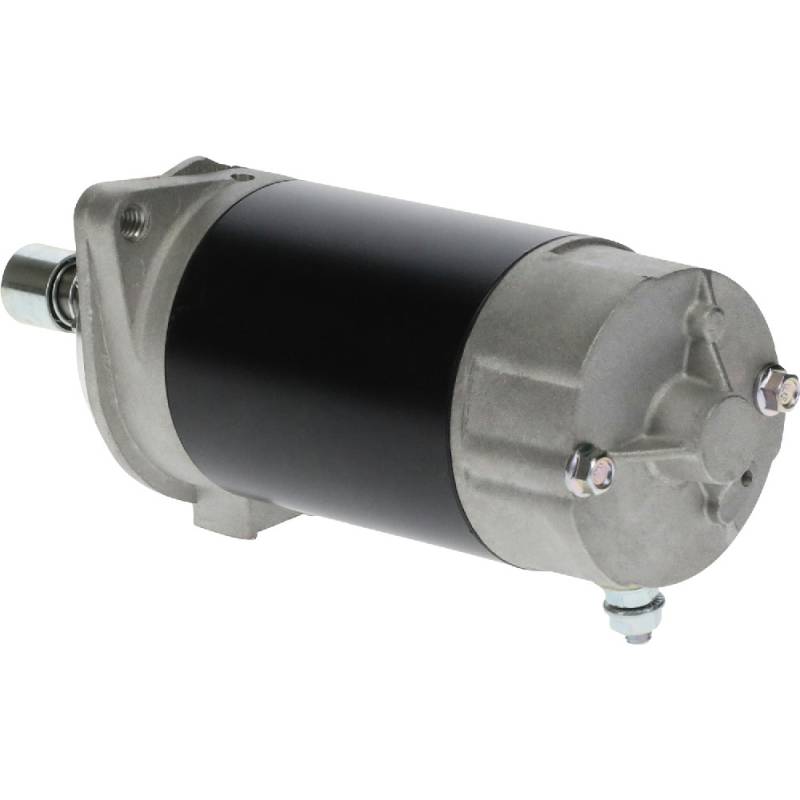

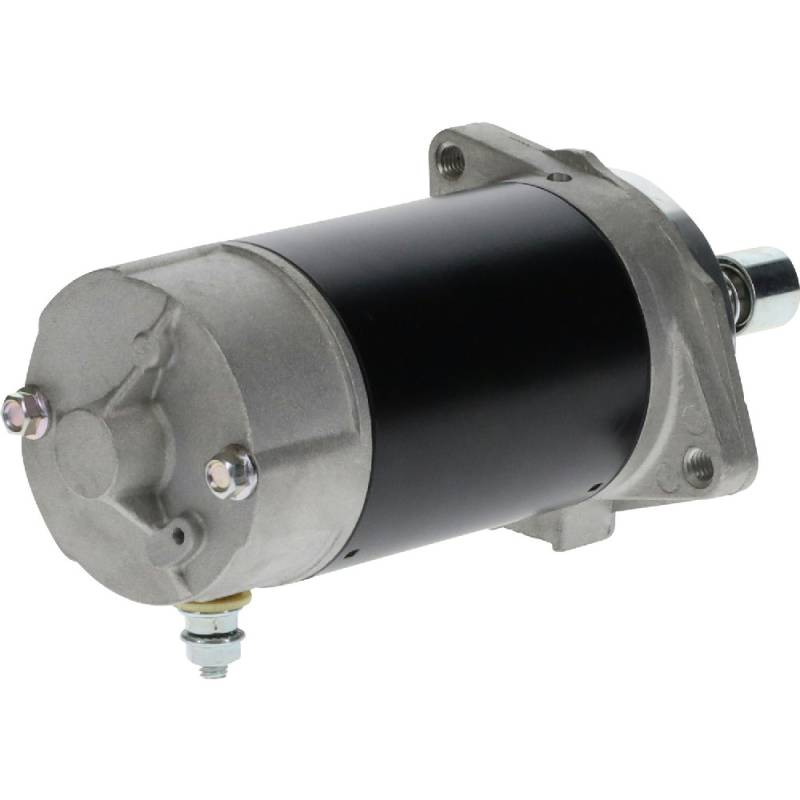

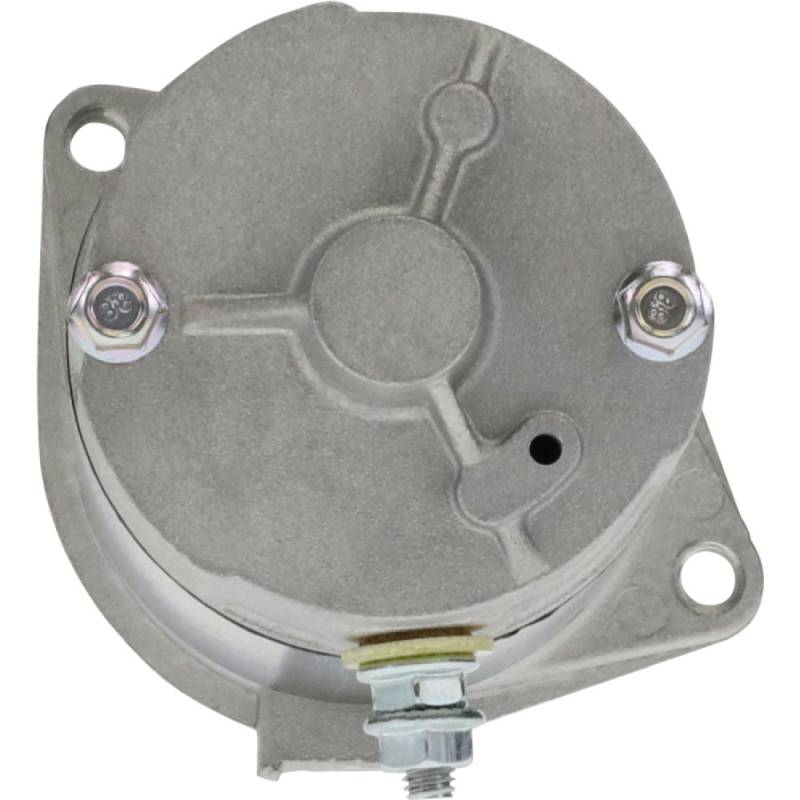

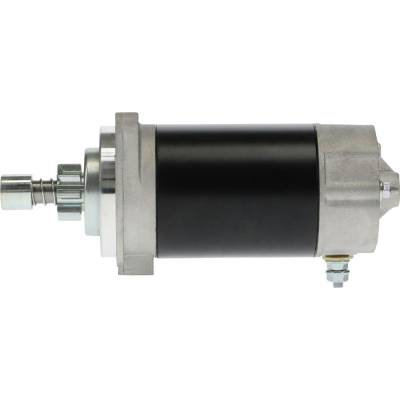

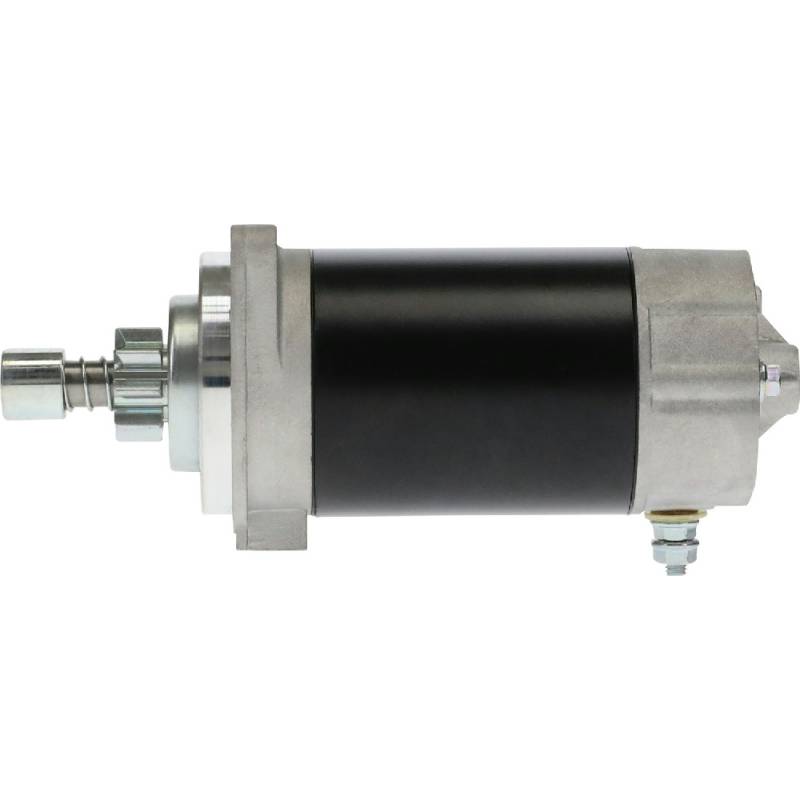

New Starter Compatible With Suzuki Outboard Dt20el Dt20es Dt25el Dt25es S108-112 S108112 S108-120

SUZUKI DT 40 HP TWO STROKE:
• 1980-1983 Suzuki DT40EL, 37.7 cid 40 HP, Hitachi system
• 1980-1983 Suzuki DT40ES, 37.7 cid 40 HP, Hitachi system
• 1984-1985 Suzuki DT40ECL, 42.5 cid 40 HP, Hitachi system
• 1984-1985 Suzuki DT40ECS, 42.5 cid 40 HP, Hitachi system
• 1986-1998 Suzuki DT40CRL, 42.5 cid 40 HP, Hitachi system
• 1986-1998 Suzuki DT40CRS, 42.5 cid 40 HP, Hitachi system
• 1987-1998 Suzuki DT40TCL, 42.5 cid 40 HP, Hitachi system
• 1989-1990 Suzuki DT40CEL, 42.5 cid 40 HP, Hitachi system
• 1989-1990 Suzuki DT40CES, 42.5 cid 40 HP, Hitachi system

SUZUKI DT 20, 25, 30 AND 35 HP TWO STROKE:
• 1987-1989 Suzuki DT35CRL and DT35CRS, 42.5 cid 35 HP
• 1987-1989 Suzuki DT35TCL, 42.5 cid 35 HP
• 1983-1984 Suzuki DT30EL and DT30ES, 30.5 cid 30 HP
• 1985 Suzuki DT30L and DT30S, 30.5 cid 30 HP
• 1986-1987 Suzuki DT30RL and DT30RS, 30.5 cid 30 HP
• 1980-1982 Suzuki DT25EL and DT25ES, 27.3 cid 25 HP
• 1985-1988 Suzuki DT25EL and DT25ES, 30.5 cid 25 HP
• 1986-1988 Suzuki DT20EL and DT20ES, 27.1 cid 20 HP

SUZUKI JET DRIVE:
• 1992-1995 Suzuki PU40, 42.5 cid 40 HP, Hitachi system
• 1989-1990 Suzuki PU55 Jet, 54.4 cid 35 HP, Hitachi system

TOHATSU TWO STROKE AND TLDI:
• 1992-2003 Tohatsu M40, 40 HP two stroke
• 1992-2003 Tohatsu M50, 50 HP two stroke
• 1996-2003 Tohatsu M60, 60 HP two stroke
• 1996-2003 Tohatsu M70, 70 HP two stroke
• 2001-2006 Tohatsu MD40 TLDI, 40 HP direct injection
• 2001-2006 Tohatsu MD50 TLDI, 50 HP direct injection
• 2003-2006 Tohatsu MD70 TLDI, 70 HP direct injection
• 2001-2006 Tohatsu MD90 TLDI, 90 HP direct injection

NISSAN TWO STROKE AND TLDI:
• 1992-2003 Nissan NS40, 40 HP two stroke
• 1992-2003 Nissan NS50, 50 HP two stroke
• 1996-2003 Nissan NS60, 60 HP two stroke
• 1996-2003 Nissan NS70, 70 HP two stroke
• 2001-2006 Nissan NSD40 TLDI, 40 HP direct injection
• 2001-2006 Nissan NSD50 TLDI, 50 HP direct injection
• 2003-2006 Nissan NSD70 TLDI, 70 HP direct injection
• 2001-2006 Nissan NSD90 TLDI, 90 HP direct injection
• Tohatsu built the Nissan engines, the starter is the same

ONE STARTER, FOUR BRANDS:
• Suzuki numbers it 31100-94400 through 31100-96311
• Tohatsu numbers it 3C8-76010-1 and 3C8-76010-1M
• Hitachi built it and catalogs it as S108-94, S108-112, S108-120
• Mercury Marine sells it as 853805T03 and 50-853805T01
• ARCO Marine 3412 and Sierra Marine 18-6432 replace it

HOW TO VERIFY FIT:

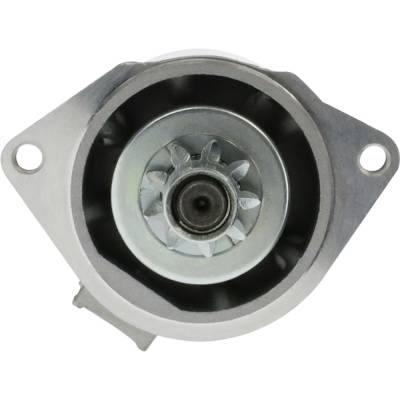

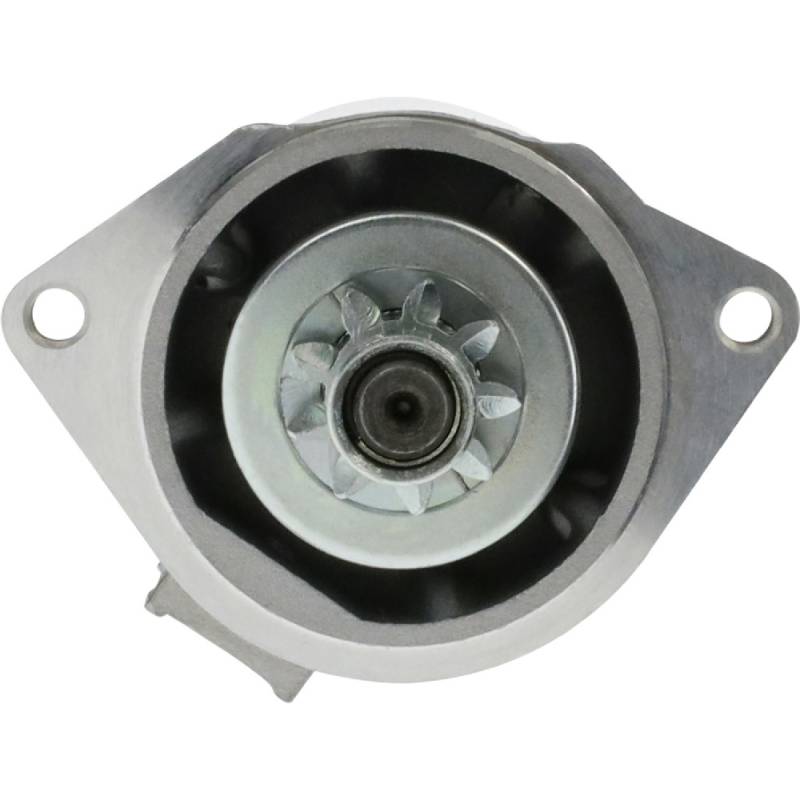

• Count the pinion teeth, this unit has 9
• Measure the drive gear OD, this unit is 28.8 mm / 1.134 in
• Confirm rotation is COUNTERCLOCKWISE from the drive end
• Confirm two M8-1.25 threaded mounting ears
• Confirm it is a direct drive body, not a gear reduction unit
• The unit weighs about 4.9 lb, a light two bolt starter
