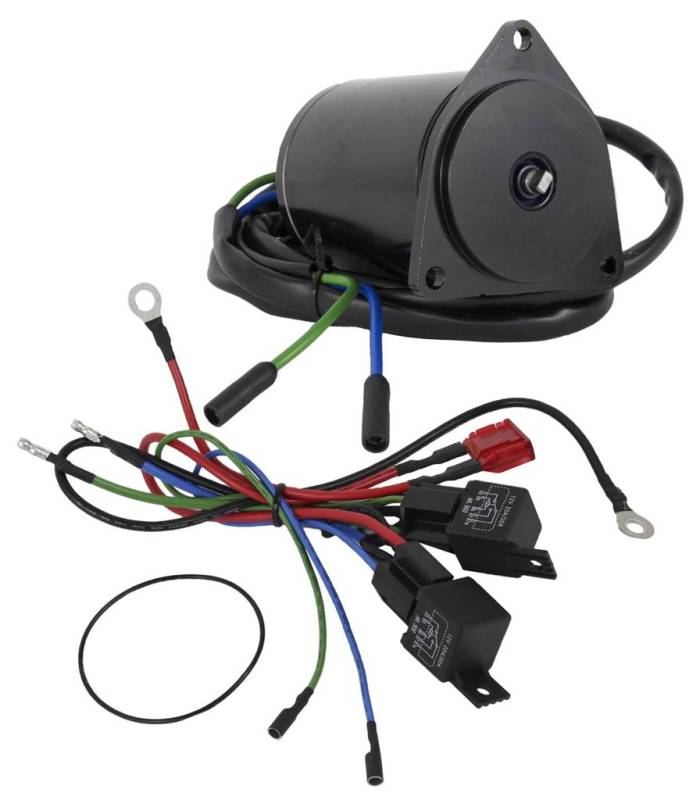

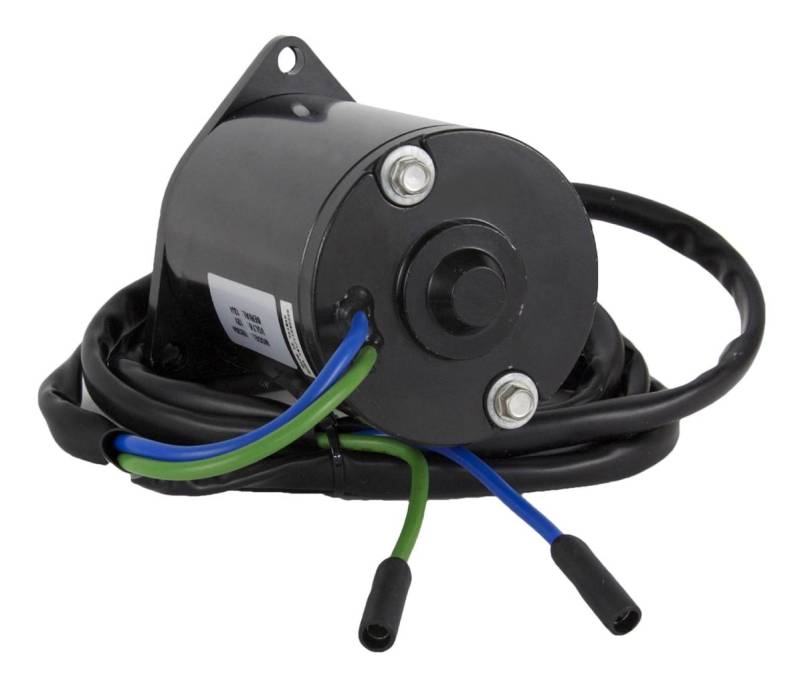

12V Tilt Trim Motor Compatible With Yamaha 50Hp 70Hp 90Hp 115Hp 150Hp 200Hp 2-Stroke Outboard

OEM PART NUMBERS:
• Yamaha: 688-43880-11 / 6884388011
• Yamaha: 688-43880-11-00 / 688438801100
• Yamaha: 688-43880-10 / 6884388010
• Yamaha: 6E5-43880-02 / 6E54388002
• Yamaha: 6E5-43880-02-00
• Yamaha: 6E5-43880-01 / 6E54388001
• Yamaha: 6E5-43880-01-00



AFTERMARKET CROSS REFERENCE:
• Arco Marine: 6267
SPECIFICATIONS:
• Type: Tilt Trim Motor (Early Model)
• Voltage: 12V DC
• Rotation: Reversible
• Connection: 3-Wire
• Terminals: Ring Terminal Ends
• Mounting: 3-Bolt
• Mounting Flange OD: 68.3mm / 2.69in
• Shaft OD: 8mm
• Shaft Type: 4mm Thick Blade
• Field Housing OD: 91.4mm / 3.598in
• Overall Length: 124.6mm / 4.906in
• Includes: O-Ring
• Weight: 6 lbs
• Condition: New

YAMAHA APPLICATIONS (1985-1991):
• 50HP: PRO50L (1987-1990), 50ETML (1990), 50TLH/P50TLR (1991)
• 70HP: 70ETL (1985-1986)
• 90HP: 90ETL (1985-1986)
• 115HP: 115ETL (1985-1986)
• 150HP: 150ETX (1985-1986)
• 200HP: 200ETX (1985-1986)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
