OEM PART NUMBERS:
• Mitsubishi: M009T82171 / M9T82171
• Prestolite: M10R3547SE / M90R3547SE
• Volvo: 1127679, 1556967, 20430564
SPECIFICATIONS:
• Voltage: 24V
• Power: 7kW / 9.38 HP
• Type: PLGR (Planetary Gear Reduction)
• Rotation: CW (Clockwise)
• Teeth: 12
• Gear OD: 1.854 in / 47.1mm
• Mounting: 3 Ears (3x 13.5mm Unthreaded)
• Weight: 31.2 lbs / 14.18 kg
• Condition: New
APPLICATION:
• Volvo Articulated Truck A30D D10B 9.6L Volvo Diesel (2004-2007)
• Additional Volvo Industrial Applications — verify OEM part number for fitment

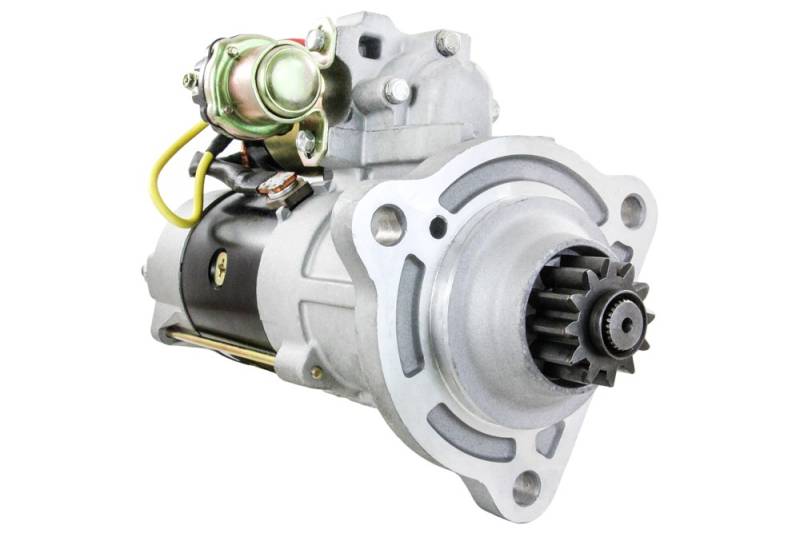

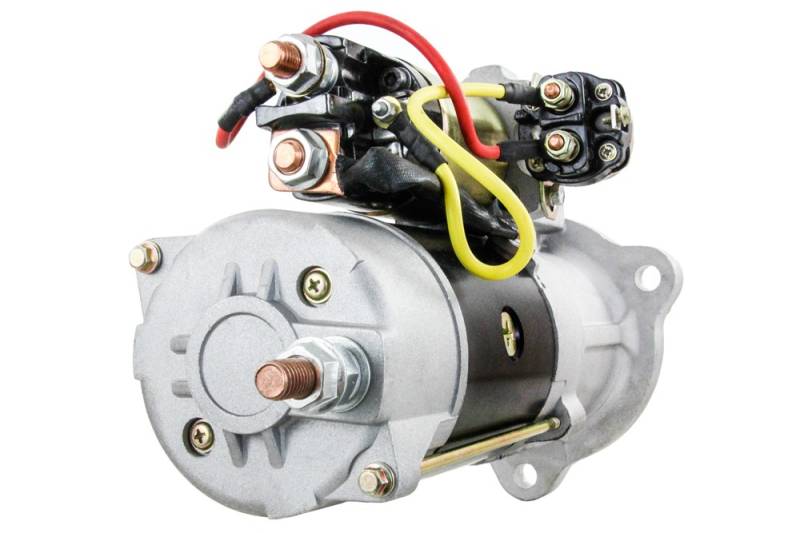

24V Starter Motor — Volvo A30D D10B 9.6L Articulated Hauler
Replacement starter for 2004-2007 Volvo A30D articulated trucks with the D10B 9.6-liter diesel engine. This 24-volt 7kW PLGR starter motor uses planetary gear reduction to deliver maximum cranking torque from a compact and lightweight package. The 12-tooth pinion with 47.1mm gear OD engages the flywheel ring gear with clockwise rotation. Three 13.5mm unthreaded mounting ears ensure proper alignment and secure installation. The heavy-duty construction is rated for the extreme duty cycles and harsh operating environments typical of articulated hauler applications in construction, mining, and earthmoving. Also fits other Volvo industrial applications by part number. Replaces Prestolite M90R3547SE and Volvo 1556967.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
