MEYER PART NUMBERS: • 15054
• 15054SP
• M15054
• 2015054
AMERICAN BOSCH / UNITED TECHNOLOGIES / JOHNSON ELECTRIC PART NUMBERS: • MO551046A, M0551046A
• MO551046
• MO551046AS
• MO551046S
• MM48826
• SM48826
• 4882640
• MM551046
• MM50552
PRESTOLITE PART NUMBERS: • 46-2001, 462001
• 46-2415, 462415
• 46-4160, 464160
• 46-854, 46854
• MGL4005
• MGL4105
• MKW4007, MKW-4007
WILSON PART NUMBERS: • 94-09-1001, 94091001
REMY PART NUMBERS: • RM00058
BUYERS PRODUCTS SAM PART NUMBERS: • 1306005
STENS PART NUMBERS: • M6171
WESTERN MOTOR SERVICE PART NUMBERS: • W-8032B, W8032B
• W-8932, W8932

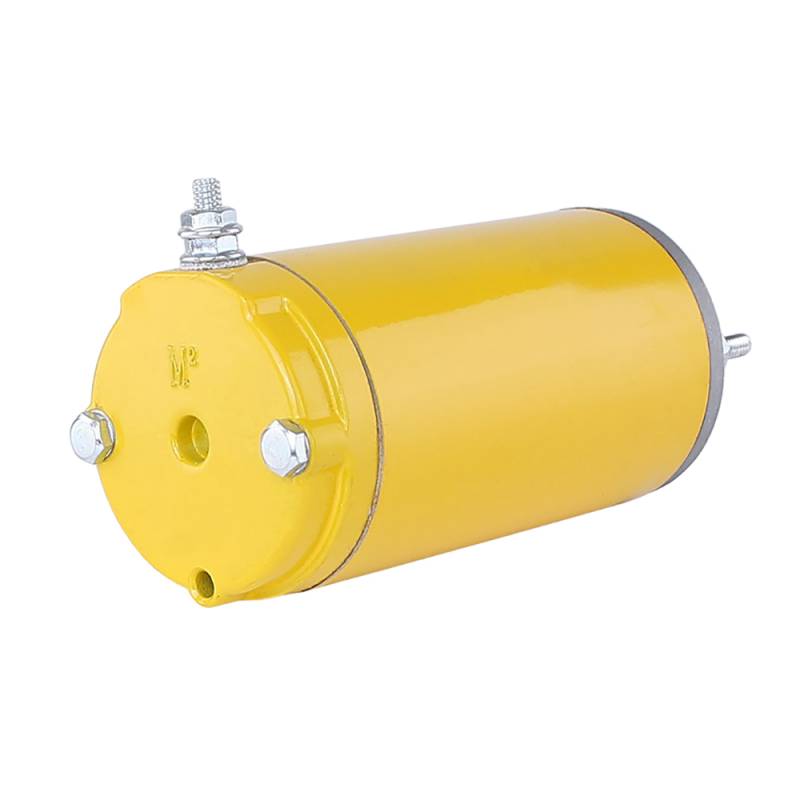

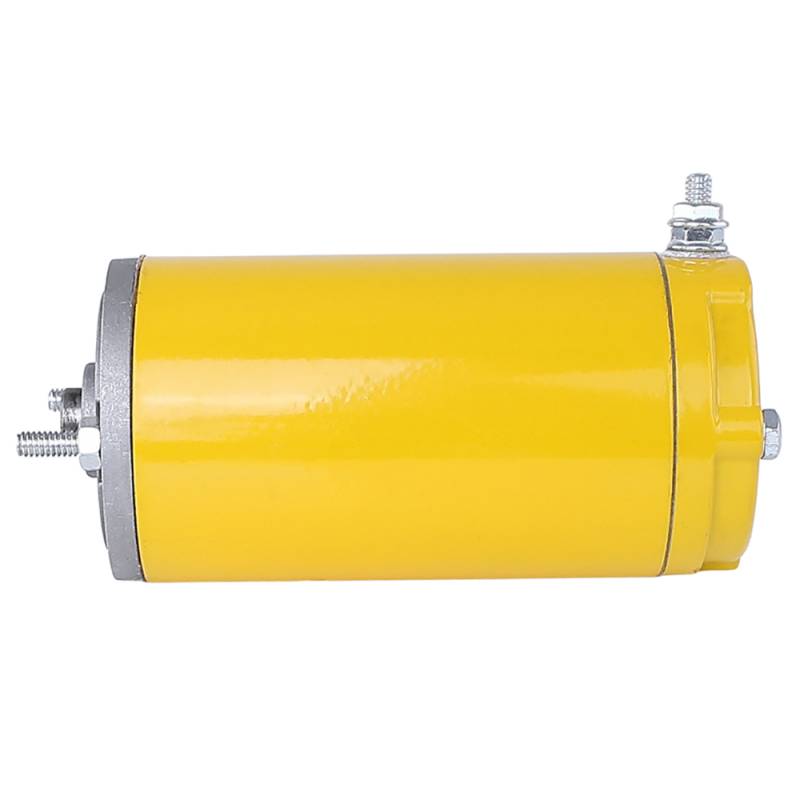

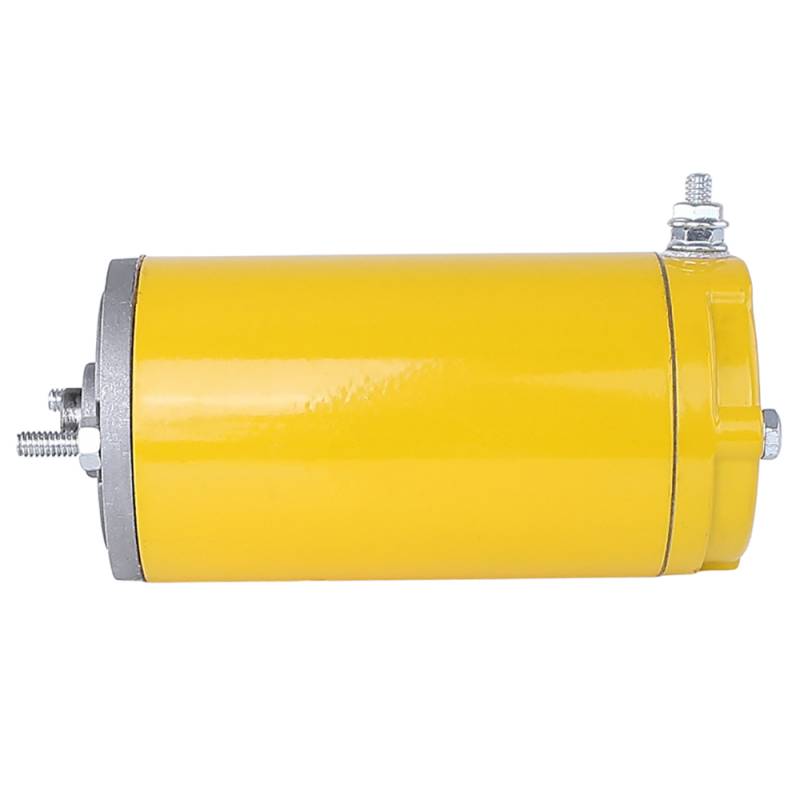

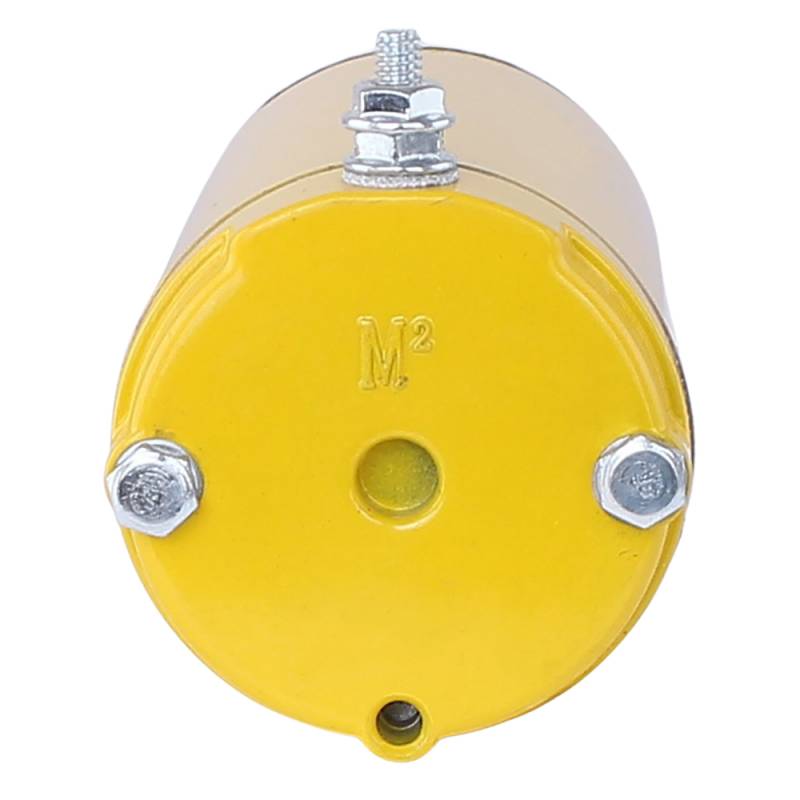

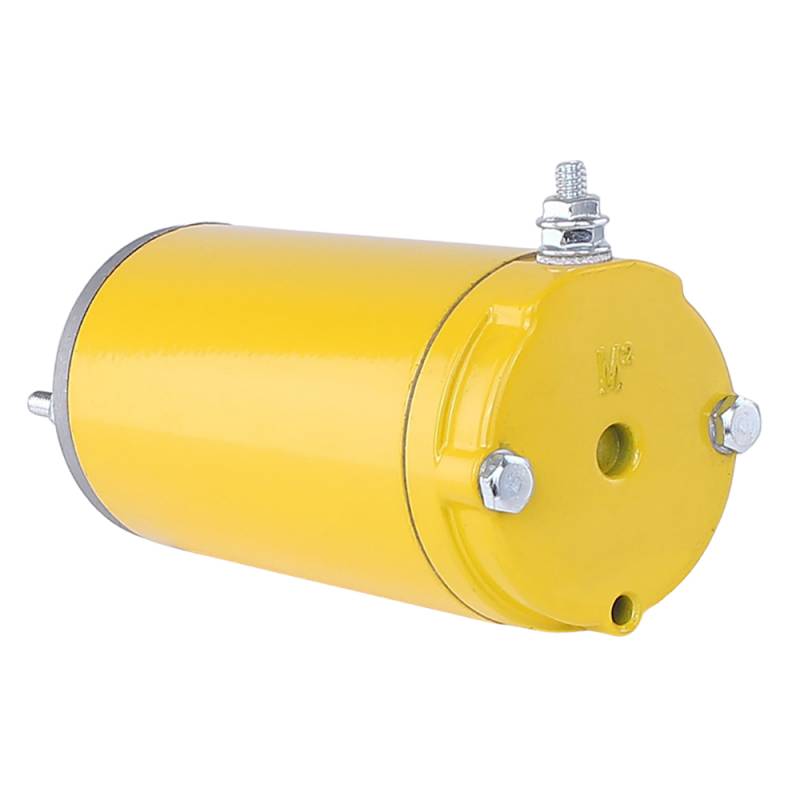

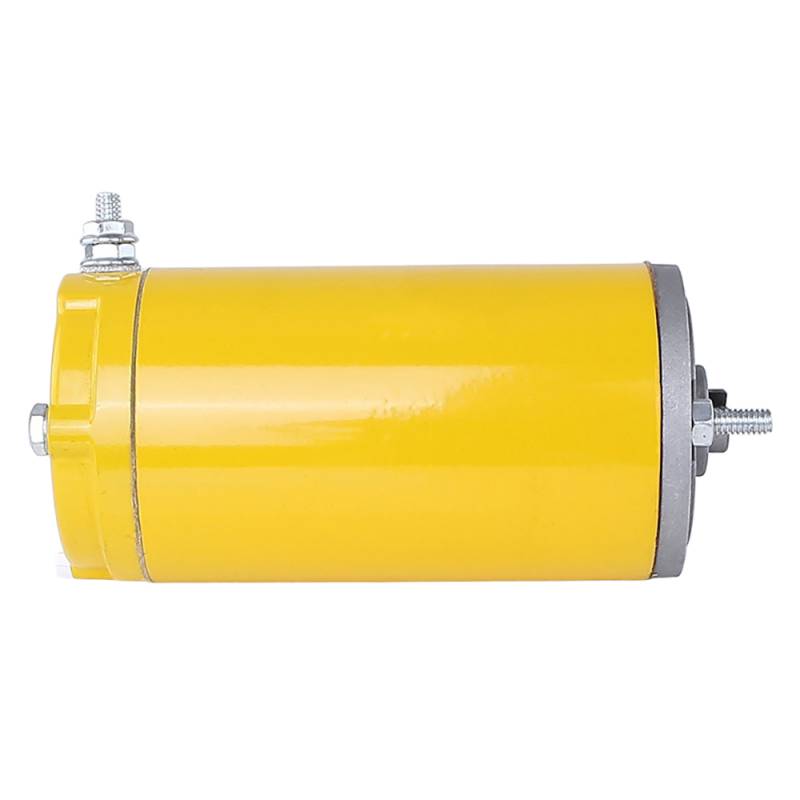

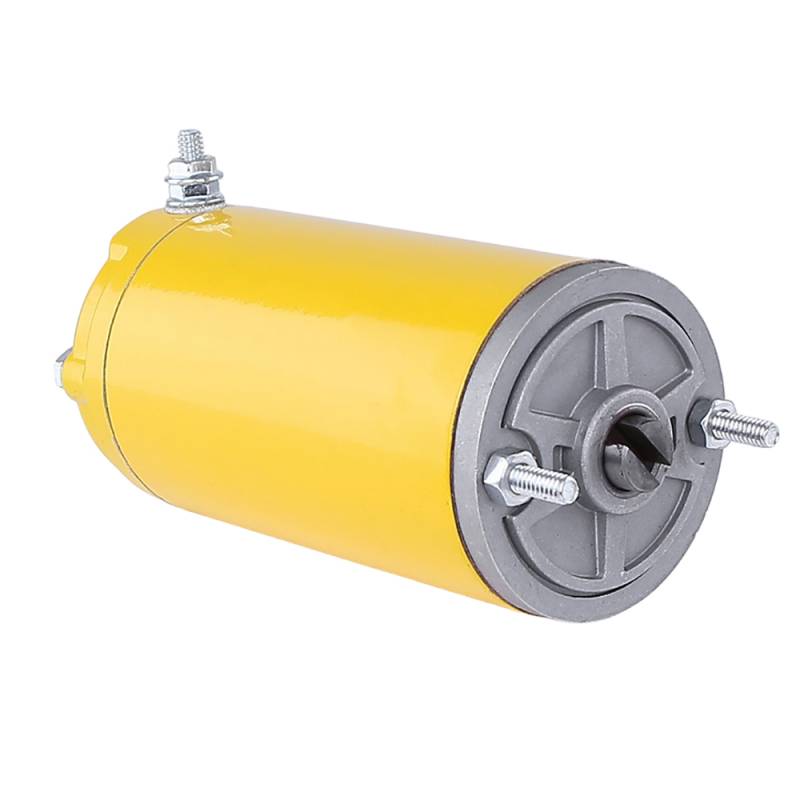

SPECIFICATIONS: • Type: Snow plow hydraulic pump motor, permanent magnet DC
• Voltage: 12 Volt DC, negative ground
• Rotation: Counterclockwise (CCW)
• Field housing OD: 78.2 mm (3.079 in), 3 inch motor
• Overall length: 161.9 mm (6.374 in)
• Shaft: 15.9 mm (0.626 in) OD, 3/16 in wide slot
• Terminal: single 1/4-20 stud
• Mounting: two bolts on a 2.5 in spread, included, torque 45-55 in-lb

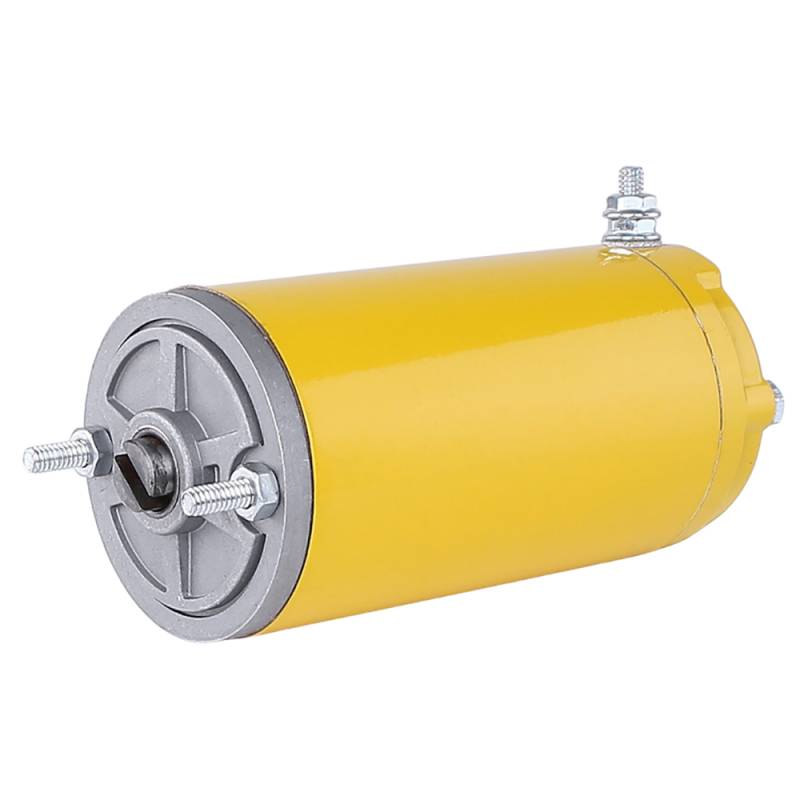

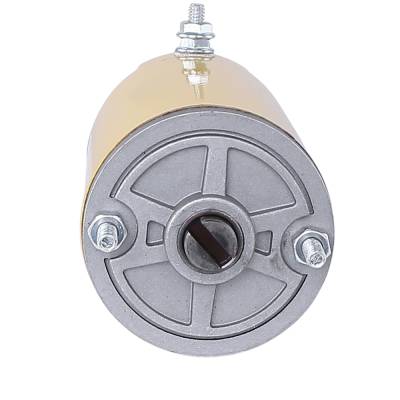

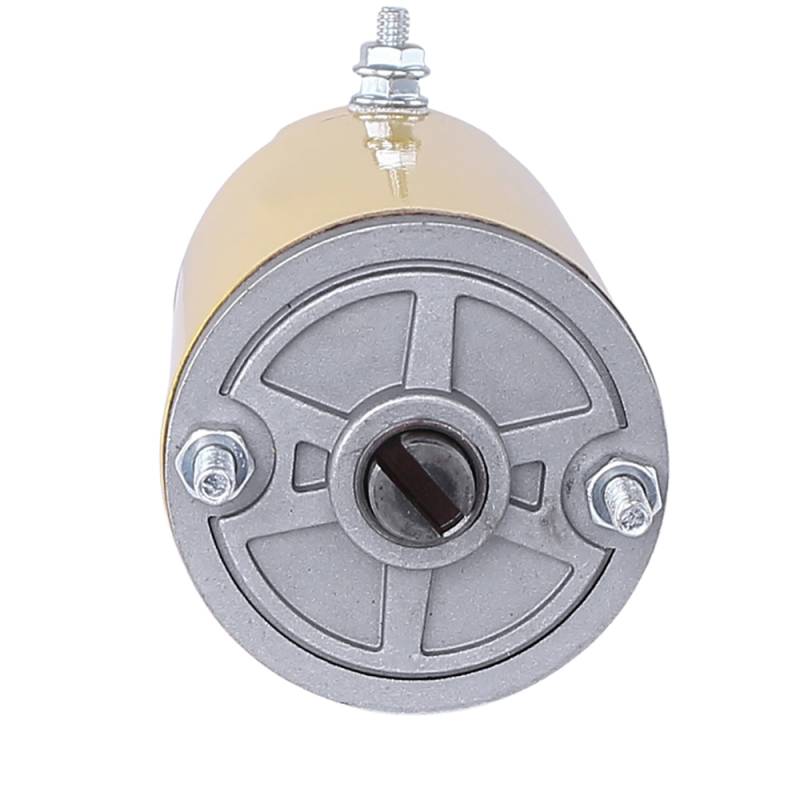

• Drive end: cast aluminum housing with bushing
• Current: about 24 A no load; E-47 125 to 140 A working, up to 230 A in relief
• Finish: OEM-style yellow, matches the original
• Weight: 6.5 lb (2.97 kg)
• Condition: New, aftermarket replacement
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
