OEM PART NUMBERS:
• Suzuki: 31100-38F00 / 3110038F00
• Arctic Cat: 3545-016 / 3545016
• Arctic Cat: 3313-719 / 3313719
• Kymco: 31210-PWB1-900 / 31210PWB1900
• Piaggio: 629863
• Mitsuba: SM14241 / SM-14241
SPECIFICATIONS:

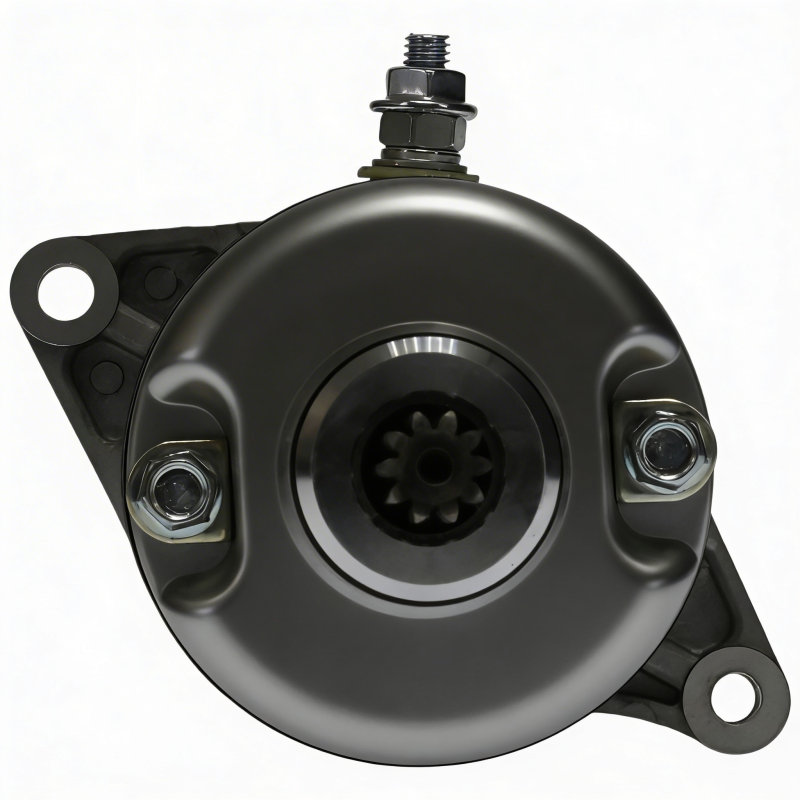

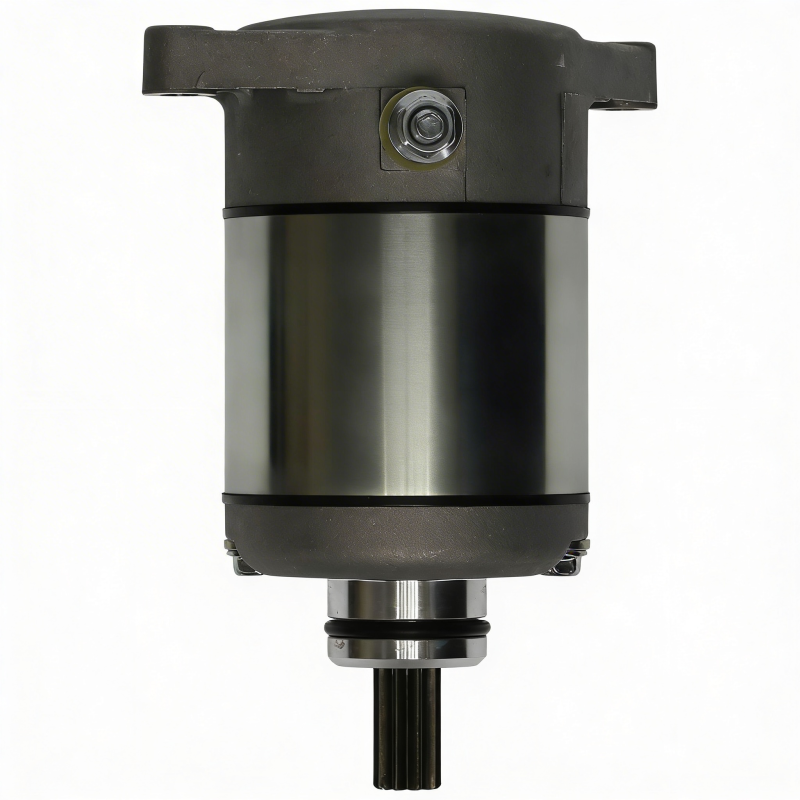

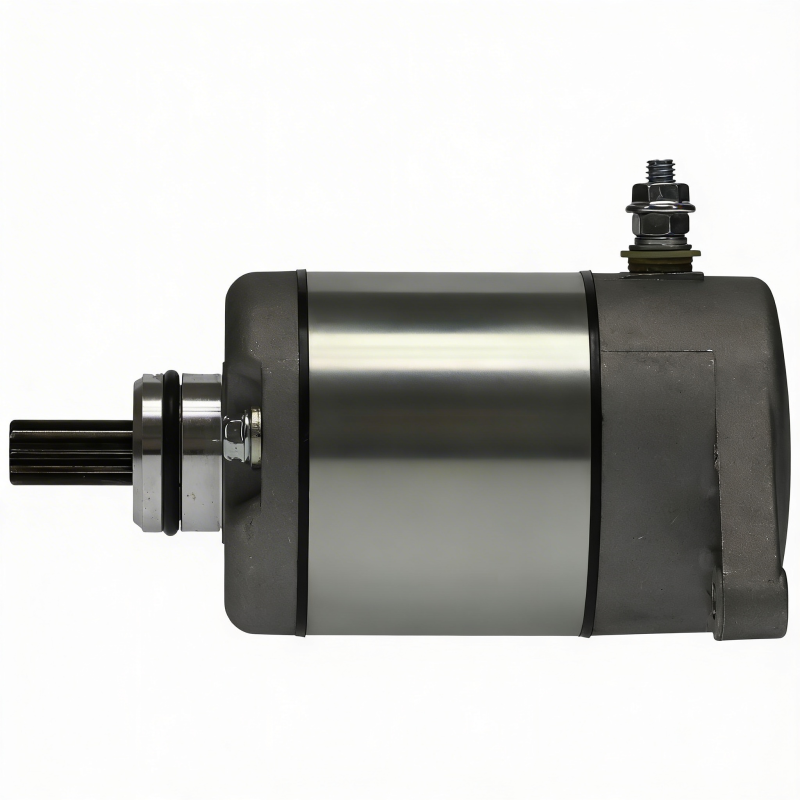

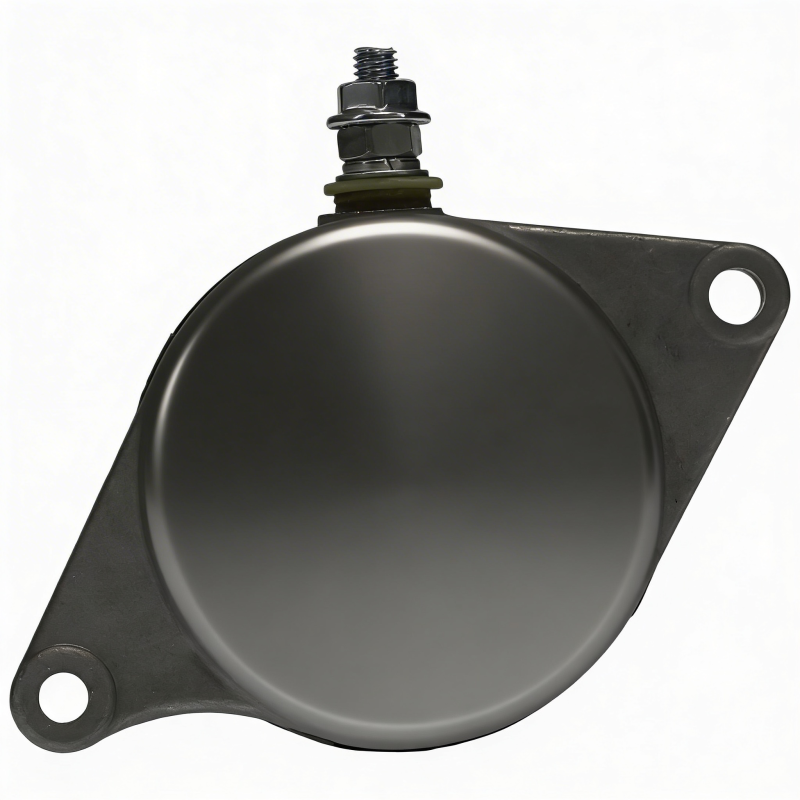

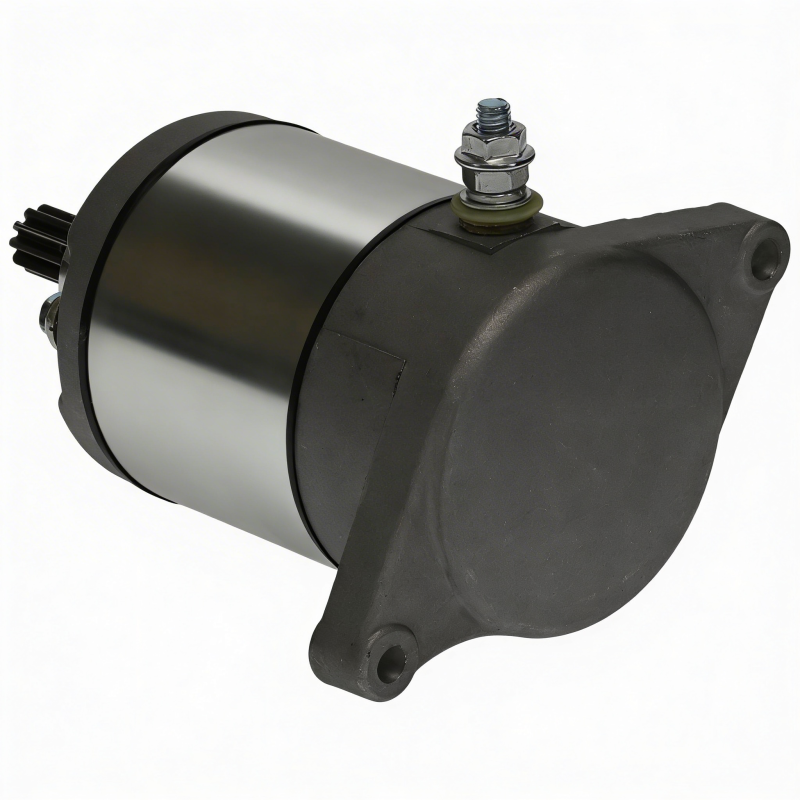

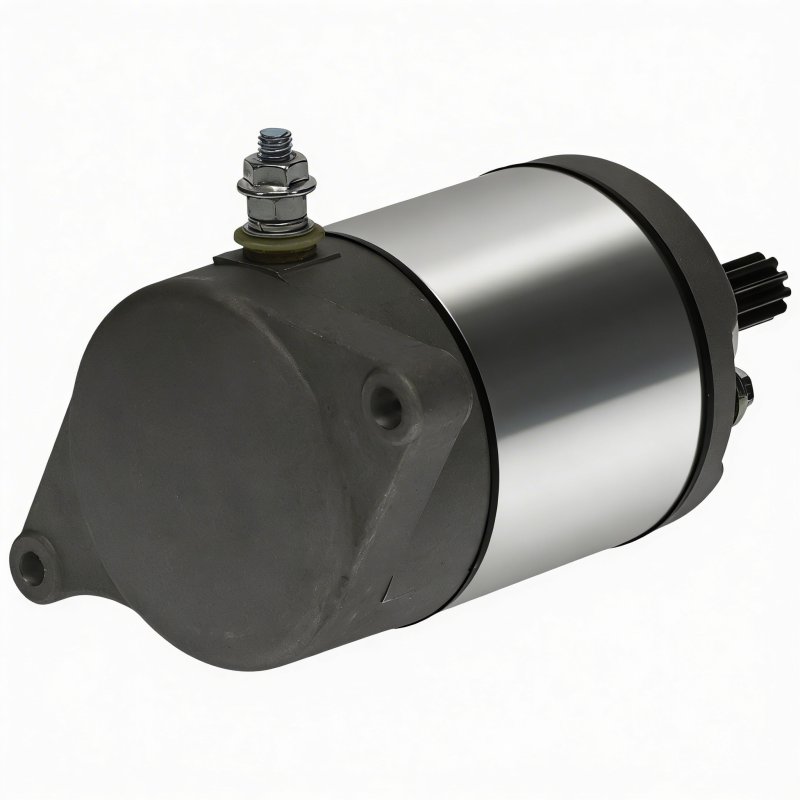

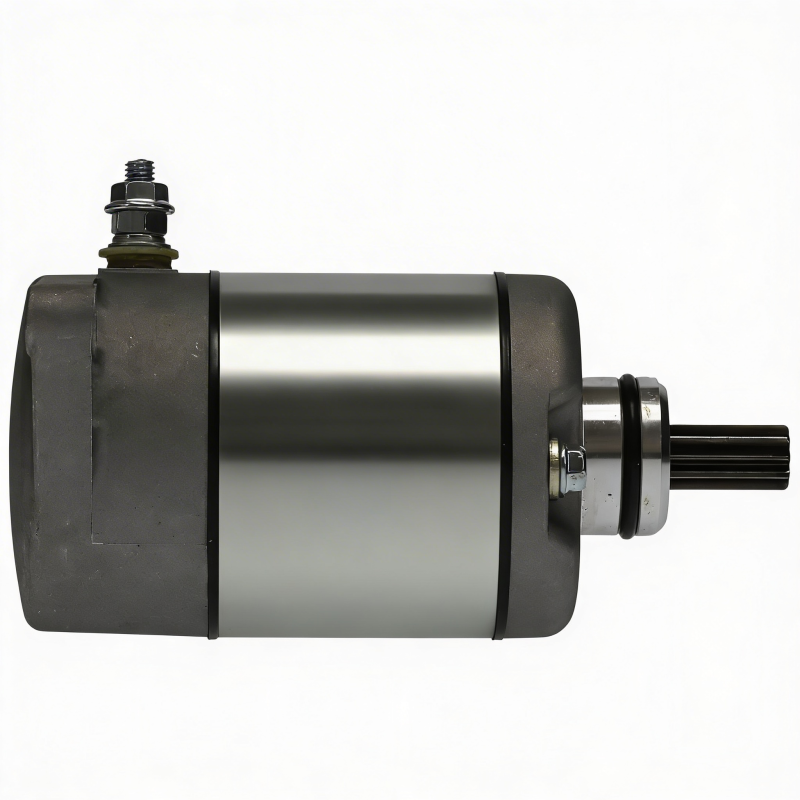

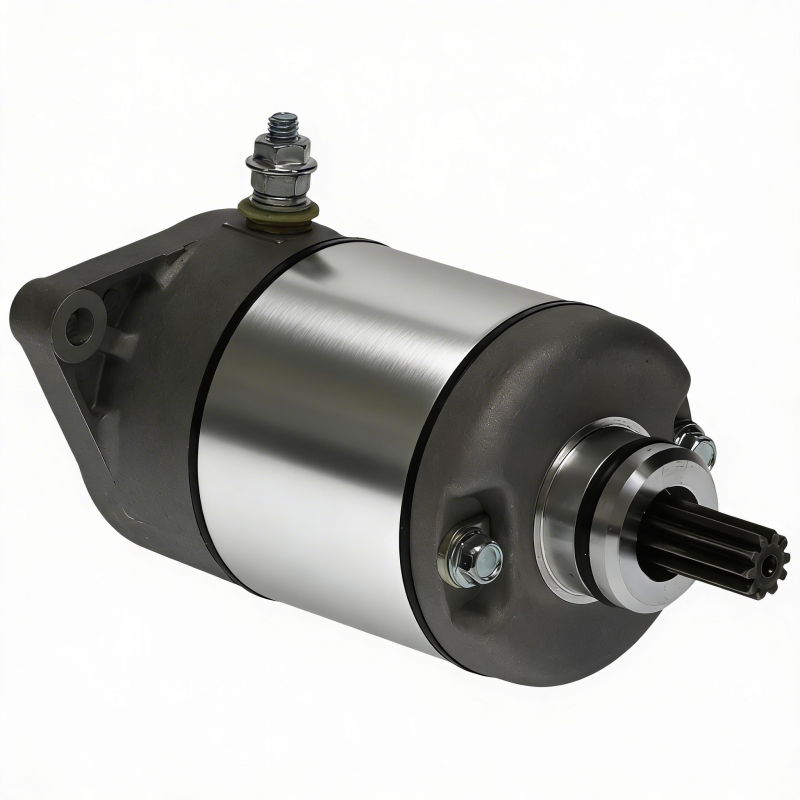

• Item Type: Starter Motor
• Starter Family: Mitsuba SM14
• Design: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Power: 1.4 kW
• Rotation: CW (Clockwise)
• Teeth on Drive: 10
• Pinion OD: 12.6mm / 0.496 in
• Mounting Hole 1: 6.0mm ID Unthreaded
• Mounting Hole 2: 6.0mm ID Unthreaded
• Weight: 2.49 lbs / 1.13 kg
• Condition: New
VEHICLE APPLICATIONS:
• Arctic Cat 375 Auto 2x4/4x4 376cc (2002)
• Arctic Cat 400 2x4/4x4 376cc All Trims (2003-2008)
• Arctic Cat 400 Core / TRV 400 / TRV 400 Core (2011-2014)
• Suzuki LT-A400/LT-F400 Eiger 400 376cc (2002-2007)
• Suzuki LT-A400F/LT-F400F King Quad 400 376cc (2008-2010)
• Kymco MXU 375/400, Maxxer 375 (2008-2014)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
