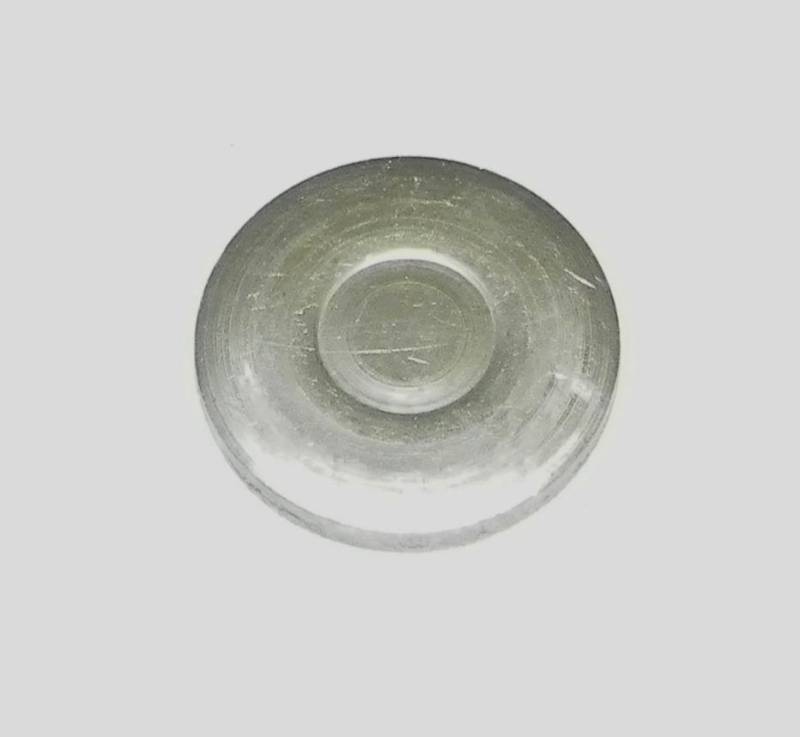

1989-2003 Valve Cavity Freeze Plug Case Plug Aftermarket Compatible With Sea-Doo 580 650 720 800 Gt

(0) Reviews: Write first review
010-458*2
CROSS REFERENCE / REPLACES:
• WSM 010-458
• OSD OSD6415 (Freeze Plug - Rotary Cavity)

NOTE: This is a sub-component of the rotary valve shaft assembly. No specific BRP/Sea-Doo OEM part number is separately cataloged for this plug — it is typically supplied as part of the crankcase assembly or engine rebuild kit. Verify fitment by engine displacement and model year.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $30.89
Sale: $17.65
Save: 43%
Save: $13.24
Qty:
Free Shipping!

Description

ROTARY SHAFT CASE PLUG — SEA-DOO 580/650/720/800 APPLICATIONS

ROTAX 587 (580cc) — Twin Cylinder 2-Stroke
Bore: 76.5mm x Stroke: 64mm | 50-56 HP | Rotary Valve Induction
- Sea-Doo GT 580 (1990-1991) — Model 5810/5811
- Sea-Doo GTS 580 (1992-1996) — Model 5813/5814/5815/5818/5819
- Sea-Doo GTX 580 (1992-1996) — Model 5861/5862/5863
- Sea-Doo SP 580 (1989-1996) — Model 5803/5804/5811/5873/5876
- Sea-Doo SPI 580 (1993-1996) — Model 5878
- Sea-Doo SPX 580 (1993) — Model 5871
- Sea-Doo XP 580 (1992) — Model 5852

ROTAX 657 (650cc) — Twin Cylinder 2-Stroke
Bore: 78mm x Stroke: 68mm | ~65 HP | Rotary Valve Induction
- Sea-Doo GTX 650 (1994-1995) — Model 5863
- Sea-Doo SPX 650 (1994-1995) — Model 5871/5874
- Sea-Doo XP 650 (1993-1995) — Model 5852/5854/5856
- Sea-Doo XPI 650 (1994) — Model 5857

ROTAX 717 (720cc) — Twin Cylinder 2-Stroke
Bore: 82mm x Stroke: 68mm | 85 HP | Rotary Valve Induction
- Sea-Doo GS 720 (1997-2001) — Model 5621/5626
- Sea-Doo GSI 720 (1997) — Model 5622
- Sea-Doo GTI 720 (1996-2003) — Model 5865/5866/5884/5885/5886
- Sea-Doo GTI LE 720 (2002-2003) — Model 5887/5889
- Sea-Doo GTS 720 (1996-2001) — Model 5819/5820
- Sea-Doo HX 720 (1995-1997) — Model 5881/5882
- Sea-Doo SP 720 (1997) — Model 5879
- Sea-Doo SPI 720 (1996) — Model 5878
- Sea-Doo SPX 720 (1996-1997) — Model 5877
- Sea-Doo XP 720 (1995) — Model 5858

ROTAX 787 (800cc) — Twin Cylinder 2-Stroke RAVE
Bore: 82mm x Stroke: 75mm | 110 HP | RAVE Exhaust Valves | Rotary Valve Induction
- Sea-Doo GSX 800 (1996-1997) — Model 5624
- Sea-Doo GSX RFI 800 (1999-2001) — Model 5637/5645/5654
- Sea-Doo GTI LE RFI 800 (2003) — Model 5890
- Sea-Doo GTX 800 (1996-1997) — Model 5640
- Sea-Doo GTX RFI 800 (1998-2002) — Model 5641/5642/5515/5555
- Sea-Doo SPX 800 (1997-1999) — Model 5834/5661
- Sea-Doo XP 800 (1995-1997) — Model 5858/5859/5660

NOTE: This case plug (freeze plug) seals the rotary valve shaft bore in the crankcase. Common replacement during engine rebuild or when rotary valve shaft service is performed. Press-fit installation.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 0.1 lbs.
  • W7.0000” x H1.0000” x L9.0000”
  • Free Shipping!
