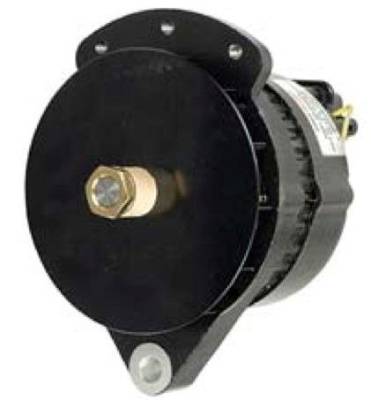

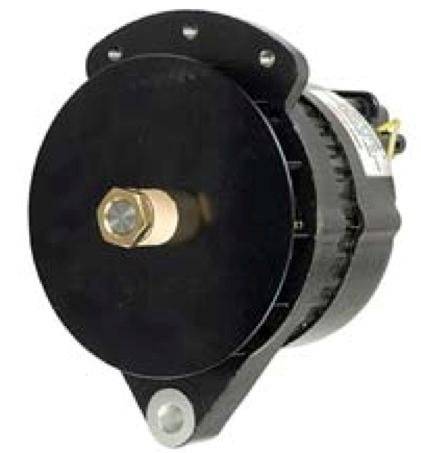

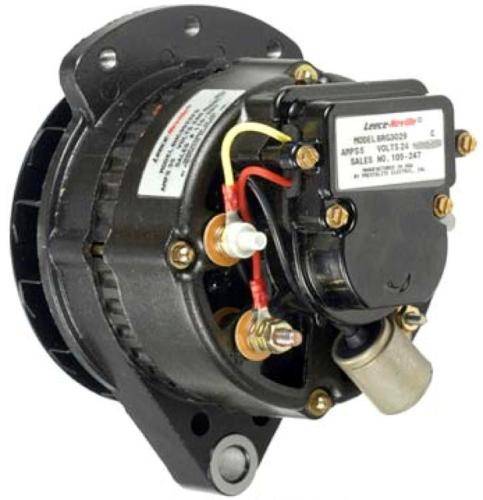

New 24V 35A Alternator Compatible With Caterpillar Marine 10-285 8Hc3022f 8Hc3022fs 0106000047

API MARINE 20150
ARCO MARINE 60197
BOSCH REMAN AL9936X
HALLIBURTON SERVICES 0106000047, 010600047
MOTOROLA 10-285, 8HC3022F, 8HC3022FS
PRESTOLITE 110-285

UNIT TYPE: CATERPILLAR, LEECE NEVILLE
VOLTAGE: 24 VOLTS
AMPERAGE: 35 AMPS
MOUNT SPOOL
ROTATION BI-DIRECTIONAL
HOUSING COATING E-COAT
UL APPROVED NO
SPOOL LENGTH 1"
MOUNTING BOLT SIZE .505-.520
EAR SIZE 5/16-18 NC (3 HOLE)
MOUNTING HOLES 3
POSITIVE STUD SIZE 1/4-20 NC
NEGATIVE STUD SIZE 10-24 NC
REGULATOR SENSE LOCAL SENSE
TRIO NO
REGULATOR EXCITE SELF EXCITE
SMARTCHEK REGULATOR NO
LAMP DRIVER NO
REGULATOR LOCATION INTEGRAL
REGULATOR MODEL 8RG3029
ADJUSTABLE NO
RECTIFIER LOCATION INTERNAL
SHAFT DIAMETER .6265-.6272
WEIGHT: 11.62 LBS / 5.28 KG

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
