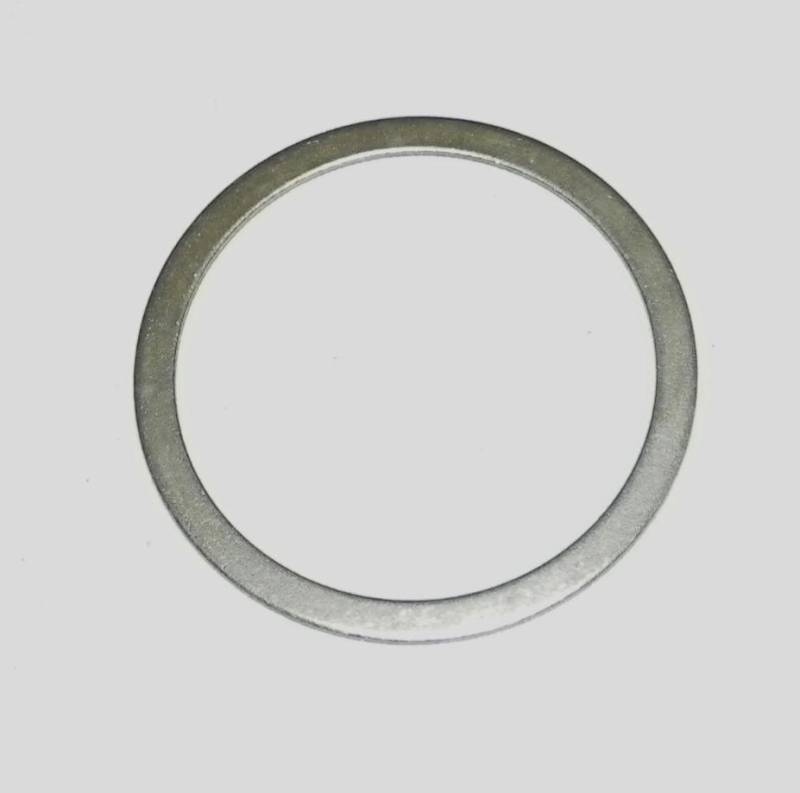

Retainer Shim Compatible With 1995-2005 Sea-Doo Gs Gti Gti Le Gts Hx Sp Spx Xp 720 Rotax 717 718Cc

OEM PART NUMBERS:
• Sea-Doo/BRP: 420857050 / 290857050

SPECIFICATIONS:
• Product Type: Retainer Shim (Medium Thickness)
• Position: Rotary Valve Shaft — Controls end play
• Shim Size: Medium (multiple thicknesses available for precise end play adjustment)
• Engine Compatibility: Rotax 717 718cc 2-Cylinder 2-Stroke Twin
• Engine Bore × Stroke: 82mm × 68mm
• HP Range: 70 HP (single carb) / 85 HP (dual carb)
• Carburetor: Single or Dual Mikuni BN-38
• Induction: Rotary Valve (159-degree valve plate)
• Ignition: CDI
• Weight: 1 lb
• Year Range: 1995-2005
• Condition: New

ROTARY VALVE SYSTEM:
• The Rotax 717 uses a rotary valve induction system with a 159-degree valve plate
• Retainer shims control rotary valve shaft axial end play
• Available in multiple thicknesses — measure end play and select correct shim

SEA-DOO ROTAX 717 (720) APPLICATIONS:
• GS 720 (1997-2001) | GSI 720 (1997) | GTI 720 (1996-2005)
• GTI LE 720 (2002-2004) | GTS 720 (1995-2001) | HX 720 (1995-1997)
• SP 720 (1997) | SPX 720 (1996-1997) | XP 720 (1995)
