OEM PART NUMBERS:
• Denso: 100211-1670 / 100211-4520 (1002111670 / 1002114520)
• Kubota: 16231-24011 / 16231-6401 / 16241-64010 / 16241-64011 (1623124011 / 162316401 / 1624164010 / 1624164011)
• Denso Reman: 9760218-167 (9760218167)
• Case: 133745A1 (133745A1)
• Valeo: 436497 (436497)

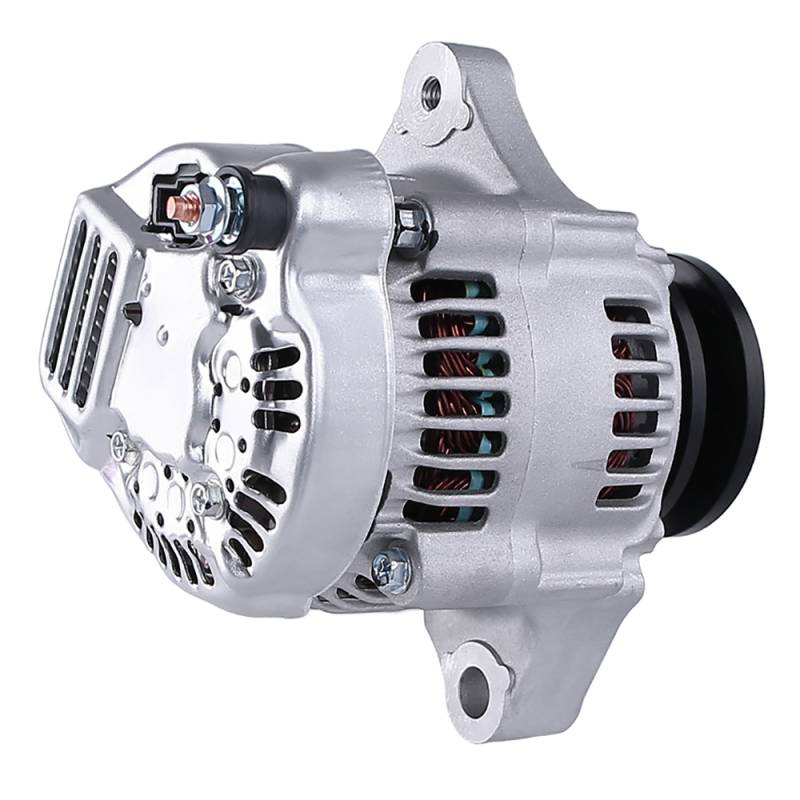

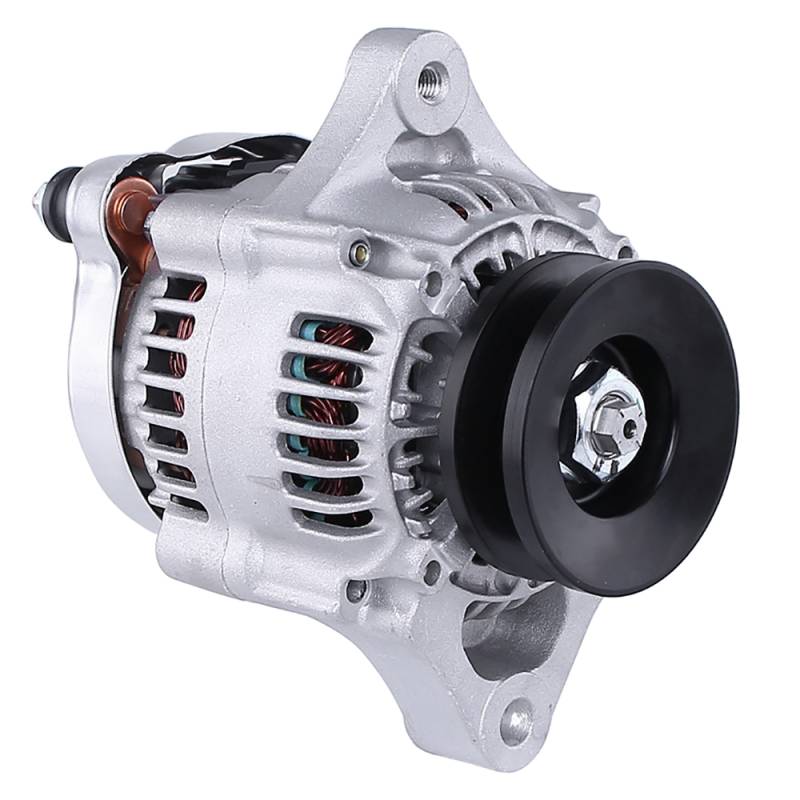

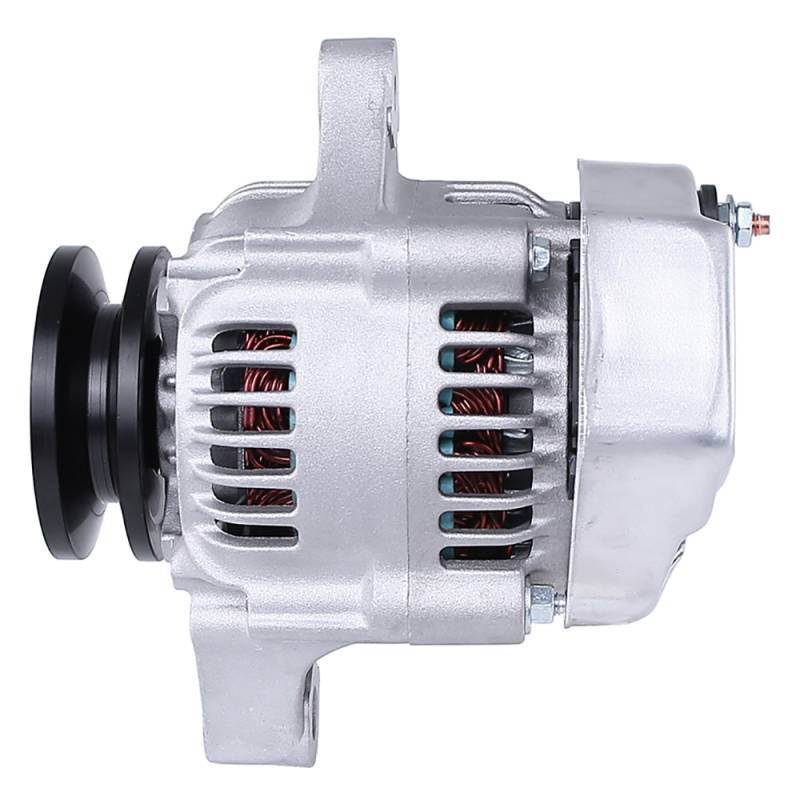

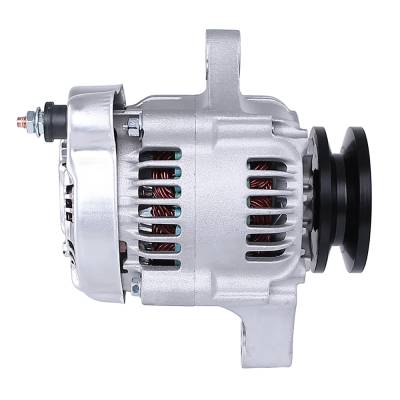

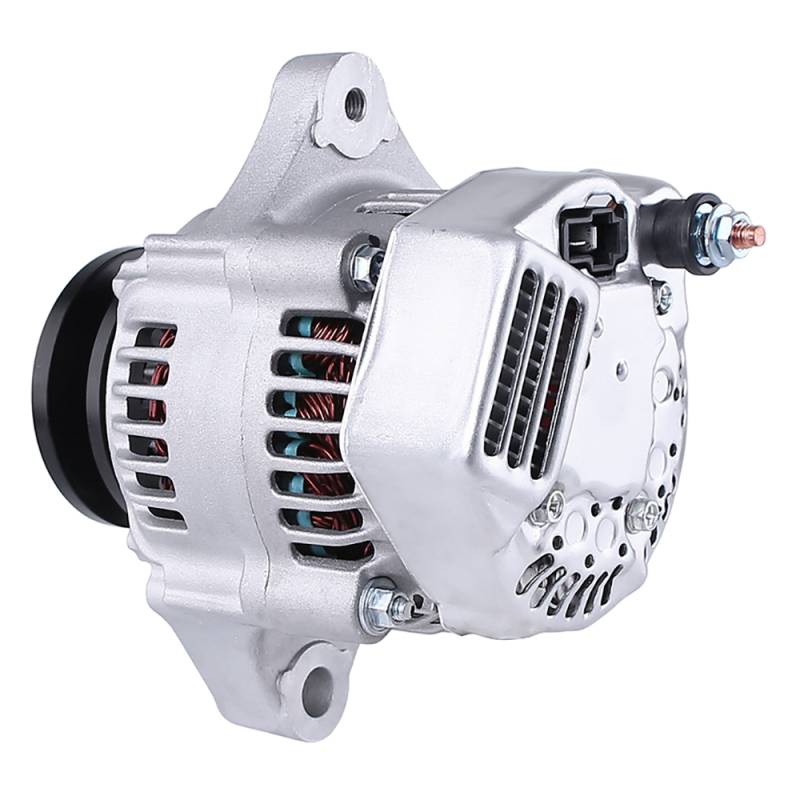

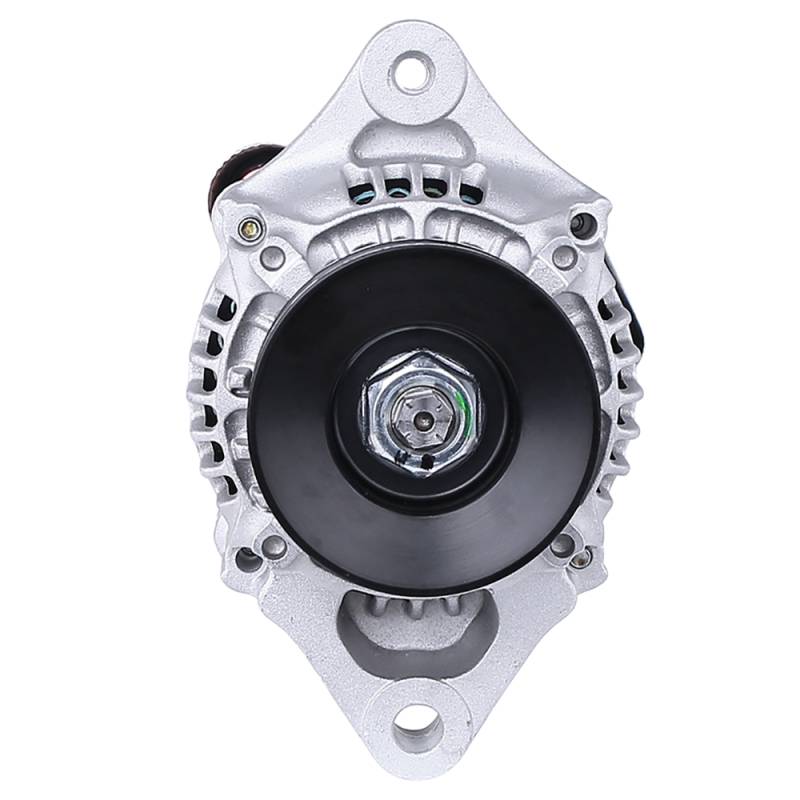

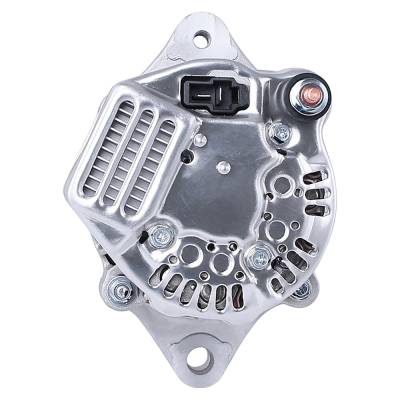

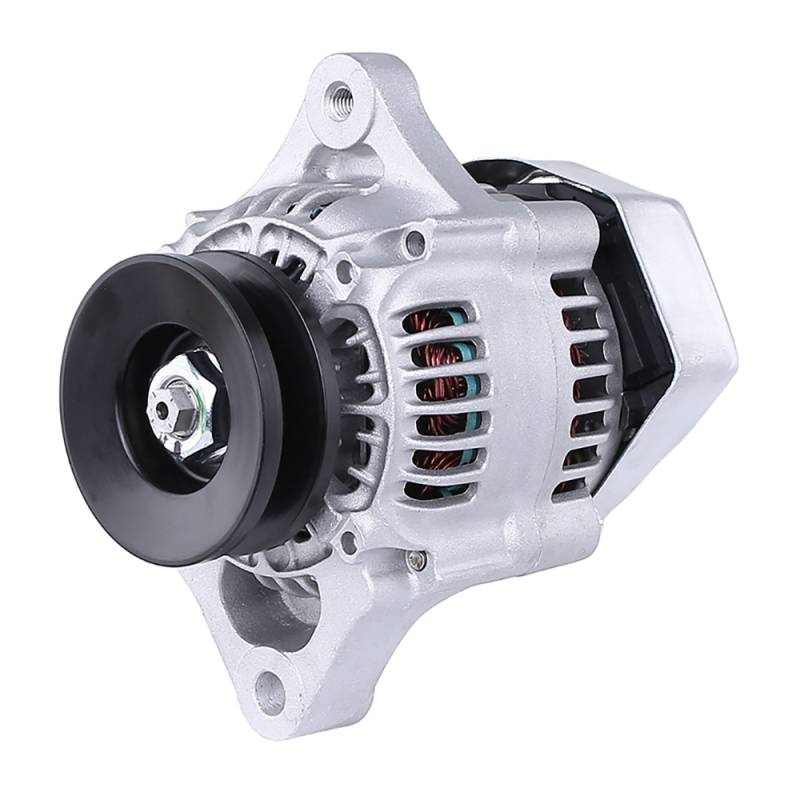

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 40A (12190A1/A2/A4/A5), 55A (12190A3)
• Unit Type: Denso
• Rotation: CW (Clockwise)
• Fan: Internal
• Regulator: Internal
• Pulley: V-Belt, 1-Groove
• Pulley OD: 63mm
• Regulator Clock: 12:00
• Polarity: Negative
• Output Stud: M6-1.0
• Mounting Ear 1: M8-1.25 Threaded
• Mounting Ear 2: 10.0mm Unthreaded
• Weight: 6.555-7.66 lbs / 2.98-3.48 kg
• Condition: New
APPLICATION:
• Kubota Compact/Utility Tractors, Excavators, Industrial Equipment
• See Applications tab for complete fitment data
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
