OEM PART NUMBERS:
• Suzuki: 31100-02C00 / 3110002C00
• Suzuki: 31100-02C01 / 3110002C01
• Suzuki: 31100-02C02 / 3110002C02
• Suzuki: 31100-02C10 / 3110002C10
• Suzuki: 31100-18A00 / 3110018A00
• Suzuki: 31100-35B00 / 3110035B00
• Suzuki: 31100-35B10 / 3110035B10
• Suzuki: 31100-35B11 / 3110035B11
• Mitsuba: SM13234 / SM14230

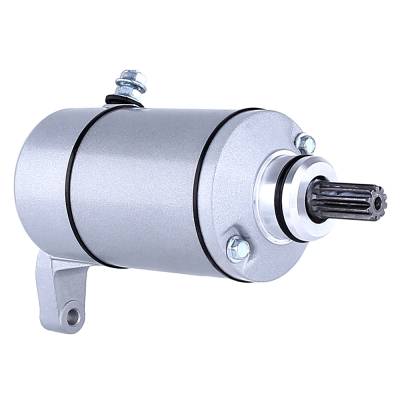

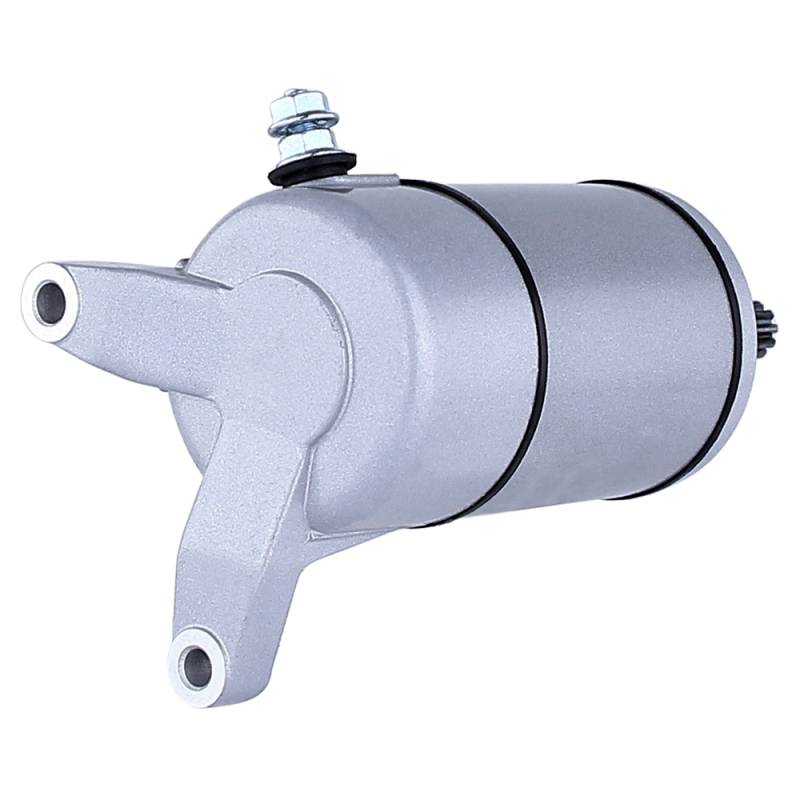

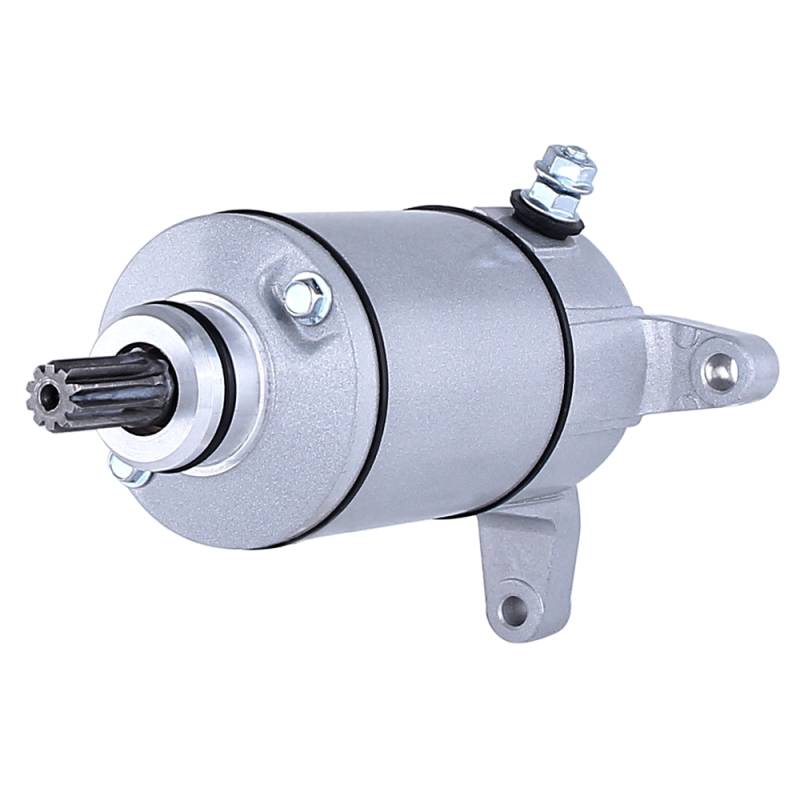

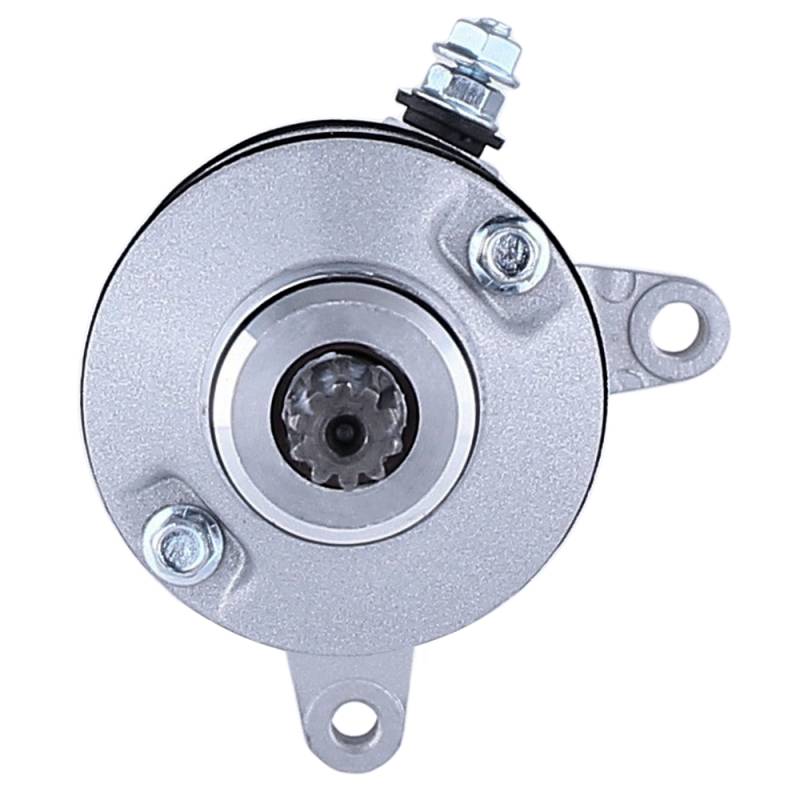

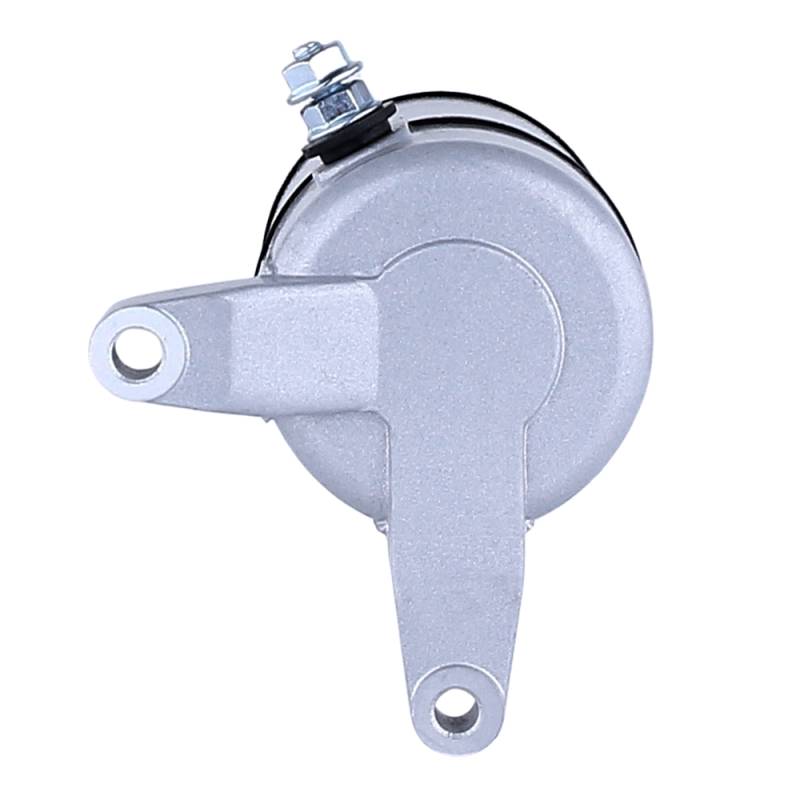

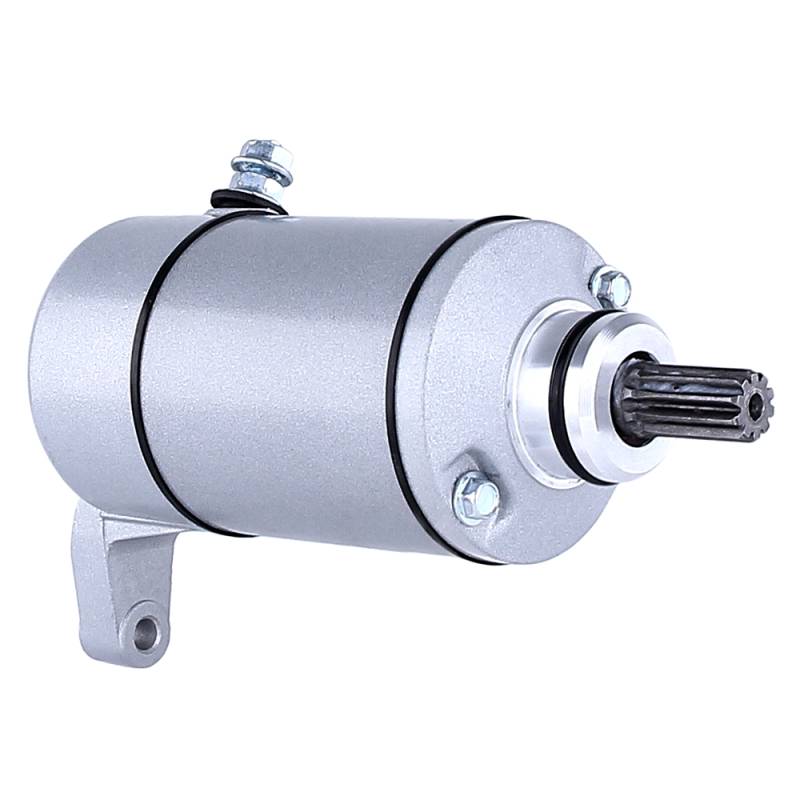

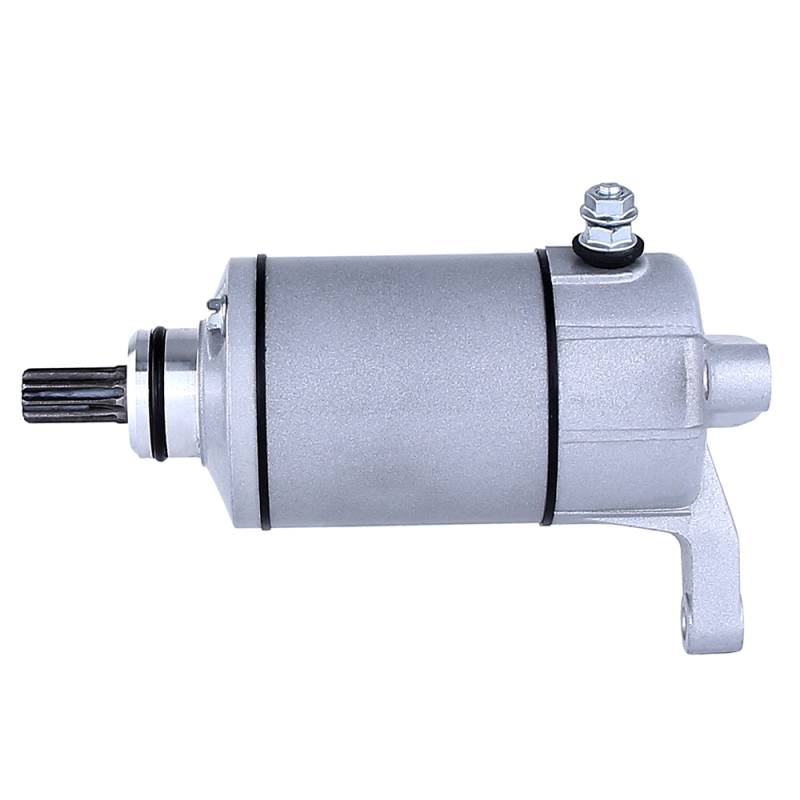

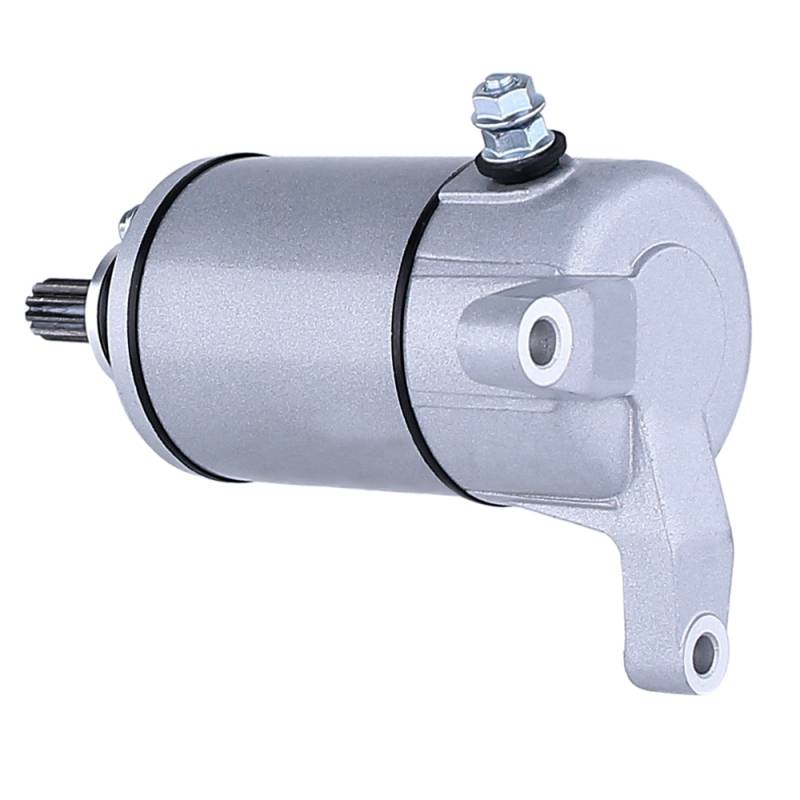

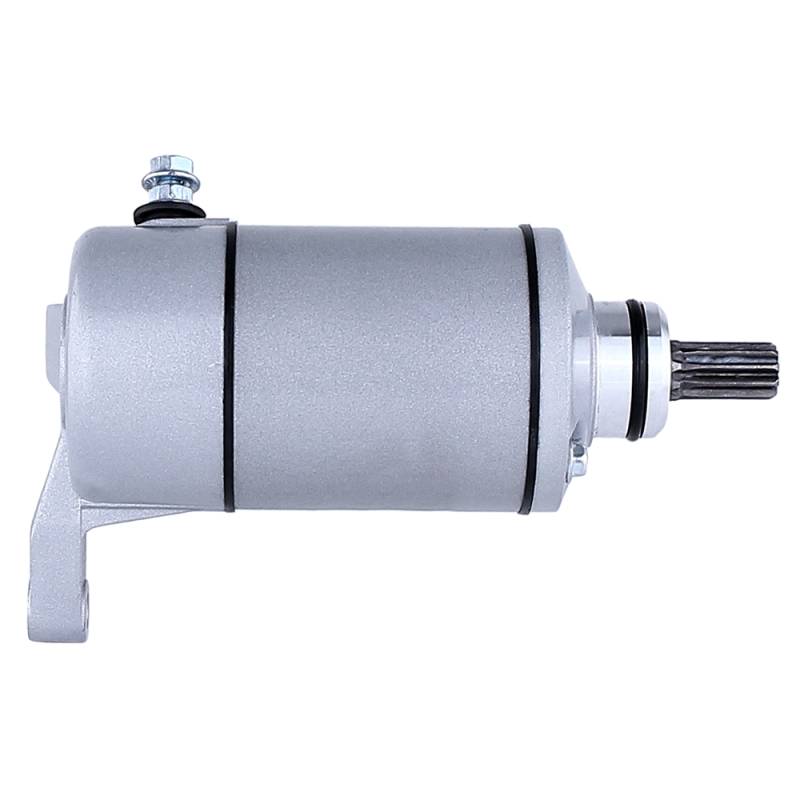

SPECIFICATIONS:
• Type: Starter
• Unit Type: Mitsuba
• Design: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12 Volts
• Rotation: CCW (Counter-Clockwise)
• Teeth/Splines: 10
• Pinion/Splines OD: 12mm / 0.472"
• Mounting Hole 1: 6.0mm ID Unthreaded
• Mounting Hole 2: 7.0mm ID Unthreaded
• Weight: 3.25 lbs / 1.48 kg
• Condition: New
SUZUKI ATV APPLICATIONS:
• LT-F230 / LT230E QuadRunner 230 230cc (1985-1993)
• LT-F160 / LT160 / LT160E QuadRunner 160 160cc (1989-2004)
• LT-F250 Ozark 250 246cc (2002-2014)
• LT-Z250 QuadSport Z250 246cc (2004-2009)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
