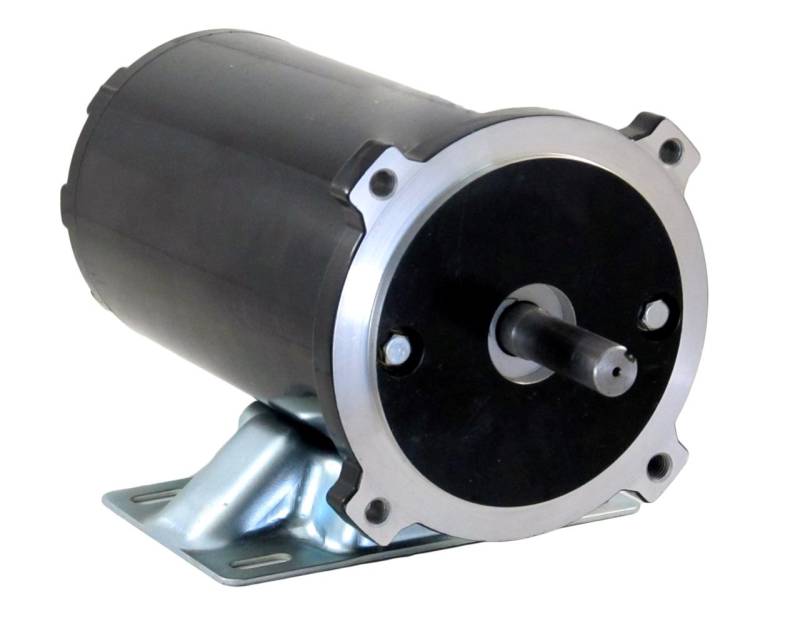

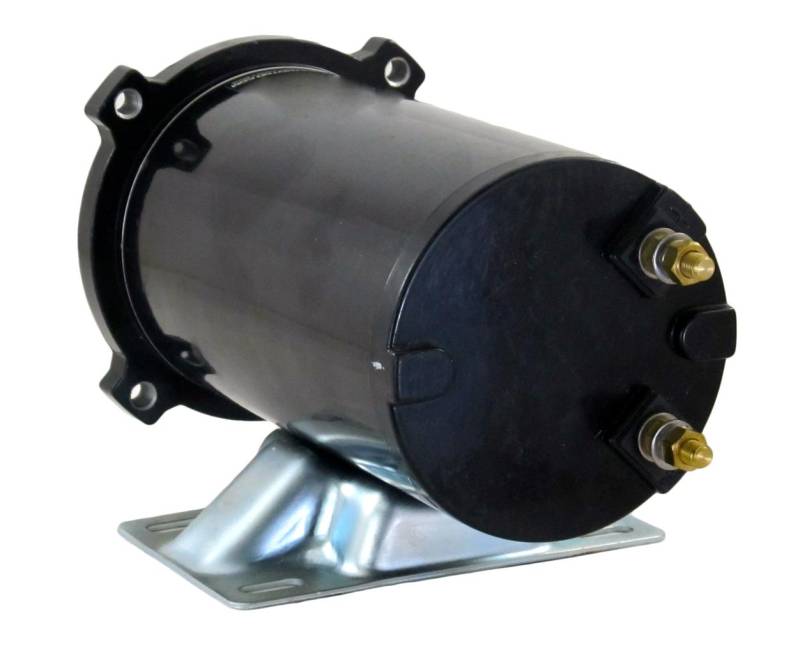

New 12V 1/2Hp Bi-Rotational 1800 Rpm Floor Care Motor Compatible With C4d17nk68 C4d17nk6b

CANIMEX: 120Z402H, 120Z402H1, 120Z402H2, W4BB1601

LEESON: 108046, 108047, C4D17NK10B, C4D17NK68, C4D17NK6B, C4D17NK73, C4D17NK7E

SCOTT MOTORS: 4BB-01601, 4BB-1601

ROTATION: BI-ROTATIONAL
FIELD HOUSING O.D.: 4.500 IN.
FIELD HOUSING LENGTH:
192MM
END OF UNIT TO MOUNTING BRACKETS:
210MM
OVERALL LENGTH: 12.00 IN.
SHAFT OUTSIDE DIAMETER: 5/8 IN.
SHAFT LENGTH: 50MM
SHAFT STYLE: KEYWAY
TERMINAL 1 SIZE: 5/16 IN. – 24
TERMINAL 2 SIZE: 5/16 IN. – 24
HOUSING FINISH: COMM END COVER AND DRIVE END PLATE IS CAST ALUMINUM WITH BLACK POWDER COAT HOUSING.
WEIGHT: 17.6 LBS. / 7.98 KG
