BOSCH OEM PART NUMBERS:
• F000BL0118 / F 000 BL0 118 / F-000-BL0-118
• F000BL0116 / F 000 BL0 116 / F-000-BL0-116
• F000BL0191
YANMAR OEM PART NUMBERS:
• 129908-77200 / 12990877200
• 129908-77210 / 12990877210
FIAT OEM PART NUMBERS:
• 47772966
JOHN DEERE OEM PART NUMBERS:
• MU803557
SPECIFICATIONS:

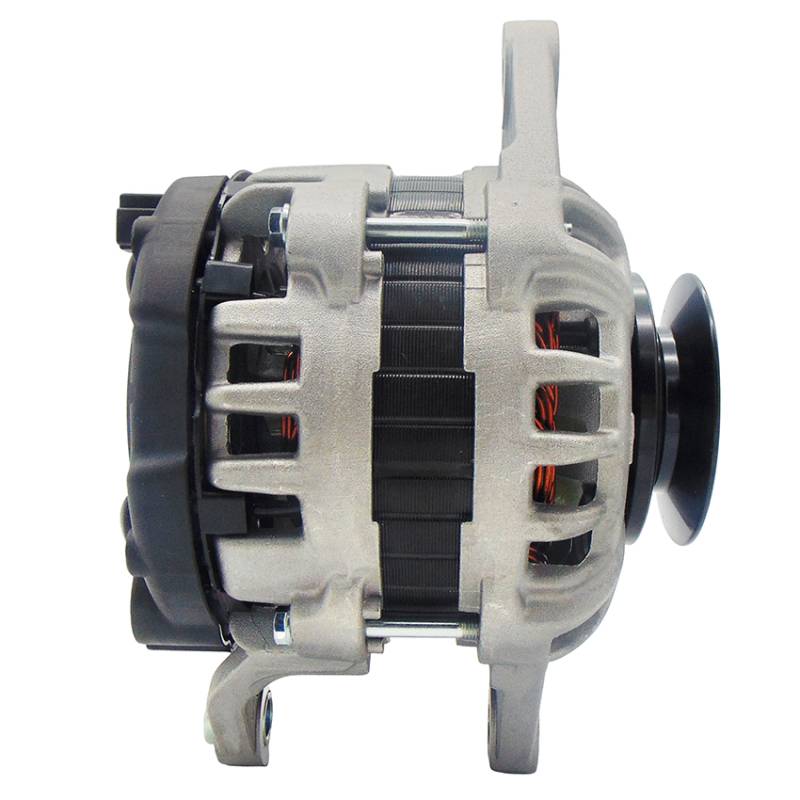

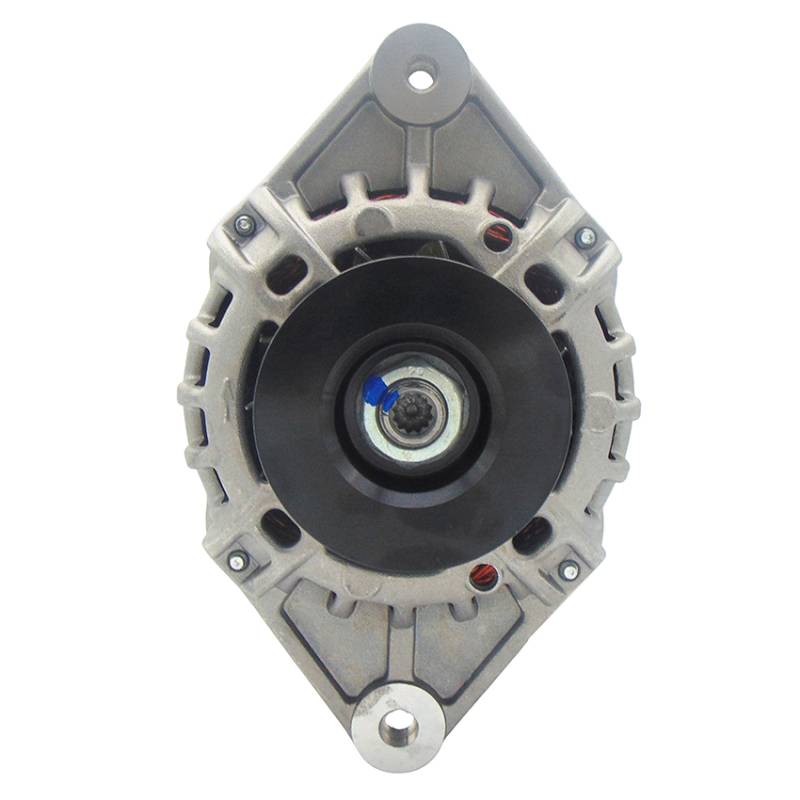

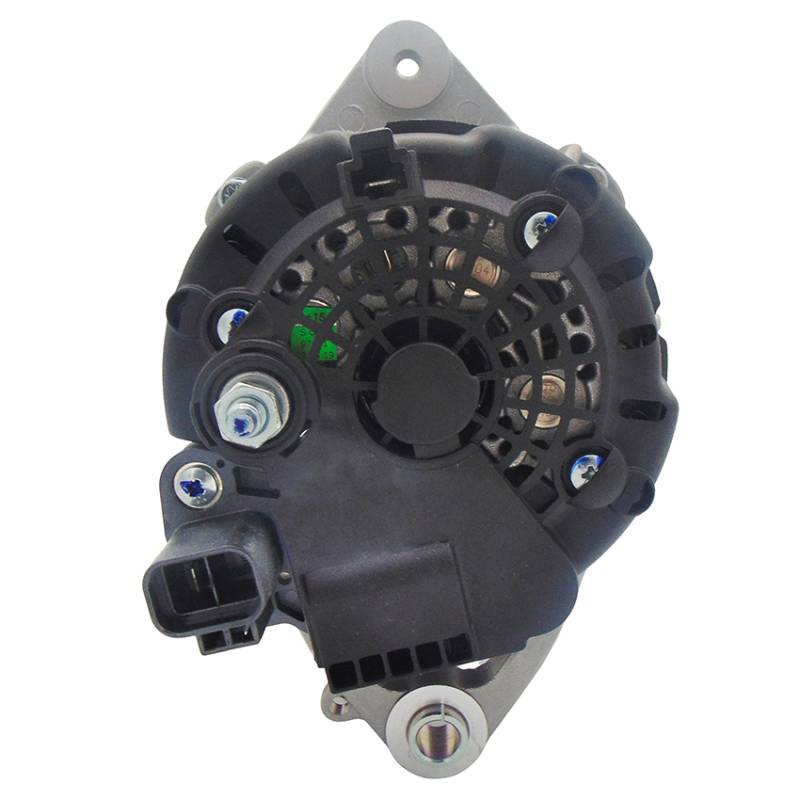

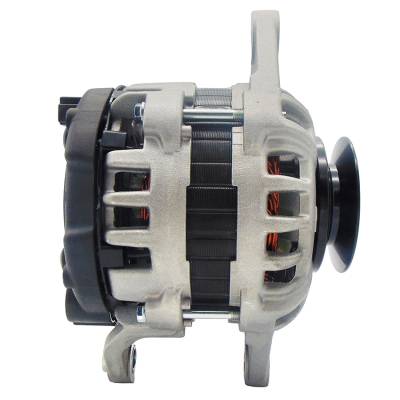

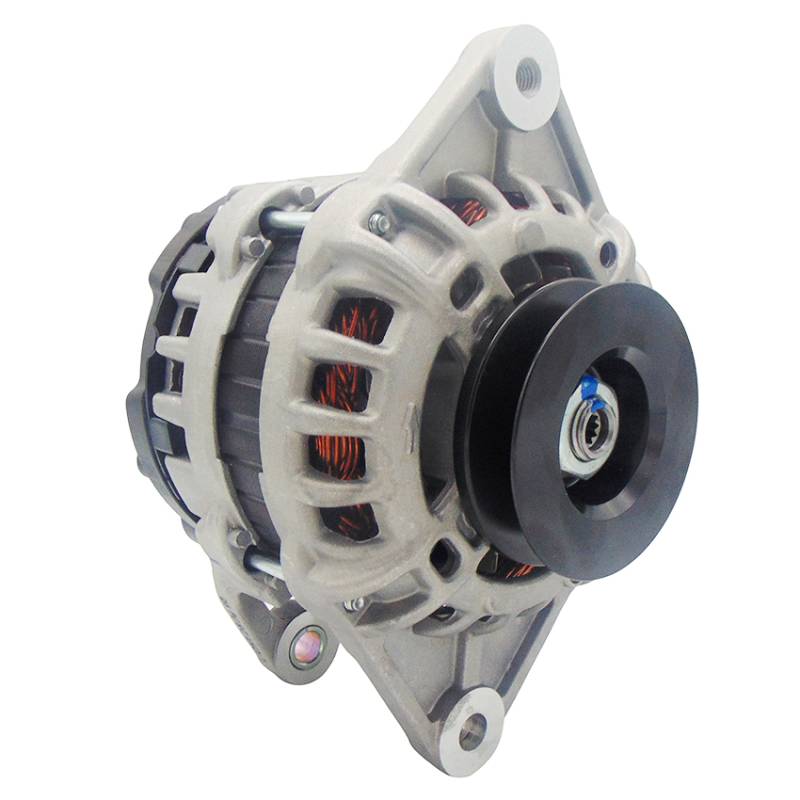

• Product Type: Alternator
• Unit Type: Bosch Style
• Voltage: 12V (14V Regulated Output)
• Amperage: 80A
• Rotation: Clockwise (CW)
• Regulator: Internal
• Fan: Internal
• Regulator Clock Position: 7:30
• Pulley Grooves: 1 (Single)
• Pulley Type: Solid
• Pulley Diameter: 82mm
• Stud Size: M8-1.25
• B+ Terminal: M6
• Top Mounting Ear: M8-1.25 Threaded
• Bottom Mounting Holes: 10.5mm ID Unthreaded
• Mounting Distance: 82mm
• Pulley Distance: 46mm
• Total Length: 160mm
• Weight: 11.91 lbs / 5.41 kg
ENGINE COMPATIBILITY:
• Yanmar 4TNV98
• Yanmar 4TNV98C
• Yanmar 4TNV98CT
• Yanmar 6LY Marine
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
