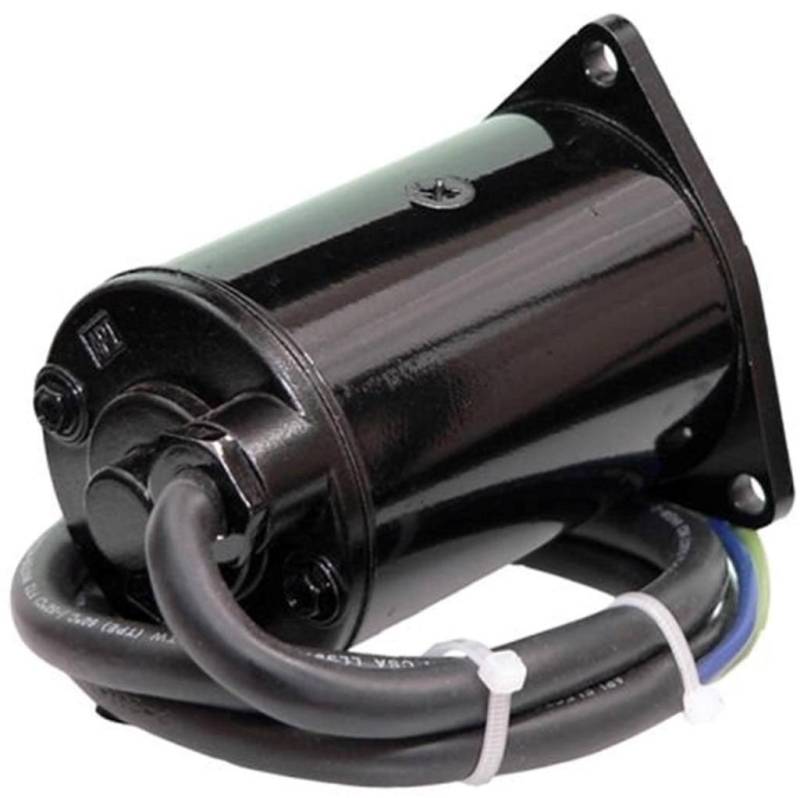

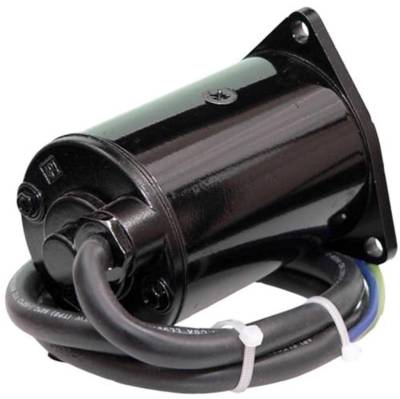

Tilt Trim Motor Compatible With Suzuki Outboard 90 100 150 175 200 Hp Dt Series 2-Stroke 1986-1997

OEM PART NUMBERS:
• Suzuki: 38100-87D00-01T / 3810087D0001T
• Suzuki: 38100-87D00-02H / 3810087D0002H
• Suzuki: 38100-87D00-0IT
• Suzuki: 38100-87D01 / 38100-87D01-02M / 38100-87D01-0ED
• Suzuki: 38100-87E10-OED / 3810087E10OED
• Suzuki: 38100-87E20-0ED



AFTERMARKET CROSS REFERENCE:
• API Marine: PT650NM
• Arco Marine: 6269
• 18-6785
SPECIFICATIONS:
• Type: Tilt Trim Motor
• Voltage: 12V DC
• Rotation: Reversible
• OD: 96mm (3.78 in)
• Overall Length: 136mm (5.354 in)
• Shaft OD: 8mm (0.315 in)
• Shaft Type: Slotted
• Connection: 3-Wire with Ring Terminal Ends
• Mounting: 3-Bolt with O-Ring Included
• Current Type: DC
• Weight: Approximately 4 lbs
• Condition: New

SUZUKI DT-SERIES OUTBOARD APPLICATIONS:
• DT90 90HP V4 2-Stroke (1989-1997)
• DT100 100HP V4 2-Stroke (1989-1997): DT100SF, DT100TCL, DT100TCX
• DT150 150HP V6 2-Stroke (1986-1996): DT150SS, DT150TCL, DT150TCX, DT150STCL, DT150TCXG
• DT175 175HP V6 2-Stroke (1987-1989): DT175TCL, DT175TCX
• DT200 200HP V6 2-Stroke (1986-1990): DT200AEL, DT200AEX, DT200TCL, DT200TCX

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
