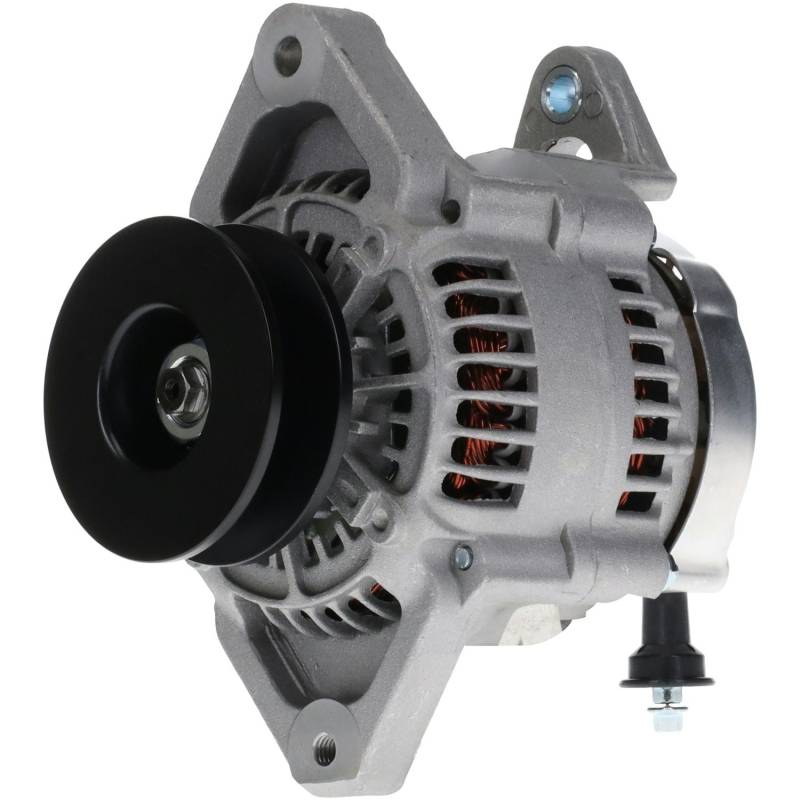

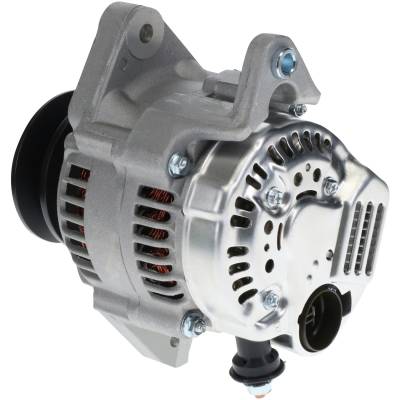

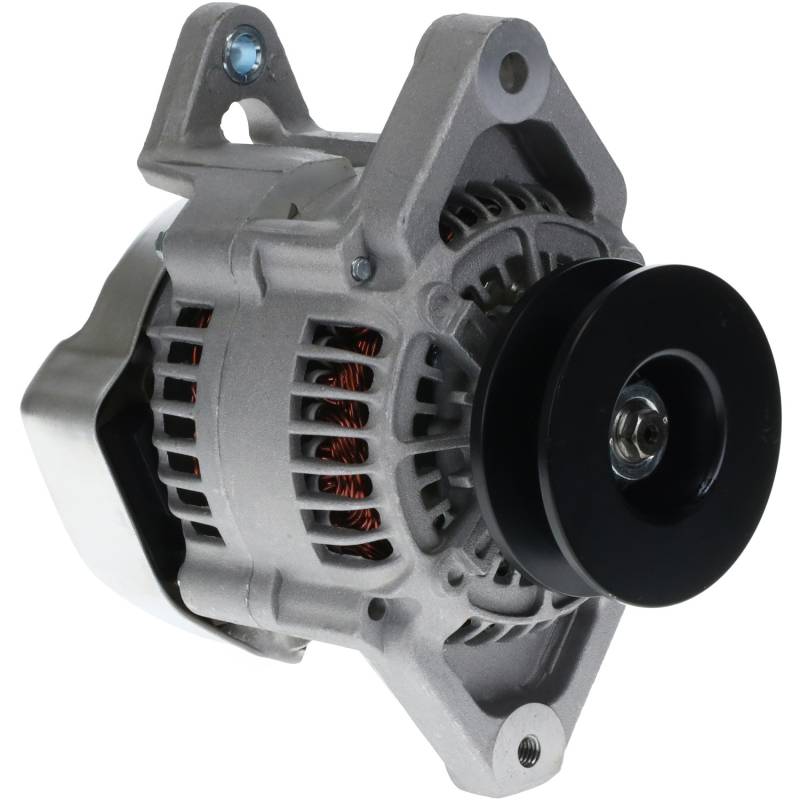

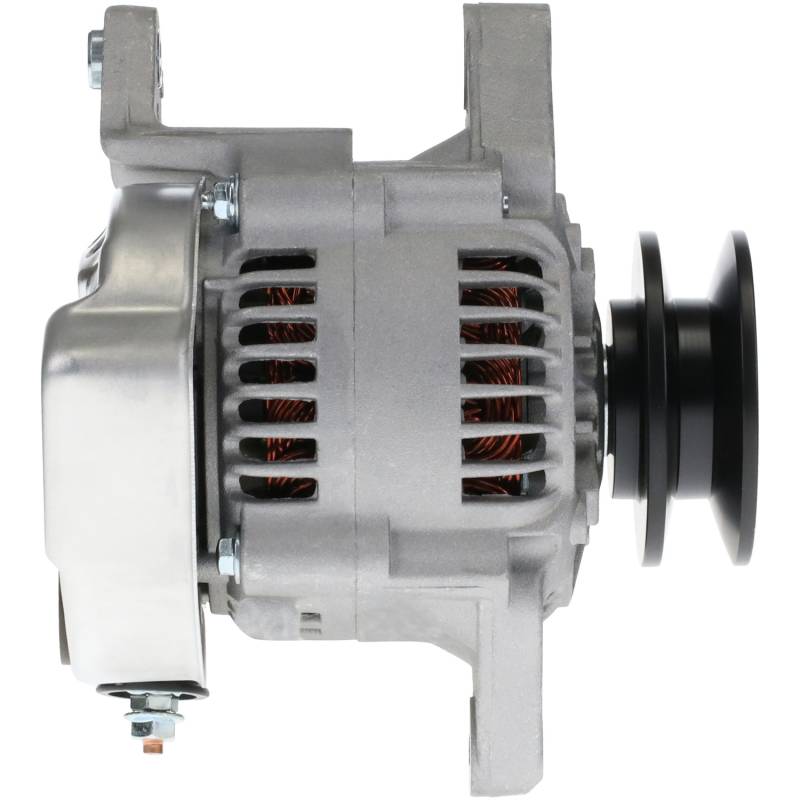

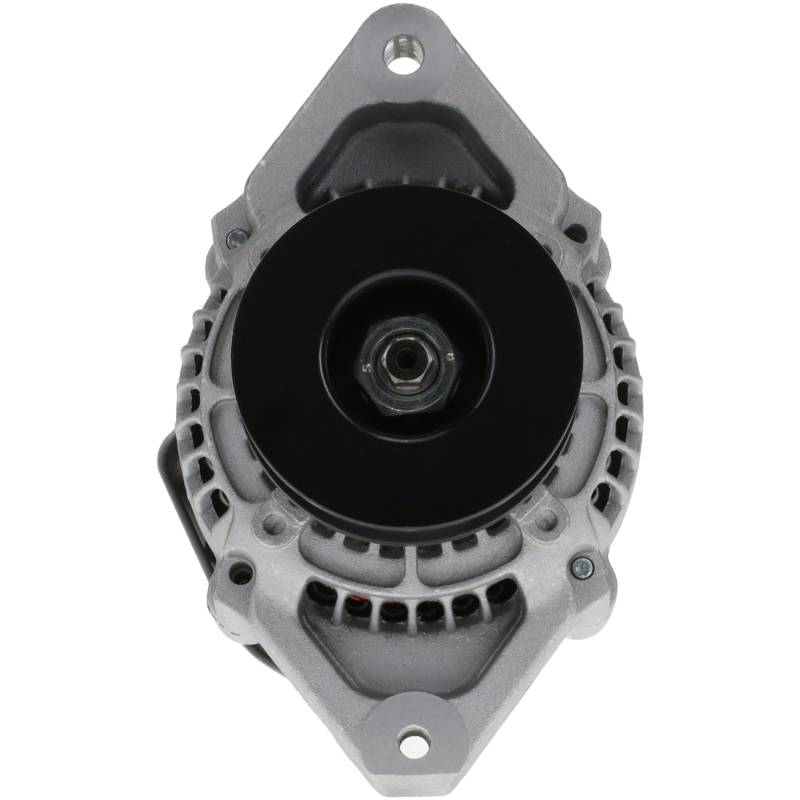

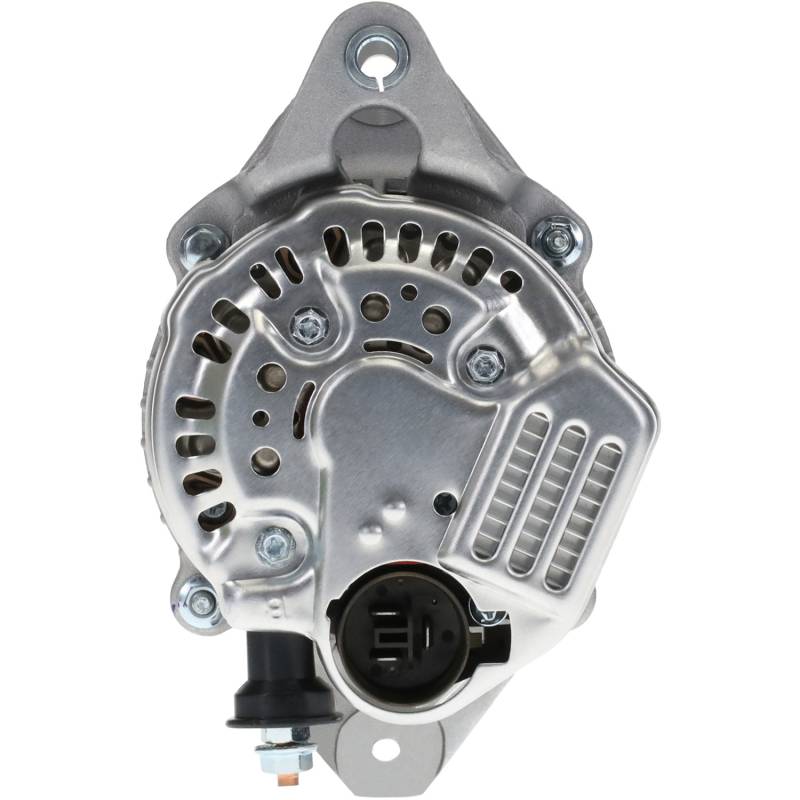

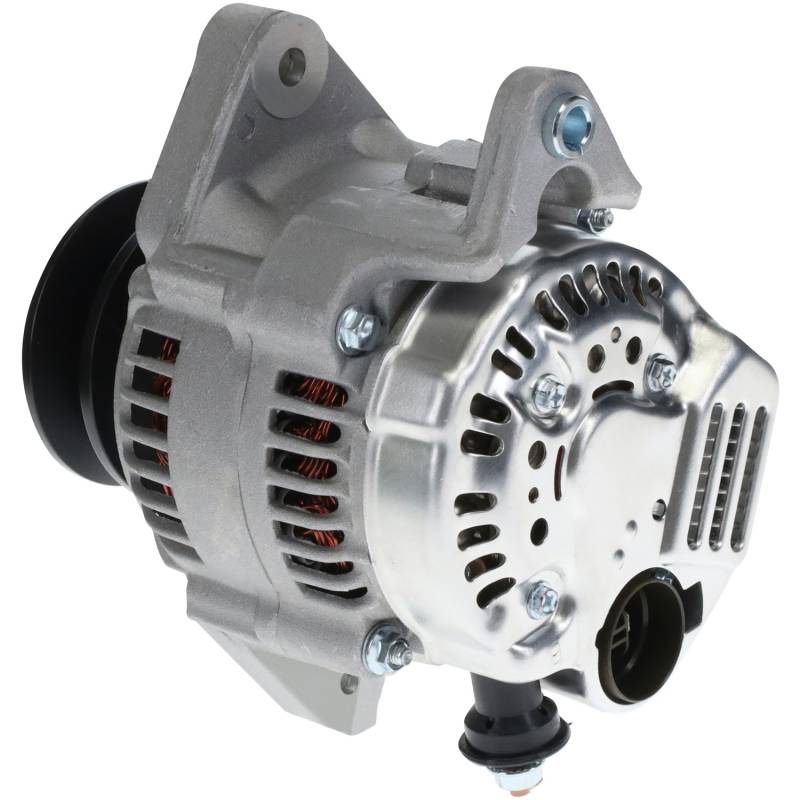

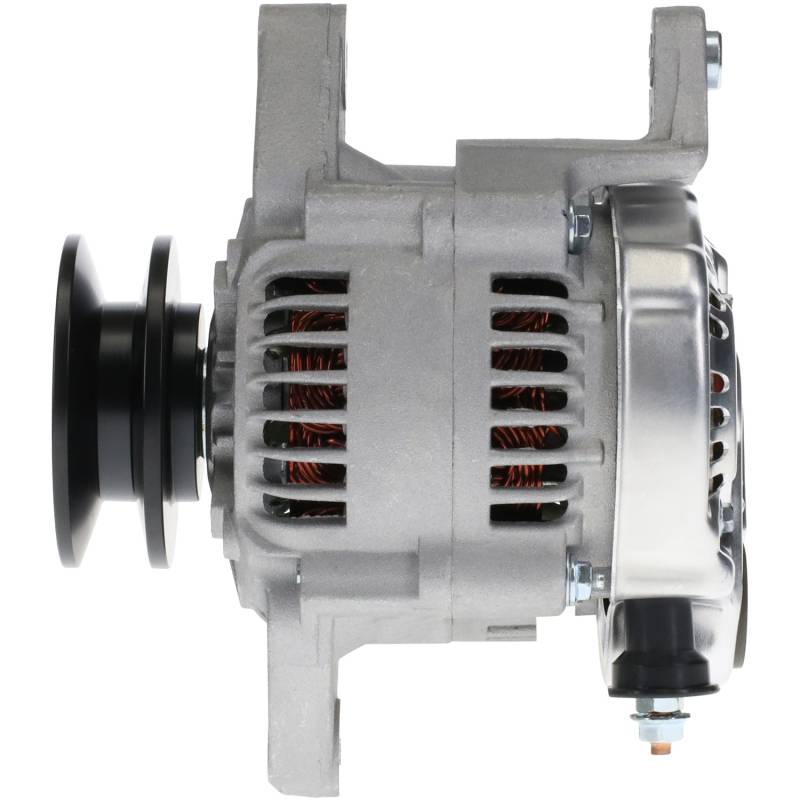

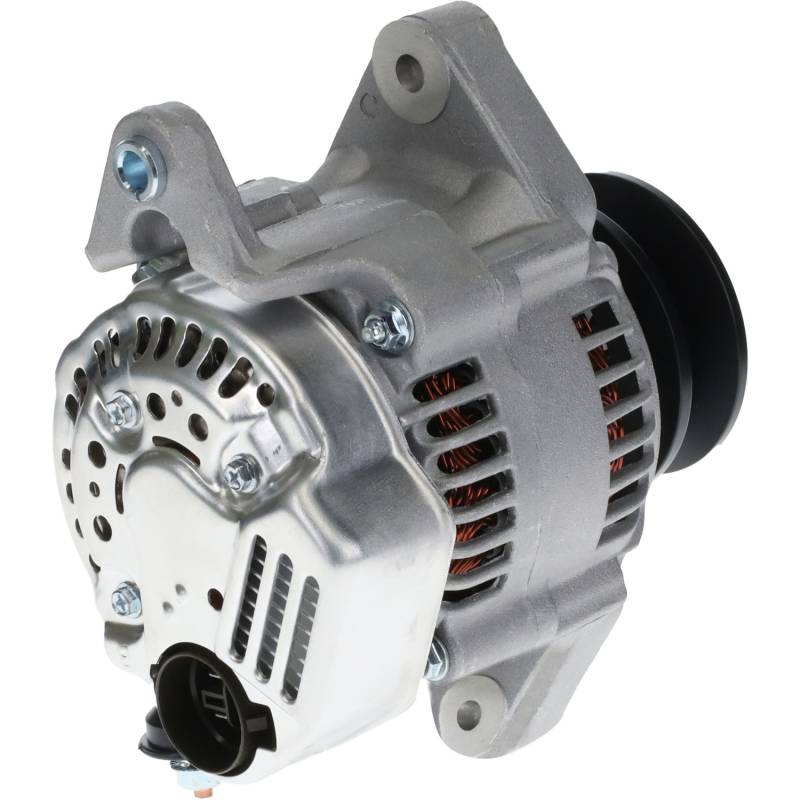

12V 50 Amp Alternator Compatible With 1989-1994 5Fg-33 5Fg-35 5Fg-38 5Fg-40 5Fg-45 5Fg-50 5Fg-60

(0) Reviews: Write first review
12184B1
OEM PART NUMBERS:
• Denso 100211-6930
• Denso 100211-6931
• Denso 210-7001
• Toyota 27060-78305
• Toyota 27060-78305-71
• Toyota 27060-76305
• Hyster 3142305
• Toyota 27070-31720-71

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 50 Amps
• Unit Type: Denso
• Fan: Internal
• Regulator: Internal
• Regulator Clock: 12:00
• Polarity: Negative
• Output Stud: M6-1.0
• Mounting Ear 1: M8-1.25 Threaded
• Mounting Ear 2: 8.0mm Unthreaded
• Mounting Ear 3: 8.0mm Unthreaded
• Weight: 8.64 lbs / 3.93 kg

FITS TOYOTA DIESEL FORKLIFT ENGINES:
• 1DZ Engine - 5FD-10 thru 5FD-25, 6FD-10 thru 6FD-25
• 1Z Engine - 5FD-20 thru 5FD-30
• 11Z Engine - 5FD-33 thru 5FD-45, 5FDE-35
• 2DZ Engine - 6FD-20 thru 6FD-30
• 3F Engine - 5FG-33 thru 5FG-60, 5FGE-35

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $254.94
Sale: $145.68
Save: 43%
Save: $109.26
Qty:
Free Shipping!

Description

TOYOTA 5FD SERIES LIFT TRUCKS (Diesel):

1DZ ENGINE:
• Toyota 5FD-10 Lift Truck 1DZ Engine - 1989, 1990, 1991, 1992, 1993, 1994
• Toyota 5FD-14 Lift Truck 1DZ Engine - 1989, 1990, 1991, 1992, 1993, 1994
• Toyota 5FD-15 Lift Truck 1DZ Engine - 1989, 1990, 1991, 1992, 1993, 1994
• Toyota 5FD-18 Lift Truck 1DZ Engine - 1989, 1990, 1991, 1992, 1993, 1994
• Toyota 5FD-20 Lift Truck 1DZ Engine - 1989, 1990, 1991, 1992, 1993, 1994
• Toyota 5FD-23 Lift Truck 1DZ Engine - 1989, 1990, 1991, 1992, 1993, 1994
• Toyota 5FD-25 Lift Truck 1DZ Engine - 1989, 1990, 1991, 1992, 1993, 1994

1Z ENGINE:
• Toyota 5FD-20 Lift Truck 1Z Engine - 1989, 1990, 1991, 1992, 1993, 1994
• Toyota 5FD-23 Lift Truck 1Z Engine - 1989, 1990, 1991, 1992, 1993, 1994
• Toyota 5FD-25 Lift Truck 1Z Engine - 1989, 1990, 1991, 1992, 1993, 1994
• Toyota 5FD-28 Lift Truck 1Z Engine - 1989, 1990, 1991, 1992, 1993, 1994
• Toyota 5FD-30 Lift Truck 1Z Engine - 1989, 1990, 1991, 1992, 1993, 1994

11Z ENGINE:
• Toyota 5FD-33 Lift Truck 11Z Engine - 1989, 1990, 1991, 1992, 1993, 1994
• Toyota 5FD-35 Lift Truck 11Z Engine - 1989, 1990, 1991, 1992, 1993, 1994
• Toyota 5FD-38 Lift Truck 11Z Engine - 1989, 1990, 1991, 1992, 1993, 1994
• Toyota 5FD-40 Lift Truck 11Z Engine - 1989, 1990, 1991, 1992, 1993, 1994
• Toyota 5FD-45 Lift Truck 11Z Engine - 1989, 1990, 1991, 1992, 1993, 1994
• Toyota 5FDE-35 Lift Truck 11Z Engine - 1989, 1990, 1991, 1992, 1993, 1994

TOYOTA 5FG SERIES LIFT TRUCKS (Gas):

3F ENGINE:
• Toyota 5FG-33 Lift Truck 3F Engine - 1989, 1990, 1991, 1992, 1993, 1994
• Toyota 5FG-35 Lift Truck 3F Engine - 1989, 1990, 1991, 1992, 1993, 1994
• Toyota 5FG-38 Lift Truck 3F Engine - 1989, 1990, 1991, 1992, 1993, 1994
• Toyota 5FG-40 Lift Truck 3F Engine - 1989, 1990, 1991, 1992, 1993, 1994
• Toyota 5FG-45 Lift Truck 3F Engine - 1989, 1990, 1991, 1992, 1993, 1994
• Toyota 5FG-50 Lift Truck 3F Engine - 1990, 1991, 1992, 1993, 1994
• Toyota 5FG-60 Lift Truck 3F Engine - 1990, 1991, 1992, 1993, 1994
• Toyota 5FGE-35 Lift Truck 3F Engine - 1990, 1991, 1992, 1993, 1994

TOYOTA 6FD SERIES LIFT TRUCKS (Diesel):

1DZ ENGINE:
• Toyota 6FD-10 Lift Truck 1DZ Engine - 1994, 1996, 1998, 2000, 2002, 2004, 2005
• Toyota 6FD-14 Lift Truck 1DZ Engine - 1994, 1996, 1998, 2000, 2002, 2004, 2005
• Toyota 6FD-15 Lift Truck 1DZ Engine - 1994, 1996, 1998, 2000, 2002, 2004, 2005
• Toyota 6FD-18 Lift Truck 1DZ Engine - 1994, 1996, 1998, 2000, 2002, 2004, 2005
• Toyota 6FD-20 Lift Truck 1DZ Engine - 1994, 1996, 1998, 2000, 2002, 2004, 2005
• Toyota 6FD-23 Lift Truck 1DZ Engine - 1994, 1996, 1998, 2000, 2002, 2004, 2005
• Toyota 6FD-25 Lift Truck 1DZ Engine - 1994, 1996, 1998, 2000, 2002, 2004, 2005

2DZ ENGINE:
• Toyota 6FD-20 Lift Truck 2DZ Engine - 1994, 1996, 1998, 2000, 2002, 2004, 2005
• Toyota 6FD-23 Lift Truck 2DZ Engine - 1994, 1996, 1998, 2000, 2002, 2004, 2005
• Toyota 6FD-25 Lift Truck 2DZ Engine - 1994, 1996, 1998, 2000, 2002, 2004, 2005
• Toyota 6FD-28 Lift Truck 2DZ Engine - 1994, 1996, 1998, 2000, 2002, 2004, 2005
• Toyota 6FD-30 Lift Truck 2DZ Engine - 1994, 1996, 1998, 2000, 2002, 2004, 2005
