OEM PART NUMBERS:
• Mercury Marine: 50-818445, 50-818445-2, 50-818445-3, 50-818445-5
• United Technologies: 5275640-M030SM / SM52756
• United Technologies: 5672740-M030SM / SM56727
• Sierra Marine: 18-5620
• Arco Marine: 5395
• API Marine: MOT3011

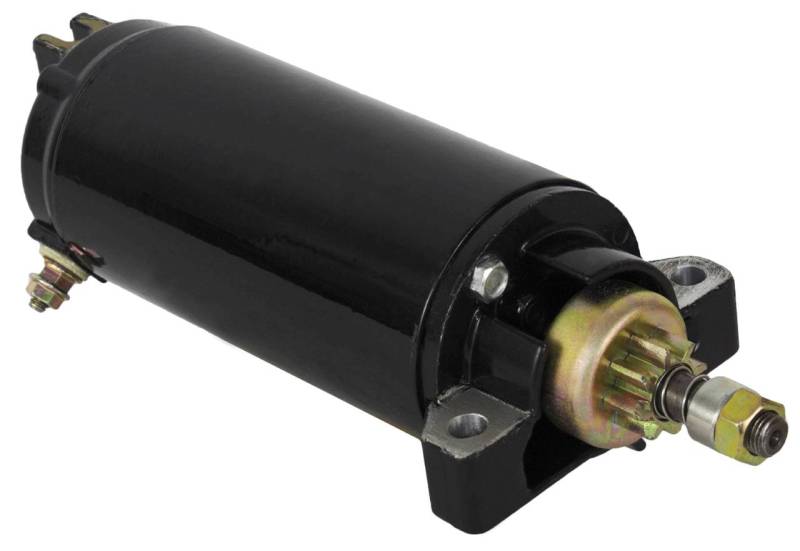

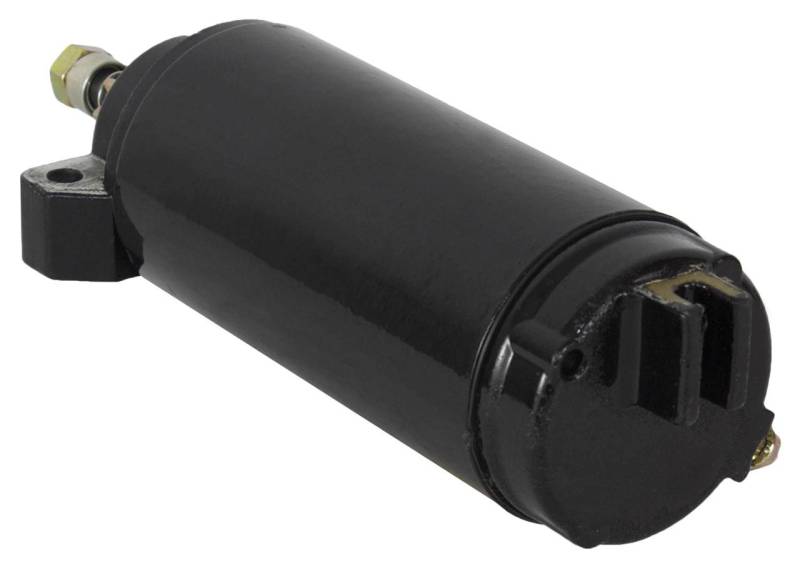

SPECIFICATIONS:
• Unit Type: United Technologies (Mercury OEM)
• Type: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Rotation: Counterclockwise (CCW)
• Tooth Count: 8
• Gear OD: 25mm / 0.984 in
• Field Housing Length: 5.82 in / 148mm
• CE Housing: 8mm Mounting Slot
• Mounting Configuration: 2 Ears
• Mounting Ear 1: 8.0mm ID Unthreaded
• Mounting Ear 2: 8.0mm ID Unthreaded
• Weight: 8.5 lbs / 3.86 kg
• Condition: New
MERCURY / MARINER OUTBOARD APPLICATIONS:
• 200HP 2.5L V6 EFI Outboards (2000)
• 225HP 3.0L V6 Outboards - all CXL/CXXL/L/XL/XXL variants (1993-2000)
• 225HP EFI / Magnum / SeaPro / Marathon / XRI variants (1995-2000)
• 250HP 3.0L V6 EFI Outboards - all CXL/CXXL/XL/XXL (1995-1999)
• 250HP 3.0L V6 Saltwater EFI variants (2000)
• 300HP 3.0L V6 Promax Racing - 300CL/CXL/L/XL (1998-2000)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
