OEM PART NUMBERS:
• Bosch: 0-001-359-090 / 0001359090
• Iskra: IS0569
• John Deere: AR70436
• John Deere (Additional): AR70437 / AL78760 / TY6780 / AL110503
SPECIFICATIONS:
• Voltage: 12V
• Type: DD (Direct Drive)
• Power: 3.1 kW
• Rotation: CW (Clockwise)
• Tooth Count: 10
• Gear OD: 32mm / 1.260 in
• Mounting Ear 1: 13.4mm ID Unthreaded
• Weight: 29.49 lbs / 13.40 kg
• Condition: New
APPLICATION:
• John Deere Farm Tractors 1140-2035 Diesel (1970-1982)

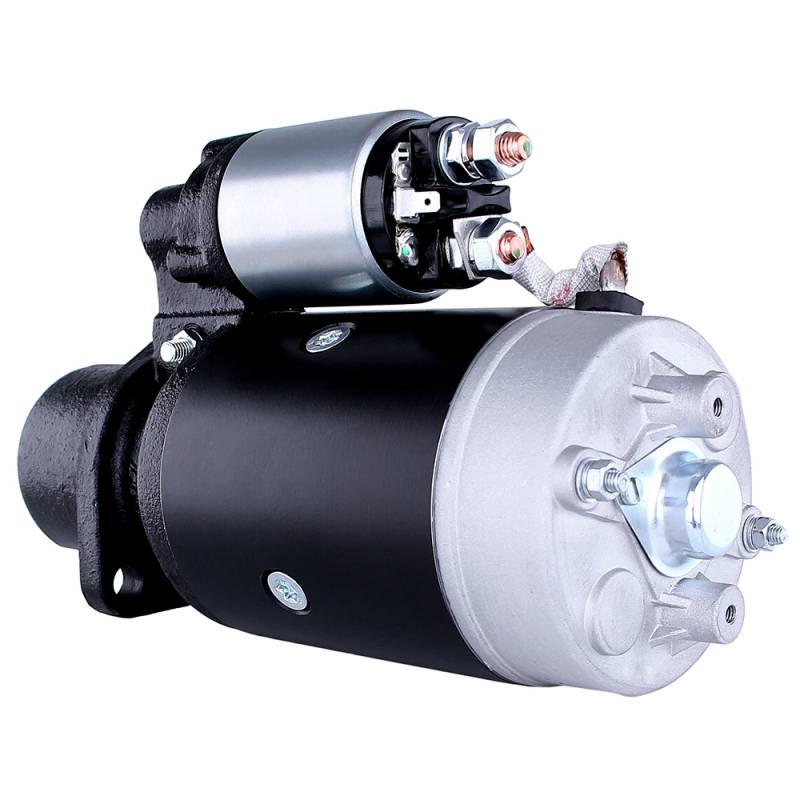

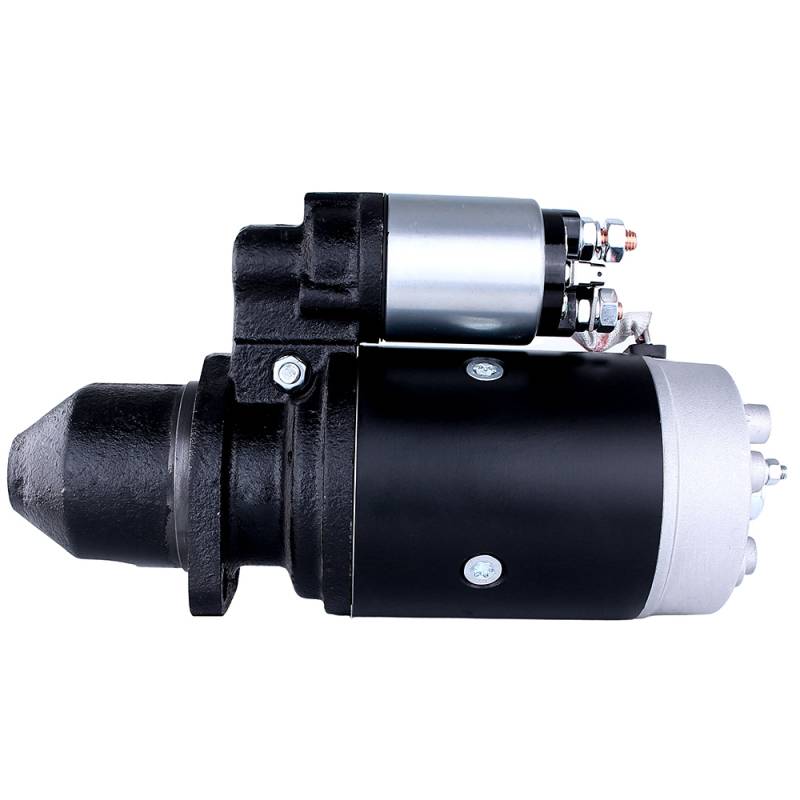

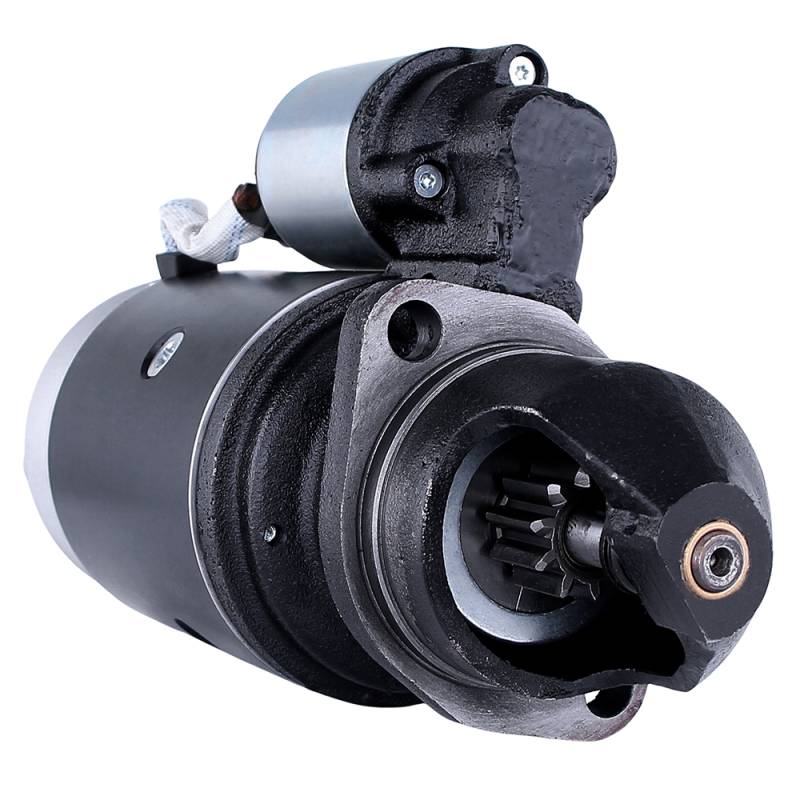

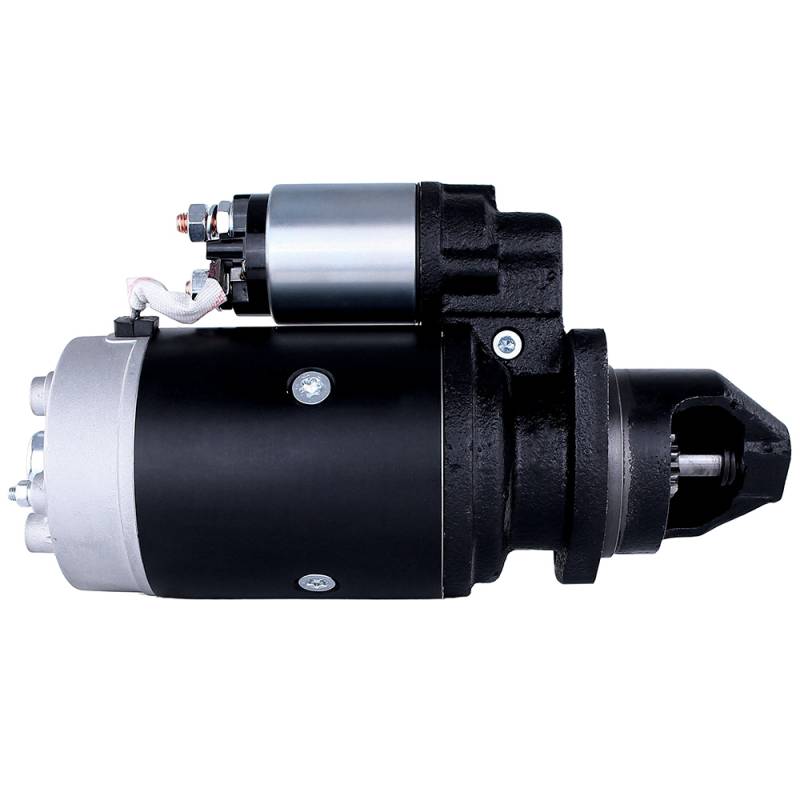

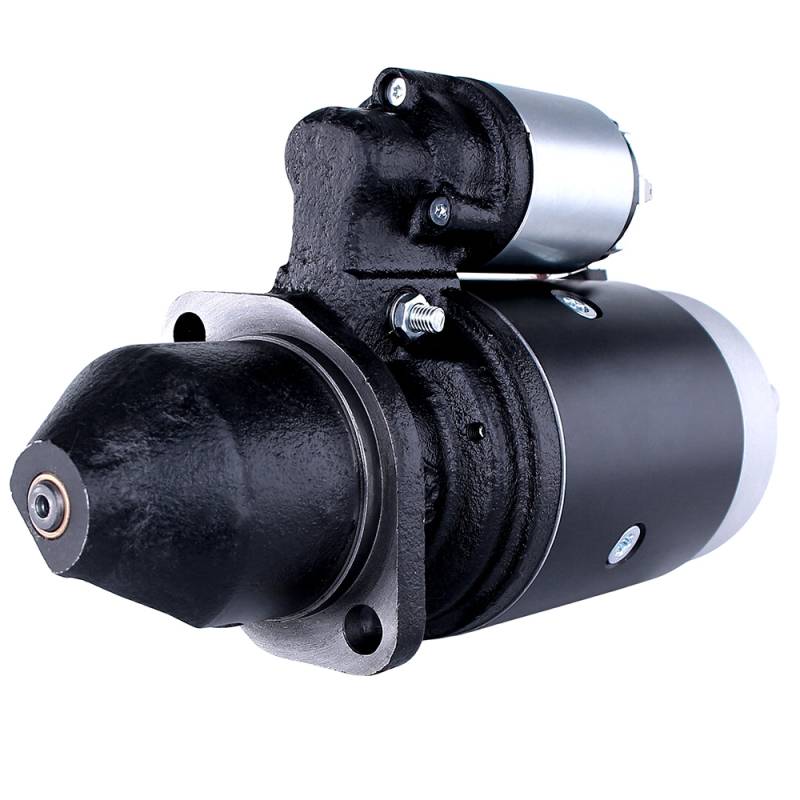

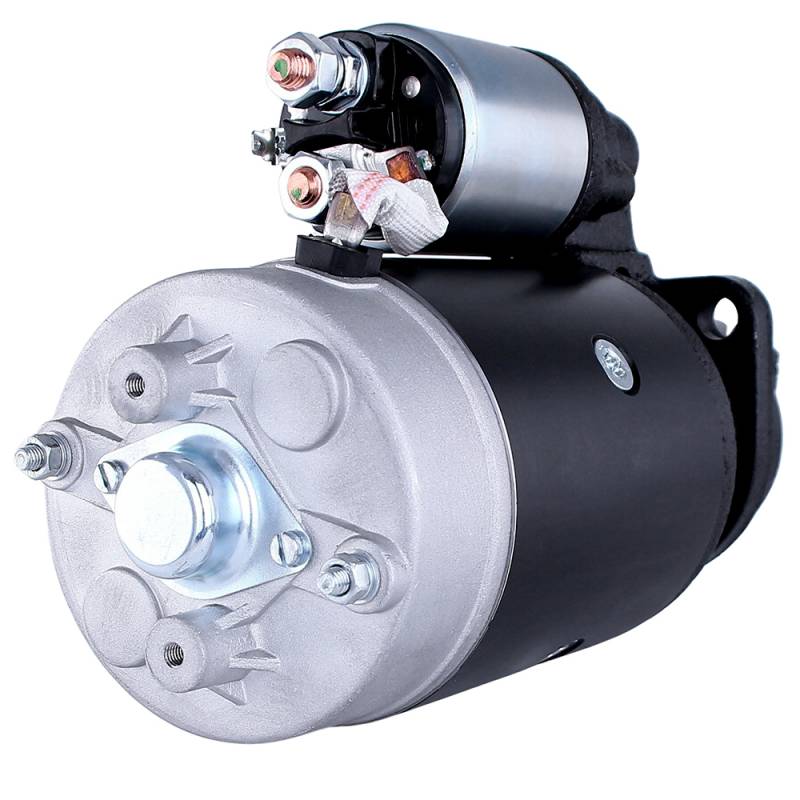

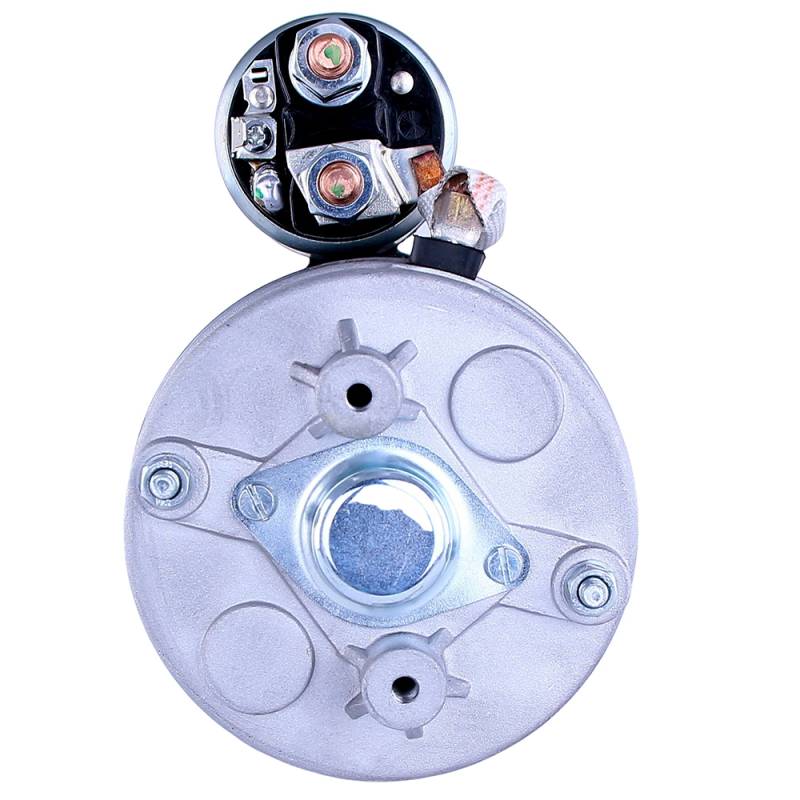

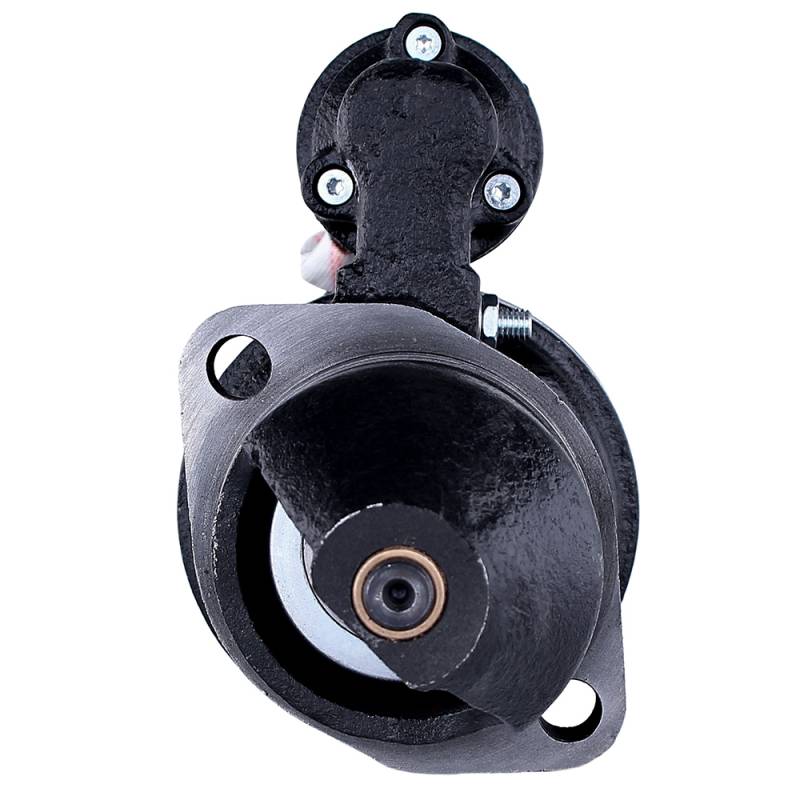

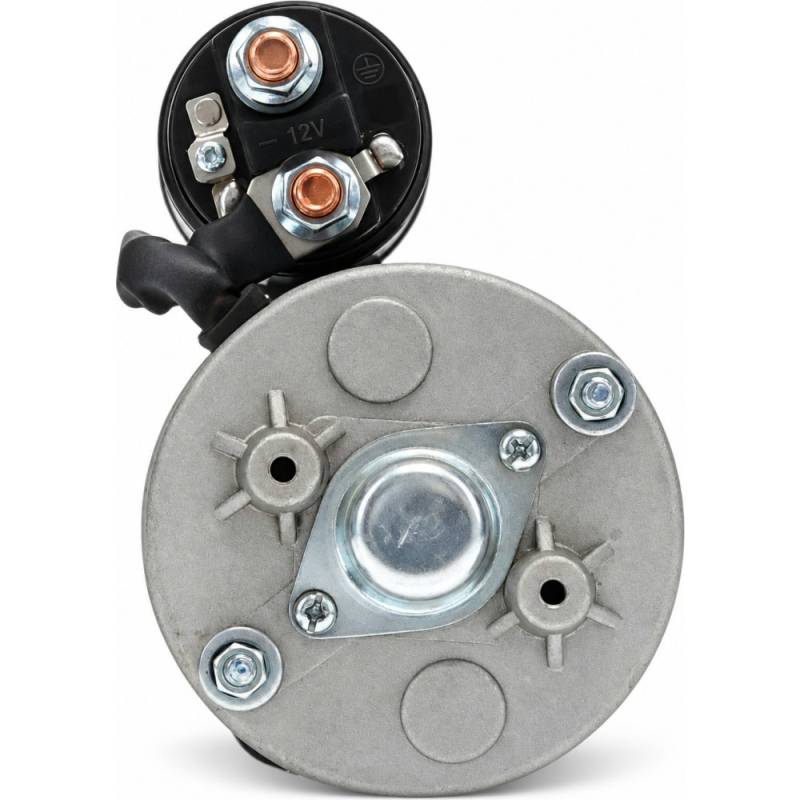

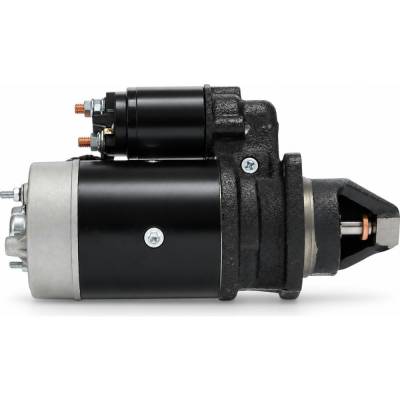

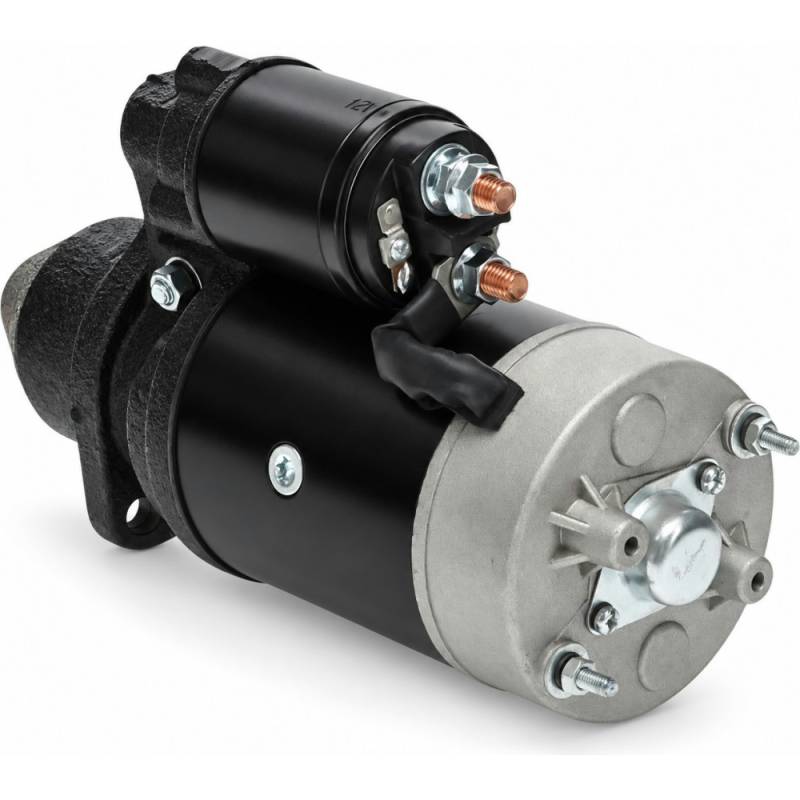

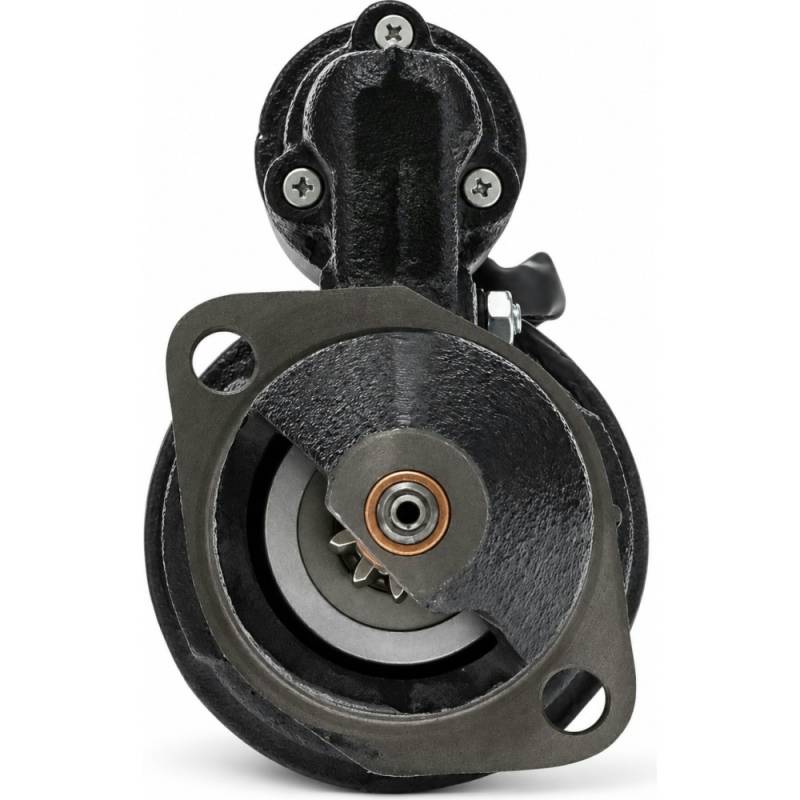

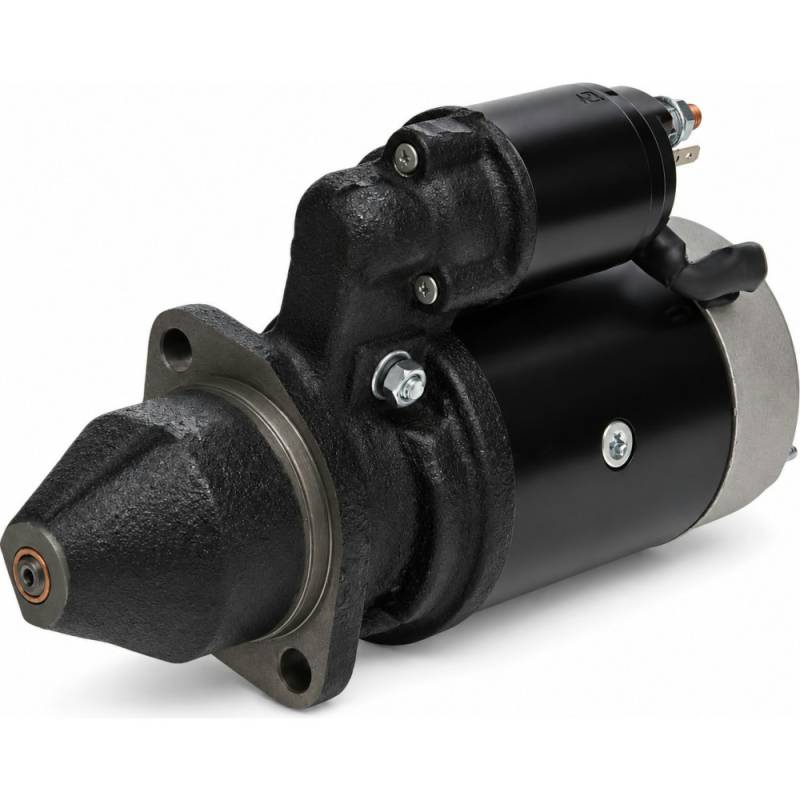

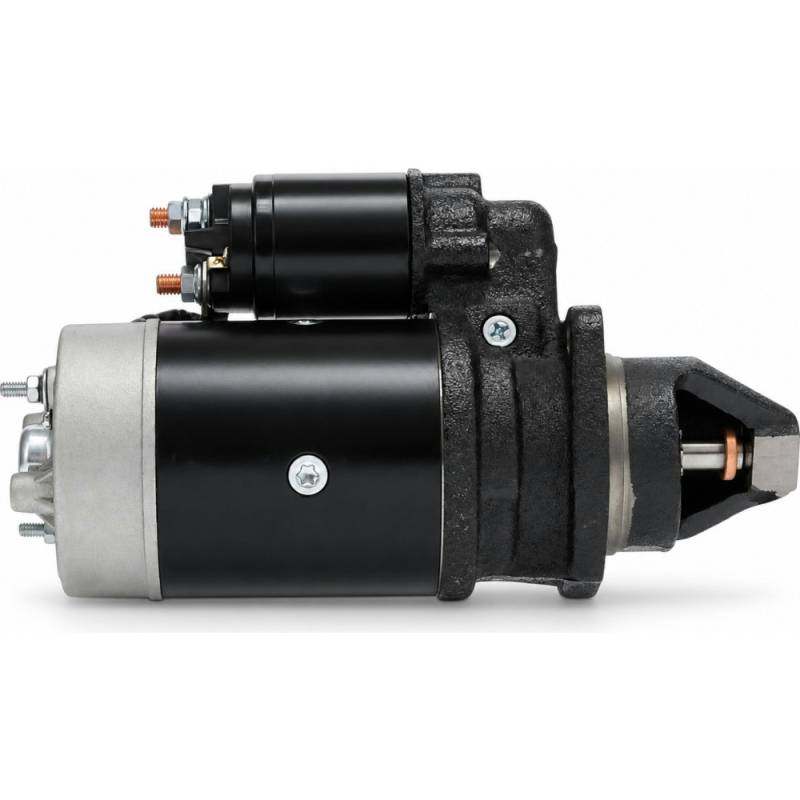

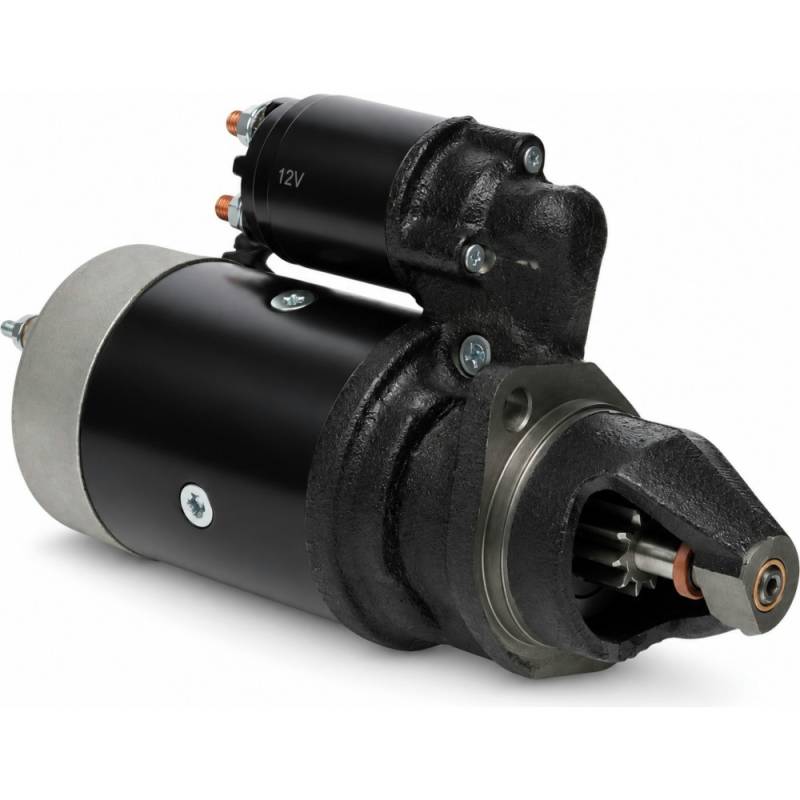

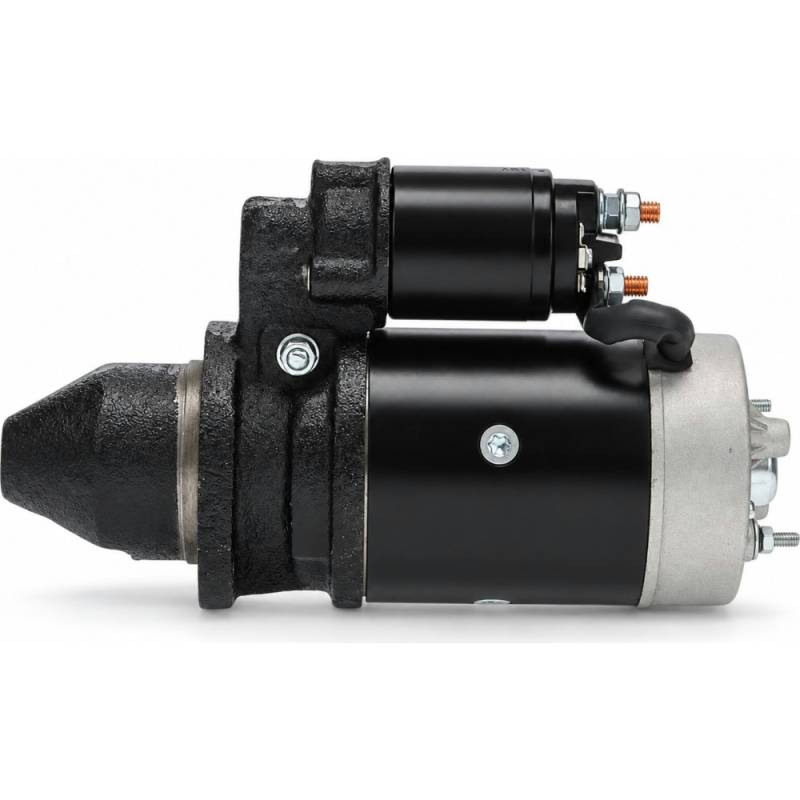

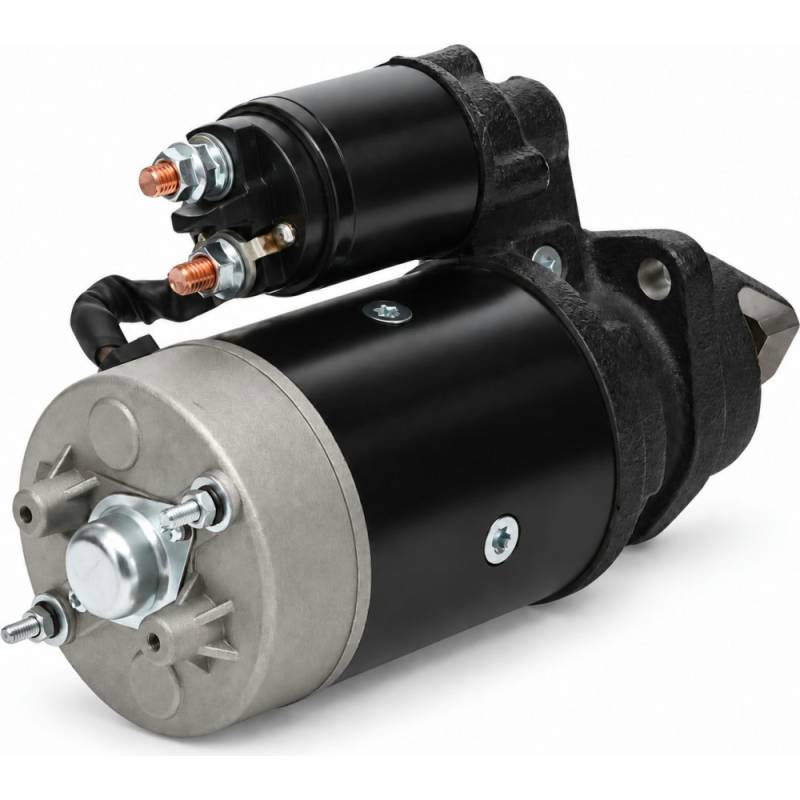

Starter Motor - John Deere 1630-2030 / 1140-1840 Farm Tractor
New 12V Bosch direct drive starter delivering 3.1 kW for John Deere mid-range diesel farm tractors. CW rotation, 10-tooth drive gear (32mm OD), 13.4mm unthreaded mounting. Weight 29.49 lbs. Replaces Bosch 0-001-359-090/0001359090, John Deere AR70436, AR70437, AL78760, TY6780, AL110503, Iskra IS0569, and Marelli MSR733. Compatible with John Deere 1140-2035 diesel farm tractors (1970-1982), including F, V, OU, VU, EF, and EV Spanish variants.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
