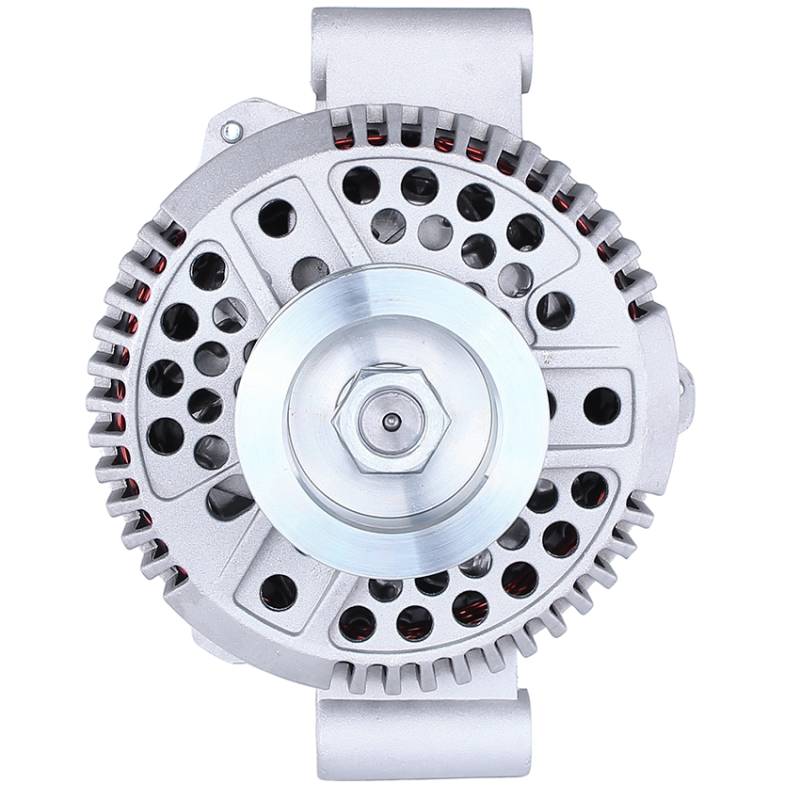

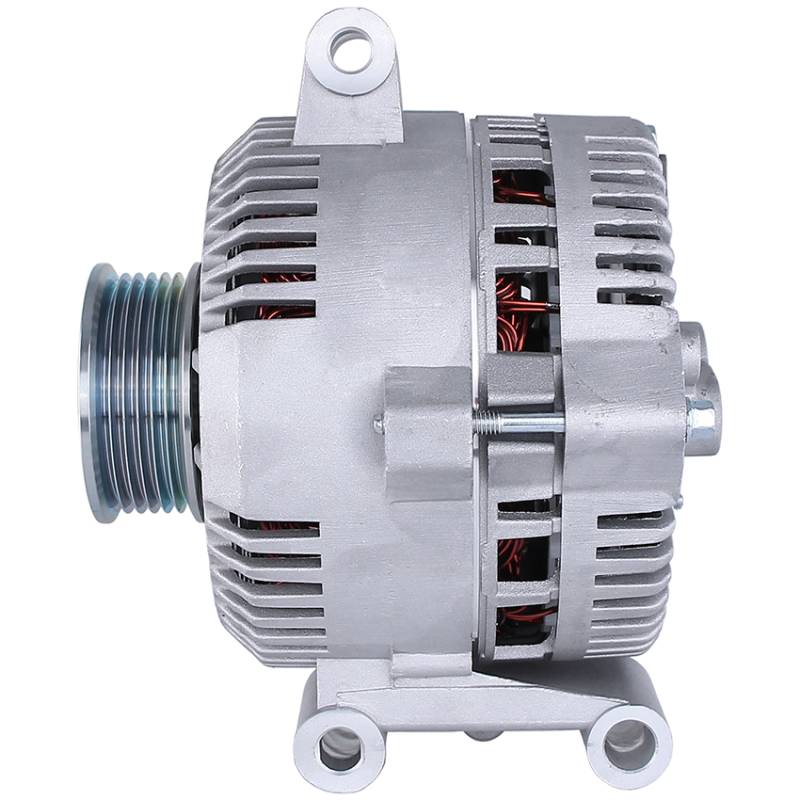

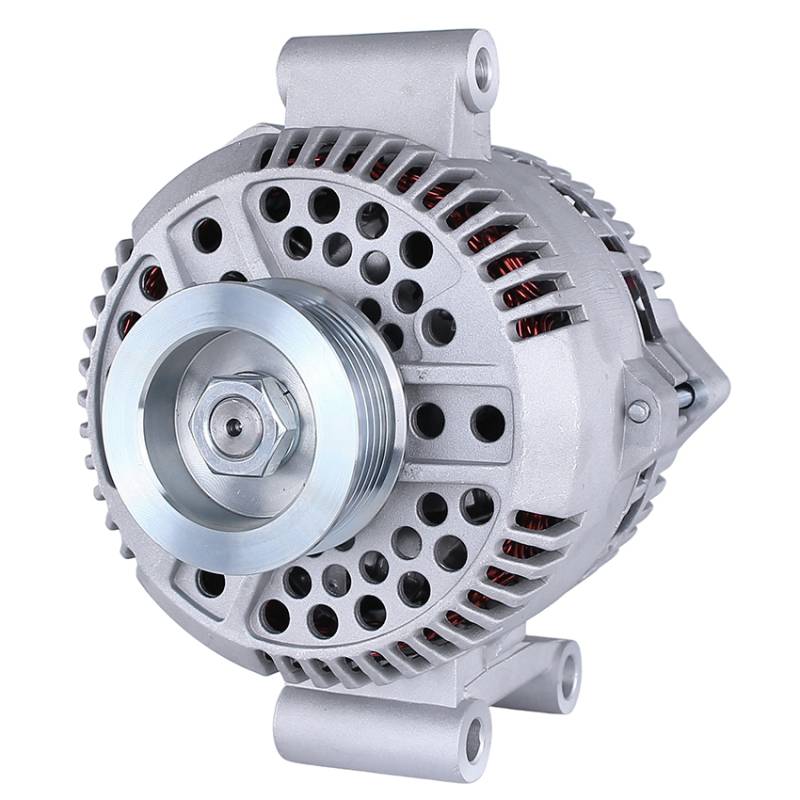

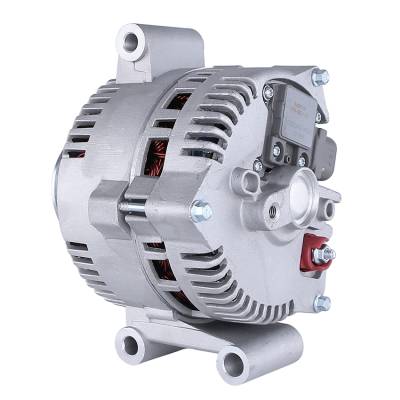

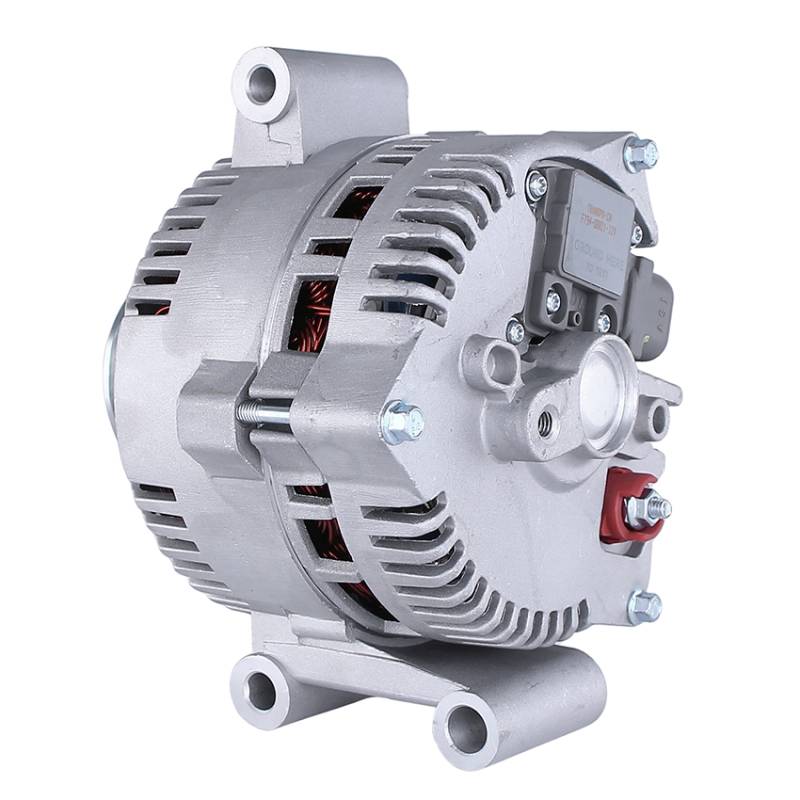

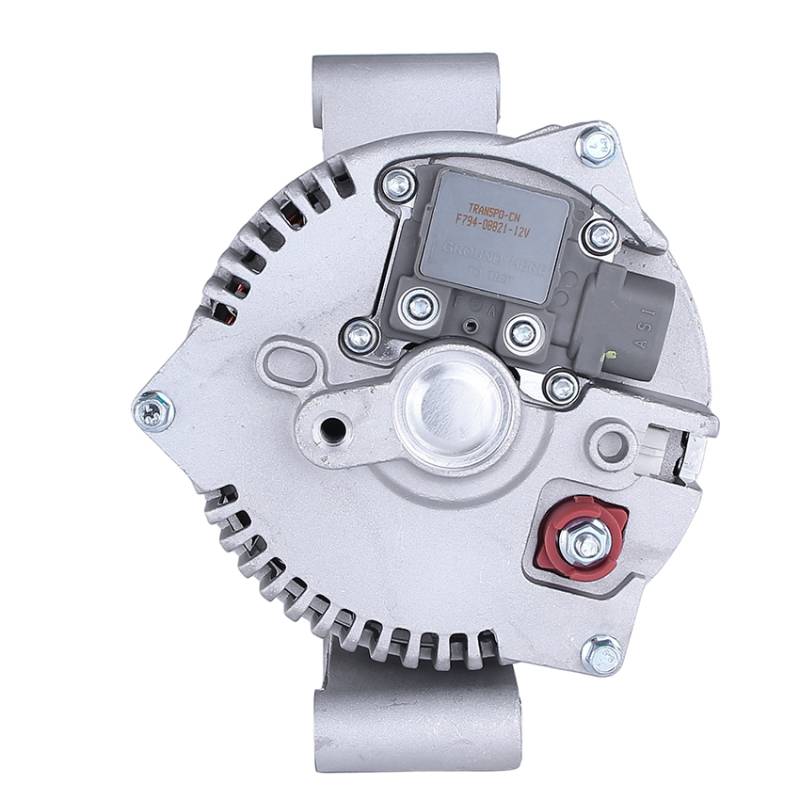

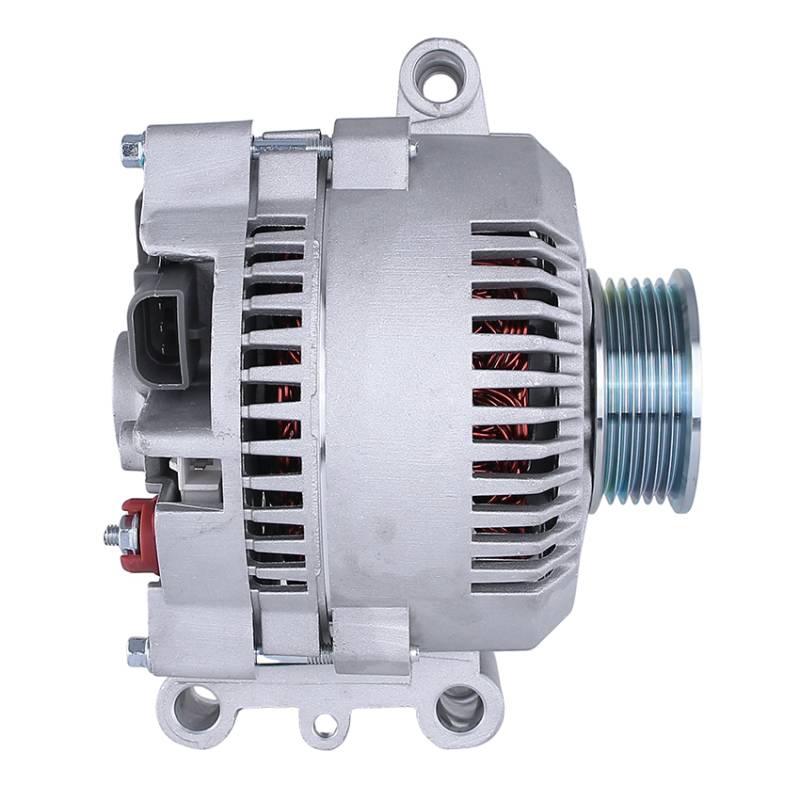

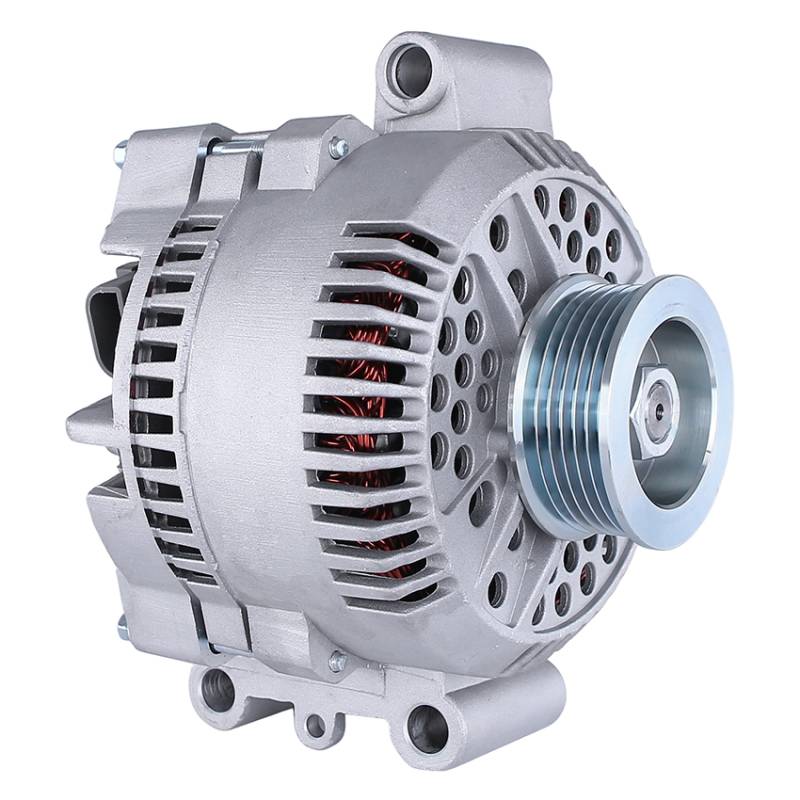

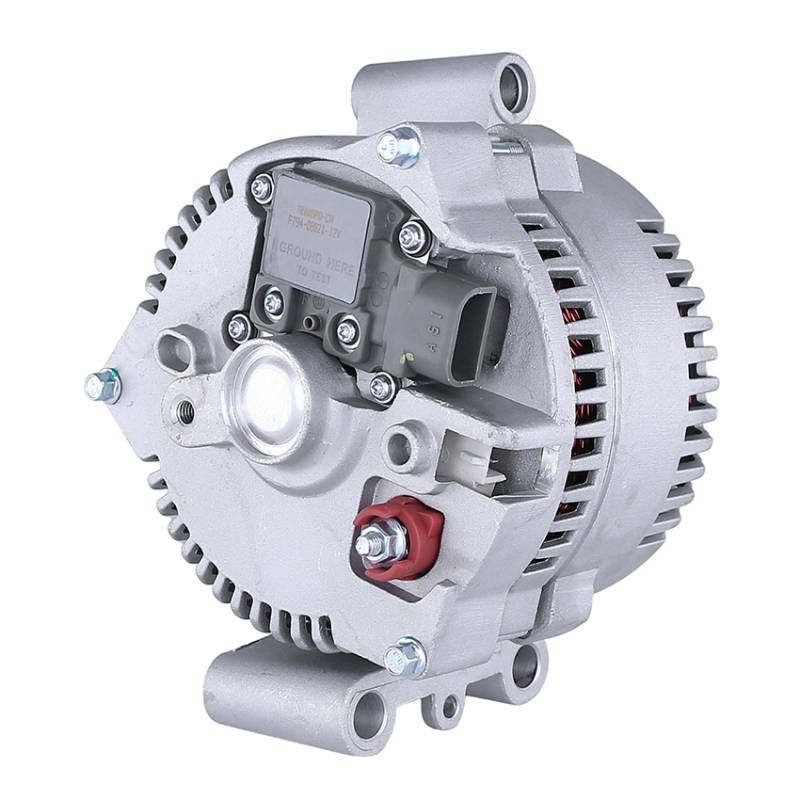

Alternator Compatible With 92 93 94 95 96 97 Ford F-Series Pickup 7.3 F6uu-10300-Ca

7768B4
FORD PART NUMBERS:
• F6UU-10300-CA, F6UU10300CA
• F6UU-10300-FA, F6UU10300FA
• F2TU-10300-AF, F2TU10300AF
• F85U-10300-AA, F85U10300AA
• F85U-10300-AB, F85U10300AB
• XL3U-10300-CA, XL3U10300CA
• XL3U-10300-CB, XL3U10300CB
• F5UU-10300-AA, F5UU10300AA
• F6UZ-10346-VA, F6UZ10346VA
• F5UZ-10346-A, F5UZ10346A

FORD SERVICE EXCHANGE NUMBERS:
• F6UZ-10346-VARM1, F6UZ10346VARM1
• F6UZ-10346-VARM3, F6UZ10346VARM3

FORD ENGINEERING (TAG) NUMBERS:
• F3UU-AF
• F6UU-CA
• F2TU-AF
• F6UU-FA
• F85U-AA
• F85U-AB
• XL3U-CA
• XL3U-CB
• F5UU-AA

MOTORCRAFT PART NUMBERS:
• GL-381, GL381
• GL-500, GL500
• GL-500-RM, GL500RM
• GL-8727-RM, GL8727RM

ACDELCO PART NUMBERS:
• 334-2255, 3342255

OTHER PART NUMBERS:
• Visteon tag code AV

SPECIFICATIONS:
• Type: 3G type alternator, internal fan, internal regulator
• Voltage: 12 Volt, negative ground
• Output: 130 Amp
• Rotation: clockwise (CW) viewed from the pulley
• Pulley: 6 groove serpentine, about 2.52 in / 64 mm OD
• Regulator / plug clock: 3:00, plug code A S I
• Output stud: M6-1.0
• Mounting: 3 ears, 10 mm unthreaded, 13 mm unthreaded, 13 mm slotted, plus one M8-1.25 hole in the rear housing
• Weight: about 15.64 lb / 7.11 kg
• Condition: New aftermarket, not a Ford or Motorcraft branded unit

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $391.65
Sale: $223.80
Save: 43%
Save: $167.85
Qty:
Free Shipping!

Description

⚠️ NEW AFTERMARKET 12V 130A 3G TYPE ALTERNATOR, CW, 6 GROOVE:
• 12 volt, 130 amp, clockwise (CW), 6 groove serpentine pulley about 64 mm (2.52 in) OD
• Internal fan, internal regulator, 3:00 plug with A S I terminals, M6-1.0 output stud
• 3 mounting ears (10 mm, 13 mm, 13 mm slotted), about 15.64 lb / 7.11 kg
• 130A unit only; 95A standard units and ambulance package high output units are different

FORD F-150 PICKUPS, 4.2L V6:
• Ford F-150 with the 4.2L V6 1997-2003 (130A option)
• Ford F-150 Heritage with the 4.2L V6 2004

FORD F-250 / F-350 / F-SUPER DUTY, 7.3L V8 DIESEL (IDI AND POWER STROKE), NOT AMBULANCE PACKAGE:
• Ford F-250 with the 7.3L diesel 1992-1997
• Ford F-350 with the 7.3L diesel 1992-1997
• Ford F-250 HD with the 7.3L diesel 1997-1998
• Ford F-350 with the 7.3L diesel 1998
• Ford F-Super Duty with the 7.3L diesel 1992-1997

FORD RANGER:
• Ford Ranger with the 4.0L V6 1996-2001 (130A option)

MAZDA B SERIES PICKUPS:
• Mazda B4000 with the 4.0L V6 1998-2000 (130A option)

ALSO USED ON (SAME UNIT, GROUP A LISTINGS):
• Ford E-150, E-250 Econoline 4.2L V6 1997-2003
• Ford E-Series 5.0L, 5.8L V8 1993-1996
• Ford E-350, E-450, E-550 Econoline and Super Duty 7.3L diesel 1992-2003
• Ford Explorer 4.0L V6 1993-2001
