Wear Ring Compatible With 2003-2021 Sea-Doo Gti 130 Gtx 155 Gts Wake Fish Pro 4-Tec 155.5Mm 1503Cc

003-502*5
OEM PART NUMBERS:
• Sea-Doo/BRP: 267000419 / 271001236 / 267000104 / 267000021

SPECIFICATIONS:
• Type: Jet Pump Wear Ring
• Inside Diameter: 155.5mm
• Platform: Sea-Doo 4-TEC
• Engine: 1503cc / 1630cc 4-TEC
• Weight: 2 lbs
• Condition: New

APPLICATION:
• Sea-Doo GTI/GTS/GTX/RXP/Wake PWC 1503cc (2003-2019)
• Sea-Doo GTI SE/GTX STD/Fish Pro/Wake 1630cc (2020-2021)
• Challenger/Speedster/Sportster/Utopia/Islandia Jet Boats 1503cc (2004-2012)
• Fits all Sea-Doo 4-TEC models with 155.5mm jet pump bore
• Does not fit 140mm Spark pumps or 161mm pumps

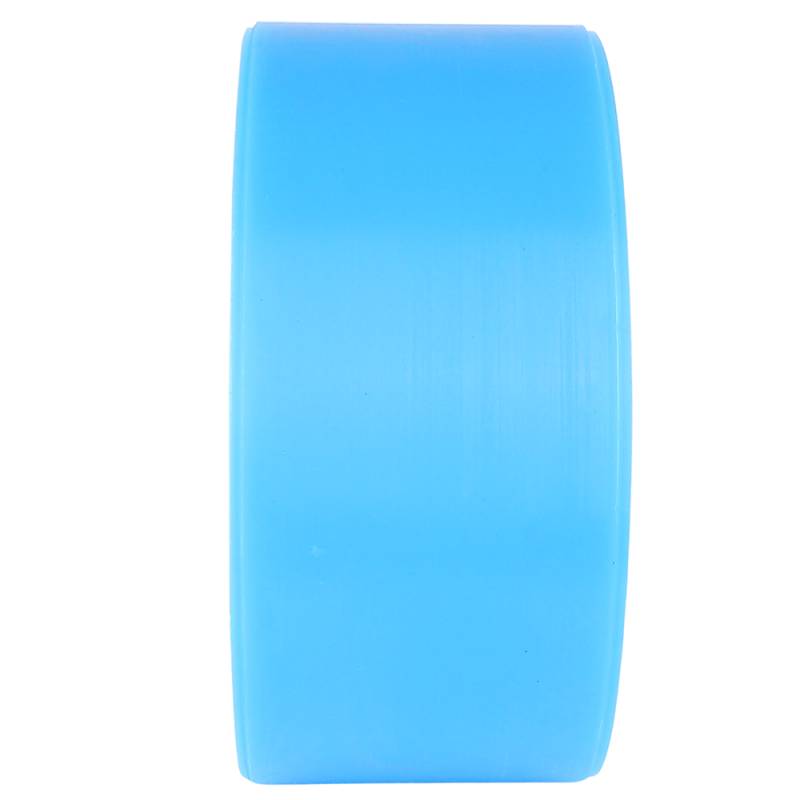

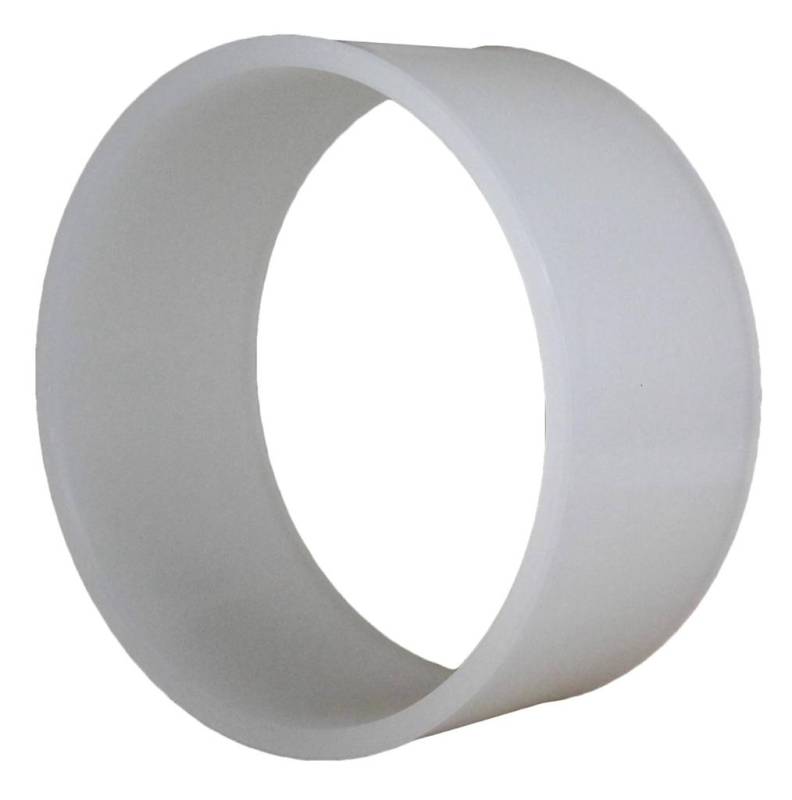

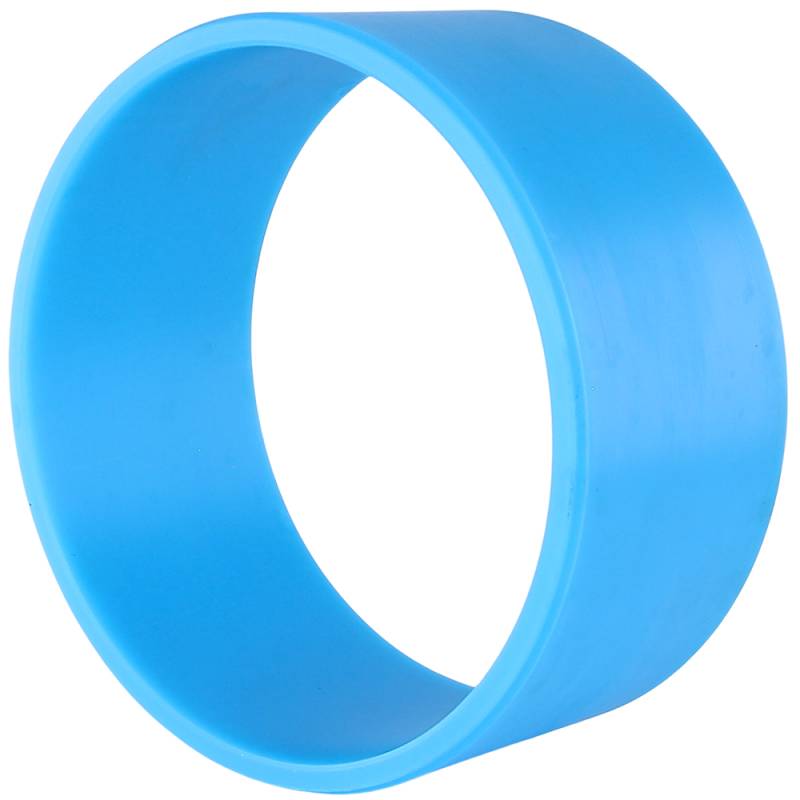

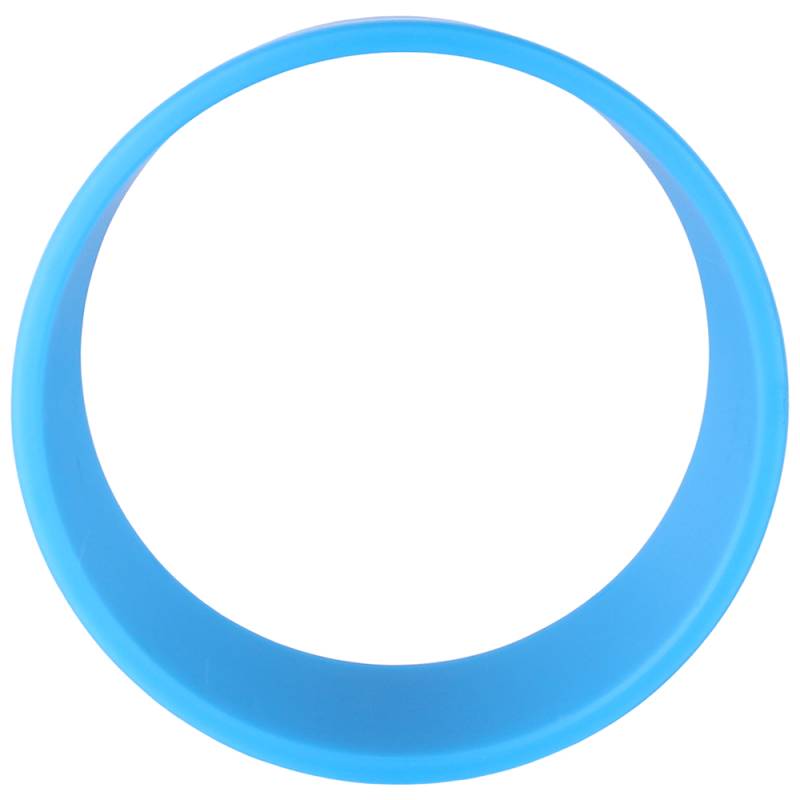

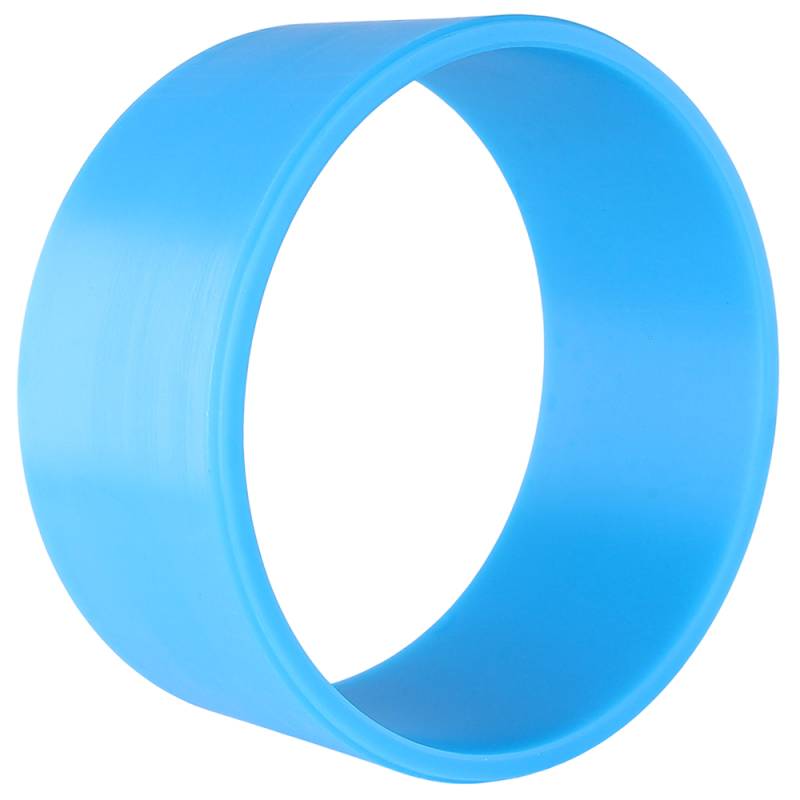

155.5mm Wear Ring — Sea-Doo GTI 130 GTX 155 GTS Wake Fish Pro
OEM-quality 155.5mm jet pump wear ring for Sea-Doo 4-TEC personal watercraft and jet boats with 1503cc and 1630cc engines. Fits GTI 130, GTI SE 130/155, GTI LTD 155, GTX 155, GTX S 155, GTS 130, Wake 155, Fish Pro 155/170, and all other 4-TEC models with 155.5mm pump bore from 2003 through 2021. Also fits Challenger, Speedster, Sportster, Utopia, and Islandia jet boats. Restores factory impeller clearance to eliminate cavitation and recover lost thrust, acceleration, and top speed. Replaces Sea-Doo 267000419, 271001236, 267000104, and 267000021. Worn rings cause significant performance loss. New unit built to OEM specifications.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $105.51
Sale: $60.29
Save: 43%
Save: $45.22
Qty:
Free Shipping!

Description

SEA-DOO GTI SERIES:
• GTI 1503 (2015)
• GTI 130 1503 (2008-2016)
• GTI LTD 1503 (2014)
• GTI LTD 155 1503 (2011-2017)
• GTI P LTD 155 1503 (2018)
• GTI P SE 130/155 1503 (2018)
• GTI Rental 1503 (2010)
• GTI SE 1503 (2006-2019)
• GTI SE 130 1503 (2008-2017)
• GTI SE 130 1630 (2020-2021)
• GTI SE 155 1503 (2008-2017)
• GTI SE 170 1630 (2020-2021)
• GTI SE DT/NA 1503 (2007)
• GTI STD 1503 (2006-2019)
• GTI STD 130 1630 (2020-2021)
• GTI STD 155 1503 (2017)
• GTI STD DT 1503 (2007)

SEA-DOO GTS SERIES:
• GTS 1503 (2015)
• GTS 130 1503 (2011-2014)
• GTS DT 1503 (2014)
• GTS Rental 1503 (2012-2013)

SEA-DOO GTX SERIES:
• GTX 155 1503 (2008-2013, 2015)
• GTX 155 STD 1503 (2014)
• GTX Fish Pro 170 1630 (2020-2021)
• GTX LTD S/C 1503 (2003-2004)
• GTX P STD 155 1503 (2018)
• GTX S 155 1503 (2012-2013, 2015)
• GTX S/C 1503 (2003-2006)
• GTX STD 1503 (2004-2006)
• GTX STD 155 1503 (2017)
• GTX STD 170 1630 (2020-2021)
• GTX STD NA 1503 (2007-2019)
• GTX Wake 1503 (2004-2006)
• GTX Wake NA 1503 (2007)
• GTXS STD 155 1503 (2017)

SEA-DOO RXP / WAKE / FISH PRO:
• RXP 155 1503 (2008)
• RXP NA 1503 (2007)
• Fish Pro 155 1503 (2019)
• Wake 155 1503 (2008-2016)
• Wake 310 1503 (2010-2011)
• Wake P STD 155 1503 (2018)
• Wake STD 155 1503 (2017)
• Wake STD 170 1630 (2020-2021)
• Wake STD NA 1503 (2019)

SEA-DOO JET BOATS — CHALLENGER:
• Challenger/SE 155 1503 (2007-2009)
• Challenger/SE 1x260 1503 (2012)
• Challenger/SE 2x155 1503 (2012)
• Challenger/SE 310 1503 (2008-2011)
• Challenger S 1x260/2x155 1503 (2012)
• Challenger SP 155 1503 (2009)
• Challenger SP 310 1503 (2010-2011)
• Challenger Wake 155 1503 (2007)
• Challenger Wake 310 1503 (2008)

SEA-DOO JET BOATS — SPEEDSTER / SPORTSTER / OTHER:
• Speedster 1x155 1503 (2012)
• Speedster 155 1503 (2007-2011)
• Speedster 200 1503 (2004-2006)
• Speedster 310 1503 (2008)
• Speedster Wake 155 1503 (2007)
• Speedster Wake 310 1503 (2008)
• Sportster 155 1503 (2004-2006)
• SP 2x155 1503 (2012)
• Wake 2x155 1503 (2012)
• Utopia/SE 155 1503 (2007-2009)
• Utopia/SE 205 1503 (2006)
• Utopia/SE 310 1503 (2008)
• Islandia/SE 155 1503 (2007)
• Islandia/SE 220 1503 (2006)

NOTE: Verify OEM part number before ordering. This is the 155.5mm ID wear ring for Sea-Doo 4-TEC jet pumps. Does not fit 140mm Spark pumps or 161mm pumps.

Details

Shipping Information

  • Item Requires Shipping
  • 1.4 lbs.
  • W7.0000” x H3.0000” x L7.0000”
  • Free Shipping!
