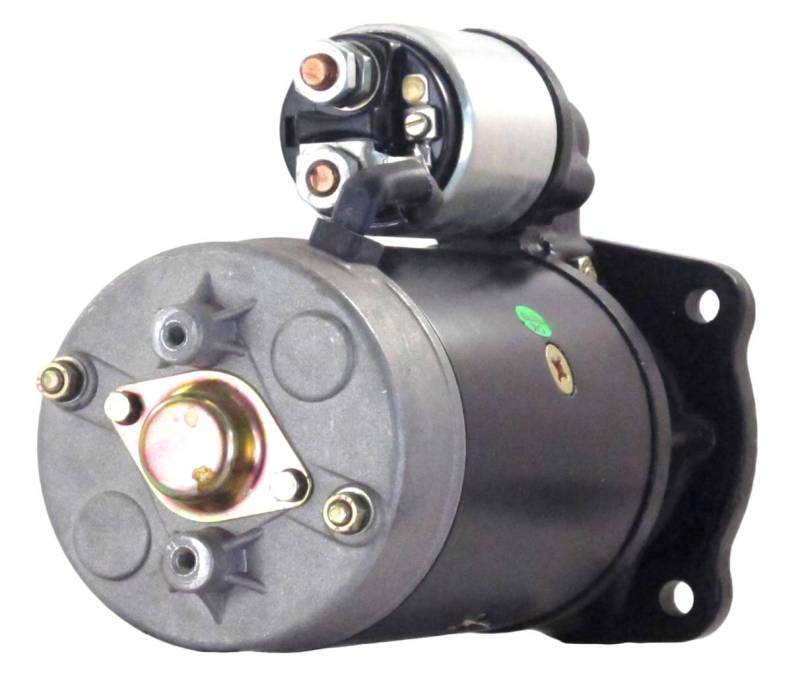

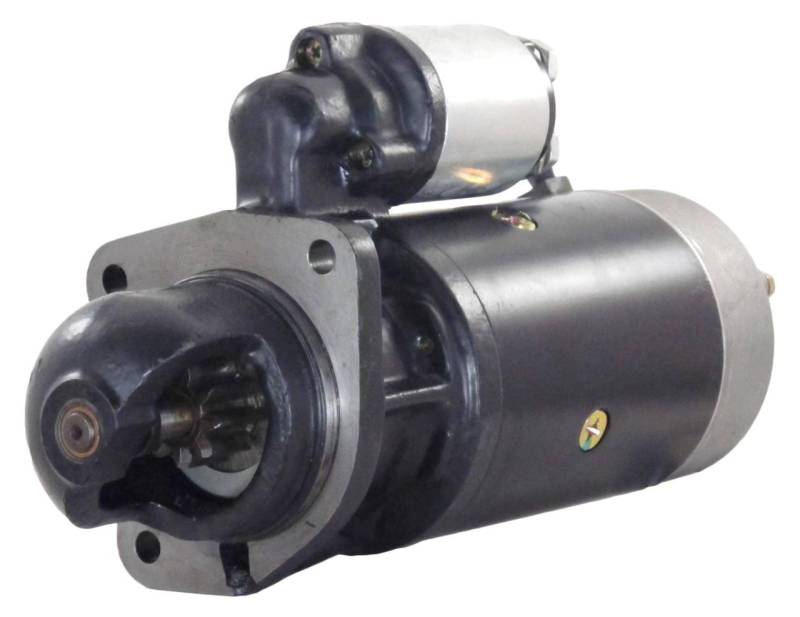

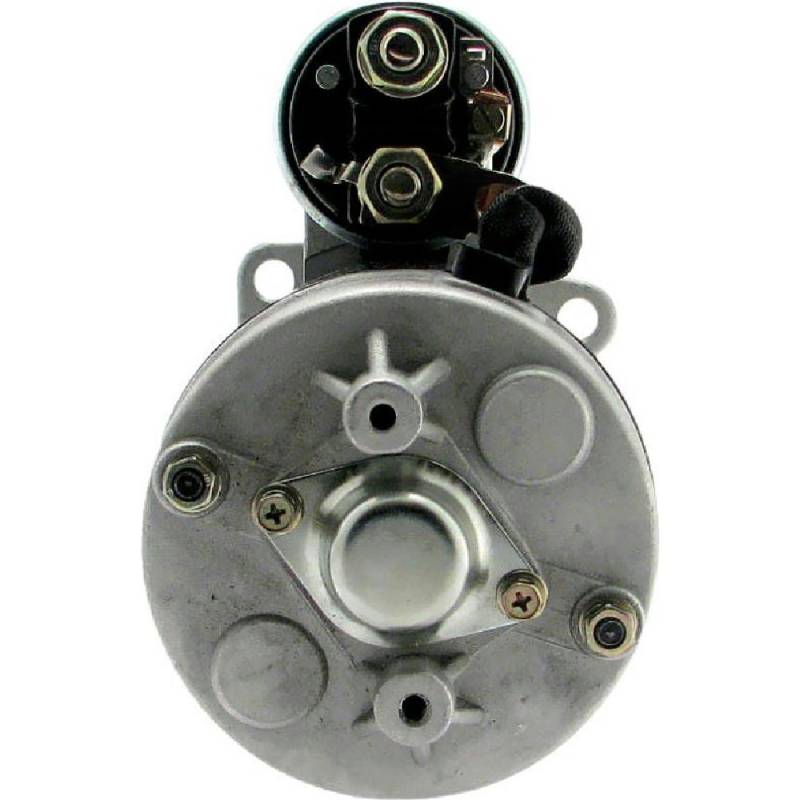

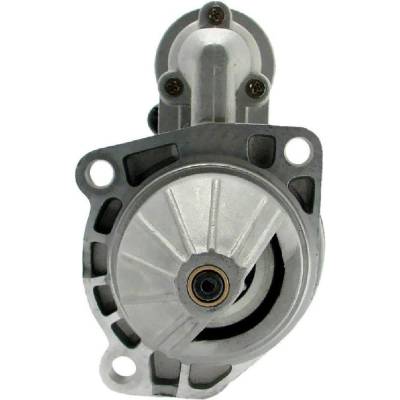

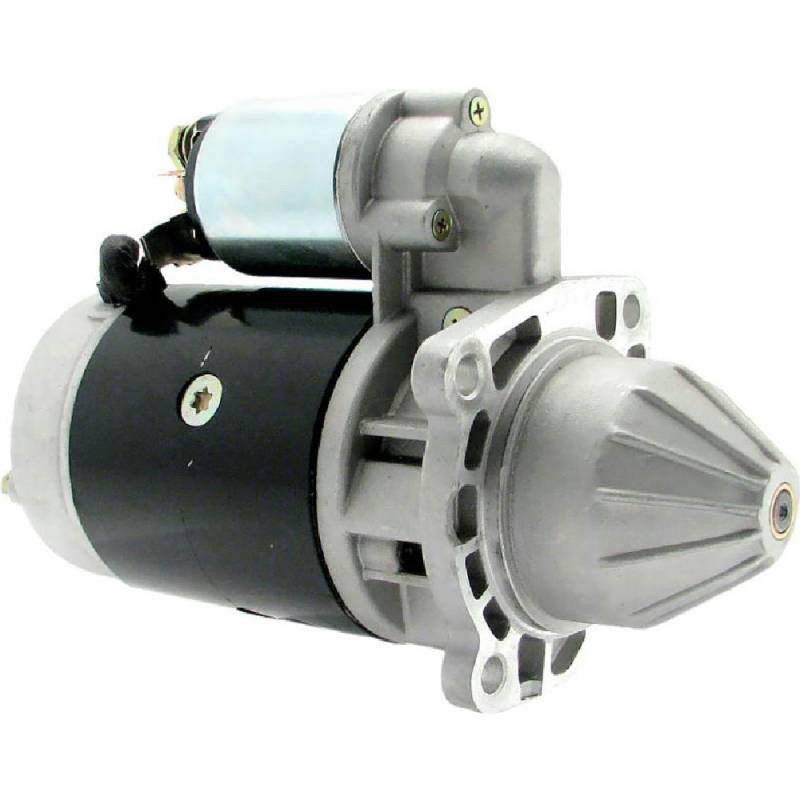

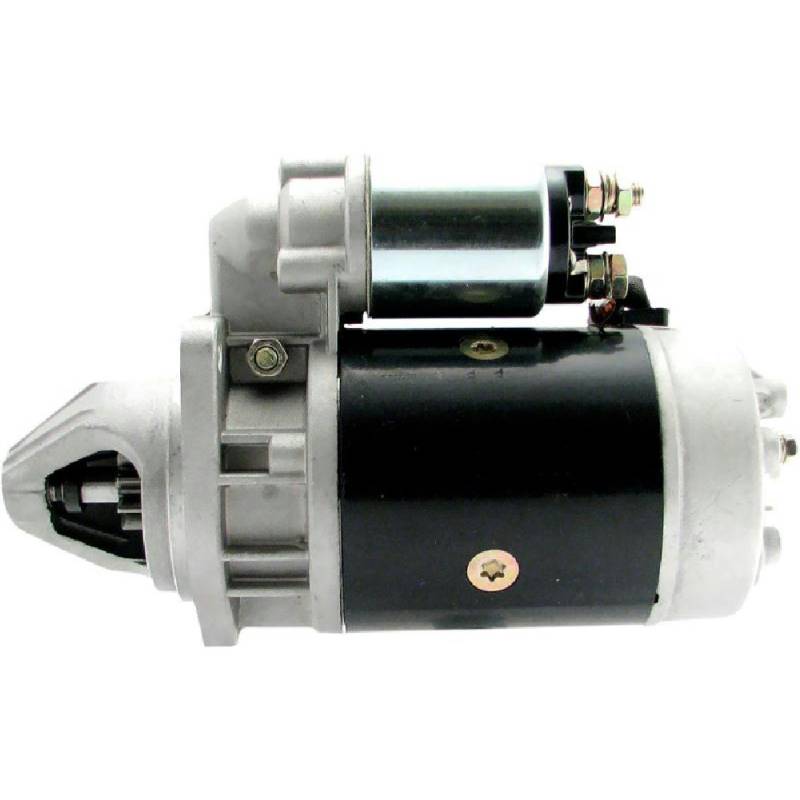

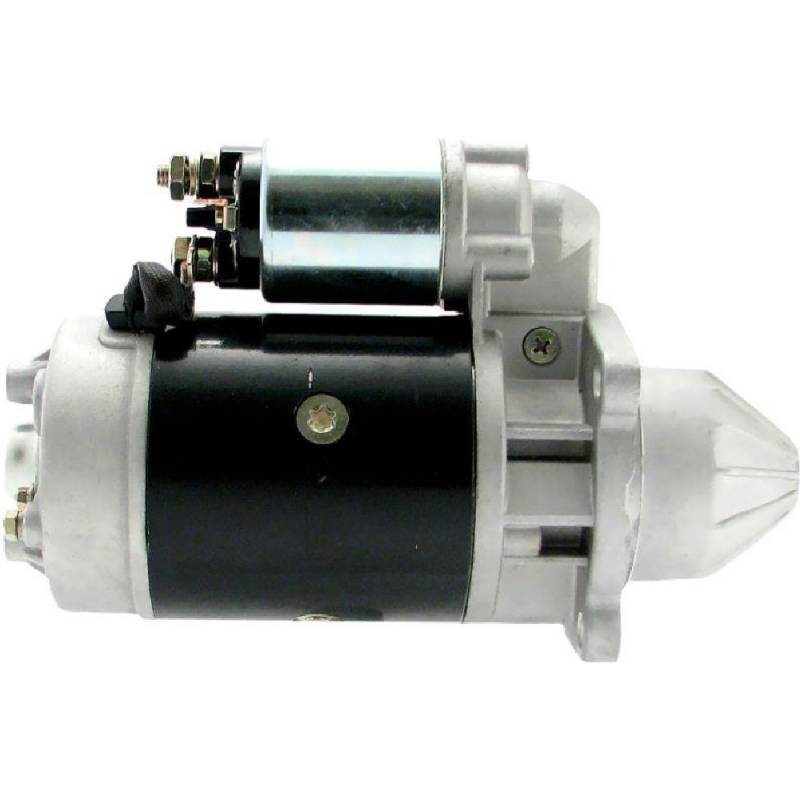

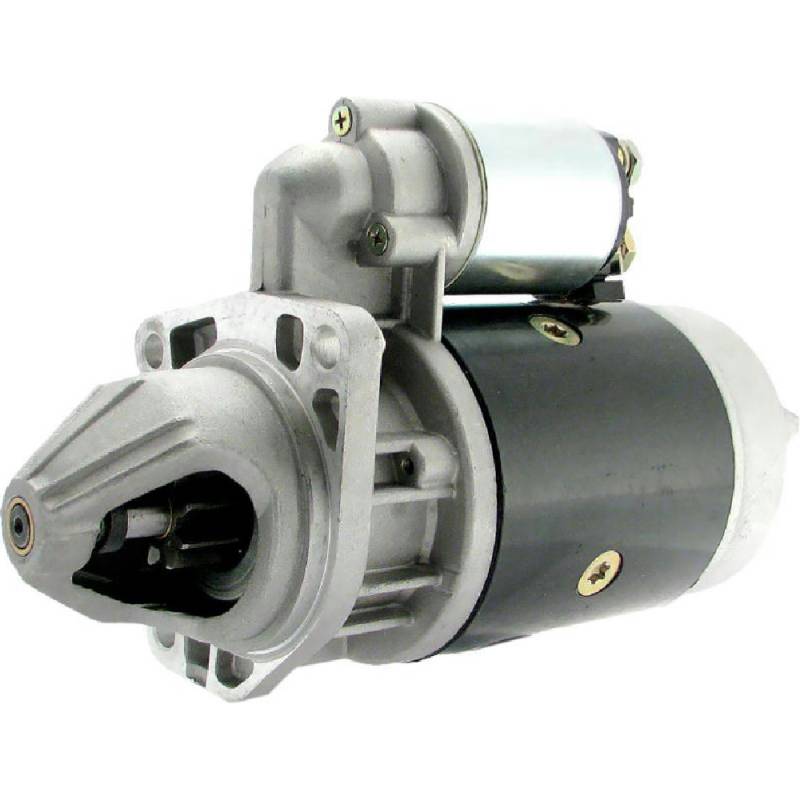

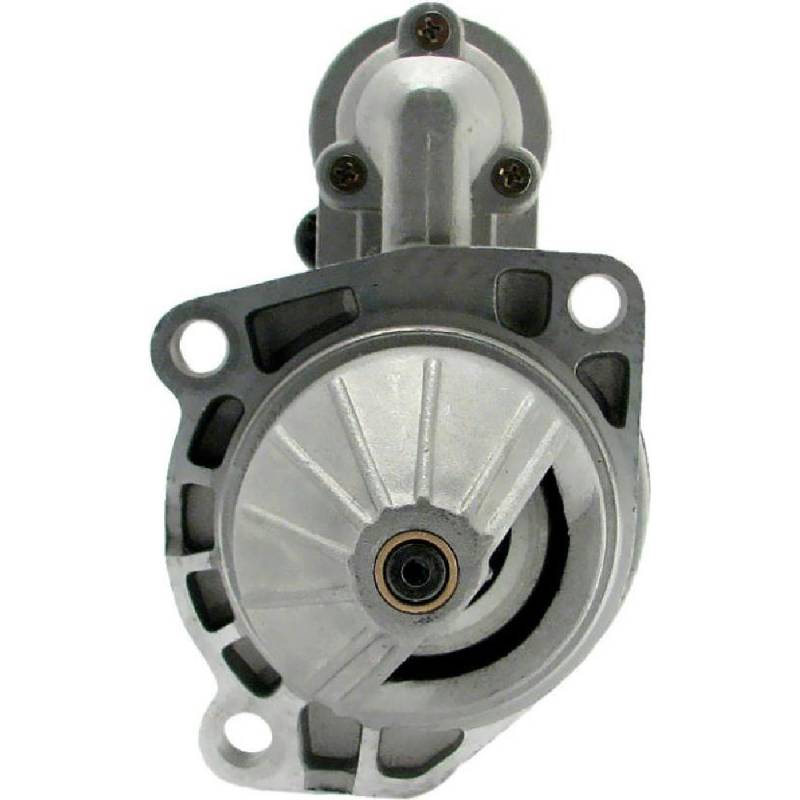

New Starter Motor Compatible With Deutz-Fahr Tractor Dx6.30 Dx6.31 Dx6.50 Dx6.60 Dx7-10 117-9319

18026B1
BOSCH / DELCO REMY / LUCAS PART NUMBERS:
• Bosch 0 001 369 024, 0001369024
• Delco Remy DRS9020
• Lucas LRS00987

DEUTZ / FENDT / AGCO PART NUMBERS:
• Deutz / KHD 01180805, 01179319
• Fendt F 119 900 060 010, F 716 903 060 040
• AGCO C000900060120

HELLA / LETRIKA PART NUMBERS:
• Hella 8EA 737 086-001, CS887
• Letrika 11.130.567

SPECIFICATIONS:
• Type: Bosch 369 series direct drive (DD)
• Voltage: 12 Volt
• Power: 3.1 kW (4.15 HP)
• Rotation: Clockwise (CW)
• Pinion: 9 teeth, 34.8 mm (1.37 in) OD
• Flange: 89 mm, 31 mm flange to flywheel
• Mounting: 3 unthreaded 10.9 mm holes, 127 mm circle
• Weight: about 29 lbs (13 kg)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $449.33
Sale: $256.76
Save: 43%
Save: $192.57
Qty:
Free Shipping!

Description

⚠️ 12 VOLT 3.1 KW 9 TOOTH BOSCH DIRECT DRIVE STARTER:
• 12V, 3.1 kW (4.15 HP), clockwise, direct drive, 9 tooth pinion, 34.8 mm gear OD
• 89 mm flange, 3 unthreaded holes on 127 mm, about 29 lbs
• Replaces Bosch 0 001 369 024, Deutz / KHD 01180805 and Fendt F 119 900 060 010

DEUTZ-FAHR TRACTORS:
• 1988-1994 DX6.30, DX6.31, DX6.50, DX6.60, DX7.10
• 1992-1993 Intrac 6.30 Turbo, BF6L913T

FENDT TRACTORS:
• 1986-1994 F275GT; F380GTA, F390GTA, F395GTA
• Farmer 204P, 205P / PA, 270, 275, 280, 206-208

LINDE / HAMM / KRAMER / KHD:
• Linde H20, H25, H30, H35, H40, H70
• Hamm DV10-C, GRW10; Kramer 416S, 516
• KHD F3L912 2.8L, F4L912 3.8L, F6L912 engines
