OEM PART NUMBERS:
• 0-001-109-009 / 0001109009
• 0-001-110-042 / 0001110042
• 0-001-115-035 / 0001115035
• 0-001-115-034 / 0001115034
• 0-001-108-210 / 0001108210
• F002G70047 / F002G70047770
• Service: 0-986-022-500 / 0986022500 / 1986S00762
• Magneti Marelli: 63223209 / 63223239
• Magneti Marelli: 063521150350 / MSN277
• Lombardini: 58402240 / 5840224
• Lombardini: 5840147 / 58401470
• Lombardini: 5840081 / 5340147 / 1005821194
• Case: A1016373
• Arctic Cat: 3206-319 / 3206319
• Polaris: 3040113
• Volvo CE: VOE9002901237
SPECIFICATIONS:

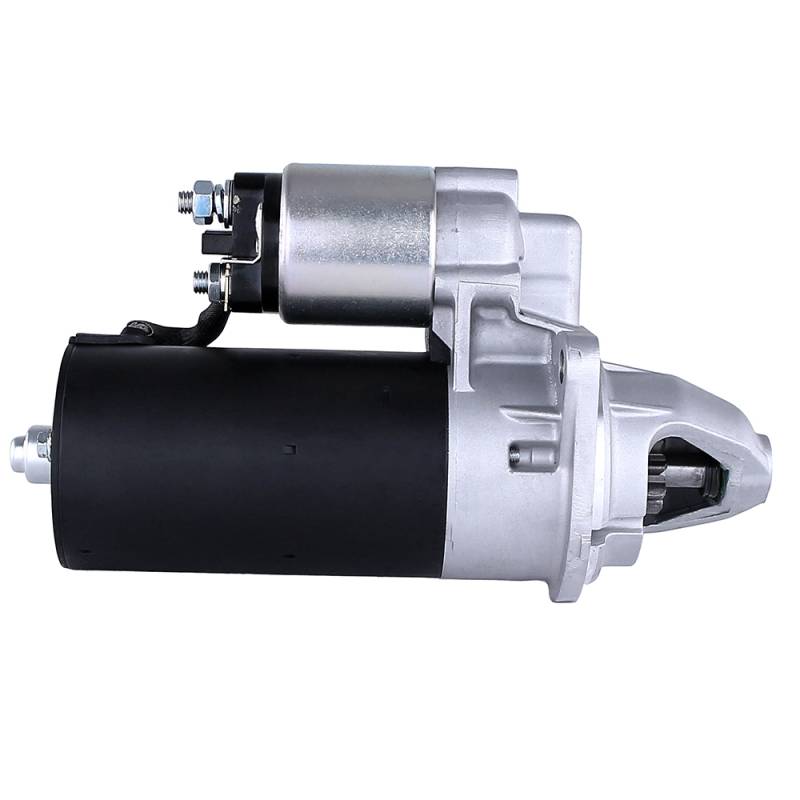

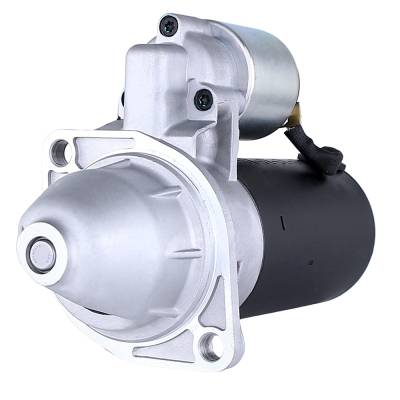

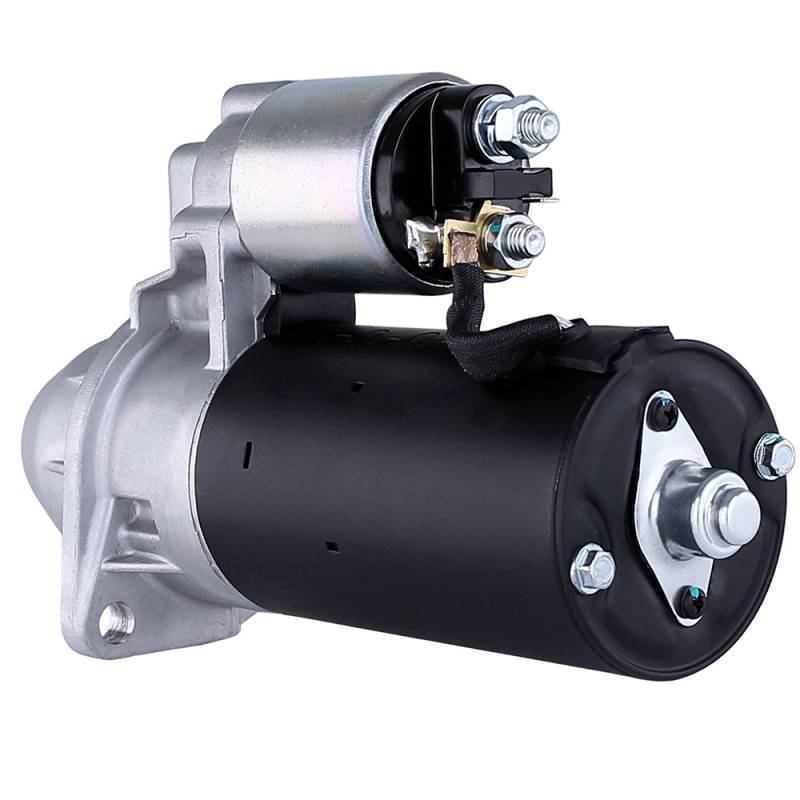

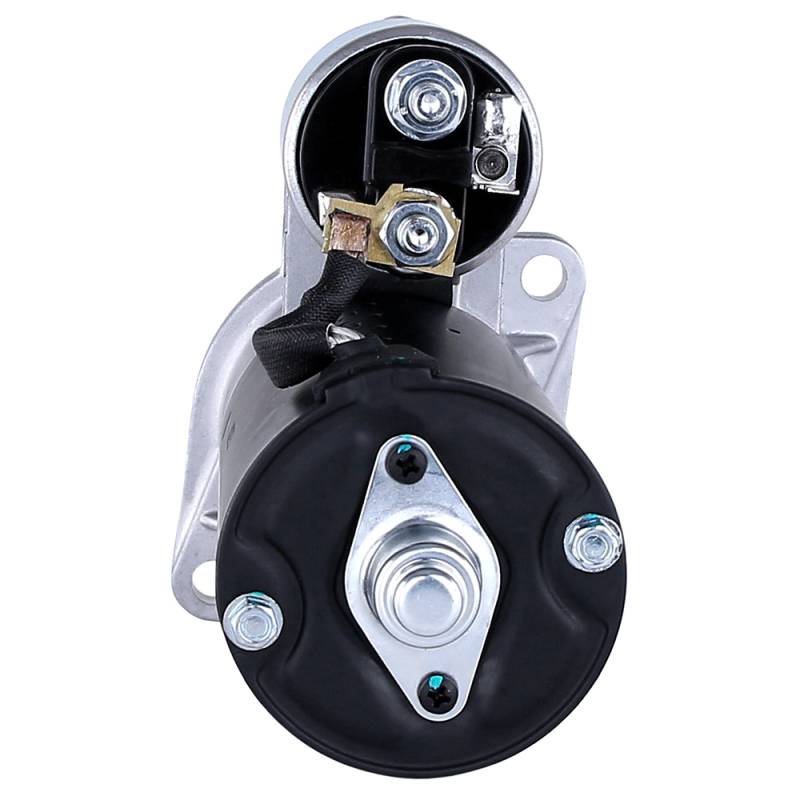

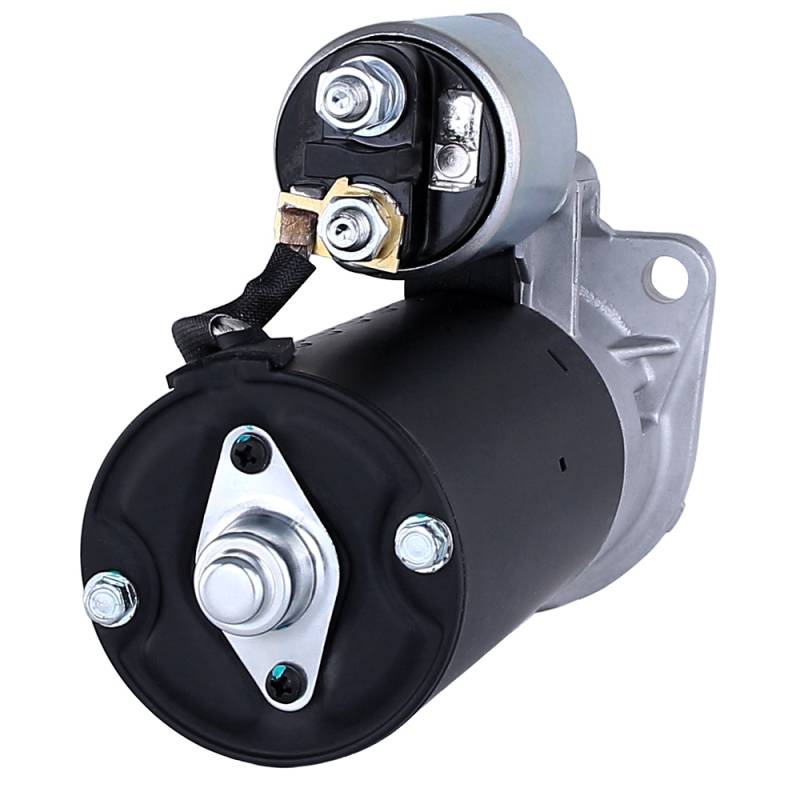

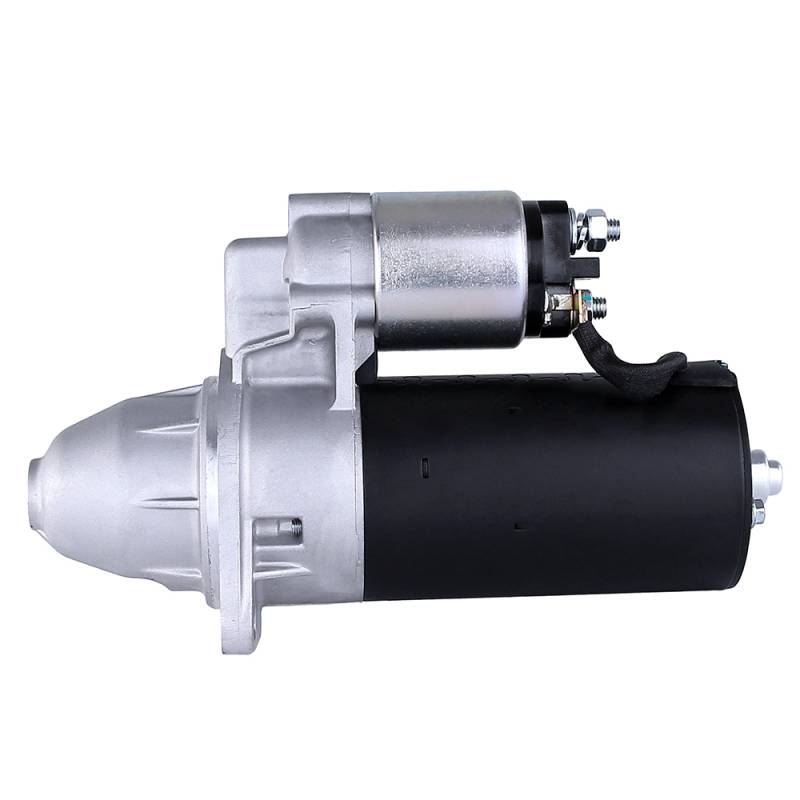

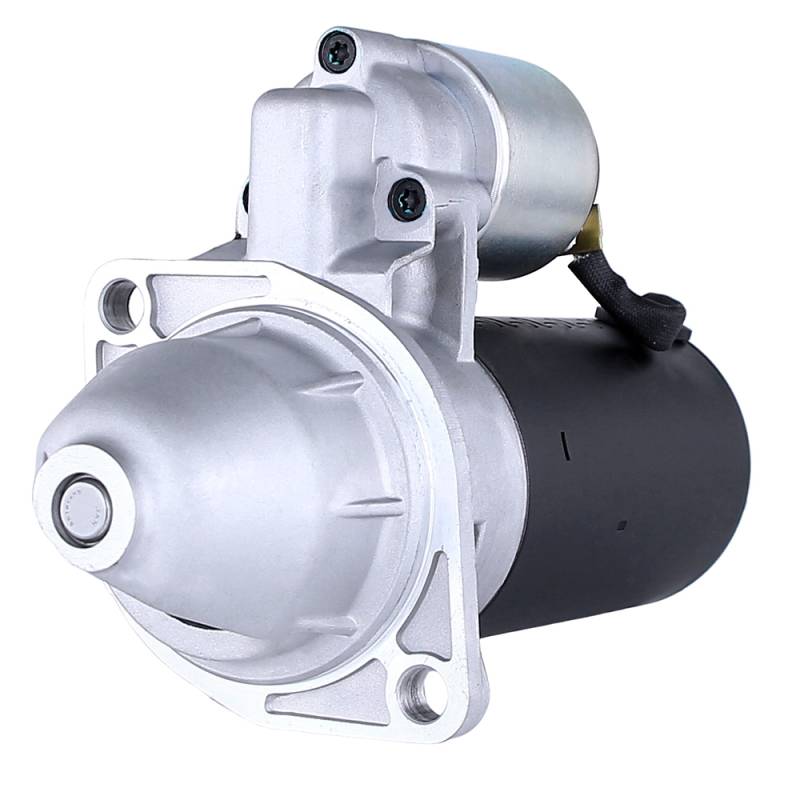

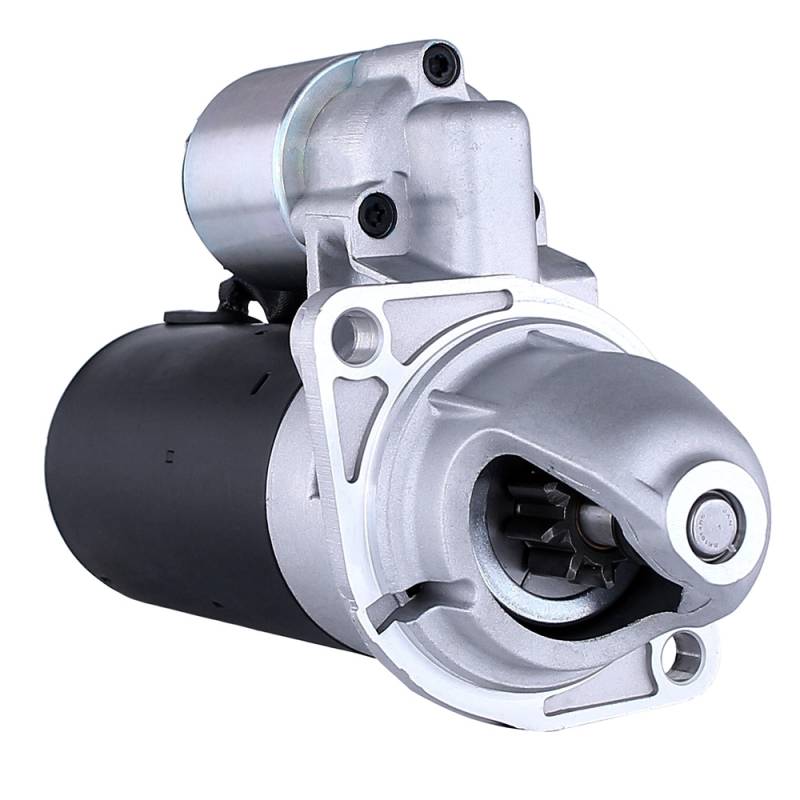

• Type: PMGR (Permanent Magnet Gear Reduction) Starter
• Voltage: 12V
• Power: 1.6 kW
• Rotation: Clockwise (CW)

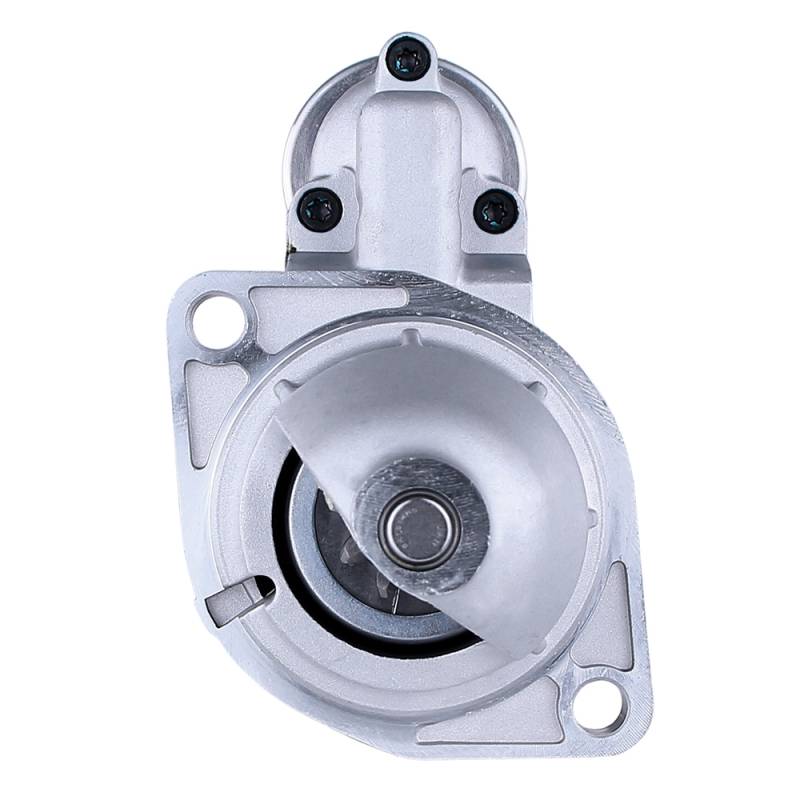

• Tooth Count: 9
• Gear OD: 29.1mm / 1.146"
• Mounting: 2 Ears, 10.0mm ID Unthreaded
• Weight: 10 lbs / 4.55 kg
• Condition: New
APPLICATION SUMMARY:
• Arctic Cat 700 Diesel ATV (2007-2015)
• Polaris Brutus 1000 HD / Ranger 1000 Diesel (2015-2018)
• Massey Ferguson 700 Diesel ATV (2007-2008)
• Goldoni, Antonio Carraro, Ferrari Tractors
• Mosa Generators, BCS, Piaggio, Ammann, Hatz
• Lombardini 7LD/8LD/9LD Air-Cooled, LDW Water-Cooled Engines
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
