OEM PART NUMBERS:
• Trombetta: Q610-A1V12 / Q610A1V12 (Base Push Solenoid)
• Trombetta: Q610-B1V12 / Q610B1V12 (Kit with F09514 Spring)
SPECIFICATIONS:

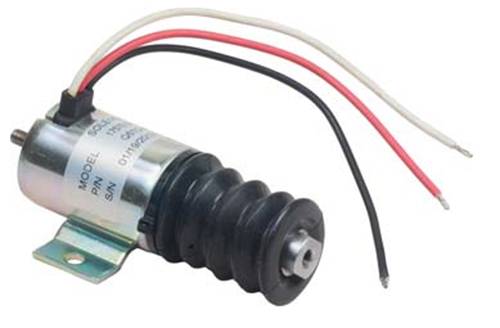

• Product Type: Push Type Shut Down Solenoid
• Series: Trombetta Q610
• Voltage: 12V DC
• Number of Terminals: 3 (Dual Coil — Pull-In + Hold)
• Pull-In Current: 49A
• Hold Current: 1.0A
• Net Pull Force: 15 lbs
• Net Hold Force: 20 lbs
• Maximum Stroke: 1"
• Push Rod Thread: 1/4-28 (Outer 1/2")
• Mounting: Flat 180 (F180) Side Mount
• Duty Cycle: Continuous
• Coils: Fully Encapsulated — High Temp / High Vibration
• Includes: Protective Boot
• Condition: New
APPLICATIONS:
• Engine Shutdown, Throttle Control, Fuel Shutdown
• Lawn Tractors, Riding Mowers, Compressors, Generators, Construction Equipment
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
