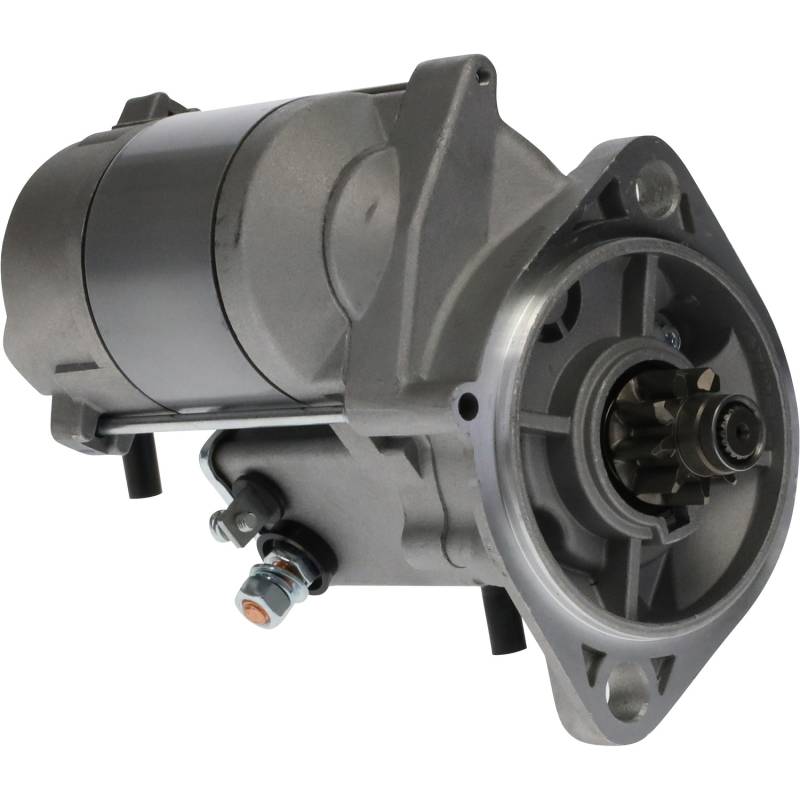

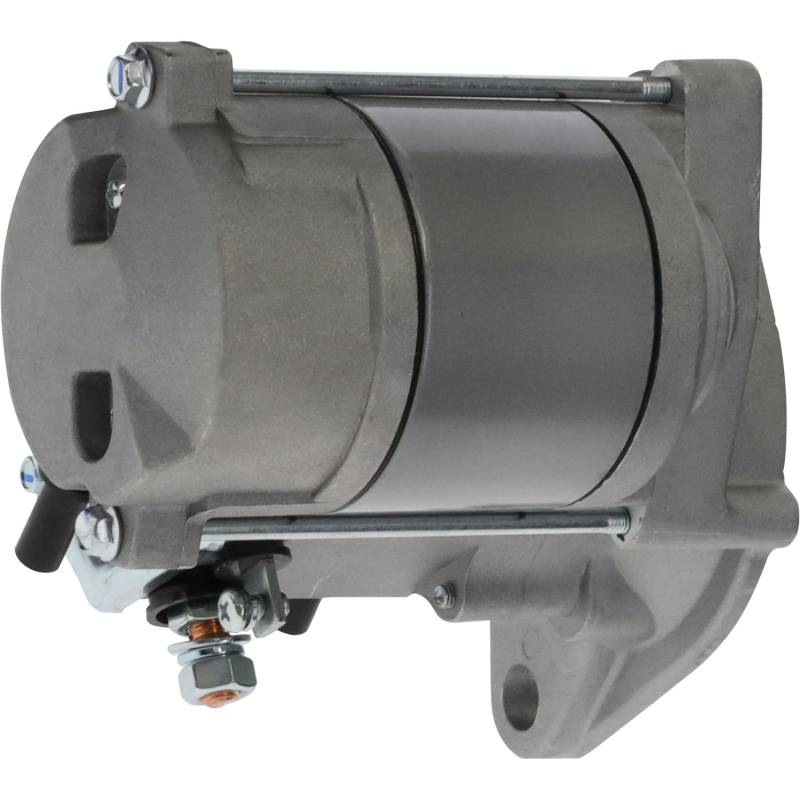

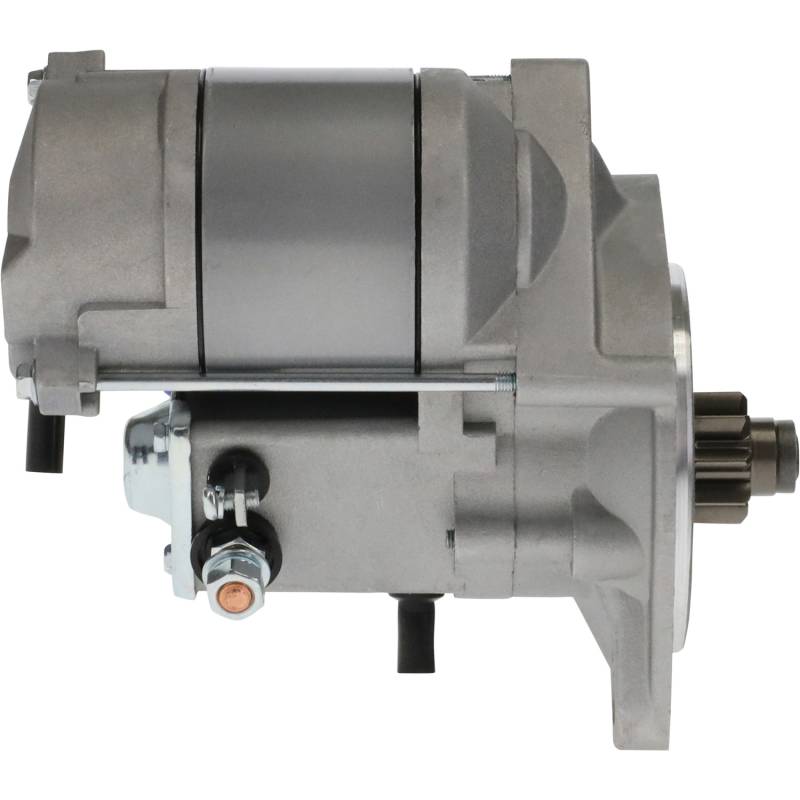

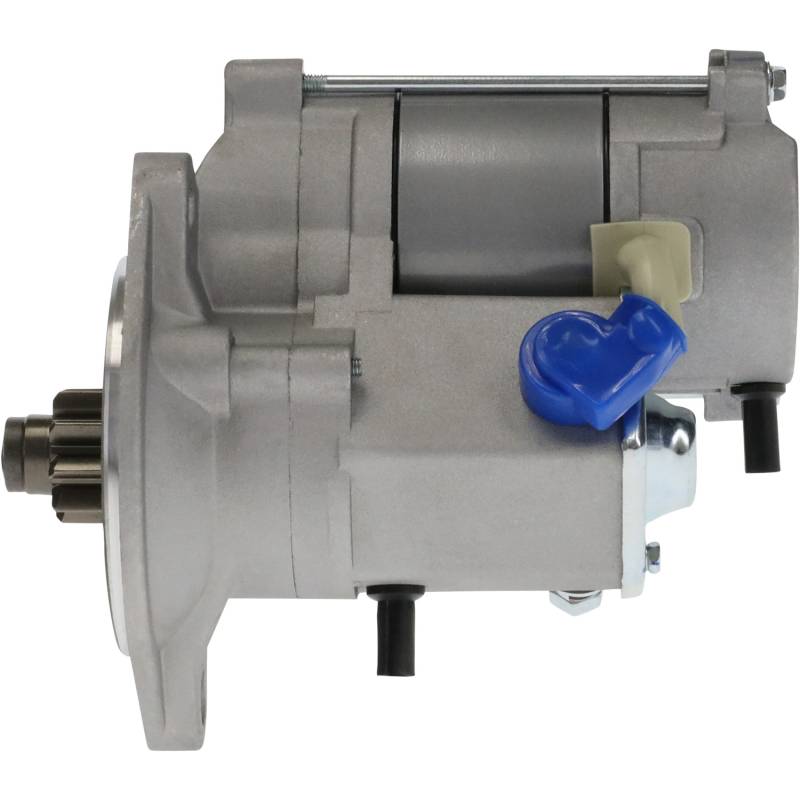

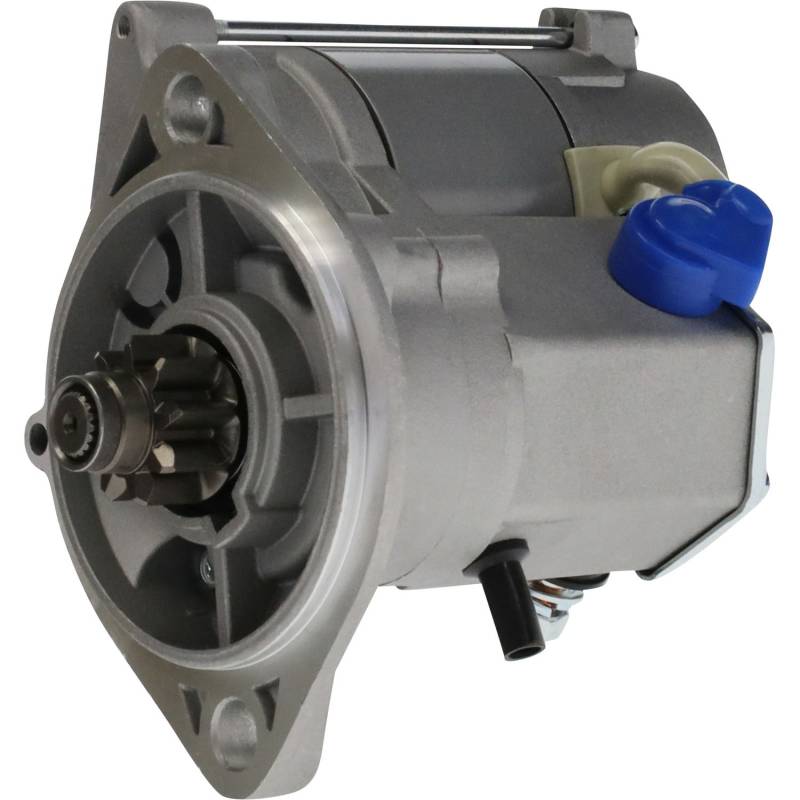

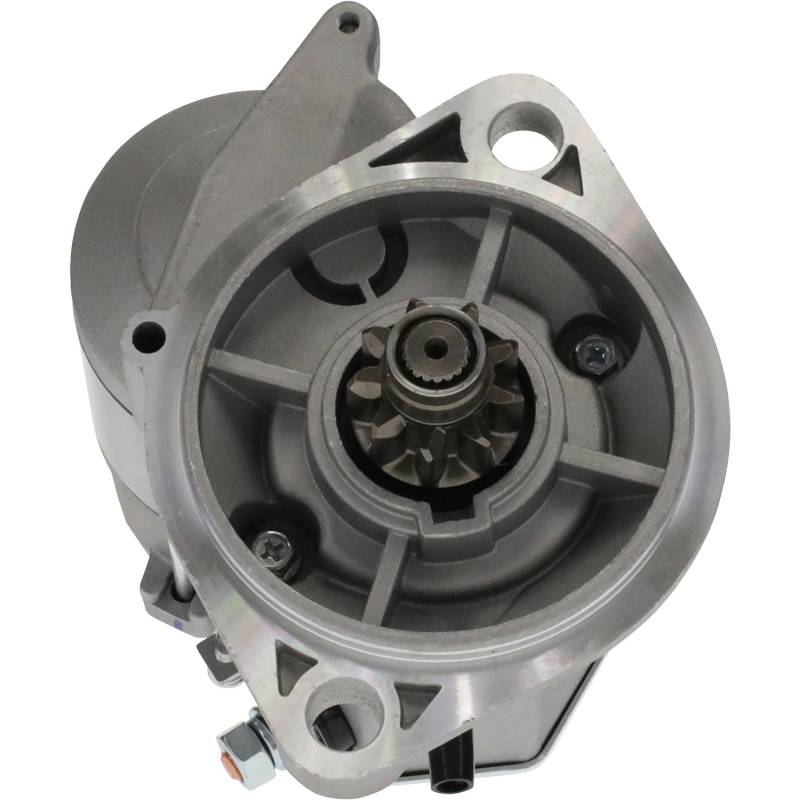

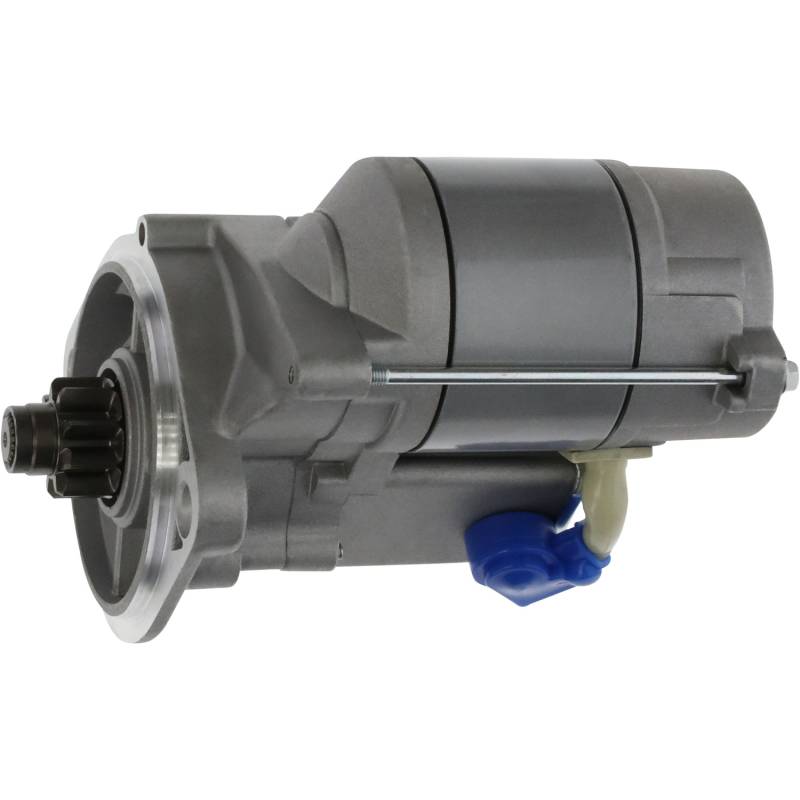

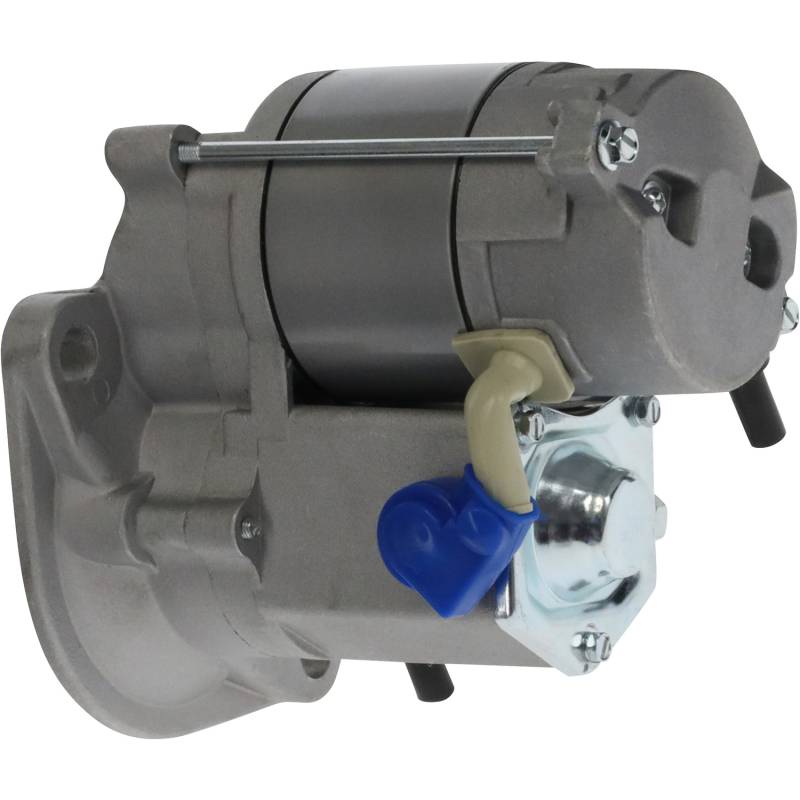

Starter Motor Compatible With Fd9 Fd20l-10 Fd25l-10 Lift Truck Isuzu 4Fe1 Engine 12V Cw Denso

OEM PART NUMBERS:
• Isuzu: 8941702050, 8941702051, 8970489660, 8970489662, 897048-9661, 897048-966-3
• Denso: 128000-1100, 228000-1130, 228000-1131, 228000-1132, 228000-1133

SPECIFICATIONS:
• Voltage: 12V
• Power: 1.4kW / 1.88HP
• Type: OSGR
• Unit Type: Denso
• Rotation: CW (Clockwise)
• Tooth Count: 9
• Gear OD: 31.9mm / 1.256"
• Mounting Ear 1: 13.5mm ID Unthreaded
• Mounting Ear 2: 13.5mm ID Unthreaded
• Battery Studs: M8-1.25 Threaded
• Motor Studs: M8-1.25 Threaded
• Weight: 10.4 lbs / 4.73 kg
• Condition: New

APPLICATION:
• FD9 / FD20L-10 / FD25L-10 Lift Trucks — Isuzu 4FE1
• FD10 / FD14 / FD15 / FD18 Lift Trucks — Isuzu 4FE1
• 12V 1.4kW Denso OSGR, CW rotation
• M8-1.25 threaded battery and motor studs

12V Starter Motor — FD9/FD20L/FD25L Lift Trucks
12 volt 1.4kW starter motor for FD9, FD20L-10, and FD25L-10 lift trucks with Isuzu 4FE1 engine. Denso OSGR design with 9-tooth drive pinion, clockwise rotation. Dual 13.5mm unthreaded mounting ears. Direct replacement for Denso 228000-1130, 228000-1131, 128000-1100 and Isuzu 8970489660, 8970489662, 8941702050.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
