OEM PART NUMBERS — JOHN DEERE:
• John Deere OEM: M70121
• John Deere OEM: M97348
• John Deere OEM: AM126304
• John Deere OEM: AM108848
• John Deere OEM: AUC12632
• John Deere OEM: 435-180
OEM PART NUMBERS — KAWASAKI:
• Kawasaki OEM: 21066-2056 / 210662056
• Kawasaki OEM: 21066-2070 / 210662070
OEM PART NUMBERS — SHINDENGEN:
• Shindengen OEM: SH578-12 / SH57812
• Shindengen OEM: SH626-12 / SH62612
• Shindengen OEM: KW2 (Internal Designation)
INDUSTRY CROSS-REFERENCES:
• Industry: 8099-1152
• Industry: 17.5427
• Industry: 230-22066
• Other Names: Voltage Regulator Rectifier
• Other Names: Regulator Rectifier Assembly
• Other Names: Reg/Rec Module
• Other Names: Charging System Regulator
• Other Names: Stator Regulator
PRODUCT SPECIFICATIONS:

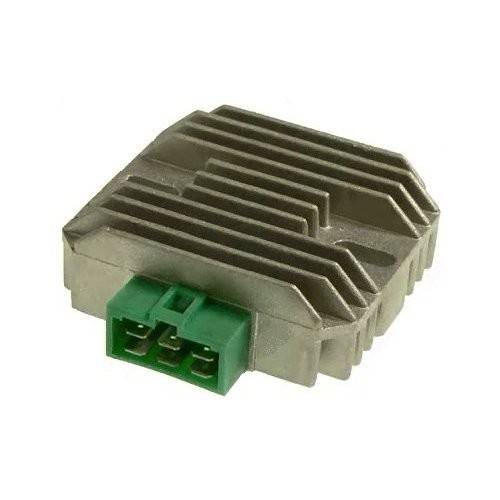

• Product Type: Voltage Regulator Rectifier Assembly
• Voltage: 12V DC
• Regulator Type: Shunt-Type
• Voltage Set Point: 14.7 Volts
• Designed for: 15 Amp Charging System
• Condition: New Aftermarket Replacement
• Quantity: Sold Individually (1 Piece)
• Product Fit: Direct Fit OEM Replacement
• Installation: Direct Bolt-On with Heat Sink
• Material: Aluminum Housing with Epoxy-Sealed Circuitry
• Compliance: SAE / OEM-Spec Certified
• Waterproof / Shockproof Design
TERMINAL CONFIGURATION:
• B+: Battery Positive
• IGN: Ignition
• B-: Battery Negative / Ground
• AC: Alternator AC Input (2 Terminals)
• L: Load / Light Indicator
KAWASAKI ENGINE FAMILIES:
• FB460V Series (Air-Cooled Single-Cyl)
• FC400V Series (Air-Cooled Single-Cyl)
• FC420V Series (Air-Cooled Single-Cyl)
• FC540V Series (Air-Cooled Single-Cyl)
SYMPTOMS OF FAILURE:
• Dead Battery / Won't Hold Charge
• Overcharged Battery / Boiling Electrolyte
• Hot Battery Case / Swelling
• Intermittent or No Charging
• Dim Lights at Idle
• Frequent Burned-Out Bulbs
• Engine Cuts with Electrical Load
APPLICATION SUMMARY:
• John Deere 100 Series: 130 / 160 / 165 / 170 / 172 / 175 / 176 / 180 / 185 / 186
• John Deere 200 Series: 240 / 242 / 245 / 262 / 265 / 285
• John Deere 300 Series: 320 / 325 / 345
• John Deere F-Series: F510 / F525 / F710 / F725
• John Deere AMT: 600 / 622 / 626
• John Deere Gator: 4X2 / 6X4
• Kawasaki Engines: FB460 / FC400 / FC420 / FC540
• All with 15 Amp Charging System Configuration
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
