OEM PART NUMBERS:
• Delco: 1118128
• General Motors / Detroit Diesel: 23504196
• Trombetta: P515A57V12 / P515-A57V12
• Navistar: 450436R1
• Accumax: 10-D3128
• S&N: D3-128
• Also Cross-References: 7-1041 / 67-104-1 / 6640-080
• No-Dash: 1118128 23504196 P515A57V12 450436R1 10D3128
SPECIFICATIONS:

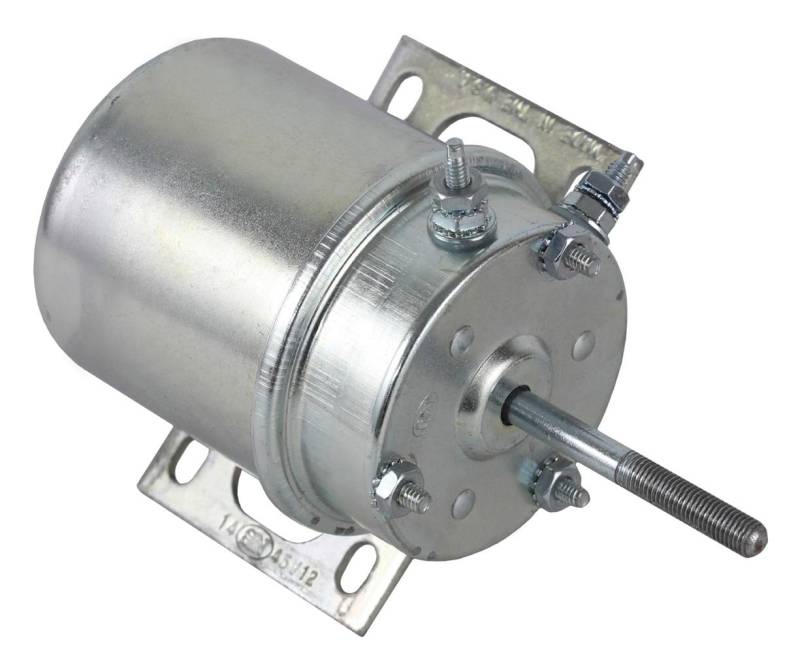

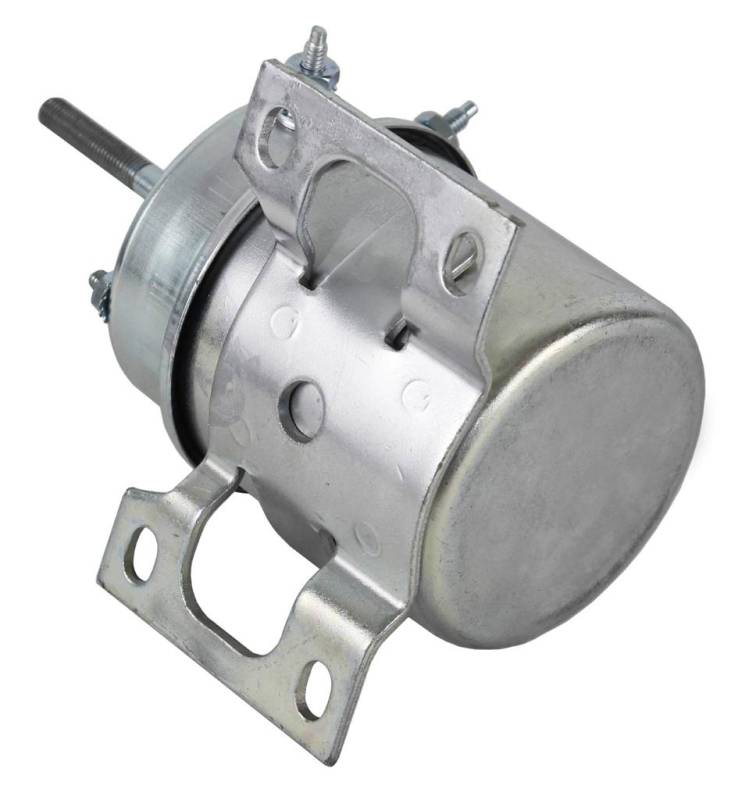

• Type: Fuel Shutdown / Engine Shutoff Solenoid
• Design: Delco (OEM: Detroit Diesel / General Motors)
• Voltage: 12V DC
• Duty Cycle: Intermittent
• Terminals: 2
• Shaft: 1/4-28 Threaded
• Coil: 156W
• Max Intermittent Power: 40W
• Pull Force at 1/2": 18 lbs
• Hold Force: 120 lbs
• Weight: 5 lbs
• Condition: New
DETROIT DIESEL ENGINE APPLICATIONS:
• Series 53: 2-53 / 3-53 / 4-53 / 6V53 (Trucks, Buses, Industrial)
• Series 71: 2-71 / 3-71 / 4-71 / 6-71 / 6V71 / 8V71 / 12V71 / 16V71
• Series 92: 6V92 / 8V92 / 12V92 / 16V92 (Marine, Generators, Buses)
• Series 149: 8V149 / 12V149 / 16V149 (Ships, Mining, Drilling Rigs)
• Case Construction Equipment w/ Detroit Diesel Engine
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
