OEM PART NUMBERS:
• OMC: 391264 / 0391264
• OMC: 393259 / 0393259
• OMC: 393988 / 0393988
• OMC: 394176 / 0394176
• OMC: 395840 / 0395840
• OMC: 434795 / 0434795
• OMC: 435548
• OMC: 437666
• OMC: 983019 / 0983019
• OMC: 983446 / 0983446
• OMC: 985237 / 0985237
• PMW4001 / PMW4002 / PWM4002
• 40-478 / 40478 / 40-496 / 40496
AFTERMARKET CROSS REFERENCE:
• API Marine: PT301NM
• Arco Marine: 6220
• 18-6759
SPECIFICATIONS:

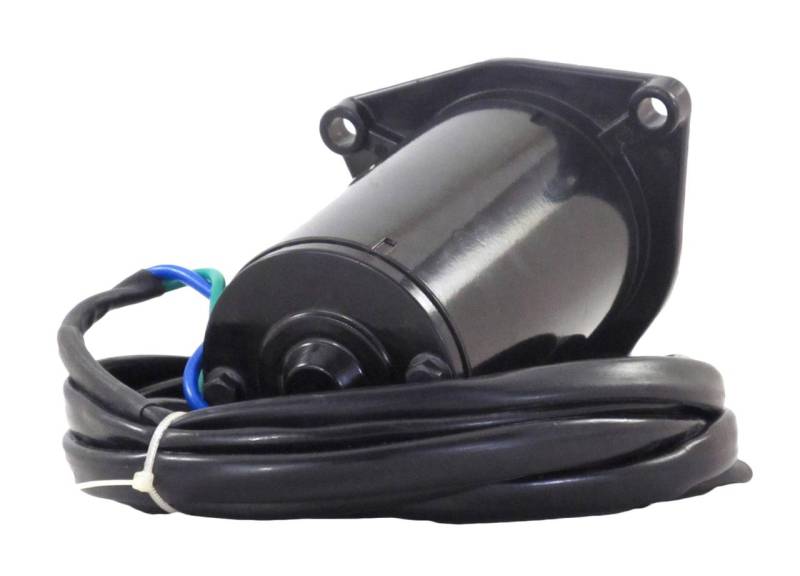

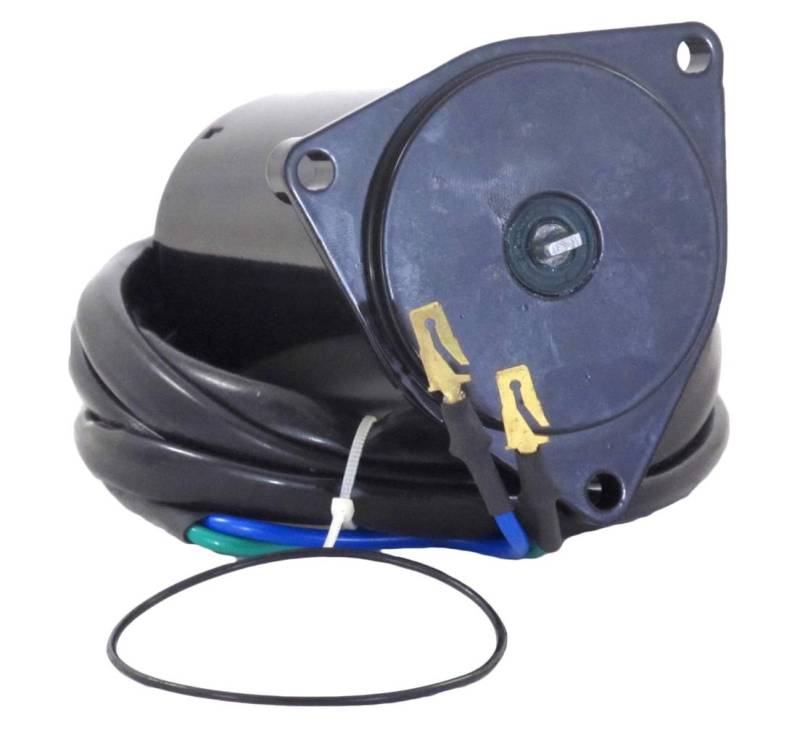

• Type: Tilt Trim Motor
• Design:
• Voltage: 12V
• Rotation: Reversible
• Connection: 2-Wire, 8-Foot Harness
• Terminals: Split Tab Male Blade
• Mounting: 3-Bolt Flange
• Shaft OD: 8mm / 0.315in (Tanged)
• Field Housing OD: 64mm / 2.520in
• Overall Length: 132.1mm / 5.201in
• O-Ring Included
• Weight: 6 lbs
• Condition: New
APPLICATIONS SUMMARY:
• Evinrude/Johnson 40-250HP Outboard (1981-1992)
• OMC/Sea-Drive 40-235HP (1981-1992)
• Most 3, 4, 6 & 8 Cylinder Applications
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
