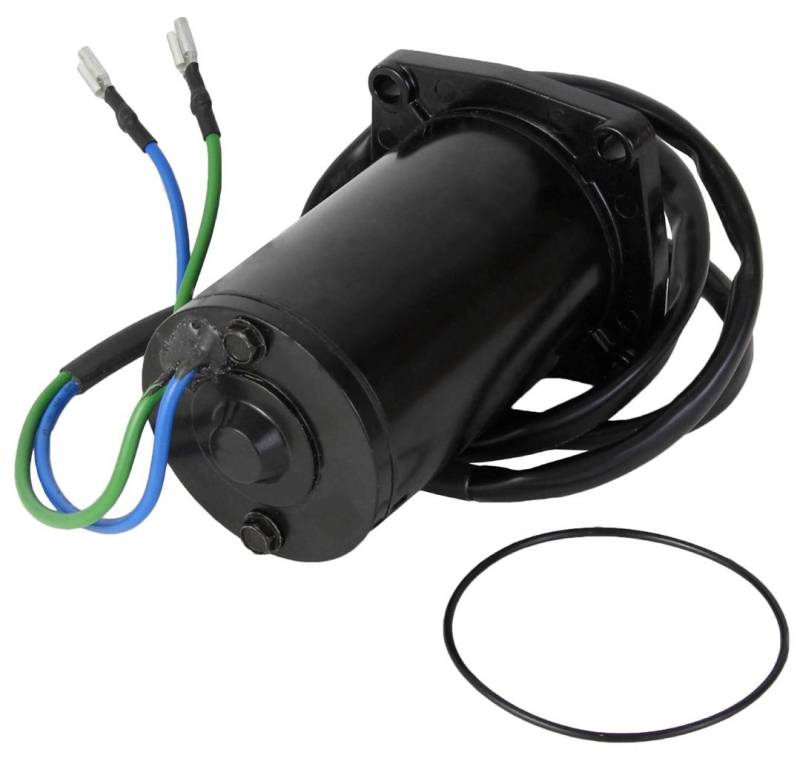

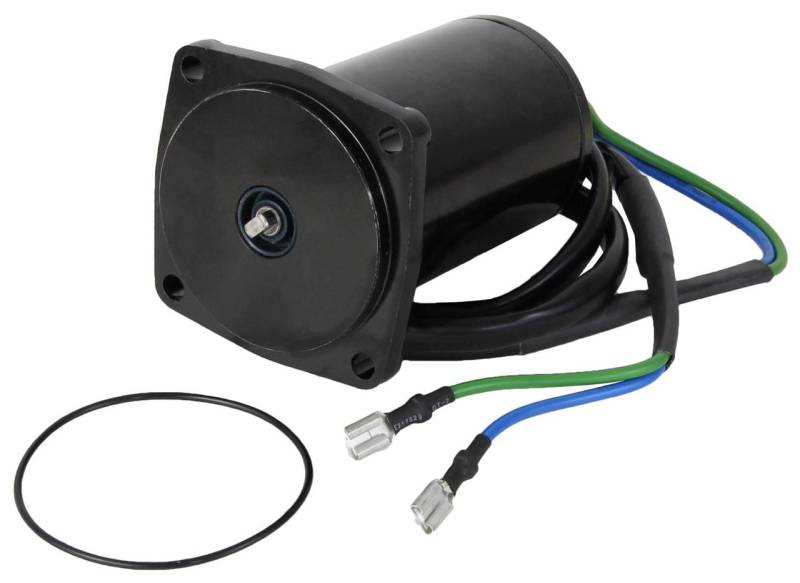

Outboard Tilt Trim Motor Compatible With Suzuki Honda Evinrude Johnson 40Hp 50Hp 4-Stroke Df40 Df50

OEM PART NUMBERS:
• Suzuki: 38100-87J10 / 3810087J10
• Suzuki: 38100-87J11 / 3810087J11
• Suzuki: 38100-87J12 / 3810087J12
• Suzuki: 38100-87J20 / 3810087J20
• Suzuki: 38100-87J21 / 3810087J21
• Honda: 36120-ZV5-822 / 36120ZV5822
• OMC: 5032670



AFTERMARKET CROSS REFERENCE:
• API Marine: PT656NM
• Arco Marine: 6237
• 18-6793
SPECIFICATIONS:
• Type: Tilt Trim Motor
• Voltage: 12V DC
• Rotation: Reversible
• Shaft Type: Slotted
• Shaft OD: 8mm / 0.315in
• Field Housing OD: 87mm / 3.425in
• Overall Length: 123mm / 4.843in
• Weight: 6 lbs
• Condition: New

APPLICATIONS (1999-2010):
• Suzuki: DF40/DF40QH/DF40TL (1999-2010), DF50/DF50QH/DF50TL (1999-2010)
• Honda: BF40A2/A3, BF50A2/A3 LHTA/LRTA/XRTA (2002-2003)
• Evinrude: E40PL / E50PL (2001)
• Johnson: J40PL4 / J50PL4 (2002-2004), BJ40PL4 / BJ50PL4 (2004)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
