OEM PART NUMBERS:
• Monarch/Bucher: 08053 / MH0053 / MH08053 / P33939
• Monarch/Bucher: 2590112 / M2590112 / M-2590112 / 2590100
• Monarch/Bucher: 500205019833
• W8931 / W-8931
• Eagle DC Motors: 1330185
• Thieman Tailgates: 4423720
• Additional: 16399 / 8110 / M-4100 / M4100 / 8301
• Additional: 14785 / 17208 / 262174 / 50501 / 56539 / 82195
• Additional: 30293 / MGD4109 / 70092401 / 9411305397
SPECIFICATIONS:

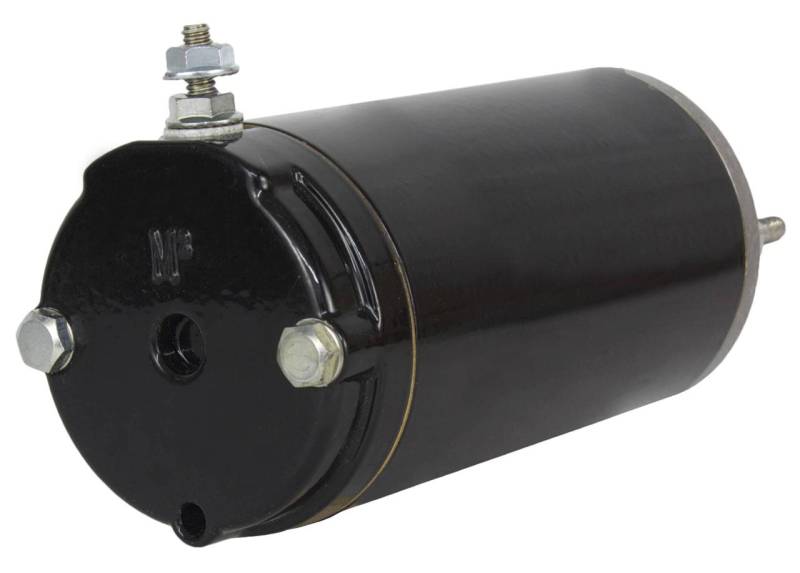

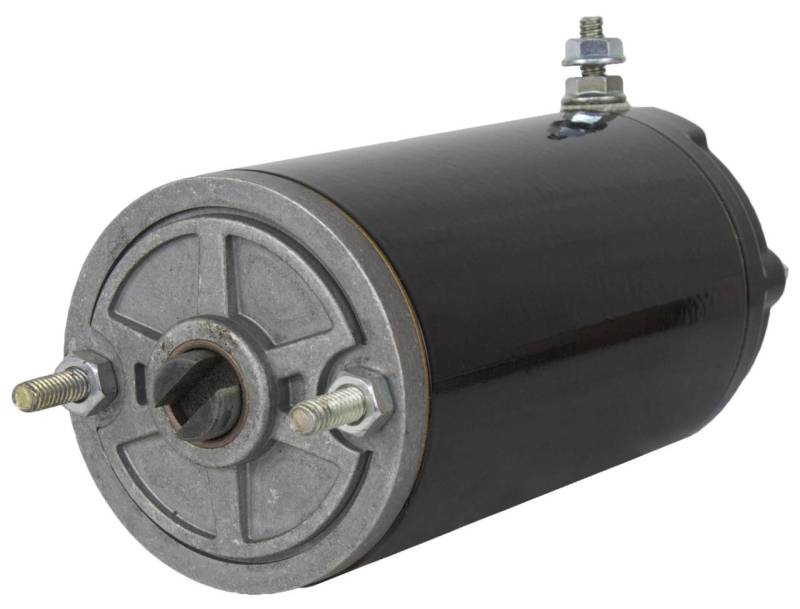

• Product Type: 12V DC Hydraulic Pump Motor
• Motor Type: Permanent Magnet, Bi-Directional
• Voltage: 12V DC
• Rotation: Counterclockwise (CCW)

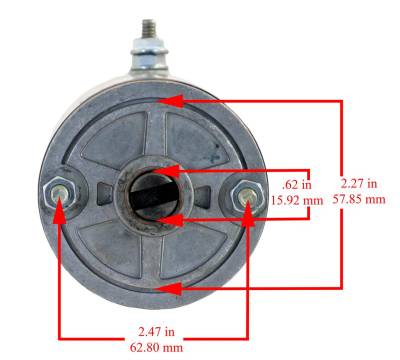

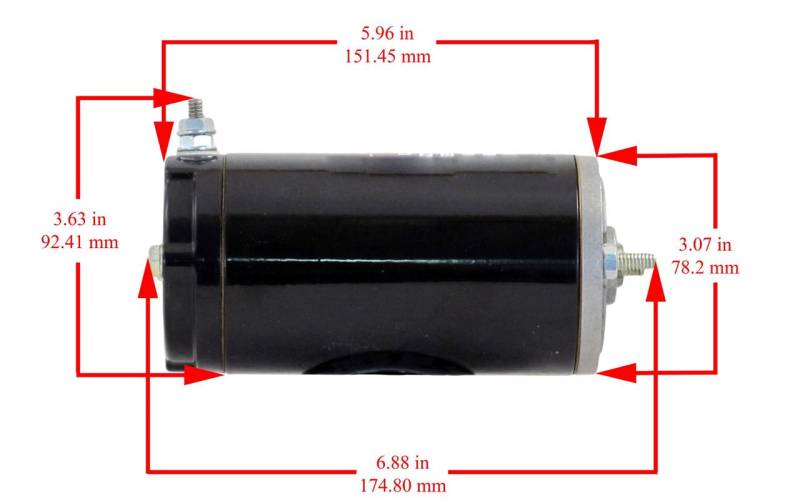

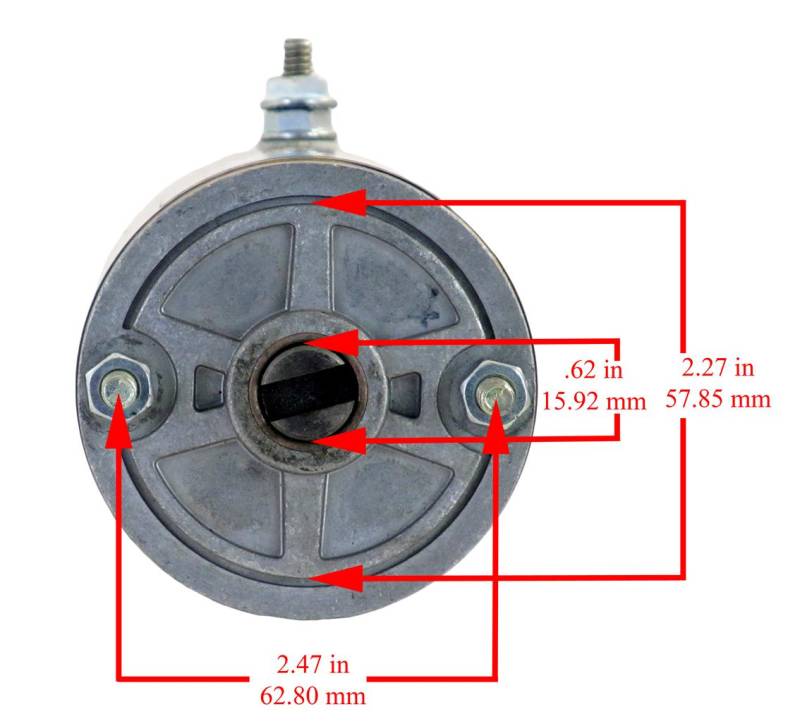

• OD: 78mm (3.071")
• Overall Length: 170mm (6.693")
• Shaft OD: 16mm / Shaft: 6mm Slotted
• Terminal: 1/4-20 (SAE)
• Bearing Type: Double Bushing
• Weight: 8 lbs
• Condition: New
APPLICATIONS:
• Monarch Road Equipment / Hydraulic Pumps
• Motor Home Automatic Levelers / RV Leveling Jacks
• Side Door Wheelchair Lifts for Vans
• Thieman Tailgates / Hydraulic Liftgates
• Snow Plow / Arctic Hydraulic Pump Applications
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
