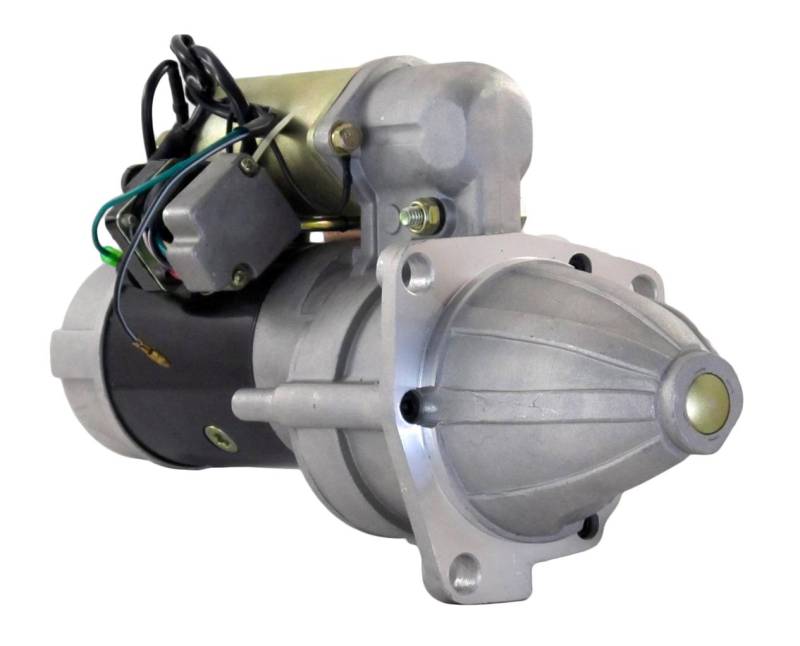

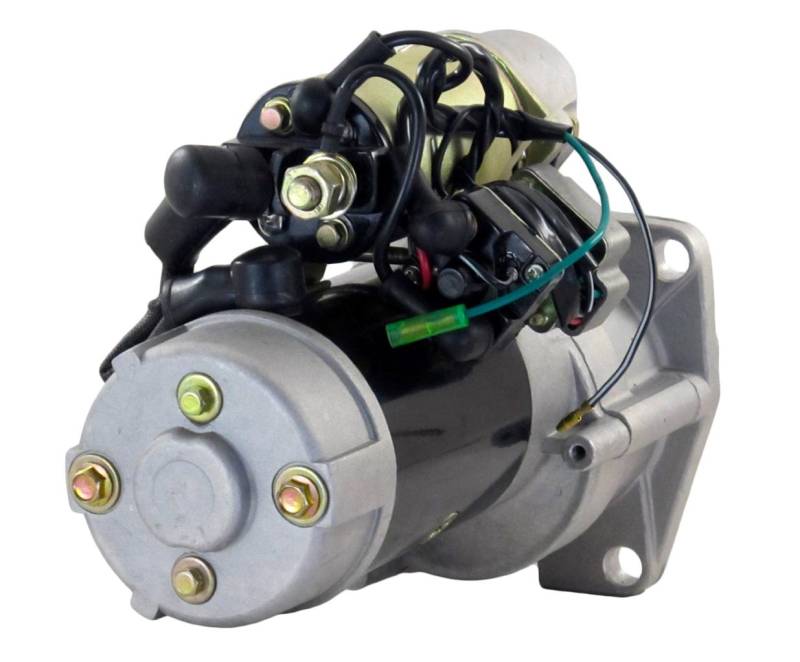

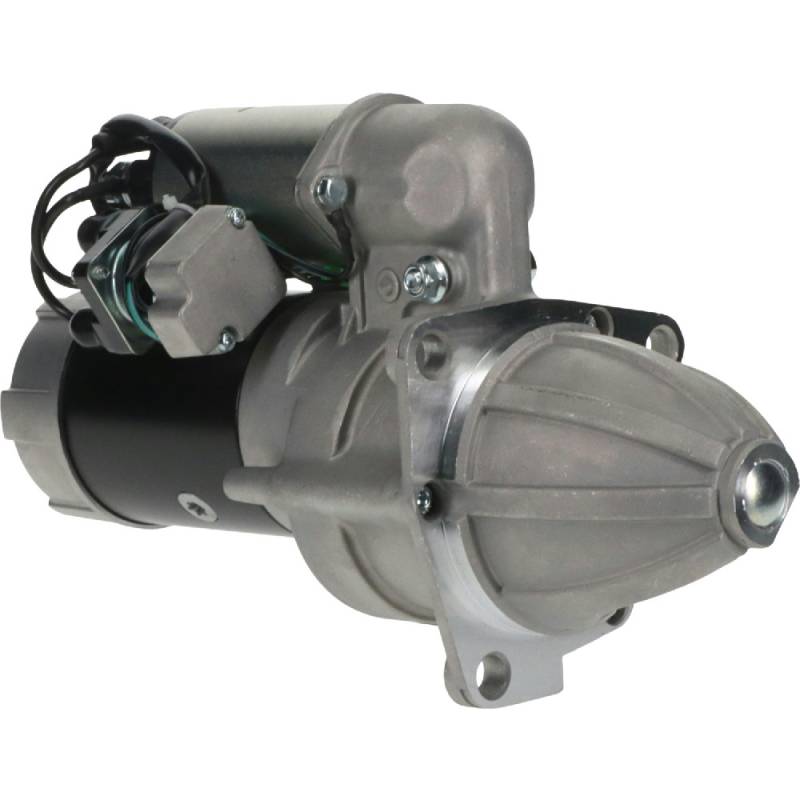

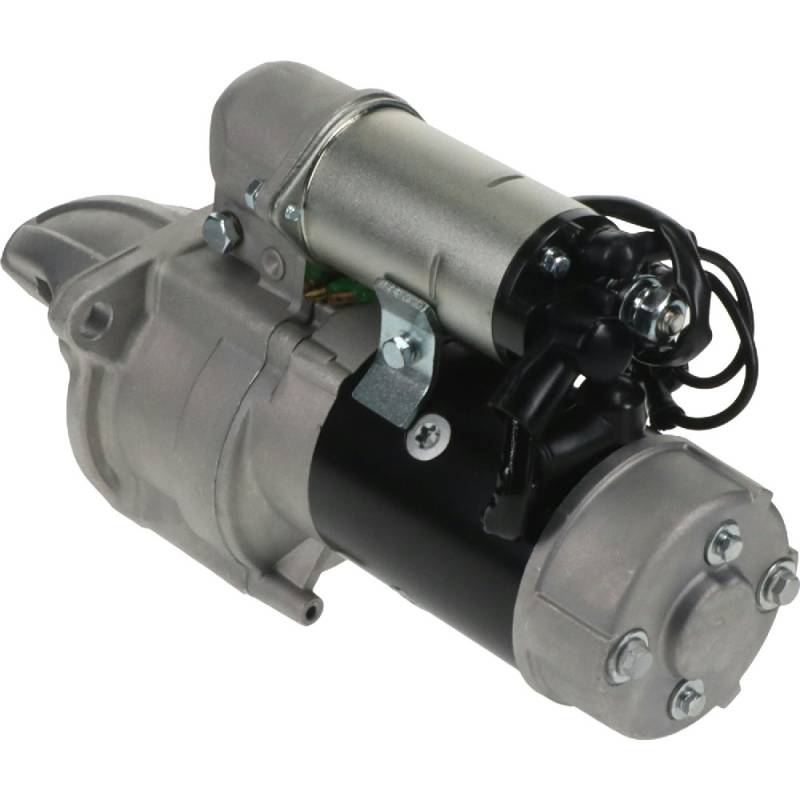

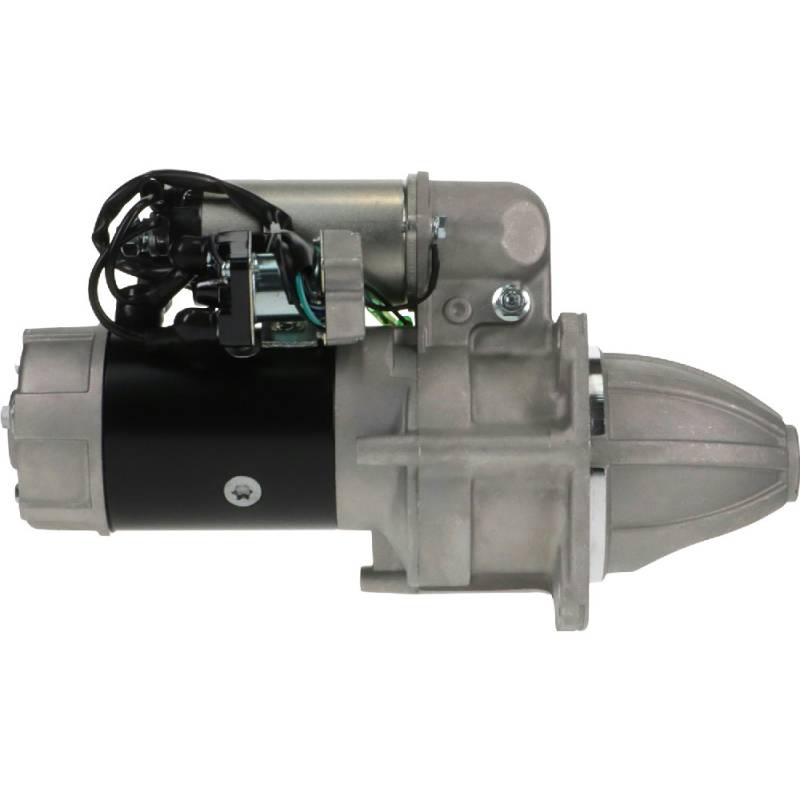

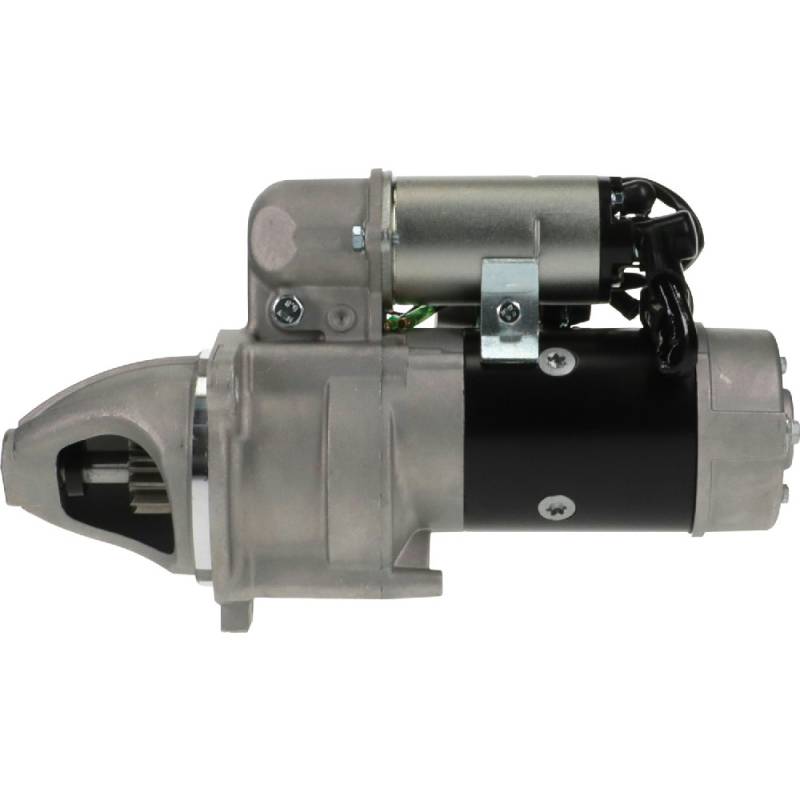

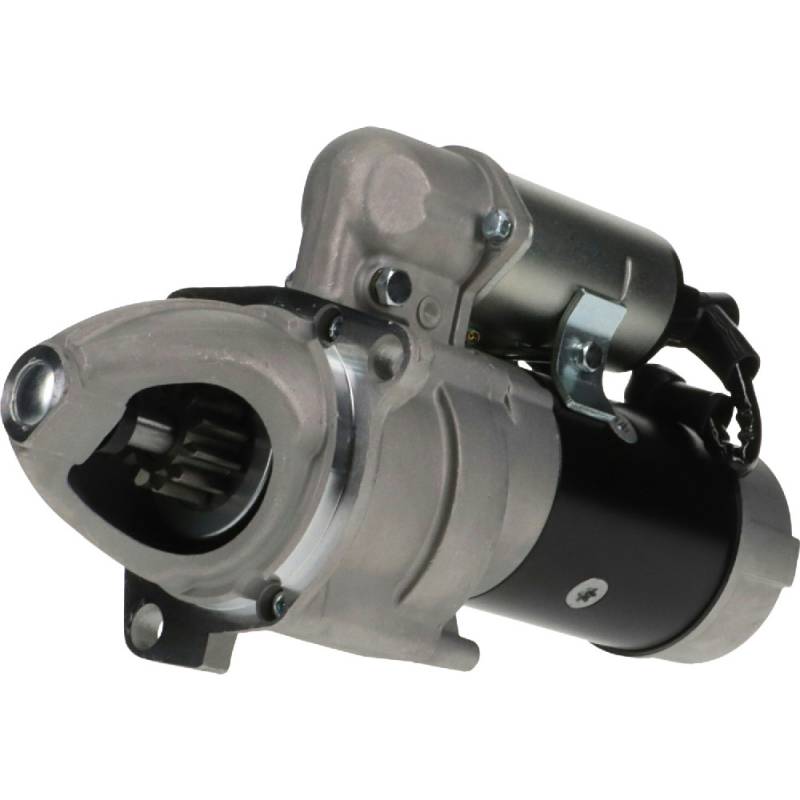

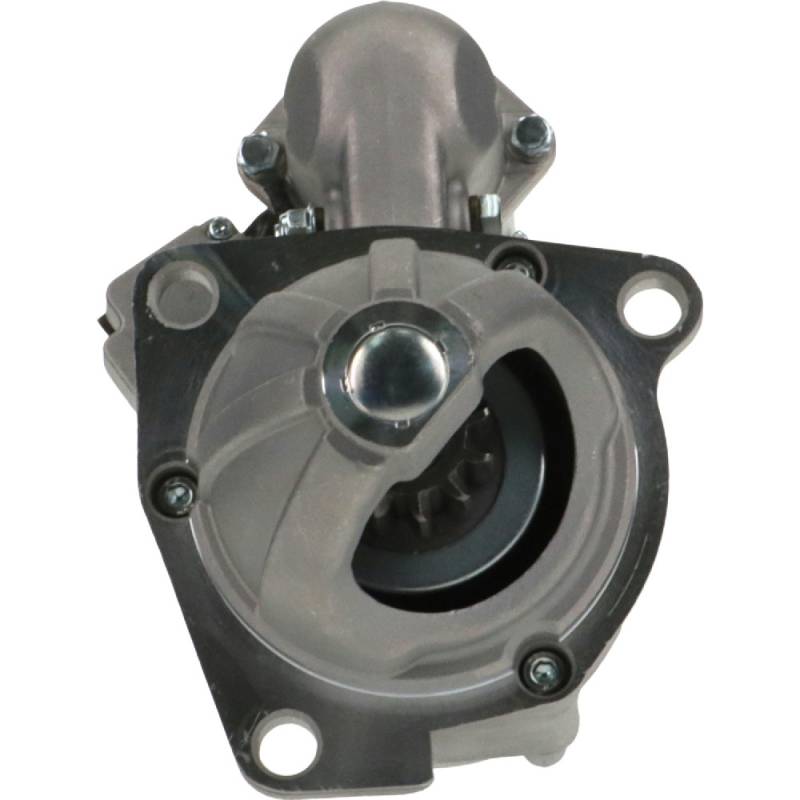

New Starter Motor Compatible With Isuzu Engine 6Bd1 6Bd1pd-S 1811001971 0230001080 0-23000-1081

185-198*2
ISUZU PART NUMBERS:
• 1-81100-197-0, 1811001970
• 1-81100-197-1, 1811001971
• 1-81100-197-2, 1811001972

NIKKO PART NUMBERS:
• 0-23000-1080, 0230001080
• 0-23000-1081, 0230001081
• 0-23000-1082, 0230001082

WILSON PART NUMBERS:
• 91-28-4037, 91284037

SPECIFICATIONS:
• Family: Nikko type
• Type: OSGR (offset gear reduction)
• Voltage: 24 Volt
• Power: 4.5 kW
• Rotation: Clockwise (CW)
• Teeth: 11
• Gear OD: 39.9 mm / 1.571 in
• Mounting: 3 unthreaded 13.0 mm ears
• Solenoid: fitted, with safety relay
• Weight: about 22.9 lb / 10.42 kg
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $647.41
Sale: $369.95
Save: 43%
Save: $277.46
Qty:
Free Shipping!

Description

⚠️ 24 VOLT 4.5 KW 11 TOOTH CW NIKKO OSGR STARTER:
• 24V, 4.5 kW, clockwise, Nikko type offset gear reduction (OSGR)
• 11 tooth pinion 39.9 mm (1.571 in) OD, three unthreaded 13.0 mm mounting ears
• Solenoid and safety relay fitted, about 22.9 lb (10.42 kg)
• Isuzu 1-81100-197 / Nikko 0-23000-108x build: check the number on the old starter, sister 4.5 kW 11 tooth Nikko units are not interchangeable

HITACHI EXCAVATORS, ISUZU 6BD1 / 6BD1T:
• Hitachi EX200 excavator with the Isuzu 6BD1 / 6BD1T
• Hitachi EX200-1 excavator with the Isuzu 6BD1 / 6BD1T
• Hitachi EX200-2 excavator with the Isuzu 6BD1T
• Hitachi EX200-3 excavator with the Isuzu 6BD1T

ISUZU INDUSTRIAL ENGINES:
• Isuzu 6BD1 5.8L six cylinder industrial diesel engine
• Isuzu 6BD1T 5.8L turbo diesel engine (Hitachi EX200-2 / EX200-3)
• Isuzu 6BD1PD-S industrial diesel engine (Nikko 0-23000-1082 / Isuzu 1-81100-197-2)
