Yamaha Platinum Piston Kit 0.25Mm Over 81.25Mm Compatible With 1996-1998 Exciter 220 1100 1995-1996

OEM PART NUMBERS:
• Yamaha: 62T-11631-00-92 / 62T116310092
• Yamaha: 62T-11631-01-92 / 62T116310192
• Yamaha: 62T-11631-02-92 / 62T116310292
• Yamaha: 63M-11631-00-89 / 63M116310089

SPECIFICATIONS:
• Type: Platinum Piston Kit (0.25mm Oversize Bore)
• Piston Finish: Platinum — Anodized Top, Graphite Coated Skirts
• Standard Bore: 81.0mm / Oversize: 81.25mm (0.25mm Over)
• Fits: 700cc 2-Cyl (62T) AND 1100cc 3-Cyl (63M) — same bore
• Weight: 2 lbs / Condition: New

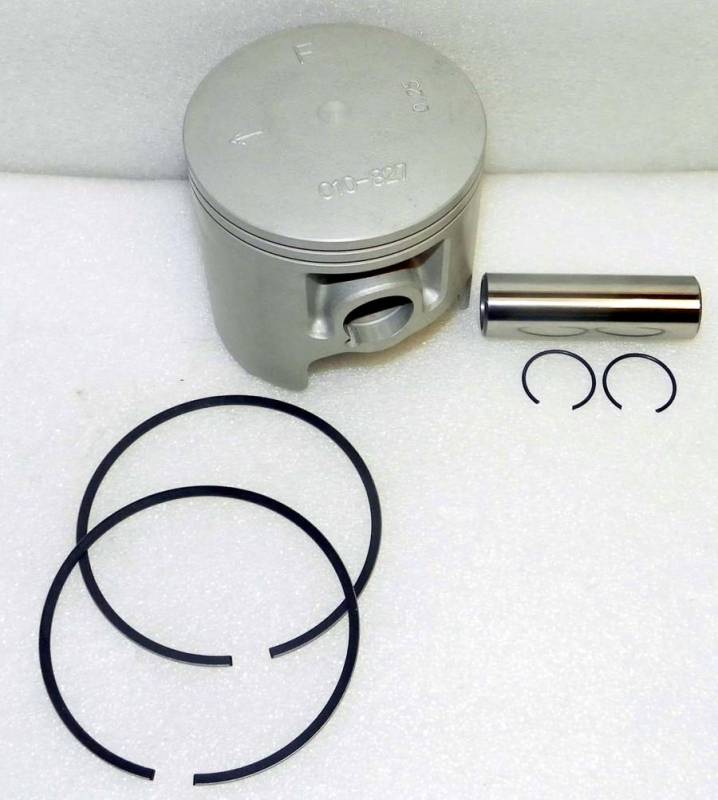

KIT CONTENTS (Single Cylinder):
• (1) Platinum Piston — Anodized Top, Graphite Coated
• (1) Ring Set / (1) Wrist Pin / (1) Bearing / (2) Circlips
• Order (2) for 700cc 2-cyl / (3) for 1100cc 3-cyl

BORE SIZE CHART — PLATINUM (62T/63M):
• Standard: 81.00mm
• 0.25mm Over: 81.25mm (010-827-04PK) — THIS KIT
• 0.50mm Over: 81.50mm
• 0.75mm Over: 81.75mm
• 1.00mm Over: 82.00mm

700cc (62T) APPLICATIONS:
• Wave Raider 700 (1994-1995) / Wave Raider Deluxe 700 (1995)
• Wave Venture 700 (1995-1996, 1998) / XL 700 (1999-2004)

1100cc (63M) APPLICATIONS:
• Wave Raider 1100 (1995-1996) / Wave Venture 1100 (1996-1997)
• Exciter 220 1100 (1996-1998)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
