CASE TRACTORS:
• Case 433 tractor with the D-155 2.5L diesel (Case IH), 1986-1992
• Case 433V tractor with the D-155 2.5L diesel (Case IH), 1986-1990
• Case 533 tractor with the D-155 2.5L diesel, 1986-1992
• Case 533A tractor with the D-155 2.5L diesel, 1986-1992
• Case 533V tractor with the D-155 2.5L diesel, 1986-1990
• Case 540 tractor with the D-155 2.5L diesel (Case IH), 1988-1997
• Case 633 tractor with the D-179 3.0L diesel, 1986-1991
• Case 833 tractor with the D-239 3.9L diesel (Case IH), 1981-1992
• Case 833A tractor with the D-239 3.9L diesel (Case IH), 1981-1990
INTERNATIONAL TRACTORS:
• International 433 / 433V tractor with the D-155 2.5L diesel, 1973-1986
• International 533 / 533V tractor with the D-155 2.5L diesel, 1977-1986
FENDT TRACTORS:
• Fendt Farmer 104S tractor with the MWM D226-3 3.1L diesel, 55 HP, 1978-1982
• Fendt Farmer 108S tractor with the MWM D226-4 4.2L diesel, 65 HP, 1974-1980
GOLDONI TRACTORS (LOMBARDINI DIESEL):
• Goldoni 1038 with the Lombardini 5LD825.2 1.7L diesel, 1980-1985
• Goldoni 1038 with the Lombardini LDA832 1.6L diesel, 1980-1985
• Goldoni 230 with the Lombardini LDA672 diesel, 1982-1984
• Goldoni 238 with the Lombardini 5LD825.2 1.6L diesel, 1977-1985
• Goldoni 238 with the Lombardini LDA832 1.6L diesel, 1977-1986
• Goldoni 245 with the Lombardini 11LD625.3 1.9L diesel, 1989-2007
• Goldoni 3445 with the Lombardini 11LD625.3 1.9L diesel, 1988-2007
• Goldoni 40B with the Lombardini 11LD535.3 1.6L diesel, 1991-2007
• Goldoni 45B with the Lombardini LDA832 1.6L diesel, 1991
• Goldoni 50B with the Lombardini 11LD626.3 1.9L diesel, 1991-2007
• Goldoni 933DT with the Lombardini 8LD665.2 1.3L diesel, 1988-2007
• Goldoni 938 with the Lombardini 5LD825.2 / 5LD825.2L 1.3L diesel, 1988-1990
• Goldoni 945DT with the Lombardini 11LD625.3 1.9L diesel, 1990
• Goldoni 945RS with the Lombardini 11LD625.3 1.9L diesel, 1990-2007
• Goldoni Transcar with the Lombardini 11LD626 1.9L diesel, 1990
• Goldoni Transcar with the Lombardini 12LD475 1.0L diesel, 1990
• Goldoni Transcar with the Lombardini 8LD665 1.0L diesel, 1991

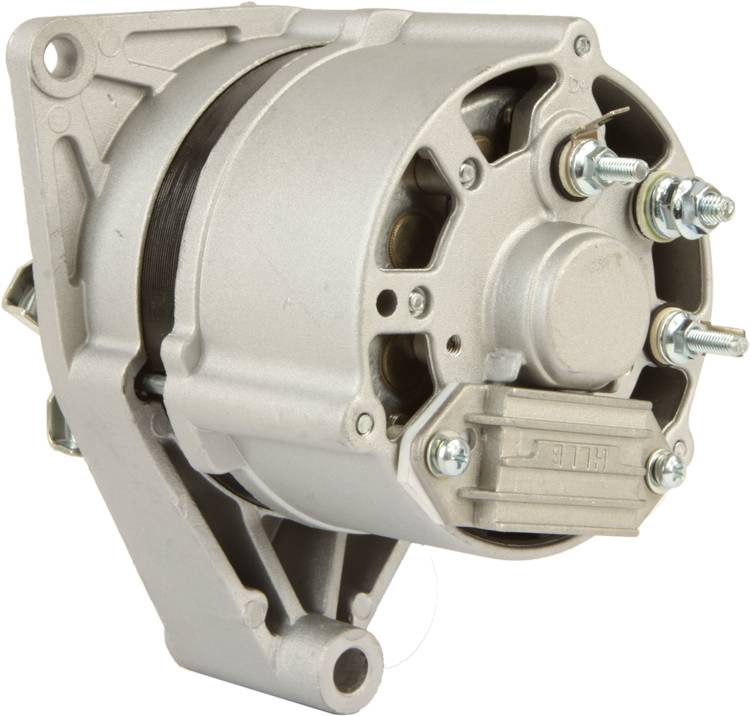

SPECIFICATIONS:
• Voltage: 12V
• Amperage: 33A
• Type: AAG Type
• Rotation: CW
• Regulator: Internal
• Fan: External
• Pulley: Not included, transfer the pulley from your old alternator
• Mount: Spool, 56 mm
• Stud size: M6-1.0
• Terminals: B+, D+ and W (D+ and W M6-1.0 / spade combo)
• Regulator clock: 6:00
• Weight: 7.45 lbs / 3.39 kg
• Covers the Iskra IA0500 (11.201.500) and IA0507 (11.201.507) positions: catalog data shows the same 56 mm spool mount, B+ / D+ / W stud layout and CW rotation for both
• Condition: New aftermarket
