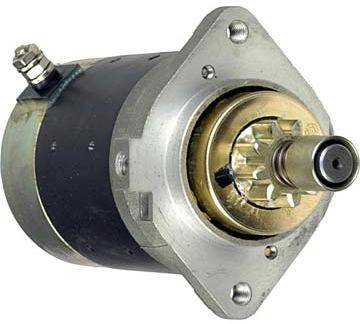

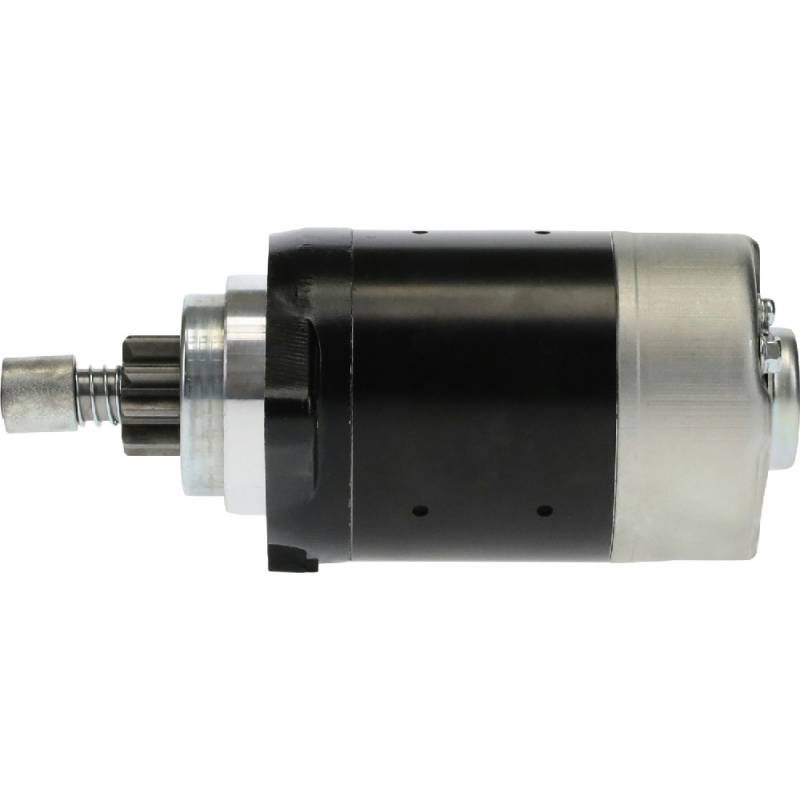

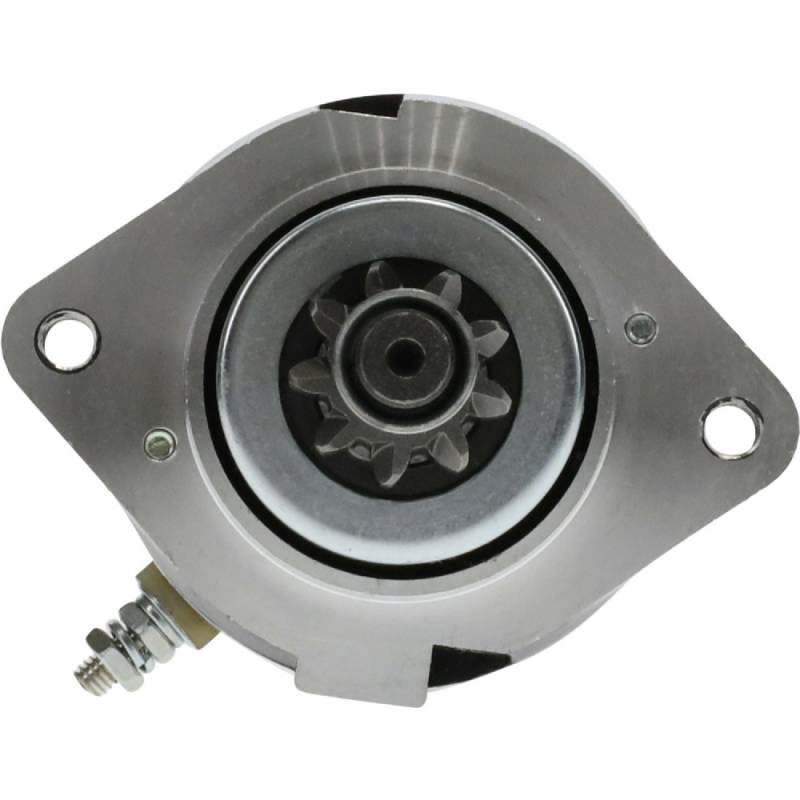

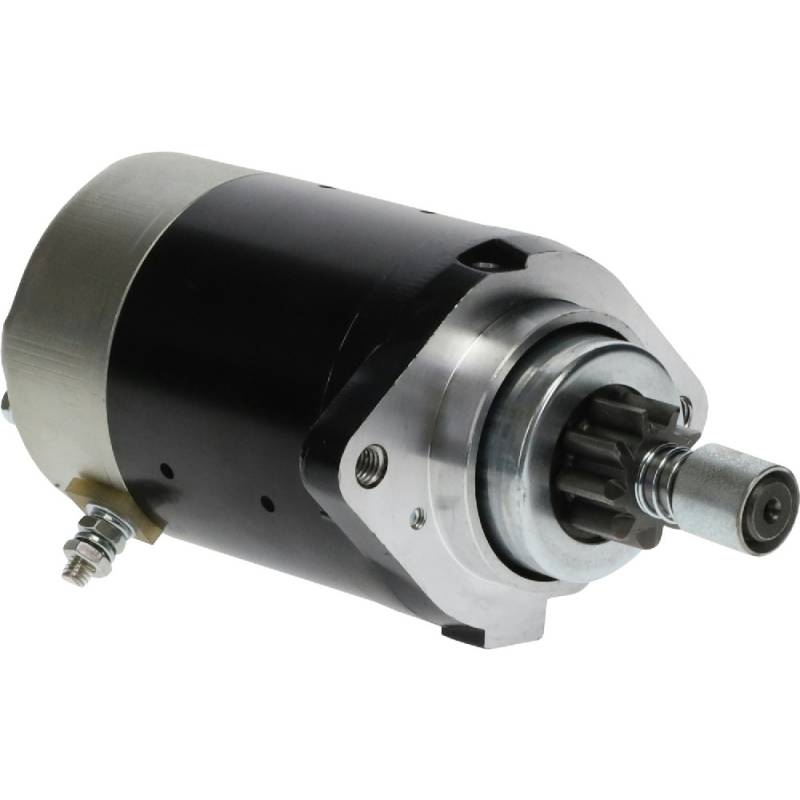

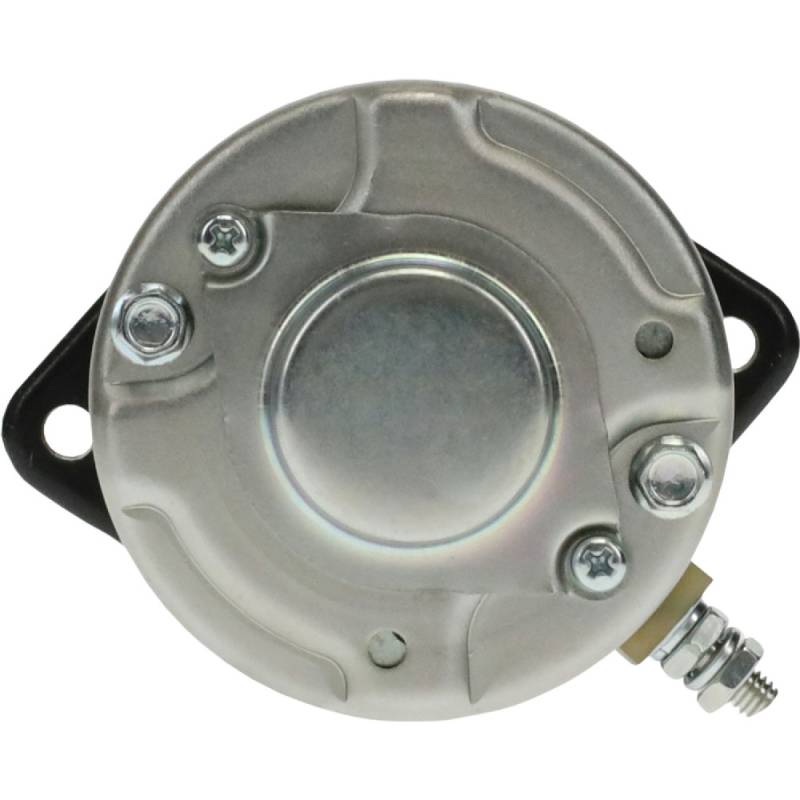

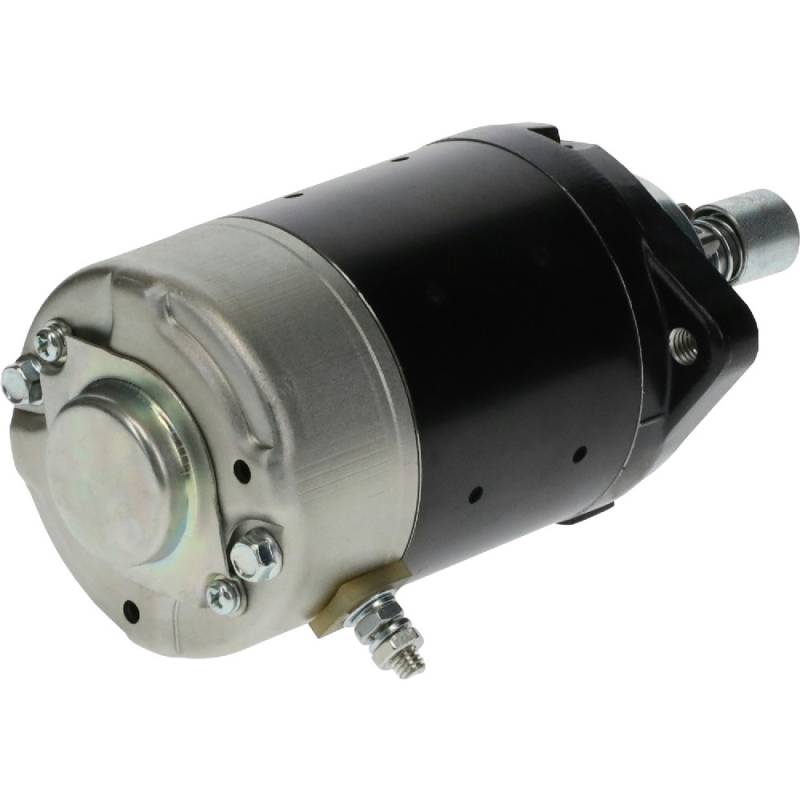

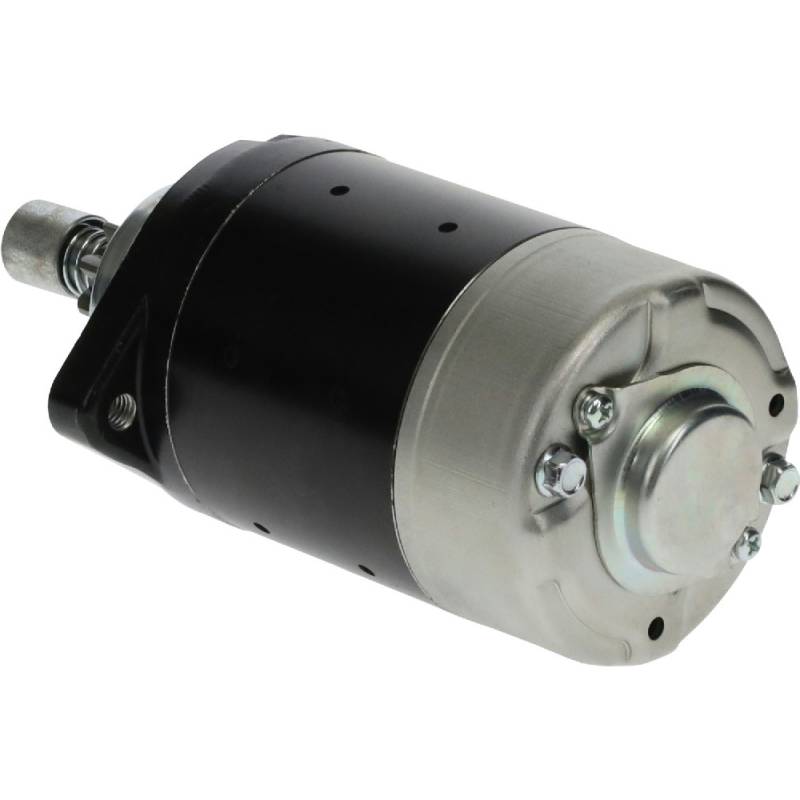

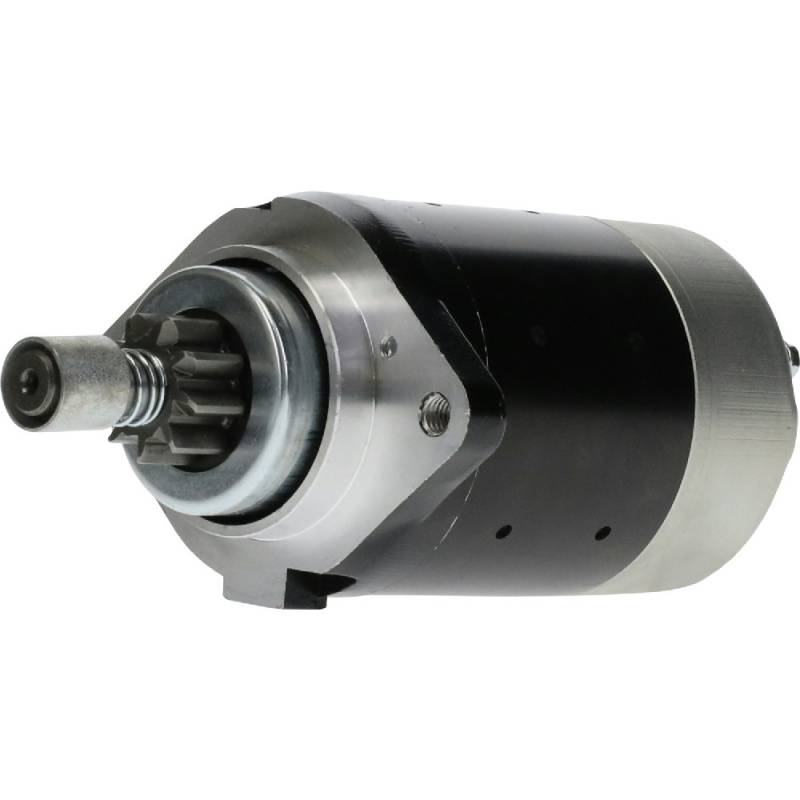

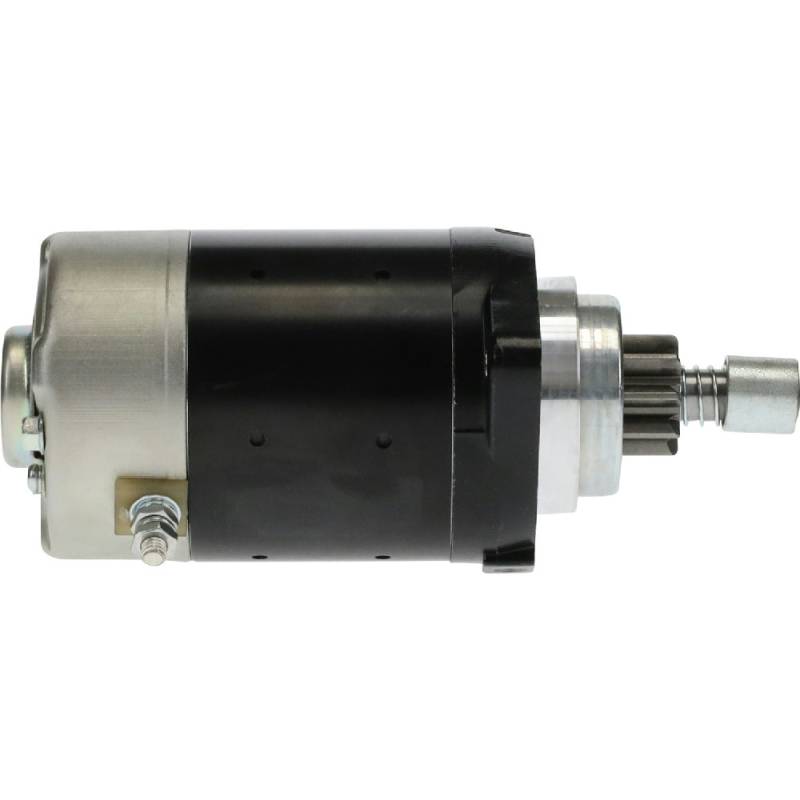

Starter Motor Compatible With 1984-1992 Tohatsu Marine Outboard M45a2 45Hp M50c 50Hp M60a 60Hp M70a2

OEM PART NUMBERS:
• Hitachi: S114-415 / S114415, S114-415A / S114415A
• Hitachi: S114-571 / S114571, S114-571A / S114571A
• Hitachi Sales: S114-667 / S114667, S114-667N / S114667N
• Tohatsu: 353-76010-1A0 / 353760101A0
• Tohatsu: 353-76010-300 / 35376010300
• Tohatsu: 353-76010-4 / 353760104, 353-76010-4M / 3537601O4M
• Tohatsu: 353-76010-04 / 35376010O4
• Tohatsu: FM5900 / FM-5900
• Arco Marine: 3410
• Sierra Marine: 18-6418 / 186418, 184818

SPECIFICATIONS:
• Item Description: Starter Motor
• Unit Type: Hitachi
• Type: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12 Volts
• Power: 1 KW
• Rotation: CCW (Counter-Clockwise)
• Teeth/Splines: 9
• Pinion/Splines OD: 29.3mm / 1.154in
• Mounting Hole 1: M8-1.25 ID Threaded
• Mounting Hole 2: M8-1.25 ID Threaded
• Weight: 6.75 lbs / 3.07 kg
• Condition: New

TOHATSU MARINE OUTBOARD APPLICATIONS:
• M45A2 45HP (1984-1992), M50C 50HP (1984-1992), M60A 60HP (1984-1992)
• M70A2 70HP (1984-1992), M90A 90HP (1986-2002)
• M115A 115HP (1992-2002), M120A 120HP (1992-2002), M140A 140HP (1992-2002)

NISSAN MARINE OUTBOARD APPLICATIONS:
• NS45, NS50, NS60, NS70, NS90, NS115, NS120, NS140 2-Stroke Outboards (1992-2006)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
