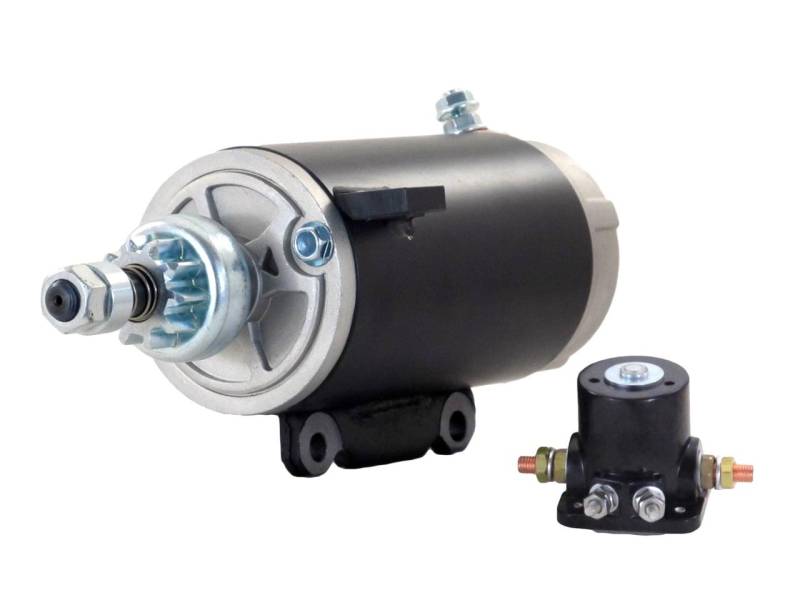

Starter Motor Compatible With & Solenoid 69-94 Johnson Marine Outboard 110 115 Hp Sm17916

REPLACES THESE PART NUMBERS:
OMC OUTBOARD 585057, 585196, 586282
JOHNSON ELECTRIC SM02465, SM02466, SM17916
UNITED TECHNOLOGIES 2020740, 2070240-M030SM,2070329-M030SM, 2070340-M030SM, POC4001, SM01399, SM02289, SM02465, SM02466, SM17916, SM17917, SM17919, SM20207, SM20702, SM20703,SMH12C41
UNIT TYPE: OMC OUTBOARD MARINE, JOHNSON ELECTRIC
TYPE: PMDD

VOLTAGE: 12 VOLTS

ROTATION: CCW

TEETH/SPLINES: 10 TEETH/SPLINES

PINION/SPLINES OD: 32.3MM / 1.272IN

MOUNTING HOLE 1: UNTHREADED

MOUNTING HOLE 2: UNTHREADED

MOUNTING HOLE 3: UNTHREADED

NEW OR REMANUFACTURED: NEW

APPROXIMATE WEIGHT: 7.68 LBS / 3.49 KG
NOTES:
4.78”/121.4MM LONG FIELD CASE
REPLACES THES SOLENOID PART NUMBERS:
OMC OUTBOARD MARINE 383622, 395419, 582708, 586180
MERCURY MARINE 47886, 47886T
SIERRA MARINE 18-5808
UNIT TYPE: OMC OUTBOARD MARINE
VOLTAGE: 12 VOLTS
NUMBER OF TERMINALS: 4
DUTY CYCLE: INTERMITTENT DUTY
NEW OR REMANUFACTURED: NEW

NOTES:
(2) 10-32 & (2) 5/16-24 THREADED TERMINALS, INSULATED GROUND
