FACET / PUROLATOR OEM PART NUMBERS:
• 40106 - Cube Solid State Fuel Pump
• 40106N - Pump Only (No Kit)
• 40100 - Base Pump Number
• 40100N - Base Pump (No Kit)
• 480616 - Alternate Facet Number
• SS502 - Facet Specification Code
• FEP12SV - Installation Kit Number
• FEP12S - Kit Variant
• PRO12SM - Pro Series Kit
• PRO12SV - Pro Series Kit Variant
• FEP06SV - Related Kit Number
CASE / CASE NEW HOLLAND / NAVISTAR:
• 175305C1
• 153879C1
• S226800
FORD:
• XN655395
JOHN DEERE:
• AH65307
FEDERAL MOGUL:
• P55469
CRUSADER MARINE:
• 80784
TELEFLEX:
• 908112
TENNANT:
• 54230
HYDRA-MAC:
• 4100-037
PIERCE:
• EP13
• EP12E
ORBITRADE MARINE:
• AB268500
WHITE FARM EQUIPMENT:
• 31-1818310
WINCO GENERATORS:
• 92766-000
TYMCO:
• 4203
STANDARD MOTOR:
• EFP13S
KEM:
• EFP-16W
SPECIFICATIONS:
• Type: Cube Solid State Electronic Fuel Pump
• Voltage: 12V DC
• Flow Rate: 32 GPH (120 Liters/Hour)
• Max Shutoff Pressure: 7 PSI (0.48 Bar)
• Min Shutoff Pressure: 4 PSI (0.27 Bar)
• Fitting Type: 1/8-27 NPTF Internally Threaded
• Min Dry Lift: 12in (30.48cm)
• Max Fuel Lift: 36in From Tank Bottom
• Negative Lead: 0.25in Ring Terminal
• Operating Temp: -40°F to +180°F
• MTBF: 6000 Hours Average Run Time
• Check Valve: No
• Positive Shutoff Valve: No
• Quiet Valve: No
• Construction: All Steel Case, Corrosion Plated
• Salt Spray Resistance: Over 100 Hours
• Weight: 1.27 lbs (0.58 kg)
• HP Rating: Up to 150 HP
• Polarity: Ground Positive or Negative (Reverse Polarity Protection)

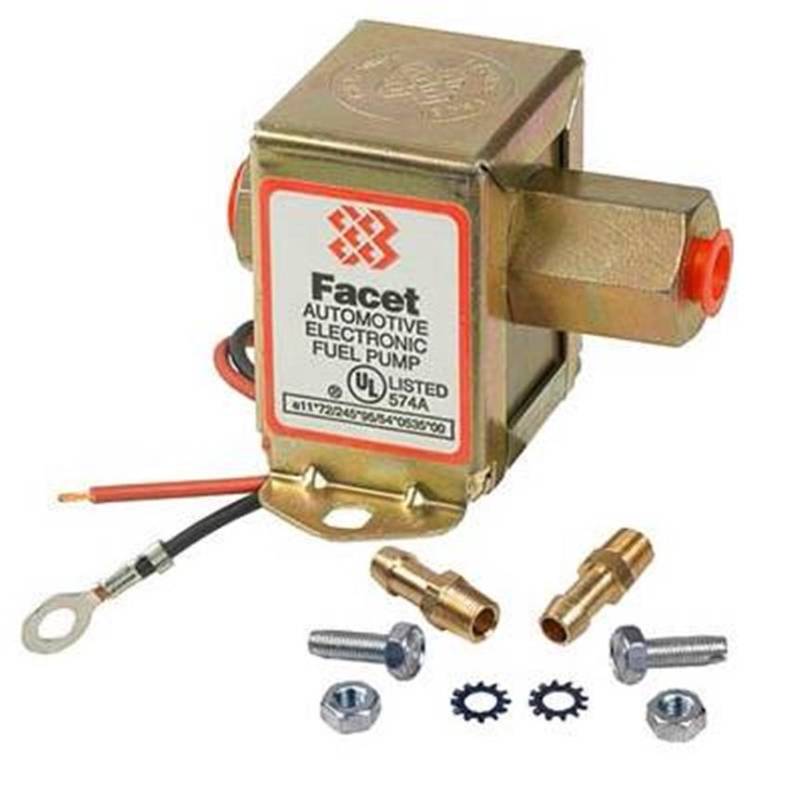

KIT INCLUDES:
• 40106N Solid State Fuel Pump
• (2) Straight 5/16in Fittings
• (2) Nuts
• (2) Screws
• (2) Washers
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
