PART NUMBERS:
• Honda : 31630-ZY3-003 / 31630ZY3003
• Honda (supersedes -003): 31630-ZY3-013 / 31630ZY3013
• Honda : CJX75
• Nippondenso : 102211-2750 / 1022112750
• Nippondenso : 102211-2751 / 1022112751
• Sierra: 18-6409
• WSM: 345-490
SPECIFICATIONS:

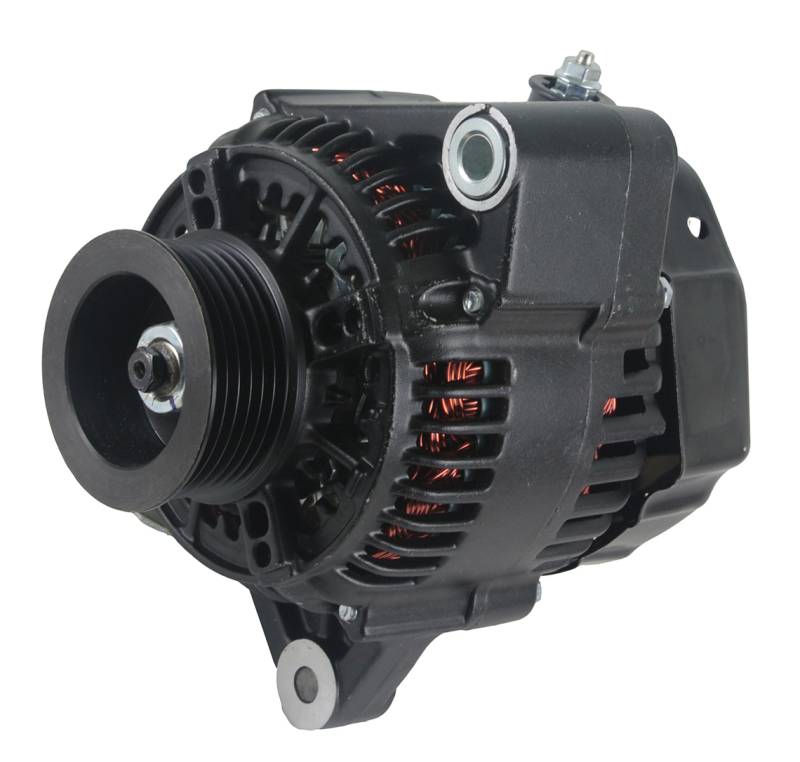

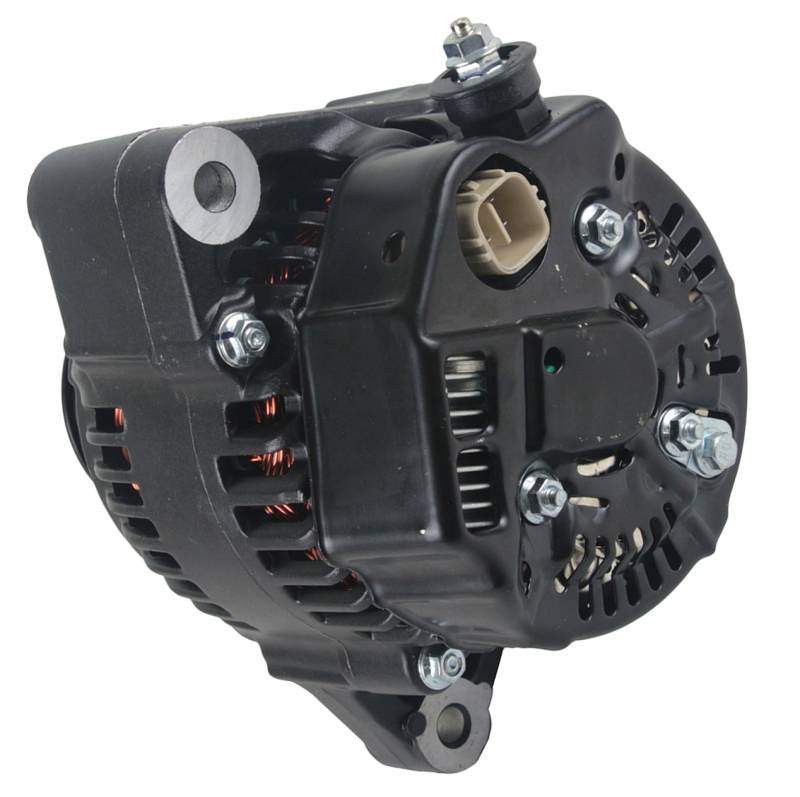

• Product Type: Alternator
• Voltage: 12V · Amperage: 90A
• Design: IR/IF (Internal Regulator / Internal Fan)
• Fan: Internal · Regulator: Internal
• Regulator Clock: 6:00
• Pulley Class: S6 (6-Groove Serpentine)
• Rotation: CW
• B+ Terminal: M6-1.0
• Polarity: Negative
• Weight: 7.0 lbs / 3.18 kg
• Condition: New
ENGINE / EQUIPMENT APPLICATIONS:
• Honda Marine BF175A V6 60° 4-Stroke 3471cc PGM-FI 175hp (2002–2006 A-series; 2007–2018 AK-series)
• Honda Marine BF200A/D V6 60° 4-Stroke 3471cc PGM-FI 200hp (2002–2006 A-series; 2007–2018 AK-series; 2018–2019 D-series)
• Honda Marine BF225A/D V6 60° 4-Stroke 3471cc PGM-FI + VTEC 225hp (2002–2006 A-series; 2007–2018 AK-series; 2018–2019 D-series)
• Honda Marine BF250A/D V6 60° 4-Stroke PGM-FI + VTEC 250hp (2012–2018 A-series; 2018–2019 D-series)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
