NIKKO: 1-23500-0170

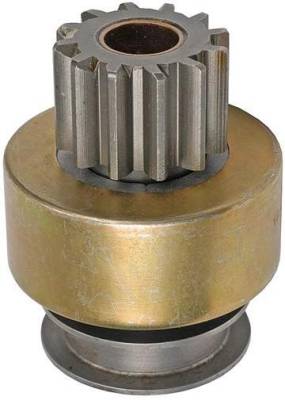

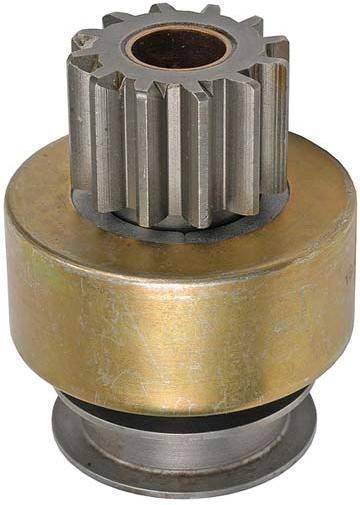

ITEM DESCRIPTION: STARTER DRIVE
UNIT TYPE: NIKKO
ROTATION: CLOCKWISE
TOOTH COUNT: 12
ID: 0.76 IN / 19.3 MM
GEAR OD: 1.811 IN / 46 MM
OVERALL LENGTH: 3.799 IN / 96.5 MM
NUMBER OF SPLINES: 15
SPLINES TYPE: SPIRAL
DRIVE TYPE: ROLLER
WET CLUTCH SEAL: NO
NOTES: CLUTCH BARREL OD 74.7 MM X 33.9 MM THICK
NOTES: PINION TEETH 29.7 MM TALL
WEIGHT: 2 LBS
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
**REPLACES THE DRIVE ON THESE ORIGINAL STARTER MOTOR NUMBERS:***
KOMATSU
600-813-3530, 600-813-3630, 600-813-3631, 600-813-4530, 600-813-4531, 600-813-4532, 600-813-4533,600-813-4580, 600-813-4670, 600-813-4671, 600-813-4680, 600-813-4681, 600-813-4682, 600-813-4790,600-813-6610, 600-813-6611, 600-813-6612
NIKKO
0-23000-3150, 0-23000-3151, 0-23000-3152, 0-23000-3153, 0-23000-3180, 0-23000-3184, 0-23000-3185,0-23000-3186, 0-23000-3270, 0-23000-3280, 0-23000-3281, 0-23000-3282, 0-23000-3283, 0-23000-3284,0-23000-3285, 0-23000-3286, 0-23000-6250, 0-23000-6251, 0-23000-6530, 0-23000-6531, 0-23000-6532,0-23000-6533, 0-23000-6544, 0-23000-7020, 0-23000-7022
**NEW DRIVE FOR STARTER MOTOR ON THESE APPLICATIONS:**
KOMATSU COMPRESSORS EC260Z 97-95 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D50 85-76 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D50 95-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D50A 83-76 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D50A 95-84 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D53 85-76 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D53 95-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D53A 83-76 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D53A 97-84 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D53P 85-76 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D53P 97-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D53S 85-76 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D53S 97-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D58 97-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D58E 97-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D58P 97-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D60 95-76 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D60A 97-84 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D60E 97-95 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D60P 97-91 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D60S 95-84 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D63E 97-95 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D65 85-84 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D65 95-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D65A 97-91 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D65P 97-91 6D125 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D66S 87-86 6D110 ENGINE NIKKO SYSTEM
KOMATSU CRAWLERS D75 85-84 6D125 ENGINE NIKKO SYSTEM
KOMATSU EXCAVATORS PC310 95-91 6D105 ENGINE NIKKO SYSTEM
KOMATSU EXCAVATORS PC400 6D125 ENGINE NIKKO SYSTEM
KOMATSU EXCAVATORS PC400 6D170 ENGINE NIKKO SYSTEM
KOMATSU EXCAVATORS PC400 94-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU EXCAVATORS PC400 94-91 SA6D125 ENGINE NIKKO SYSTEM
KOMATSU EXCAVATORS PC410 95-91 6D105 ENGINE NIKKO SYSTEM
KOMATSU EXCAVATORS PC410 95-91 6D125 ENGINE NIKKO SYSTEM
KOMATSU EXCAVATORS PC650 6D140 ENGINE NIKKO SYSTEM
KOMATSU EXCAVATORS PC650 6D170 ENGINE NIKKO SYSTEM
KOMATSU EXCAVATORS PC650 94-88 6D140 ENGINE NIKKO SYSTEM
KOMATSU EXCAVATORS PC750 6D170 ENGINE NIKKO SYSTEM
KOMATSU GENERATORS EG200 6D125 ENGINE NIKKO SYSTEM
KOMATSU GENERATORS EG220 94-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU GENERATORS EG220BS 94-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU GENERATORS EG275B 94-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU GENERATORS EG275BS 94-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU LIFT TRUCKS FD200E 94-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU LIFT TRUCKS FD250 94-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU LIFT TRUCKS FD250E 94-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU LIFT TRUCKS FD280 94-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU LIFT TRUCKS FD400 94-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU LIFT TRUCKS FD400E 94-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU MOTOR GRADERS GD600R 85-84 6D105 ENGINE NIKKO SYSTEM
KOMATSU MOTOR GRADERS GD605A 87-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU MOTOR GRADERS GD605R 85-84 6D105 ENGINE NIKKO SYSTEM
KOMATSU MOTOR GRADERS GD623A 94-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU MOTOR GRADERS GD663A 94-86 6D125 ENGINE NIKKO SYSTEM
KOMATSU MOTOR GRADERS GD705A 85-84 6D125 ENGINE NIKKO SYSTEM
KOMATSU MOTOR GRADERS GD750R 85-84 6D125 ENGINE NIKKO SYSTEM
